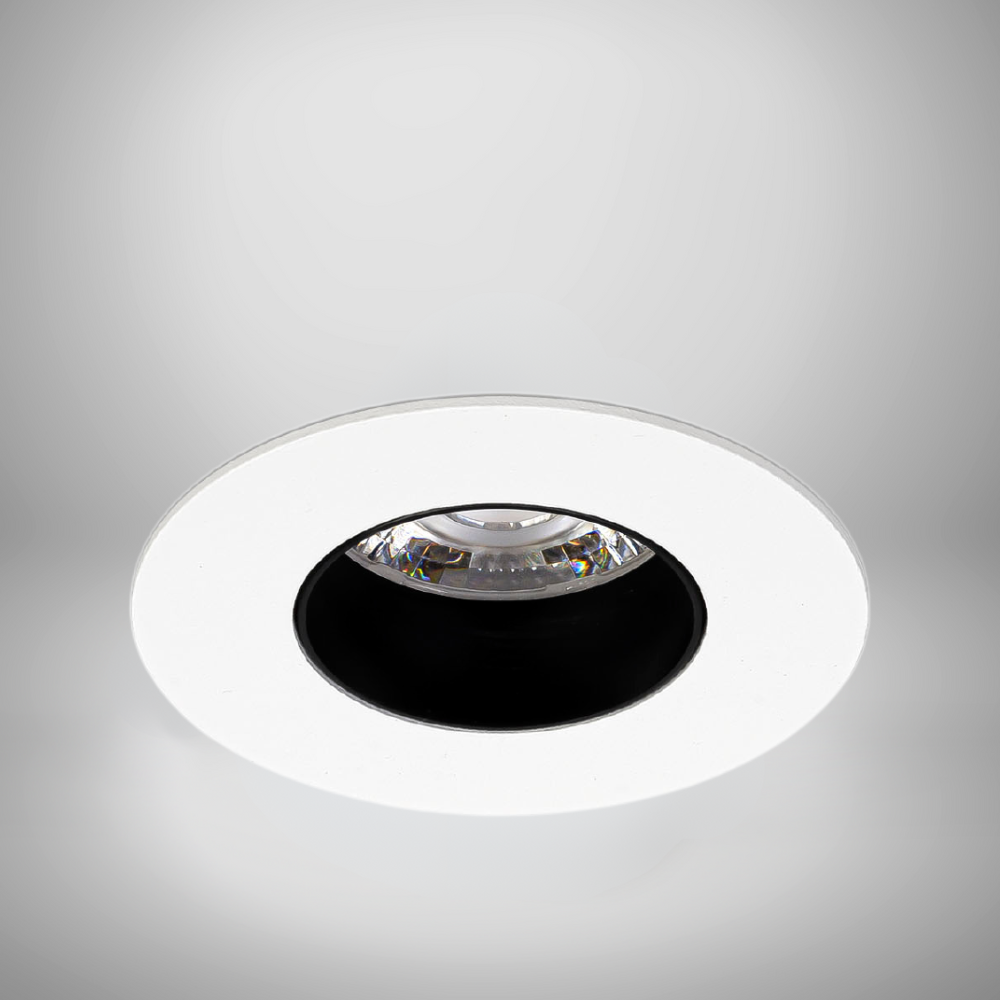

Compact downlight
Aero
Compact recessed IP54 low-glare downlight with published DALI control and emergency options for commercial interiors.
- Cut-out
- 90 mm
- Output
- 675 lm
- Power
- 9 W
- CCT
- 3000 / 4000 / 5500 K
DALI Dimmable Downlights UK
DALI dimmable LED downlights for commercial projects.
Lumenloop manufactures commercial LED downlights with published DALI control options across recessed, adjustable, low-glare and wall-wash product families. Select the DALI driver and fixture alongside the ceiling format, lumen output, wattage, beam angle, CCT and any separate emergency requirement for the individual product range.
DALI control gearRecessed and adjustable rangesLow-glare optics
Product ranges
Compare DALI dimmable LED downlights.
This selection covers compact recessed, adjustable and wall-wash formats. Figures show the published range across models and colour temperatures; confirm the output and power of your chosen DALI configuration when requesting pricing. Compare IP rating, cut-out, lumen output, wattage, beam angle, baffle or reflector and CCT alongside the DALI driver option. Use the individual product page and datasheet for the final selection: a recessed downlight can suit a clean ceiling finish, an adjustable LED downlight can aim light onto shelving or circulation routes, and an asymmetric wall washer can support vertical-surface lighting. Select the colour temperature separately from dimming: check the range for 3000K warm white, 4000K or switchable CCT options. Confirm the selected DALI and separate emergency options when requesting pricing. Browse all commercial downlights for the wider range.
Adjustable downlight
AeroLux
Compact adjustable low-glare downlight with a 36° faceted reflector, DALI dimming and separate emergency options.
- Cut-out
- 70 mm
- Output
- 750–775 lm
- Power
- 8 W
- CCT
- 3000 / 4000 K
Asymmetric downlight
Aspect
Asymmetric wall-wash LED downlight with published DALI, Casambi and emergency variants for controlled display and feature lighting.
- Cut-out
- 222 mm
- Output
- 1,050–4,700 lm
- Power
- 9.5–46.5 W
- CCT
- 3000 / 4000 K
Adjustable downlight
Flexi
Adjustable gimbal downlight with a 40° standard reflector and DALI option. A high colour rendering Ra90 LED module is available.
- Cut-out
- 176 mm
- Output
- 1,100–4,975 lm
- Power
- 8–40.5 W
- CCT
- 3000 / 4000 K
Thin-bezel downlight
Halo
Thin-bezel LED downlight with DALI dimming and separate emergency options. Specify the IP54 sealed-lens option where required.
- Cut-out
- 222 mm
- Output
- 1,075–4,800 lm
- Power
- 9.5–46.5 W
- CCT
- 3000 / 4000 K
Switchable-CCT downlight
Trio
Switchable-CCT IP54 LED downlight with published DALI, Casambi and emergency options.
- Cut-out
- 160 mm
- Output
- 1,125–2,275 lm
- Power
- 11 or 21 W
- CCT
- 3000 / 4000 / 5500 K
Low-glare downlight
Vortex
Compact low-glare LED downlight with a 36° faceted reflector, DALI dimming and separate emergency options.
- Cut-out
- 70 mm
- Output
- 750–775 lm
- Power
- 8 W
- CCT
- 3000 / 4000 K
Asymmetric wall washer
Wave
Asymmetric recessed wall washer with a 40° standard reflector and DALI option for feature lighting. Ra90 high colour rendering is available.
- Cut-out
- 81 × 81 mm
- Output
- 625–1,325 lm
- Power
- 6.5–13.5 W
- CCT
- 2700 / 3000 / 4000 K
DALI specification
Control gear, wiring and commissioning remain explicit.
DALI, the digital addressable lighting interface, is a digital lighting-control protocol. The selected LED downlight and fixture need compatible DALI control gear and driver, coordinated with the project wiring and commissioning arrangement. DALI drivers provide the interface between the lighting-control system and the LED fixture, so choose a DALI-compatible downlight and driver together. On a commercial lighting scheme, DALI is the light-control layer rather than a substitute for optical design; when it is specified and commissioned correctly, it can support smooth dimming and consistent light quality. Confirm the driver, wiring, addressing and commissioning arrangement together, because the same product family can have different control suffixes. For refurbishment work, check existing ceiling openings and control wiring before selecting a replacement. This keeps DALI dimming, lumen output, beam angle and emergency lighting as separate specification decisions.

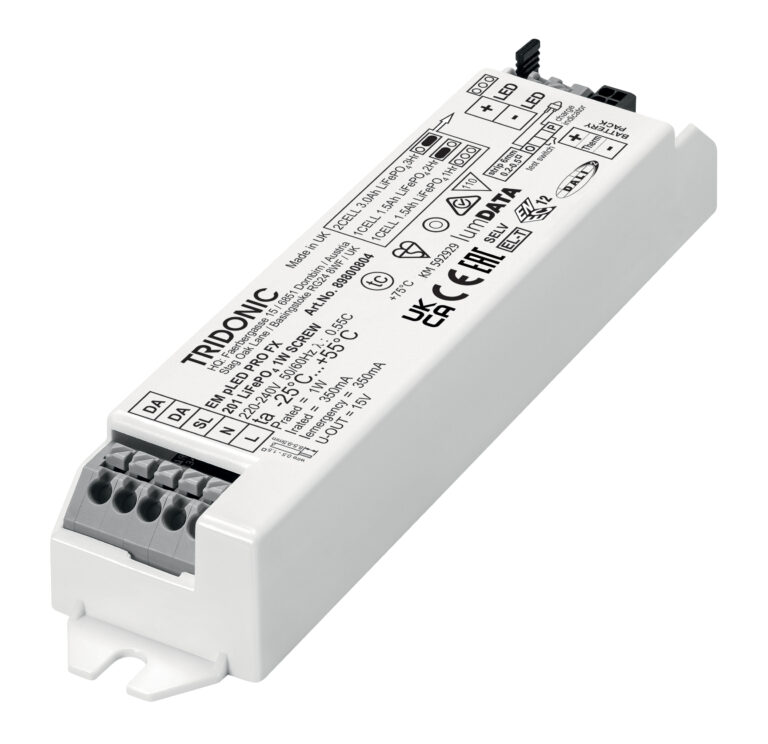

DriverCompatible DALI driver and control gear
The DALI option is selected with the downlight range rather than added as a generic site accessory.
ControlsDALI system addressing and grouping
Individual or grouped light control is established during the DALI system design and commissioning process.
OpticsLumen output, beam angle and glare
Dimming does not replace optical selection. Lumen output, wattage, reflector or baffle, beam angle and ceiling position still define the lit result.
EmergencyEmergency lighting selected separately
Normal DALI dimming and DALI emergency use different control gear and product suffixes, even where both are available on one luminaire family.
Applications
DALI downlights for offices, retail and hospitality interiors.
Addressable dimming can support separately controlled rooms, display zones, reception areas, meeting spaces and hospitality scenes within commercial lighting systems where the chosen downlight and driver are compatible. Precise digital dimming can help a lighting designer coordinate general, display and feature lighting. Specify the output, optic, ceiling position and control arrangement together to keep the lighting design aligned with the space.
Office
Meeting rooms, reception and circulation areas using grouped or addressable lighting control.
Retail
Downlights and wall washers coordinated with display, window and sales-floor lighting groups.
Hospitality
Reception, restaurant, bar and shared spaces where dimming scenes form part of the controls requirement.
Refurbishment
Existing wiring, control topology and ceiling openings are checked before selecting the DALI downlight range.
Questions
DALI dimmable downlight questions.
What is a DALI dimmable downlight?
A DALI dimmable downlight uses compatible DALI control gear so it can receive digital lighting-control commands. DALI is compatible with an LED fixture when the driver supports the protocol; the driver, wiring, addressing and commissioning method must match the project control system.
Is DALI dimming the same as DALI emergency?
No. Normal DALI dimming controls the light output during normal operation. DALI emergency uses dedicated emergency control gear for testing, status queries and emergency operation.
Can DALI downlights also include emergency conversion?
Selected product ranges publish both normal DALI control and emergency variations. They remain separate option decisions and must be confirmed against the product information.
Can DALI downlights be controlled individually or in groups?
They can be addressed individually or grouped during the DALI system design and commissioning process, provided the selected downlight and driver are compatible with the project control arrangement.
What should I include with a DALI downlight pricing request?
Tell us the room or project type, approximate quantity and downlight family or ceiling opening if known. Add lumen output or wattage, colour temperature or CCT, beam angle or optic, and any separate emergency lighting requirement where these are already specified. Drawings are optional; an outline brief is enough to start a DALI downlight enquiry.
Request pricing
Request pricing for DALI dimmable LED downlights.
Tell us about the space and the approximate quantity. Add a product range or ceiling cut-out if known; we can discuss lumen output, wattage, CCT, beam angle, the DALI driver and separate emergency options with you. Drawings are optional, and you can enquire before every detail is decided.
