Output1,075–4,800 lm
HIGH OUTPUT thin-bezel IP54 LED downlight
Halothin-bezel IP54 LED downlight
Reduced-profile bezel.
Up to 4,800 lumens.
Halo is a thin-bezel IP54 LED downlight with luminaire efficacy up to 119 lumens per watt.
- Output
- 1,075–4,800 lm
- Colour temperature
- 3000K / 4000K / 2700-6500K tunable white model dependent
- Options
- 16 listed controls and accessories
01 / 05
Output1,075–4,800 lm
Colour temperature3000K / 4000K / 2700-6500K tunable white
ControlsDALI, Casambi
Ceiling cut-out222 mm
At a glance
Halo thin-bezel IP54 LED downlight quick specification.
Check the installation, output, colour temperature and control information for this thin-bezel IP54 LED downlight before reviewing the full model schedule.

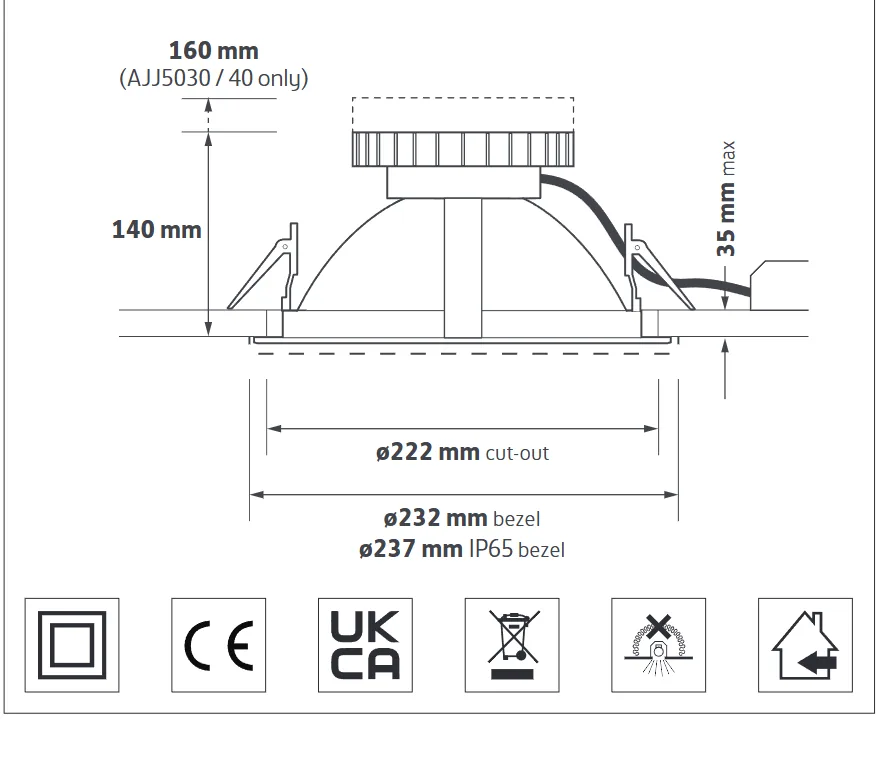

Technical referenceNot to scale
Key specificationCatalogue page 34
- 01Ceiling cut-out
- 222 mm
- 02Bezel
- 232 mm
- 03Output
- 1,075–4,800 lm
- 04System power
- 9.5–46.5 W
- 05CCT
- 3000K / 4000K / 2700-6500K tunable white
- 06Controls
- DALI, Casambi
Product files
Download Halo technical files.
Available files for this exact product are listed below.
Rotational distributionIntensity · cd/klm
Product configurator
Configure your Halo
Choose the Halo model first, then add only the control, optic, emergency, finish or mounting options required for the project.
HALO.000 is the tunable-white model. Confirm availability and tunable-white control gear with the quotation. Fixed-CCT driver upgrades and emergency conversions are unavailable on this model. Contact us for availability and pricing for HALO.000.
LuminaireProduct family
thin-bezel IP54 LED downlightThe Halo LED Downlight uses a Philips LED and driver system, with luminaire efficacy up to 119 lumens per watt
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
Technical description
Thin-bezel IP54 LED downlight specification for Halo.
The Halo LED Downlight uses a Philips LED and driver system, with luminaire efficacy up to 119 lumens per watt. Key specification details include life >60,000 hours (L70 / B10). For an office scheme, compare mounting and glare requirements across our office lighting range.
Halo construction and mounting
For thin bezel downlight specifications, compare the model codes, outputs and available options below.
Performance and installation details include life >60,000 hours (L70 / B10). This section covers output, optics, mounting and controls.
Output, optics and colour temperature
Luminaire efficacy up to 104 lm/W.
Halo output is 1,075–4,800 lm.
Published output and system power are listed by model in the specification schedule.
Controls, emergency and project options
Control options include Touch dimming or DALI, Casambi wireless control.
Emergency options include 3-hour emergency, Self-test or DALI emergency, Emergency with integral indicator, DALI emergency with integral indicator.
System power9.5–46.5 W
Colour temperature3000K / 4000K / 2700-6500K tunable white
FinishSee datasheet
ControlsDALI, Casambi
EmergencyThree-hour emergency, Self-test emergency, DALI emergency, Integral emergency
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typethin-bezel IP54 LED downlight
Model codesHALO.001, HALO.002, HALO.003, HALO.004, HALO.005, HALO.006, HALO.007, HALO.008, HALO.000
Output1,075–4,800 lm
System power9.5–46.5 W
Colour temperature3000K / 4000K / 2700-6500K tunable white
FinishSee datasheet
ControlsDALI, Casambi
EmergencyThree-hour emergency, Self-test emergency, DALI emergency, Integral emergency
Models, options and accessories
Halo model codes and specification options.
Choose the Halo base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes9 listed configurations
Output, colour temperature and power are shown for each model.
1,075 lm / 3000K / 9.5 W
1,175 lm / 4000K / 9.5 W
1,850 lm / 3000K / 17.5 W
2,000 lm / 4000K / 17.5 W
2,850 lm / 3000K / 30 W
3,075 lm / 4000K / 30 W
4,425 lm / 3000K / 46.5 W
4,800 lm / 4000K / 46.5 W
2,050 lm / 2700–6500K / 27.5 W; confirm availability and tunable-white control gear with the quotation
Additional Halo options and accessoriesProduct images and specification choices
Controls/T+DALI
Touch dimming or DALI
Controls/BTC
Casambi wireless control
Emergency/EM
3-hour emergency
Emergency/EMD
Self-test or DALI emergency
Emergency/EMI
Emergency with integral indicator
Emergency/EMDI
DALI emergency with integral indicator
Beam & Optics/MF40
40 degree multi-faceted reflector
Protection/54
IP54 protected option
Protection/65
IP65 protected option
AccessoriesIP65/002/240
IP65 clear glass bezel
AccessoriesIP65/008/240
IP65 opal polycarbonate bezel
AccessoriesIP65/009/240
IP65 clear polycarbonate bezel
AccessoriesGF208 / GF218
Anti-tamper driver and bit
Custom configurationCustom configuration
Any RAL bezel colour
Custom configurationCustom configuration
Choice of connectors
Custom configurationCustom configuration
LSOH or LSF cable
Custom configurationCustom configuration
High-ambient build
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Halo
Why specify this thin-bezel IP54 LED downlight?
The Halo LED Downlight uses a Philips LED and driver system, with luminaire efficacy up to119 lumens per watt
High output with tunable white, controls and protected bezel choices kept separate
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
Reduced-profile bezel
A restrained RAL9016 ceiling detail around the optical system.
8 listed model choices
Fixed-CCT outputs extend to 4,800 lumens with a tunable-white variant.
Reflector choice
A 50 degree satin reflector is standard with a 40 degree multi-faceted option.
Protected configurations
IP54 and IP65 arrangements sit alongside control and emergency suffixes.
Output1,075–4,800 lm9 listed models
CCT3000K / 4000K / 2700-6500K tunable whiteModel dependent
Options16Controls and accessories
Typical applicationsWhere Halo is specified
Commercial interiors
High-output recessed lighting for open and circulation spaces.
Retail
Controlled general lighting with reflector and CCT choices.
Hospitality
A reduced-profile ceiling detail for reception and public areas.
Refurbishment
Cut-out tolerance and protected bezel configurations for varied projects.
Compare Halo with the wider commercial downlights when reviewing output, optics, mounting, controls and emergency requirements.
high-efficacy IP54 LED downlight
Eco
High-efficacy IP54 LED downlight. Review the model schedule and compatible options.
Compare product →
high-output LED downlight
Efficace
High-output LED downlight. Review the model schedule and compatible options.
Compare product →
IP54 LED downlight
Aero
IP54 LED downlight. Review the model schedule and compatible options.
Compare product →Specification questions
Halo details worth checking.
9 configurations are listed: HALO.001, HALO.002, HALO.003, HALO.004, HALO.005, HALO.006, HALO.007, HALO.008, HALO.000.
Models cover 1,075–4,800 lm and 9.5–46.5 W. See the model schedule for individual output, power and CCT.
Control options include DALI, Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options include Three-hour emergency, Self-test emergency, DALI emergency, Integral emergency. Select the emergency requirement separately from the base model and normal control method.
The Halo requires a 222 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Halo datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
