Ceiling cut-out222 mm
WALL WASH perimeter wall wash downlight
Aspectperimeter wall wash downlight
Light the perimeter.
Control the vertical.
Aspect is a perimeter wall wash downlight for wall wash lighting, accent lighting and perimeter illumination, with a satin etched reflector, reduced-profile bezel, Philips LED and driver system, IP54 or IP65 options, and DALI, Casambi and emergency variants.
- Output
- 1,050–4,700 lm 8 model codes
- Colour temperature
- 3000K / 4000K model dependent
- Options
- 17 listed controls and accessories
01 / 06
Output1,050–4,700 lm
Colour temperature3000K / 4000K
ControlsDALI, Casambi
Ceiling cut-out222 mm
Product configurator
Configure your Aspect
Choose the Aspect model first, then add only the control, optic, emergency, finish or mounting options required for the project.
LuminaireProduct family
perimeter wall wash downlightAspect is an asymmetric LED downlight for wall wash lighting, accent lighting and perimeter illumination, with a satin etched reflector, reduced-profile bezel, Philips LED and driver system, IP54 or IP65 options, and DALI, Casambi and emergency variants.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Aspect perimeter wall wash downlight quick specification.
Check the installation, output, colour temperature and control information for this perimeter wall wash downlight before reviewing the full model schedule.
Bezel232 mm
Output1,050–4,700 lm
System power9.5–46.5 W
CCT3000K / 4000K
ControlsDALI, Casambi
Product files
Download Aspect technical files.
Available files for this exact product are listed below.
Technical description
Asymmetric LED downlight specification for Aspect.

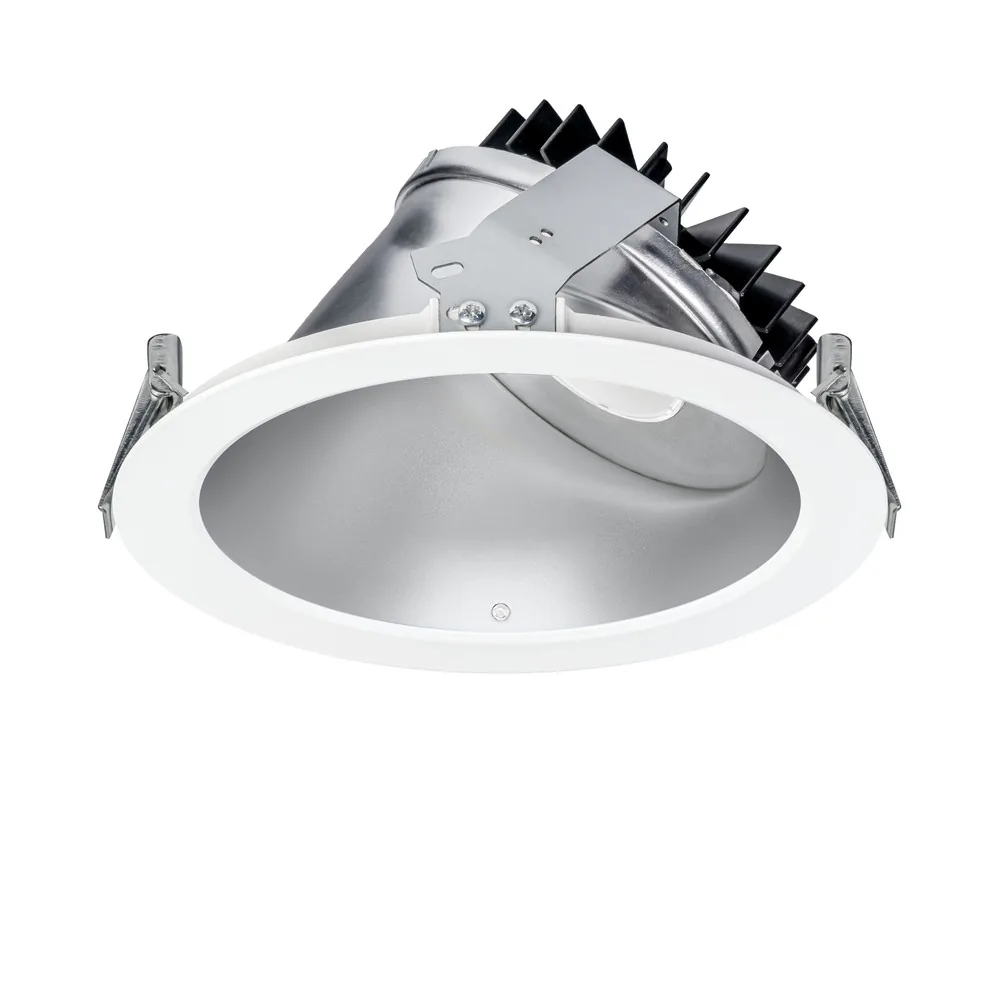

Aspect is an asymmetric LED downlight built for wall wash lighting, accent lighting and perimeter lighting where a defined throw is more important than a standard circular downlight distribution. The family uses a satin etched reflector and a reduced-profile bezel in RAL 9016 white to keep the fitting discreet while still directing light where the scheme needs it.
Aspect construction and mounting
For wall wash downlight specifications, compare the model codes, outputs and available options below.
Model codes ASPECT.001 to ASPECT.008 span outputs from 1050 lm to 4700 lm across 9.5 W, 17.5 W, 30.5 W and 46.5 W steps, with fixed 3000K and 4000K options. That gives Aspect a more specific commercial fit around asymmetric wall-wash and perimeter applications rather than a broad downlight search term.
Output, optics and colour temperature
Aspect output is 1,050–4,700 lm.
System power options are 9.5–46.5 W.
Colour temperature options are 3000K / 4000K.
Controls, emergency and project options
The datasheet data also lists efficacy up to 114 lm/W, Philips LED and driver system, IP54 and IP65 options, DALI, dimming and emergency variants, plus cut-out tolerance of +/- 4 mm for retrofit work. Together those details make Aspect relevant where the project requires asymmetric output, a clean recessed bezel and practical specification flexibility.
IP54 or IP65 options with DALI, Casambi and emergency variants.
Control options include Touch dimming or DALI, Casambi wireless.
Output1,050–4,700 lm
System power9.5–46.5 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsDALI, Casambi
EmergencySelf-test emergency, DALI emergency, Integral emergency, Remote-indicator emergency
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typeperimeter wall wash downlight
Model codesASPECT.001, ASPECT.002, ASPECT.003, ASPECT.004, ASPECT.005, ASPECT.006, ASPECT.007, ASPECT.008
Output1,050–4,700 lm
System power9.5–46.5 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsDALI, Casambi
EmergencySelf-test emergency, DALI emergency, Integral emergency, Remote-indicator emergency
Models, options and accessories
Aspect model codes and specification options.
Choose the Aspect base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes8 listed configurations
8 models are shown with output, CCT and power information where available.
1,050 lm3000K9.5 W
1,150 lm4000K9.5 W
1,825 lm3000K17.5 W
1,975 lm4000K17.5 W
2,775 lm3000K30.5 W
3,025 lm4000K30.5 W
4,325 lm3000K46.5 W
4,700 lm4000K46.5 W
Additional Aspect options and accessoriesProduct images and specification choices
Protection/54
IP54 sealed lens
Protection/65
IP65 option with a separately selected bezel
Controls/T+DALI
Touch dimming or DALI control gear
Controls/BTC
Casambi wireless network including dimming
Emergency/EM
Emergency conversion with remote indicator
Emergency/EMD
DALI or self-test emergency conversion with remote indicator
Emergency/EMI
Emergency conversion with integral indicator
Emergency/EMDI
DALI or self-test emergency conversion with integral indicator
AccessoriesIP65/002/240
IP65 RAL 9010 bezel with clear glass
AccessoriesIP65/008/240
IP65 RAL 9010 bezel with opal polycarbonate
AccessoriesIP65/009/240
IP65 RAL 9010 bezel with clear polycarbonate
AccessoriesGF008
Anti-tamper driver
AccessoriesGF010
Anti-tamper bit
Custom configurationCustom configuration
Any RAL colour bezel
Custom configurationCustom configuration
Choice of connectors
Custom configurationCustom configuration
LSOH or LSF cable
Custom configurationCustom configuration
Configuration for high ambient temperatures
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Aspect
Why specify this perimeter wall wash downlight?
Aspect is an asymmetric LED downlight for wall wash lighting, accent lighting and perimeter illumination, with a satin etched reflector, reduced-profile bezel, Philips LED and driver system, IP54 or IP65 options, and DALI, Casambi and emergency variants.
The 8-model family combines 1,050–4,700 lm, 3000K / 4000K and 17 listed configuration choices without changing the core product identity.
Asymmetric distribution with control, emergency and ingress options kept explicit
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
Asymmetric wall wash
A satin-etched asymmetric reflector directs light towards walls and perimeter surfaces.
Eight model codes
Outputs run from 1,050 to 4,700 lumens in 3000K and 4000K choices.
IP54 and IP65 options
Sealed lens and protected bezel arrangements are listed for suitable applications.
Controls and emergency
DALI, Casambi and four distinct emergency arrangements remain explicit.
Output1,050–4,700 lm8 listed models
CCT3000K / 4000KModel dependent
Options18Controls and accessories
Typical applicationsWhere Aspect is specified
Feature walls
Controlled vertical illumination for architectural finishes, displays and focal surfaces.
Retail perimeters
Asymmetric downlighting for merchandise walls and perimeter circulation.
Hospitality
Wall washing for reception, lounge, dining and corridor interiors.
Commercial interiors
Perimeter illumination for reception, circulation and shared spaces.
Compare Aspect with the wider commercial downlights when reviewing output, optics, mounting, controls and emergency requirements.
LED wall washer
Edge
The Edge Architectural LED Wall Washer delivers controlled illumination for walls and architectural features.
Compare product →
asymmetric LED wall washer
Wave
Wave is an asymmetric LED wall washer with minimal glare.
Compare product →
IP54 LED downlight
Aero
Aero is an IP54 LED downlight designed for commercial applications.
Compare product →Specification questions
Aspect details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
8 configurations are listed: ASPECT.001, ASPECT.002, ASPECT.003, ASPECT.004, ASPECT.005, ASPECT.006, ASPECT.007, ASPECT.008.
Published models cover 1,050–4,700 lm. Colour-temperature choices are 3000K / 4000K.
Control options include DALI, Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options include Self-test emergency, DALI emergency, Integral emergency, Remote-indicator emergency. Select the emergency requirement separately from the base model and normal control method.

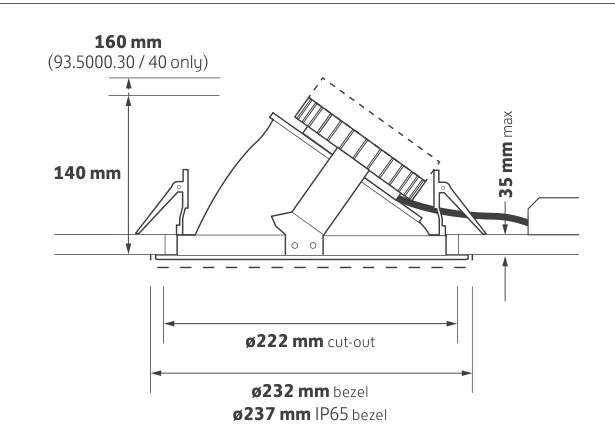

The Aspect requires a 222 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Aspect datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
