Ceiling cut-out160 mm
DOWNLIGHTS colour switchable IP54 downlight
Triocolour switchable IP54 downlight
Trio.
colour switchable IP54 downlight.
Trio is a colour switchable IP54 downlight with a recessed opal PC diffuser, two 3-CCT model codes, 1200 lm and 2275 lm outputs, Tridonic-powered SMD LEDs, and mains dimming, DALI, Casambi and emergency options.
- Output
- 1,200–2,275 lm 2 model codes
- Colour temperature
- 3000K / 4000K / 5500K model dependent
- Options
- 5 listed controls and accessories
01 / 06
Output1,200–2,275 lm
Colour temperature3000K / 4000K / 5500K
ControlsMains dimming, DALI, SwitchDIM, DSI, Casambi
Ceiling cut-out160 mm
Product configurator
Configure your Trio
Choose the Trio model first, then add only the control, optic, emergency, finish or mounting options required for the project.
LuminaireProduct family
colour switchable IP54 downlightTrio is a colour switchable IP54 downlight with a recessed opal PC diffuser, two 3-CCT model codes, 1200 lm and 2275 lm outputs, Tridonic-powered SMD LEDs, and mains dimming, DALI, Casambi and emergency options.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Trio colour switchable IP54 downlight quick specification.
Check the installation, output, colour temperature and control information for this colour switchable IP54 downlight before reviewing the full model schedule.
Bezel190 mm
Output1,200–2,275 lm
System power11 W / 21 W
CCT3000K / 4000K / 5500K
ControlsMains dimming, SwitchDIM, DSI, DALI, Casambi
Product files
Download Trio technical files.
Available files for this exact product are listed below.
Rotational distributionIntensity · cd/klm
Technical description
3-CCT IP54 opal diffuser downlight specification for Trio.

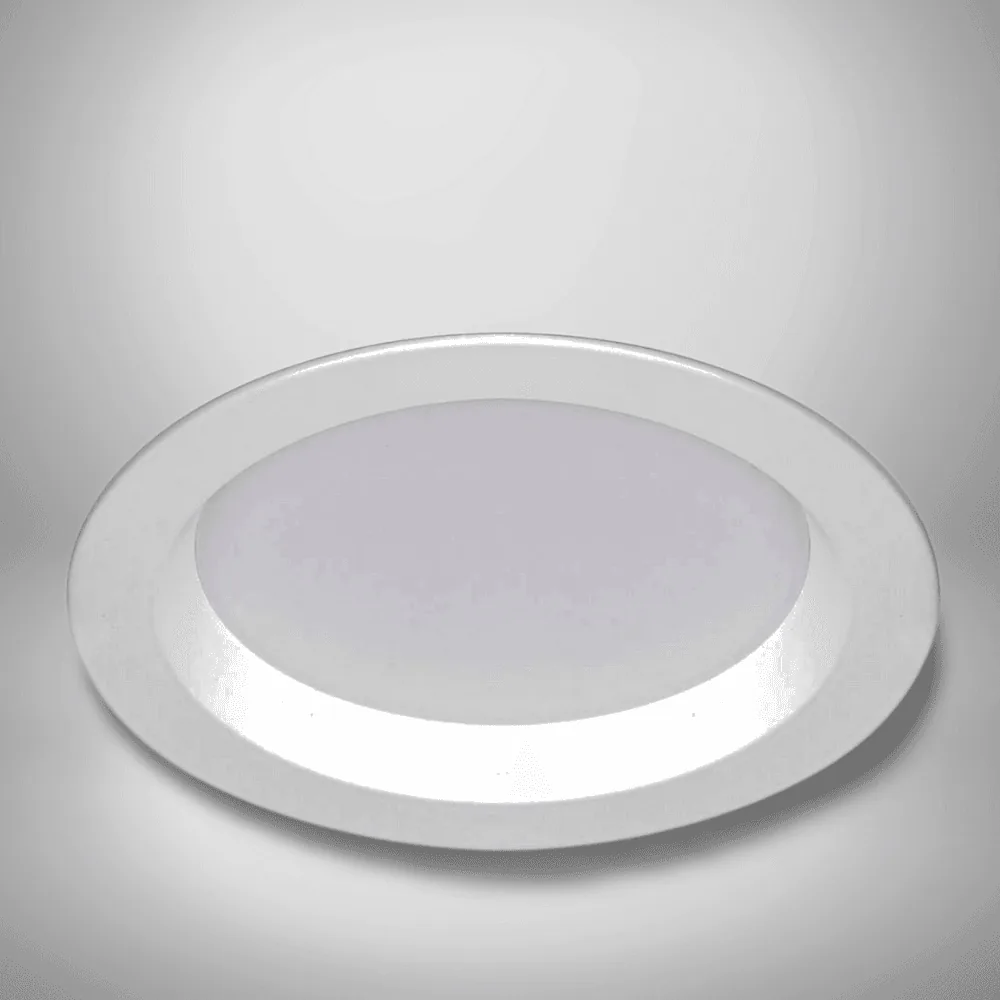

Trio is a colour switchable IP54 downlight for commercial interiors that want the softer appearance of a recessed opal diffuser instead of a reflector-led aperture. The defining feature of the range is its 3-CCT switching, giving each listed model access to 3000K, 4000K and 5500K within the same fitting family.

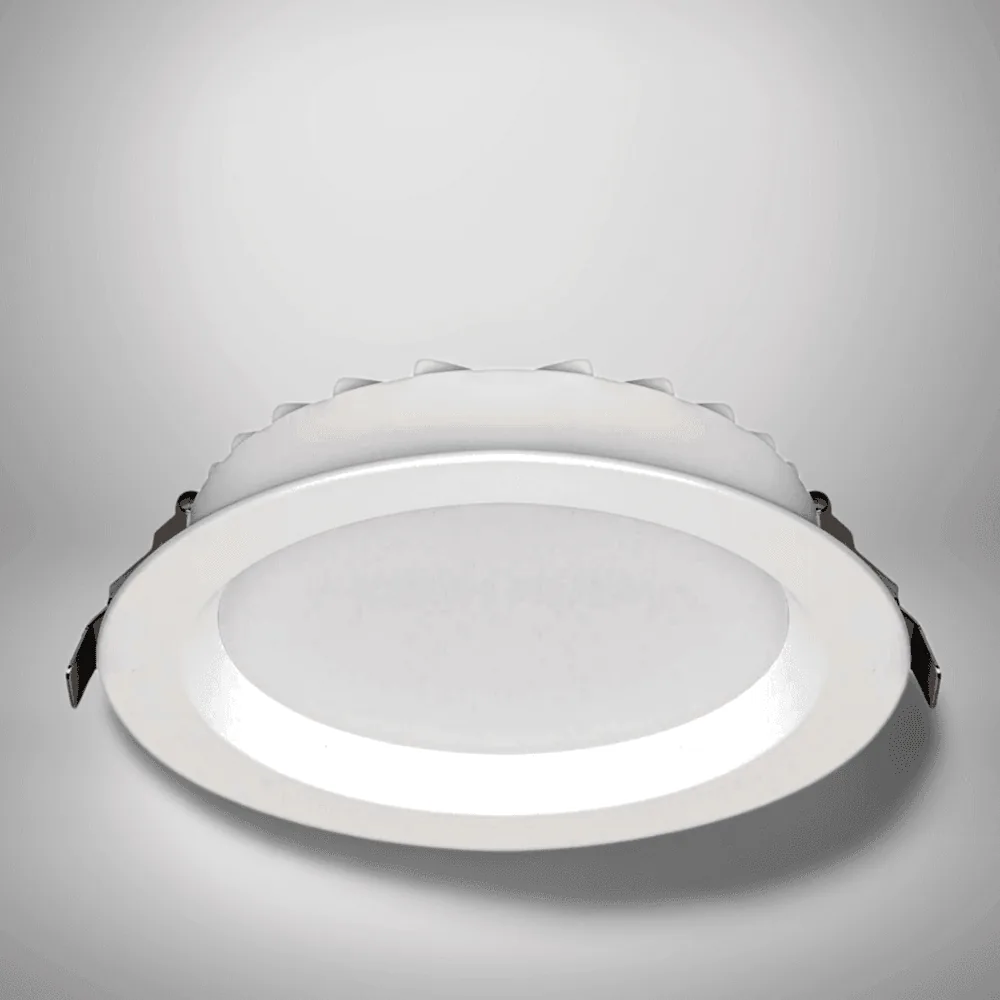

Trio construction and mounting
Model codes TRIO.001 and TRIO.002 cover 1200 lm at 11 W and 2275 lm at 21 W. That keeps the range tight and readable while still giving two clear output steps for projects comparing a lower-output colour switchable IP54 downlight against a higher-output option.
Output, optics and colour temperature
For colour-switchable diffuser downlight specifications, compare the model codes, outputs and available options below.
Trio output is 1,200–2,275 lm.
System power options are 11 W / 21 W.
Controls, emergency and project options
Controls include mains dimming (/MDIM), DALI / SwitchDIM / DSI (/ECO) and Casambi wireless (/BTC). Emergency variants include 3-hour emergency (/EM) and self-test / DALI emergency (/EMD).
Trio is a colour switchable IP54 downlight with a recessed opal PC diffuser, two 3-CCT model codes, 1200 lm and 2275 lm outputs, Tridonic-powered SMD LEDs, and mains dimming, DALI, Casambi and emergency options.
Control options include Mains dimming, DALI / SwitchDIM / DSI, Casambi wireless.
Output1,200–2,275 lm
System power11 W / 21 W
Colour temperature3000K / 4000K / 5500K
FinishSee datasheet
ControlsMains dimming, DALI, SwitchDIM, DSI, Casambi
EmergencyThree-hour emergency, Self-test emergency, DALI emergency
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typecolour switchable IP54 downlight
Model codesTRIO.001, TRIO.002
Output1,200–2,275 lm
System power11 W / 21 W
Colour temperature3000K / 4000K / 5500K
FinishSee datasheet
ControlsMains dimming, DALI, SwitchDIM, DSI, Casambi
EmergencyThree-hour emergency, Self-test emergency, DALI emergency
Models, options and accessories
Trio model codes and specification options.
Choose the Trio base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes2 listed configurations
2 model configurations are shown with their output, CCT, power and finish information where available.
1,200 lm11 W
2,275 lm21 W
Additional Trio options and accessoriesProduct images and specification choices
Controls/MDIM
Phase-cut mains dimming
Controls/ECO
Specification dimming and control gear
Controls/BTC
Casambi Bluetooth wireless control
Emergency/EM
3-hour emergency conversion
Emergency/EMD
Self-test or DALI emergency conversion
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Trio
Why specify this colour switchable IP54 downlight?
Trio is a colour switchable IP54 downlight with a recessed opal PC diffuser, two 3-CCT model codes, 1200 lm and 2275 lm outputs, Tridonic-powered SMD LEDs, and mains dimming, DALI, Casambi and emergency options.
The 2-model family combines 1,200–2,275 lm, 3000K / 4000K / 5500K and 5 listed configuration choices without changing the core product identity.
Trio options kept clear for project specification
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
98% recyclable
Trio is available for projects requiring 98% recyclable lighting.
architectural
Trio is available for projects requiring architectural lighting.
commercial
Trio is available for projects requiring commercial lighting.
IP54
Trio is available for projects requiring ip54 lighting.
Output1,200–2,275 lm2 listed models
CCT3000K / 4000K / 5500KModel dependent
Options5Controls and accessories
Typical applicationsWhere Trio is specified
Downlights
Use Trio where downlights lighting is required.
Commercial interiors
Trio is a colour switchable IP54 downlight with a recessed opal PC diffuser, two 3-CCT model codes, 1200 lm and 2275 lm outputs, Tridonic-powered SMD LEDs, and mains dimming, DALI, Casambi and emergency options.
Commercial interiors
Trio is a colour switchable IP54 downlight with a recessed opal PC diffuser, two 3-CCT model codes, 1200 lm and 2275 lm outputs, Tridonic-powered SMD LEDs, and mains dimming, DALI, Casambi and emergency options.
Commercial interiors
Trio is a colour switchable IP54 downlight with a recessed opal PC diffuser, two 3-CCT model codes, 1200 lm and 2275 lm outputs, Tridonic-powered SMD LEDs, and mains dimming, DALI, Casambi and emergency options.
Compare Trio with the wider downlights when reviewing output, optics, mounting, controls and emergency requirements.
IP54 LED downlight
Aero
Aero is an IP54 LED downlight designed for commercial applications.
Compare product →
switchable CCT LED downlight
Lumi
Lumi is a switchable CCT LED downlight with recessed opal PC diffuser optics, 3000K, 4000K and 5600K model options, a Tridonic-powered SMD LED platform, and tunable white + DALI, Casambi and emergency variants.
Compare product →
IP54 recessed LED downlight
Optix
Optix is an IP54 recessed LED downlight designed for glare-free illumination in commercial, retail, and hospitality spaces.
Compare product →Specification questions
Trio details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
2 configurations are listed: TRIO.001, TRIO.002.
The product family covers 1,200–2,275 lm. Colour-temperature choices are 3000K / 4000K / 5500K.
Control options include Mains dimming, DALI, SwitchDIM, DSI, Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options include Three-hour emergency, Self-test emergency, DALI emergency. Select the emergency requirement separately from the base model and normal control method.
The Trio requires a 160 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Trio datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
