IP54 IP54 LED downlight

IP54 LED downlight – Aero

Small aperture.
Professional control.

Aero is an IP54 LED downlight designed for commercial applications. Its low-glare specular reflector and SMD LED technology, powered by Tridonic, provide efficient, comfortable illumination.

Output: 672 lm 1 model codes
Colour temperature: 3000K / 4000K / 5500K model dependent
Options: Needs confirmation controls and accessories

01 / 05

Compact downlightIP54Tridonic-powered optical system

Output: 672 lm
CCT: 3000K / 4000K / 5500K
Options: Needs confirmation

Model codesAERO.001672 lm · 3000K / 4000K / 5500K

Output672 lm

Colour temperature3000K / 4000K / 5500K

ControlsNeeds confirmation

Ceiling cut-out90 mm

Product configurator

Configure your Aero

Choose the Aero model and quantity. Confirm any required controls, emergency options or accessories before ordering.

LuminaireProduct family

IP54 LED downlightThe Aero is a compact, IP54-rated downlight designed for commercial applications. Its low-glare specular reflector and SMD LED technology, powered by Tridonic, provide efficient, comfortable illumination

Output and CCT1 listed model choices

QuantityNumber of fittings

fittingsAdded to the quotation email

Technical filesProduct and design information

Datasheet Installation guide Photometric data BIM file

At a glance

Aero IP54 LED downlight quick specification.

Check the installation, output, colour temperature and control information for this IP54 LED downlight before reviewing the full model schedule.

Configure Aero Request pricing

Aero technical line drawing on a white background — **Aero**Product geometry and mounting reference

Key specificationCatalogue page 6

01Ceiling cut-out: 90 mm
02Output: 672 lm
03System power: 9 W
04CCT: 3000K / 4000K / 5500K
05Controls: Needs confirmation
06Emergency: Needs confirmation

Product files

Download Aero technical files.

Available files for this exact product are listed below.

DatasheetPDF download Installation guidePDF download Photometric dataZIP download BIM fileZIP download

Polar luminous intensityAERO.001 · verified 35-Series LDT data

Rotational distributionIntensity · cd/klm

Technical description

IP54 LED downlight specification for Aero.

Aero is a compact IP54 LED downlight for commercial interiors where low glare, clean bezel detailing and a smaller recessed fitting matter. Colour-switchable 3000K / 4000K / 5500K settings support projects requiring one product family across different ceiling areas. The low-glare specular reflector supports controlled visual comfort, while the Tridonic LED and driver platform provides a proven commercial LED and driver base.

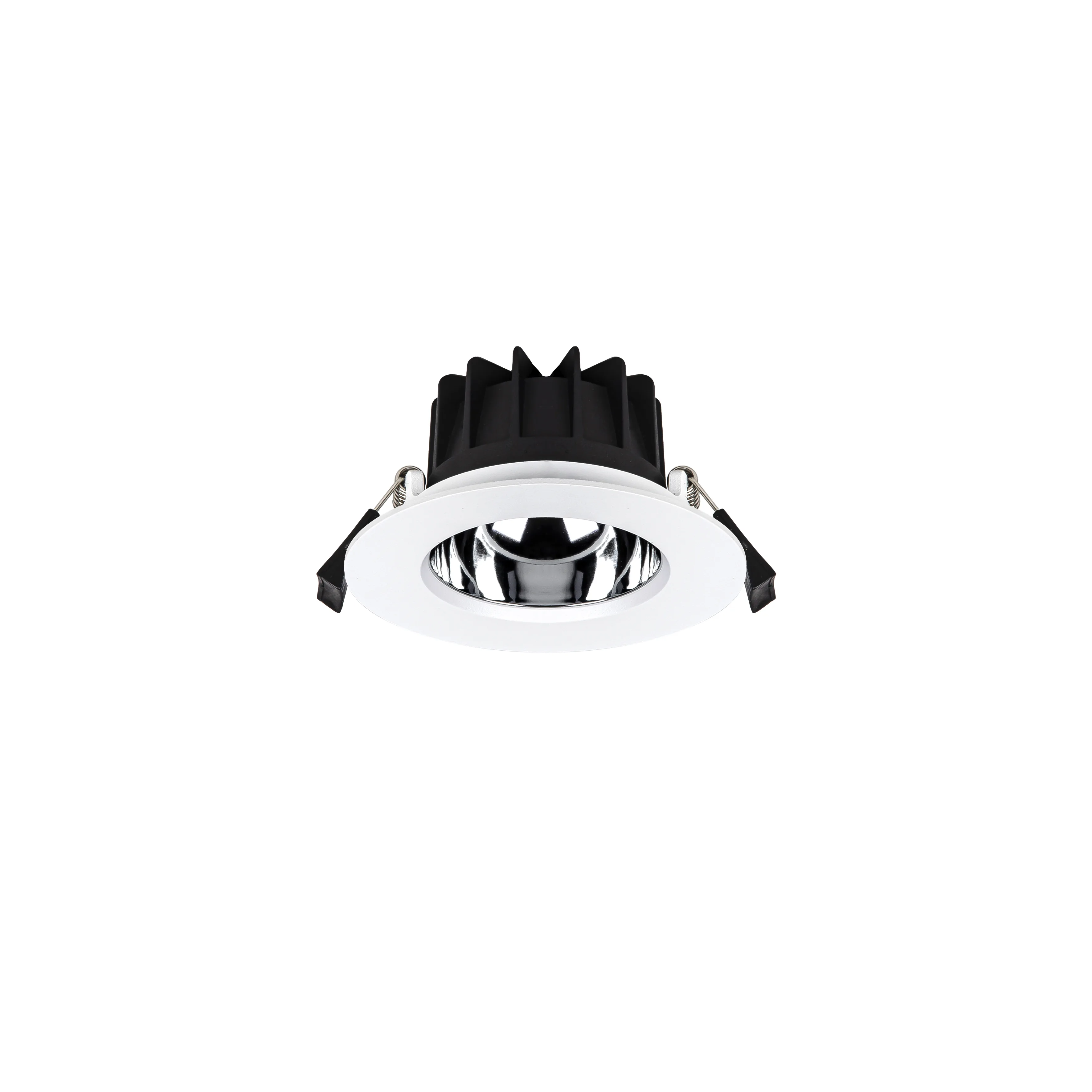

Aero construction and mounting

Compact IP54-rated downlight.

Tridonic-powered SMD LED technology.

Output, optics and colour temperature

Model code AERO.001 delivers 672 lm at 9 W and changes between 3000K / 4000K / 5500K from one compact fitting. The range is rated at >50,000 hours (L70 / B50), giving a clear life figure for maintenance planning on refurbishment and new-build projects.

Aero output is 672 lm.

System power options are 9 W.

Controls, emergency and project options

Controls and emergency options need confirmation before specification.

Output672 lm

System power9 W

Colour temperature3000K / 4000K / 5500K

FinishSee datasheet

ControlsNeeds confirmation

EmergencyNeeds confirmation

Download Aero datasheet Configure Aero

See the Lumenloop commercial downlights range for related mounting, output and optic options.

Product typeIP54 LED downlight

Model codesAERO.001

Output672 lm

System power9 W

Colour temperature3000K / 4000K / 5500K

FinishSee datasheet

ControlsNeeds confirmation

EmergencyNeeds confirmation

Models, options and accessories

Aero model codes and specification options.

Choose the Aero base model, then review the available controls, emergency arrangements, optics and accessories.

Model codes1 listed configuration

1 model configuration is shown with their output, CCT, power and finish information where available.

3000K / 4000K / 5500KAERO.001

672 lm9 W

Options and accessories

Confirm the required Aero options.

Controls, emergency arrangements and accessories need confirmation for the selected Aero configuration before ordering.

Controls, emergency options and accessories need confirmation before ordering.

Configure these options Request a quote

Why Aero

Why specify this IP54 LED downlight?

The Aero is a compact, IP54-rated downlight designed for commercial applications. Its low-glare specular reflector and SMD LED technology, powered by Tridonic, provide efficient, comfortable illumination

The 1-model family combines 672 lm, 3000K / 4000K / 5500K and control and emergency options that need confirmation without changing the core product identity.

A compact commercial downlight with selectable CCT

The configurator records the base model and quantity. Additional options need confirmation.

This keeps the fitting code readable while retaining the breadth of the current product range.

Compact format

A discreet commercial downlight for tighter ceiling layouts.

IP54 protection

Published ingress protection for suitable interior applications.

Tridonic platform

SMD LED technology with professional control gear choices.

Control flexibility

Confirm driver compatibility and available control options before specification.

Output672 lm1 listed models

CCT3000K / 4000K / 5500KModel dependent

OptionsNeeds confirmationControls and accessories

Typical applicationsWhere Aero is specified

Commercial interiors

Compact recessed lighting for circulation and support spaces.

Hospitality

Discreet downlighting where a small ceiling aperture is preferred.

Reception areas

Low-glare reflector control for comfortable ambient lighting.

Refurbishment

A compact fitting with wired and wireless control choices.

Compare Aero with the wider commercial downlights when reviewing output, optics, mounting, controls and emergency requirements.

Build your Aero Specification support

Specification questions

Aero details worth checking.

Direct answers for consultants, contractors and commercial lighting buyers.

Configure Aero Ask about Aero

Which Aero model codes are available?

1 configuration is listed: AERO.001.

Which outputs and colour temperatures are available?

The product family covers 672 lm. Colour-temperature choices are 3000K / 4000K / 5500K.

Which control options can be specified?

Control options and the matching control gear need confirmation before specification.

Which emergency options are available?

Emergency availability and testing arrangements need confirmation before specification.

What ceiling cut-out does Aero require?

The Aero requires a 90 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.

How do I request a quotation?

Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.

Is the Aero datasheet available?

Yes. The Aero datasheet is linked in the hero, configurator and technical section.

What is the standard lead time for Aero?

Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.

Product quotation

Request a quotation for Aero.

Send the selected code, quantity and any mounting, control, emergency or finish requirements. Your configurator choices are carried into the form automatically.

Configuration retainedThe product code and quantity update as you configure the fitting.

Useful project detailAdd the application, required date and any option requirements you already know.

Direct contactPrefer to speak? Call 02045 721 554 or email Lumenloop.

Average lead time10 working days for standard product configurations. Custom accessories, custom finishes and other custom variations are excluded; contact us to confirm timing.
