Output1,000–4,550 lm
HIGH CRI adjustable high-CRI LED downlight
Flexiadjustable high-CRI LED downlight
Aim the source.
Keep the colour accurate.

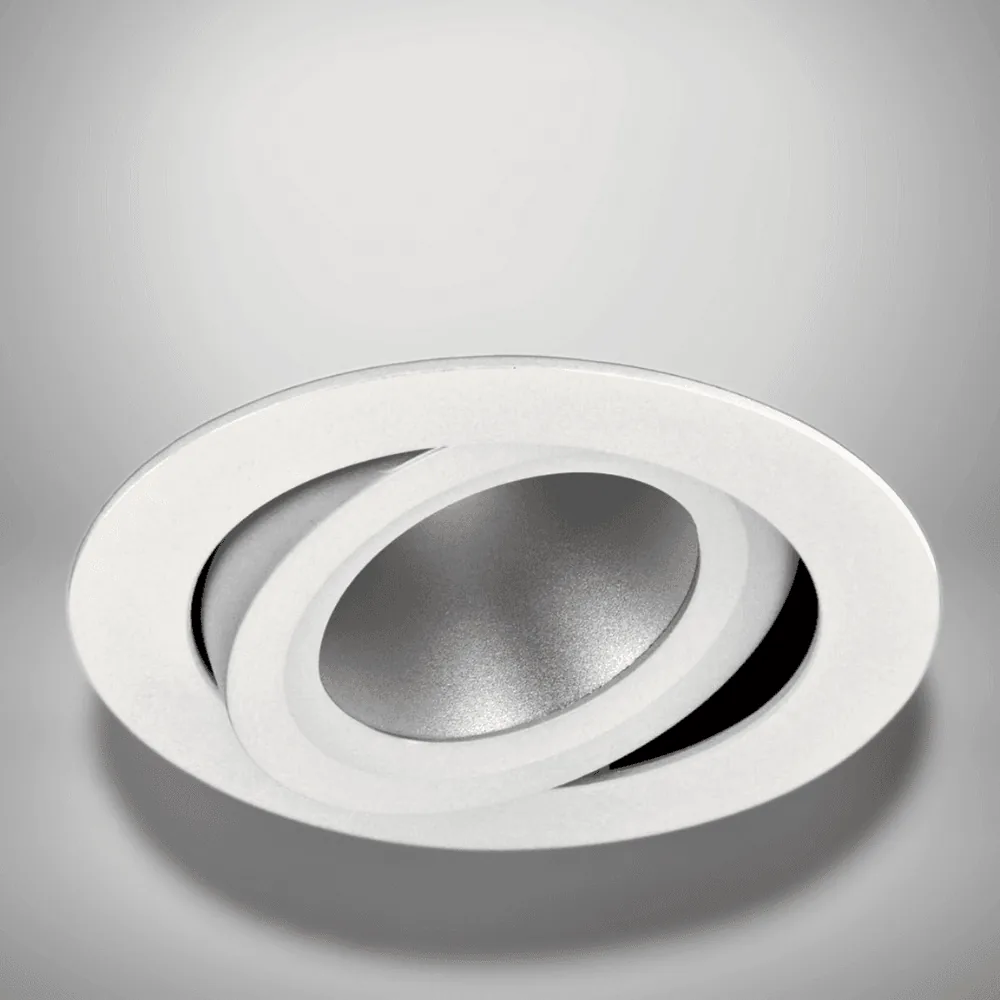

Flexi is an adjustable high-CRI LED downlight with Philips technology, Ra90 colour accuracy, adjustable beam control, DALI, Casambi wireless and emergency options for office, retail and heritage interiors.
- Output
- 1,000–4,550 lm 10 model codes
- Colour temperature
- 3000K / 4000K model dependent
- Options
- 17 listed controls and accessories
01 / 07
Output1,000–4,550 lm
Colour temperature3000K / 4000K
ControlsDALI, Casambi
Ceiling cut-outØ 176 mm
Product configurator
Configure your Flexi
Choose the Flexi model first, then add only the control, optic, emergency, finish or mounting options required for the project.
LuminaireProduct family
adjustable high-CRI LED downlightFlexi is an adjustable LED downlight with Philips technology, Ra90 colour accuracy, adjustable beam control, DALI, Casambi wireless and emergency options for office, retail and heritage interiors.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Flexi adjustable high-CRI LED downlight quick specification.
Check the installation, output, colour temperature and control information for this adjustable high-CRI LED downlight before reviewing the full model schedule.
Technical referenceNot to scale
Key specificationSource-backed summary
- 01Ceiling cut-out
- Ø 176 mm
- 02Bezel diameter
- Ø 186 mm
- 03Output
- 1,000–4,550 lm
- 04System power
- 8.0 W / 13.5 W / 19.0 W / 27.0 W / 40.0 W
- 05CCT
- 3000K / 4000K
- 06Controls
- DALI, Casambi
Product files
Download Flexi technical files.
Available files for this exact product are listed below.
Technical description
Adjustable high-CRI LED downlight for recessed commercial lighting.
Flexi is a recessed, adjustable high-CRI LED downlight with Philips technology and Ra90 colour accuracy. Designed for commercial lighting schemes, this family of adjustable LED downlights combines controlled beam distribution with DALI, Casambi wireless and emergency options. The rated life is greater than 66,000 hours (L90).
Recessed adjustable LED downlights
Use the ten Flexi model codes to select the output, colour temperature and system power required for the lighting scheme. Each recessed LED downlight uses a 176 mm ceiling cut-out and a 186 mm bezel diameter.
The adjustable construction directs the light where it is needed while the high-CRI source maintains Ra90 colour rendering.
LED output, optics and colour temperature
Flexi covers 1,000–4,550 lm across five power steps from 8.0 W to 40.0 W.
The LED downlights can be specified with 25, 40, 50 or 60 degree reflector choices for different light distributions.
Choose 3000K warm white or 4000K CCT to suit the required colour temperature and interior lighting brief.
Dimmable lighting and emergency options
Dimmable control options include Touch dimming / DALI and Casambi wireless. This keeps the adjustable LED lighting compatible with the selected project control strategy.
Emergency options include three-hour, maintained, self-test, DALI and integral wireless mesh arrangements.
System power8.0 W / 13.5 W / 19.0 W / 27.0 W / 40.0 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsDALI, Casambi
EmergencyThree-hour emergency, Maintained emergency, Self-test emergency, DALI emergency, Integral emergency
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typeadjustable high-CRI LED downlight
Model codesFLEXI.001, FLEXI.002, FLEXI.003, FLEXI.004, FLEXI.005, FLEXI.006, FLEXI.007, FLEXI.008, FLEXI.009, FLEXI.010
Output1,000–4,550 lm
System power8.0 W / 13.5 W / 19.0 W / 27.0 W / 40.0 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsDALI, Casambi
EmergencyThree-hour emergency, Maintained emergency, Self-test emergency, DALI emergency, Integral emergency
Models, options and accessories
Flexi model codes and specification options.
Choose the Flexi base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes10 listed configurations
10 model configurations are shown with their output, CCT, power and finish information where available.
1,000 lm8.0 W
1,050 lm8.0 W
1,750 lm13.5 W
1,825 lm13.5 W
2,425 lm19.0 W
2,525 lm19.0 W
3,250 lm27.0 W
3,375 lm27.0 W
4,375 lm40.0 W
4,550 lm40.0 W
Additional Flexi options and accessoriesProduct images and specification choices
Beam & optics/MF25
25 degree multi-faceted reflector
Controls/T+DALI
Touch dimming or DALI control gear
Controls/BTC
Casambi Bluetooth wireless control
ControlsBTWS001
Casambi single wireless wall switch
ControlsBTWS002
Casambi twin wireless wall switch
Emergency/EM
Emergency remote indicator
Emergency/EMD
DALI emergency remote indicator
Emergency/EMS
Self-test emergency remote indicator
Emergency/EMI
Emergency integral indicator
Emergency/EMDI
DALI emergency integral indicator
Emergency/EMSI
Self-test emergency integral indicator
Performance/R9
High colour rendering module
Beam & optics/MF60
60 degree multi-faceted reflector
Beam & optics/SP40
40 degree specular reflector
Beam & optics/SA50
50 degree satin-etched reflector
AccessoriesTA210/BLACK
Black snoot accessory
AccessoriesTA241
Centre-etched glass accessory
Finish/BK
Black RAL 9006 finish
Product variationContact sales
Any RAL colour bezel
Product variationContact sales
Plug-and-play choice of connectors
Product variationContact sales
LSOH / LSF cable
Product variationContact sales
Choice of modules
Product variationContact sales
RGBW colour change
Product variationContact sales
HubSense wireless
Product variationContact sales
Philips MasterConnect wireless control
Product variationContact sales
LiteIP wireless control
Product variationContact sales
Mymesh wireless control
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Flexi
Why specify this adjustable high-CRI LED downlight?
Flexi is an adjustable LED downlight with Philips technology, Ra90 colour accuracy, adjustable beam control, DALI, Casambi wireless and emergency options for office, retail and heritage interiors.
The 10-model family combines 1,000–4,550 lm, 3000K / 4000K and 17 listed configuration choices without changing the core product identity.
Precise aiming with output, reflector and control choices kept explicit
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
Ra90 colour rendering
Accurate colour appearance for retail, hospitality and material-led interiors.
Ten model codes
3000K and 4000K choices across five output levels.
Reflector selection
25, 40, 50 and 60 degree reflector choices support different distributions.
Controls and emergency
Touch dimming or DALI, Casambi and six emergency arrangements are listed.
Output1,000–4,550 lm10 listed models
CCT3000K / 4000KModel dependent
Options17Controls and accessories
Typical applicationsWhere Flexi is specified
Retail interiors
Adjustable high-CRI lighting for merchandise, displays and perimeter features.
Hospitality
Directional light for reception, lounge and circulation spaces.
Commercial interiors
Adjustable recessed lighting with several output and reflector choices.
Heritage interiors
Controlled accent lighting where colour quality and discreet aiming matter.
Compare Flexi with the wider commercial downlights when reviewing output, optics, mounting, controls and emergency requirements.
adjustable recessed LED downlight
Miro
Miro is an adjustable recessed LED downlight family with Bridgelux COB LED, CRI 90, 3000K or 4000K colour temperature, white or black finish options and supplied photometric files for 4000K beam variants.
Compare product →
adjustable LED downlight
AeroLux
AeroLux is an adjustable LED downlight with a 36 degree faceted reflector, low-profile die-cast bezel, 3000K or 4000K model codes, and DALI, Casambi and emergency options for architectural, retail and hospitality interiors.
Compare product →
recyclable LED downlight
Circa
Circa is a recyclable LED downlight designed for high-end architectural and commercial applications.
Compare product →Specification questions
Flexi details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
10 configurations are listed: FLEXI.001, FLEXI.002, FLEXI.003, FLEXI.004, FLEXI.005, FLEXI.006, FLEXI.007, FLEXI.008, FLEXI.009, FLEXI.010.
The recessed LED downlight family covers 1,000–4,550 lm. CCT choices are 3000K warm white or 4000K, allowing the colour temperature to be matched to the commercial lighting scheme.
Dimmable options for Flexi LED downlights include Touch dimming / DALI and Casambi wireless control. Each option requires the matching control gear and wiring arrangement.
Emergency options include Three-hour emergency, Maintained emergency, Self-test emergency, DALI emergency, Integral emergency. Select the emergency requirement separately from the base model and normal control method.
The Flexi requires a Ø 176 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Flexi datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
