675 lm / 2700K / 8 W
DOWNLIGHTS asymmetric LED wall washer
Waveasymmetric LED wall washer
Wave.
asymmetric LED wall washer.

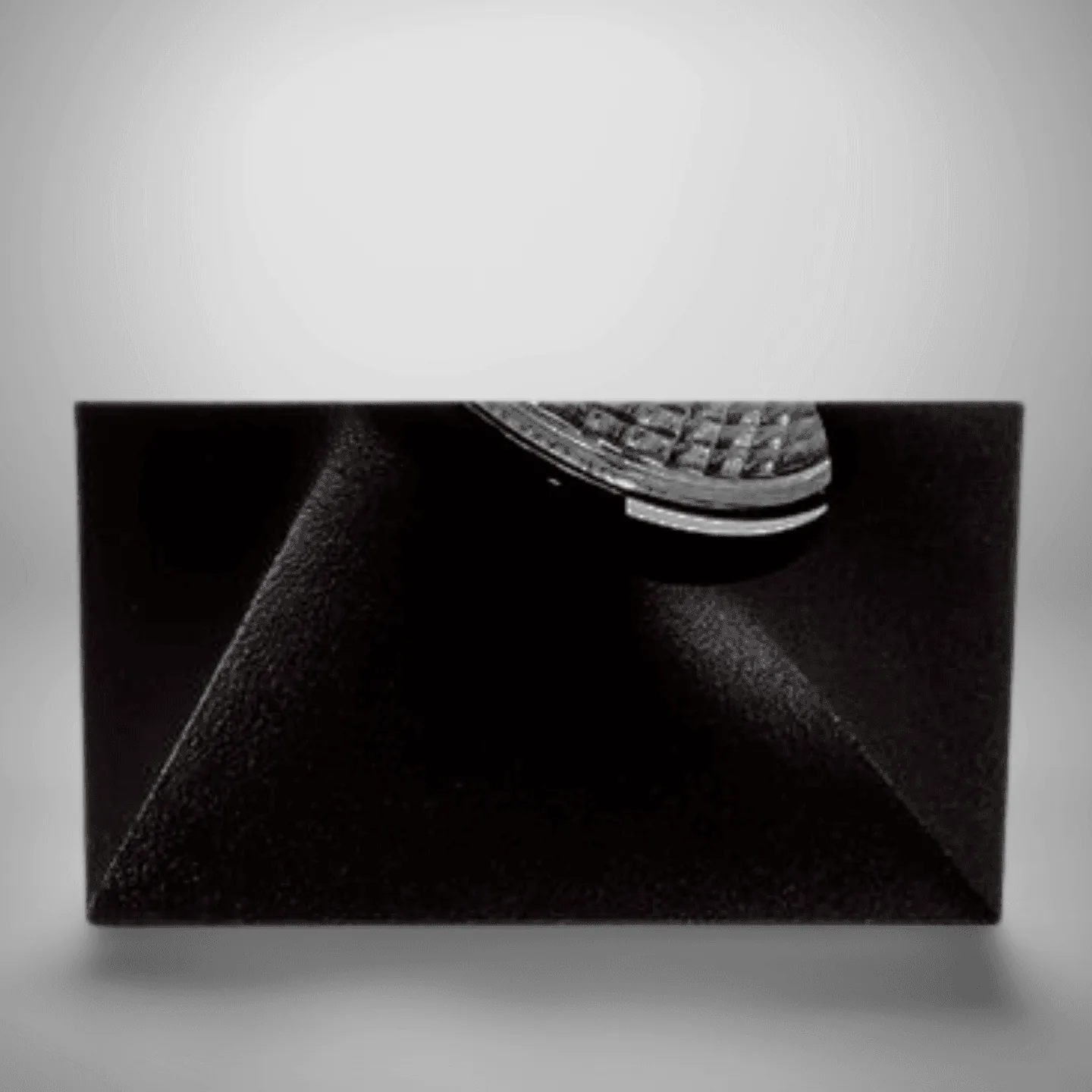

Wave is an asymmetric LED wall washer with minimal glare. Featuring a sleek 85mm bezel and die-cast aluminium construction, this fixture sits neatly in retail, hospitality and commercial interiors.
- Output
- 675–1,425 lm
- Colour temperature
- 3000K / 4000K model dependent
- Options
- 13 listed controls and accessories
01 / 08
OutputSee model schedule
Colour temperature3000K / 4000K
ControlsMains dimming, DALI, SwitchDIM, DSI, Casambi
Ceiling cut-out81 × 81 mm
Product configurator
Configure your Wave
Choose the published output and colour temperature, then add the relevant control, optic, colour-rendering, emergency, mounting and finish options.
LuminaireProduct family
Asymmetric recessed architectural wall washerTridonic LED engine and driver system; IP44 protective lens as standard
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct information
At a glance
Wave asymmetric LED wall washer quick specification.
Check the installation, output, colour temperature and control information for this asymmetric LED wall washer before reviewing the full model schedule.
Technical referenceNot to scale
Key specificationSpecification summary
- 01Ceiling cut-out
- 81 × 81 mm
- 02Bezel
- 85 × 85 mm
- 03Output
- 675–1,425 lm
- 04System power
- 6.5–10 W
- 05CCT
- 2700K / 3000K / 4000K
- 06Controls
- Mains dimming, SwitchDIM, DSI, DALI, Casambi
Product files
Download Wave technical files.
Available files for this exact product are listed below.
Photometric data
Verified Wave optical distributions.
Preview the valid 133-series LDT distributions by optic and baffle arrangement before downloading the source archive. Beam angle, intensity and footprint values are calculated from the selected source distribution.
C0 / C90 source-plane comparisonIntensity · cd/klm
Technical description
Asymmetric LED wall washer specification for Wave.
Source-backed dimensional, output and configuration information for the published Wave range.
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typeAsymmetric recessed architectural wall washer
Model codesSee model schedule
Output and powerWave asymmetric recessed architectural wall washer. Review the current model schedule and compatible options.
Colour temperature2700K / 3000K / 4000K
OpticPrecision moulded Fixed-output / non-dimmable control; /NB 20° narrow beam reflector
Controls/ECO SwitchDIM, DALI or DSI; /MDIM mains dimming; /BTC Casambi wireless network including dimming
Emergency/EM emergency conversion; /EMD DALI and self-test; /EMi integral indicator; /EMDi DALI/self-test with integral indicator
Mounting and finish/PI plaster-in bezel; /TLT tiltable; white bezel RAL 9003 standard; /BK black bezel RAL 9005; /WSB white softlight baffle RAL 9003
Ingress protectionIntegral IP44 protective lens standard

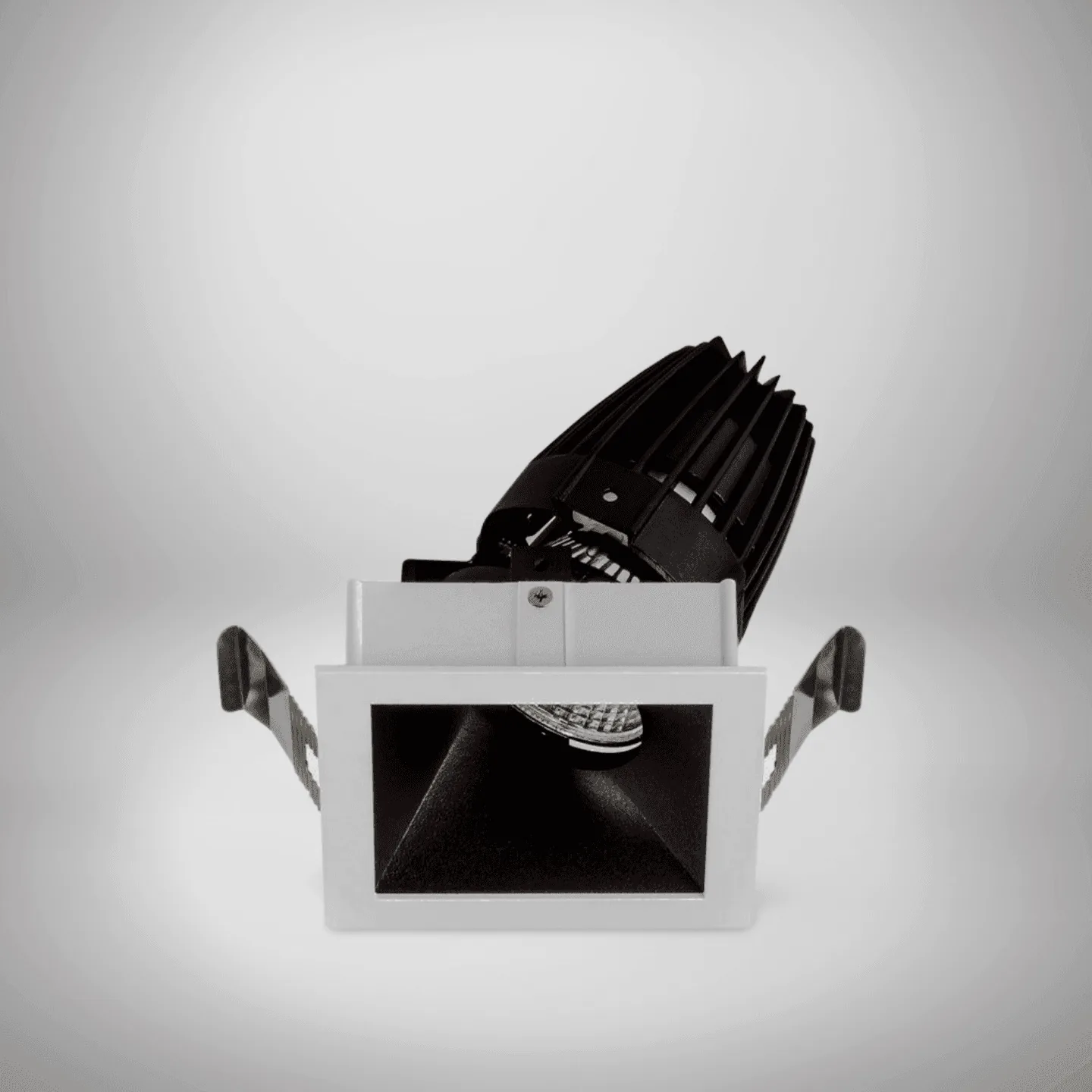

Dimensions85 x 85 mm bezel; 81 x 81 mm cut-out; 105 mm body height; 30 mm maximum below-ceiling depth
LED systemTridonic LED engine and driver system; thermally optimised 24 super-fin heatsink
Models, options and accessories
Wave model codes and published options.
Six output and colour-temperature configurations are supported by the published controls, optics, emergency, mounting and finish choices.
Model codes9 listed configurations
Output, colour temperature and power are shown for each model.
700 lm / 3000K / 6.5 W
750 lm / 4000K / 6.5 W
900 lm / 2700K / 10 W
925 lm / 3000K / 8.5 W
975 lm / 4000K / 8.5 W
1,225 lm / 2700K / 14 W
1,350 lm / 3000K / 12 W
1,425 lm / 4000K / 12 W
Controls /ECO
SwitchDIM, DALI or DSI
Controls /MDIM
Mains dimming
Controls /BTC
Casambi wireless network including dimming
Optic /NB
20° narrow beam reflector
Emergency /EM
Emergency conversion
Emergency /EMD
DALI and self-test emergency conversion
Emergency /EMi
Emergency conversion with integral indicator
Mounting /PI
Plaster-in bezel version
Additional Wave options and accessoriesProduct images and specification choices
Emergency/EMDi
DALI/self-test emergency conversion with integral indicator
Performance/9
Ra90 high colour rendering
Mounting/TLT
Tiltable
Finish/BK
Black bezel - RAL 9005
Baffle/WSB
White softlight baffle - RAL 9003
Custom configurationCustom configuration
Other colours and specifications available on request
Why Wave
Why specify this asymmetric LED wall washer?
The Wave is a precision-engineered architectural downlight that delivers controlled wall illumination with minimal glare. Featuring a sleek 85mm bezel and die-cast aluminium construction, this fixture sits neatly in retail, hospitality and commercial interiors
Wave asymmetric recessed architectural wall washer. Output: 675–1,425 lm; system power: 6.5–10 W. Colour temperature: 2700K / 3000K / 4000K.
Wave options kept clear for project specification
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
architectural
Wave is available for projects requiring architectural lighting.
asymmetrical
Wave is available for projects requiring asymmetrical lighting.
commercial
Wave is available for projects requiring commercial lighting.
high CRI
Wave is available for projects requiring high cri lighting.
Output675–1,425 lm
Downlights
Use Wave where downlights lighting is required.
Commercial interiors
The Wave is a precision-engineered architectural downlight that delivers controlled wall illumination with minimal glare. Featuring a sleek 85mm bezel and die-cast aluminium construction, this fixture sits neatly in retail, hospitality and commercial interiors
Commercial interiors
The Wave is a precision-engineered architectural downlight that delivers controlled wall illumination with minimal glare. Featuring a sleek 85mm bezel and die-cast aluminium construction, this fixture sits neatly in retail, hospitality and commercial interiors
Commercial interiors
The Wave is a precision-engineered architectural downlight that delivers controlled wall illumination with minimal glare. Featuring a sleek 85mm bezel and die-cast aluminium construction, this fixture sits neatly in retail, hospitality and commercial interiors
Compare Wave with the wider downlights when reviewing output, optics, mounting, controls and emergency requirements.
LED wall washer
Edge
The Edge Architectural LED Wall Washer delivers controlled illumination for walls and architectural features.
Compare product →
perimeter wall wash downlight
Aspect
Asymmetric LED downlight for wall wash, accent and perimeter illumination
Compare product →
IP54 LED downlight
Aero
Aero is an IP54 LED downlight designed for commercial applications.
Compare product →Specification questions
Wave details worth checking.
9 configurations are listed: WAVE.001, WAVE.002, WAVE.003, WAVE.004, WAVE.005, WAVE.006, WAVE.007, WAVE.008, WAVE.009.
Models cover 675–1,425 lm and 6.5–14 W. See the model schedule for individual output, power and CCT.
Control options include Mains dimming, DALI, SwitchDIM, DSI, Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options include emergency conversion, DALI/self-test and integral-indicator variants. Select the emergency requirement separately from the base model and normal control method.
The Wave requires a 81 × 81 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Wave datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
