Upgrade office and commercial lighting with Radiance 174, a UK-made, LG7-compliant continuous direct/indirect LED linear system.
Designed for architects and facility managers, this high-efficacy modular lighting solution delivers a seamless, homogenous lightline with a 75:25 up/down output ratio—perfect for offices, schools, and healthcare spaces.
Featuring Tridonic-powered LEDs, low-glare prismatic optics, and DALI dimming compatibility, the Radiance 174 ensures energy efficiency, visual comfort, and effortless installation with plug-and-play connectivity.
📄 Bim File
LG7-Compliant | Direct/Indirect Lighting | 75:25 Output Ratio | UK-Made & Sustainable

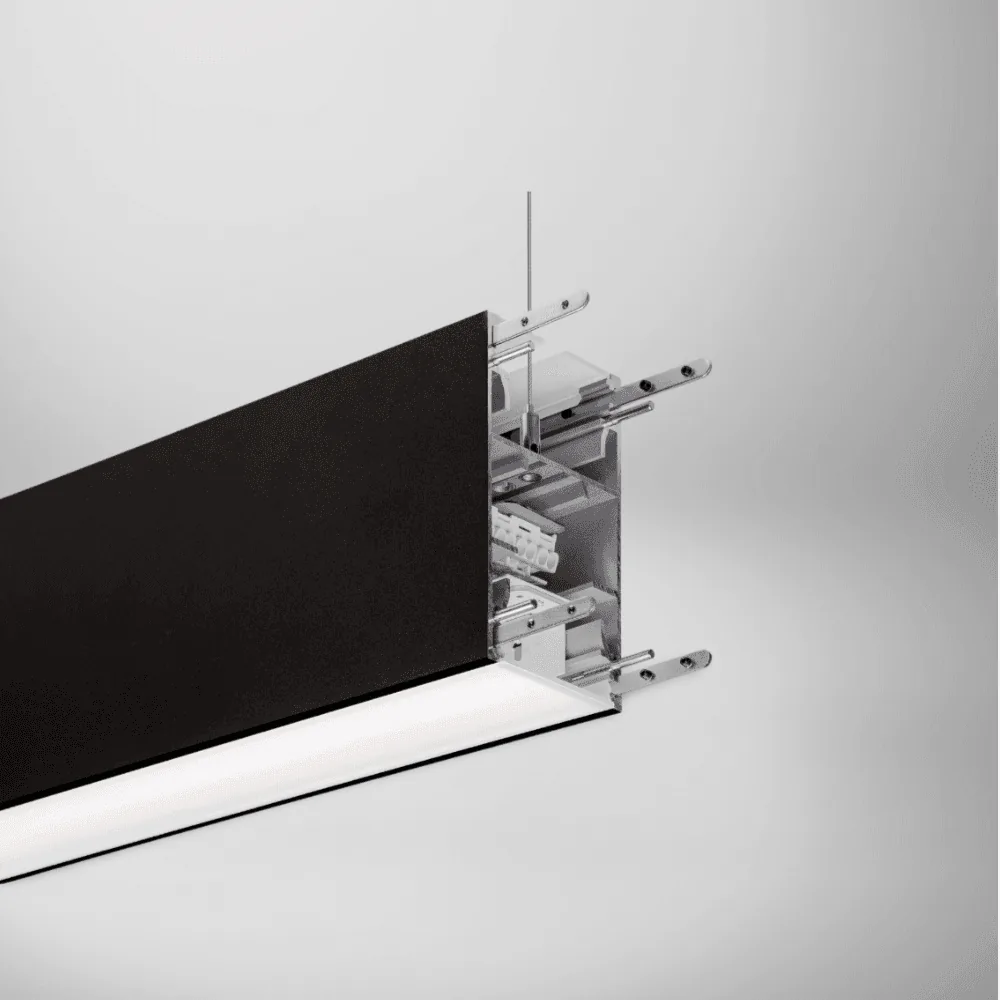

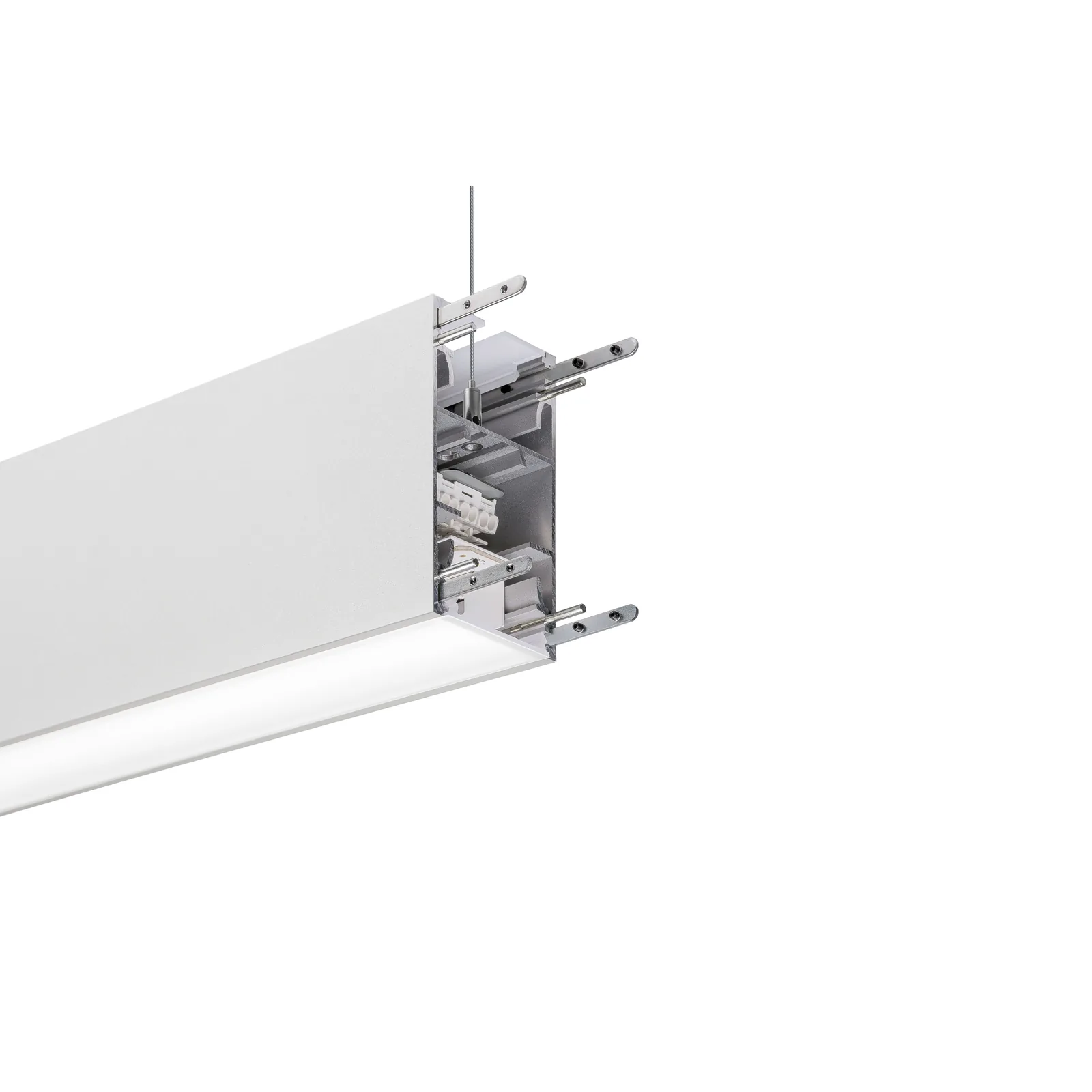

The Radiance 174 Series is a high-performance modular LED lightline system designed to deliver continuous, low-glare, direct/indirect illumination for commercial, educational and healthcare environments.
Powered by Tridonic LED technology, the system offers a 75:25 upward/downward light ratio and output flexibility across three lengths.
LG7-compliant optics, smart control options and sustainable UK manufacturing make Radiance 174 the preferred choice for specifiers demanding energy efficiency and design precision.
Seamless Lightline Design: Mechanical joining kits and through-wiring enable continuous runs without dark gaps.
LG7 Compliance: Optional prismatic optic (/LG) provides low-glare lighting in screen-heavy workplaces.
Balanced Direct/Indirect Output: 75% uplight, 25% downlight split delivers ambient and task illumination in one system.
High Efficacy: Up to 130 lm/W (model 174.006) with energy-saving output modes for varied room types.
Output Flexibility: Choose standard, /LO or /HO modes to match required light levels—from 1 550 lm to 7 375 lm.
UK-Made & Sustainable: Built in the UK using 98% recyclable materials with standard RAL 9006 grey finish.
Longevity & Performance: Rated to >72 000 hours (L80/F10) and backed by a 5-year warranty.
Smart Building Ready: Compatible with DALI, SwitchDIM, DSI (/ECO) and emergency options for full integration.
| Model | Length | CCT | Standard Output | /LO Output | /HO Output |
|---|---|---|---|---|---|
| 174.001 | 850 mm | 830 | 2 300 lm | 1 550 lm | 3 650 lm |
| 174.002 | 850 mm | 840 | 2 400 lm | 1 625 lm | 3 825 lm |
| 174.003 | 1.2 m | 830 | 3 450 lm | 2 325 lm | 5 475 lm |
| 174.004 | 1.2 m | 840 | 3 600 lm | 2 450 lm | 5 725 lm |
| 174.005 | 1.5 m | 830 | 4 450 lm | 3 000 lm | 7 050 lm |
| 174.006 | 1.5 m | 840 | 4 650 lm | 3 150 lm | 7 375 lm |
| Additional Specs | Details |
|---|---|
| Light Distribution | 75% uplight / 25% downlight |
| Lifetime | >72 000 hours (L80/F10) |
| Compliance | UKCA, ETL, LG7, BS EN 60598-1 |
| Finish | RAL 9006 grey as standard (others optional) |
| Warranty | 5 years |
| Category | Code | Description |
|---|---|---|
| Body Colour | /WH | White body (RAL 9016) |
| /BK | Black body (RAL 9005) | |
| Custom | Bespoke RAL finishes on request | |
| Optics & Output | /LO | Lower output setting for energy-saving spaces |
| /HO | Higher output for bright, open-plan environments | |
| /LG | Low-glare prismatic lens for LG7 compliance | |
| End Cap Options | /SE | Start/end sections with integrated finishing caps |
| Controls & Safety | /ECO | SwitchDIM, DALI or DSI control |
| /EMI | 3-hour maintained emergency conversion (excl. 174.001/.002) |
| Accessory | Description |
|---|---|
| 2 m Suspension Kit | Pre-assembled wires for ceiling mounting |
| PT001 | Diffuser removal tool for easy maintenance |
Offices: Low-glare lighting for LG7-compliant VDU workspaces
Educational Facilities: Robust, flicker-free lighting for classrooms and lecture halls
Healthcare Environments: Balanced illumination for corridors, clinics and waiting areas
Reception Areas: Clean aesthetic and soft uplight for welcoming lobbies
Open-Plan Spaces: High-output modes deliver efficient, uniform coverage
Libraries & Public Buildings: Modular, low-maintenance design ideal for long runs
Homogenous Illumination: Eliminates dark spots for continuous ceiling washes
Easy Installation: Plug-and-play setup with mechanical joins for quick linking
Smart Building Integration: DALI-2 and wireless ready for dynamic scene setting
Sustainable Build: 98% recyclable construction supports green procurement goals
Design Flexibility: Available in 850 mm, 1.2 m, and 1.5 m lengths to suit any layout
