Output1,725–5,425 lm
LINEAR modular continuous linear LED system
Linemodular continuous linear LED system
Join every module.
Keep the run continuous.
Line is a modular continuous linear LED system for commercial interiors, combining Tridonic technology with a modular design for offices, schools, and industrial environments.
- Output
- 1,725–5,425 lm
- Colour temperature
- 3000K / 4000K model dependent
- Options
- 14 listed controls and accessories
01 / 06
OutputSee model schedule
Colour temperature3000K / 4000K
ControlsDALI, SwitchDIM, DSI
Configuration12 listed options
Product configurator
Configure your Line
Choose the Line model first, then add only the control, optic, emergency, finish or mounting options required for the project.
The 2 m suspension kit is unavailable for 2.5 m fittings. With DALI emergency, /ECO supplies DALI control only.
LuminaireProduct family
modular continuous linear LED systemThe Line Continuous Linear LED System delivers homogenous, flicker-free illumination for commercial interiors, combining Tridonic technology with a modular design for offices, schools, and industrial environments.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Line modular continuous linear LED system quick specification.
Check the installation, output, colour temperature and control information for this modular continuous linear LED system before reviewing the full model schedule.
Technical referenceNot to scale
Key specificationCatalogue page 60
- 01Mounting
- Surface or suspended mounting
- 02Output
- 1,725–5,425 lm
- 03System power
- 16.5–47 W
- 04CCT
- 3000K / 4000K
- 05Controls
- DALI, SwitchDIM, DSI
- 06Emergency
- 3-hour emergency, integral indicator
Product files
Download Line technical files.
Available files for this exact product are listed below.
Technical description
Modular continuous linear LED system specification for Line.
Line is a modular continuous linear LED system that joins extruded linear modules into an uninterrupted line of light for offices, schools and industrial interiors. Tridonic LED technology and through-wiring support consistent illumination along the linear lighting system.

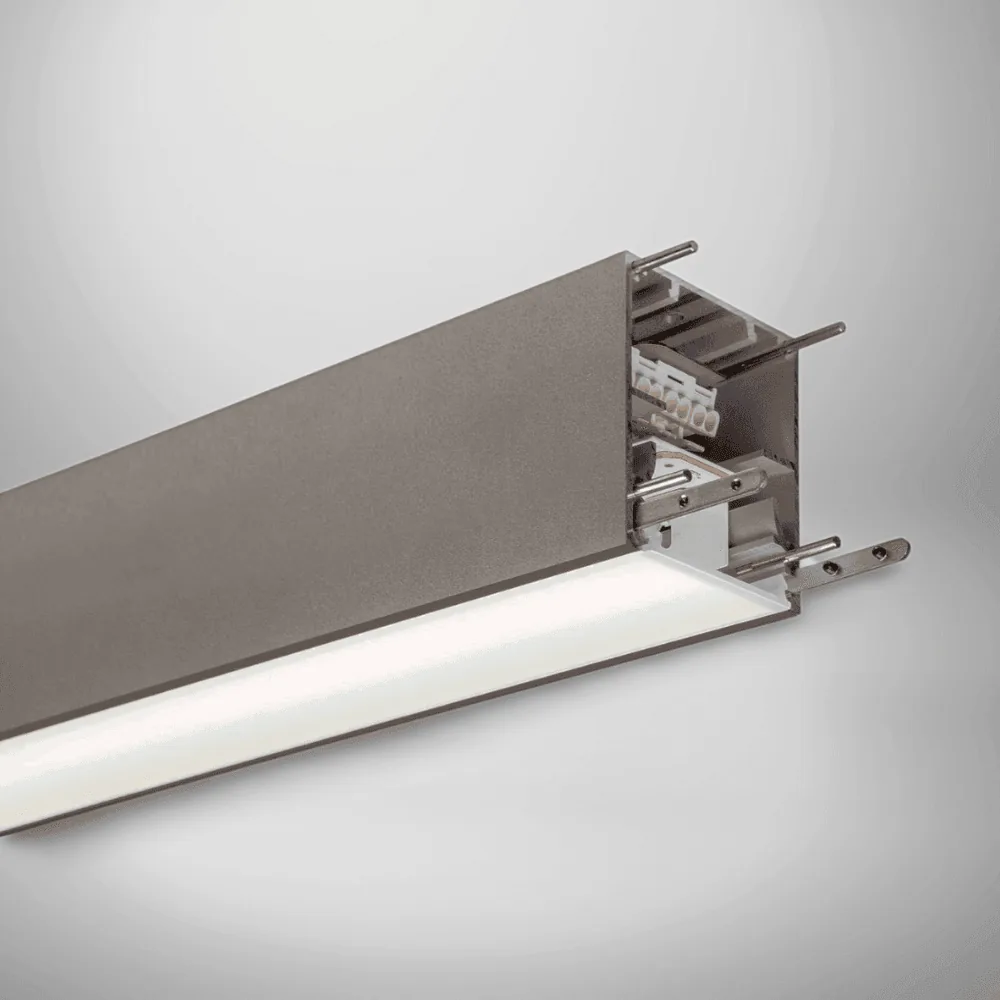

Line construction and mounting
Published output and system power are listed by model in the specification schedule.
Output, optics and colour temperature
Published output and system power are listed by model in the specification schedule.
Published output and system power are listed by model in the specification schedule.
Colour temperature options are 3000K / 4000K.
Controls, emergency and project options
Low-glare and TP(a) opal optics, DALI control, emergency with integral indicator, start and end sections and suspension accessories are listed for the modular installation.
Control options include DALI / SwitchDIM / DSI.
Emergency options include 3-hour emergency, integral indicator.
System power16.5–47 W
Colour temperature3000K / 4000K
FinishRAL 9006 grey standard; white or black options
ControlsDALI, SwitchDIM, DSI
Emergency3-hour emergency, integral indicator
See the Lumenloop linear lighting range for related mounting, output and optic options.
Product typemodular continuous linear LED system
Model codesLINE.001, LINE.002, LINE.003, LINE.004, LINE.005, LINE.006, LINE.007, LINE.008
Output1,725–5,425 lm
System power16.5–47 W
Colour temperature3000K / 4000K
FinishRAL 9006 grey standard; white or black options
ControlsDALI, SwitchDIM, DSI
Emergency3-hour emergency, integral indicator
Models, options and accessories
Line model codes and specification options.
Choose the Line base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes8 listed configurations
8 model configurations are shown with their output, CCT, power and finish information where available.
1,725 lm / 3000K / 16.5 W
1,800 lm / 4000K / 16.5 W
2,550 lm / 3000K / 23.5 W
2,700 lm / 4000K / 23.5 W
3,125 lm / 3000K / 27.5 W
3,300 lm / 4000K / 27.5 W
5,100 lm / 3000K / 47 W
5,425 lm / 4000K / 47 W
Additional Line options and accessoriesSpecification choices
Lumen Package/LO
Lower output setting
Lumen Package/HO
Higher output setting
Finish/WH
White body or bezel finish
Finish/BK
Black body or bezel finish
Controls/ECO
Specification dimming and control gear
Emergency/EMI
3-hour emergency, integral indicator conversion
Beam & Optics/LG
Low-glare optic or prismatic lens
Body and mounting/SE
Start or end section with colour-matched end cap
Suspension accessoryLINE.ACC.01
2 m two-piece suspension kit for lengths up to 1.5 m
Suspension accessoryLINE.ACC.02
2 m three-piece suspension kit for the 2.5 m fitting
FinishLINE.ACC.03
Custom colour configuration
Maintenance accessoryLINE.ACC.04
Diffuser removal tool
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Line
Why specify this modular continuous linear LED system?
The Line Continuous Linear LED System delivers homogenous, flicker-free illumination for commercial interiors, combining Tridonic technology with a modular design for offices, schools, and industrial environments
Line modular continuous linear LED system. Output: 1,725–5,425 lm; system power: 16.5–47 W. Colour temperature: 3000K / 4000K.
Line options kept clear for project specification
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
Continuous runs
Mechanical joining and through wiring support seamless lines of direct light.
Two optic choices
TP(a) opal is standard, with a low-glare prismatic lens for office and LG7 applications.
Tridonic system
Tridonic LED and driver technology supports consistent, flicker-free illumination.
Flexible mounting
Specify the same profile system for surface-mounted or suspended installations.
Output1,725–5,425 lm8 listed models
CCT3000K / 4000KModel dependent
Options14Controls and accessories
Typical applicationsWhere Line is specified
Offices and education
Continuous runs with a low-glare prismatic lens option for work and teaching spaces.
Industrial interiors
Through-wired modules for long surface-mounted or suspended lighting runs.
Retail interiors
Clean illuminated lines with start, end and intermediate sections.
Commercial circulation
Opal direct light for corridors, shared areas and open interiors.
Compare Line with the wider linear lighting range when reviewing output, optics, mounting, controls and emergency requirements.
direct indirect linear LED lighting system
Radiance
Direct indirect linear LED lighting system. Review the model schedule and compatible options.
Compare product →
continuous linear lighting blank sections
Lumenline
Continuous-run connection section. Review the model schedule and compatible options.
Compare product →
suspended direct indirect linear luminaire
Stream
Suspended direct indirect linear luminaire. Review the model schedule and compatible options.
Compare product →Specification questions
Line details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
8 configurations are listed: LINE.001, LINE.002, LINE.003, LINE.004, LINE.005, LINE.006, LINE.007, LINE.008.
Line modular continuous linear LED system. Output: 1,725–5,425 lm; system power: 16.5–47 W. Colour temperature: 3000K / 4000K.
Control options include DALI, SwitchDIM, DSI. Each option requires the matching control gear and wiring arrangement.
Emergency options include 3-hour emergency, integral indicator. Select the emergency requirement separately from the base model and normal control method.
The configurator shows the product dimensional drawing. The product datasheet contains further construction and installation information.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Line datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
