Output- 2,275–4,675 lm
LINEAR suspended direct indirect linear luminaire
Streamsuspended direct indirect linear luminaire
Stream.
suspended direct indirect linear luminaire.

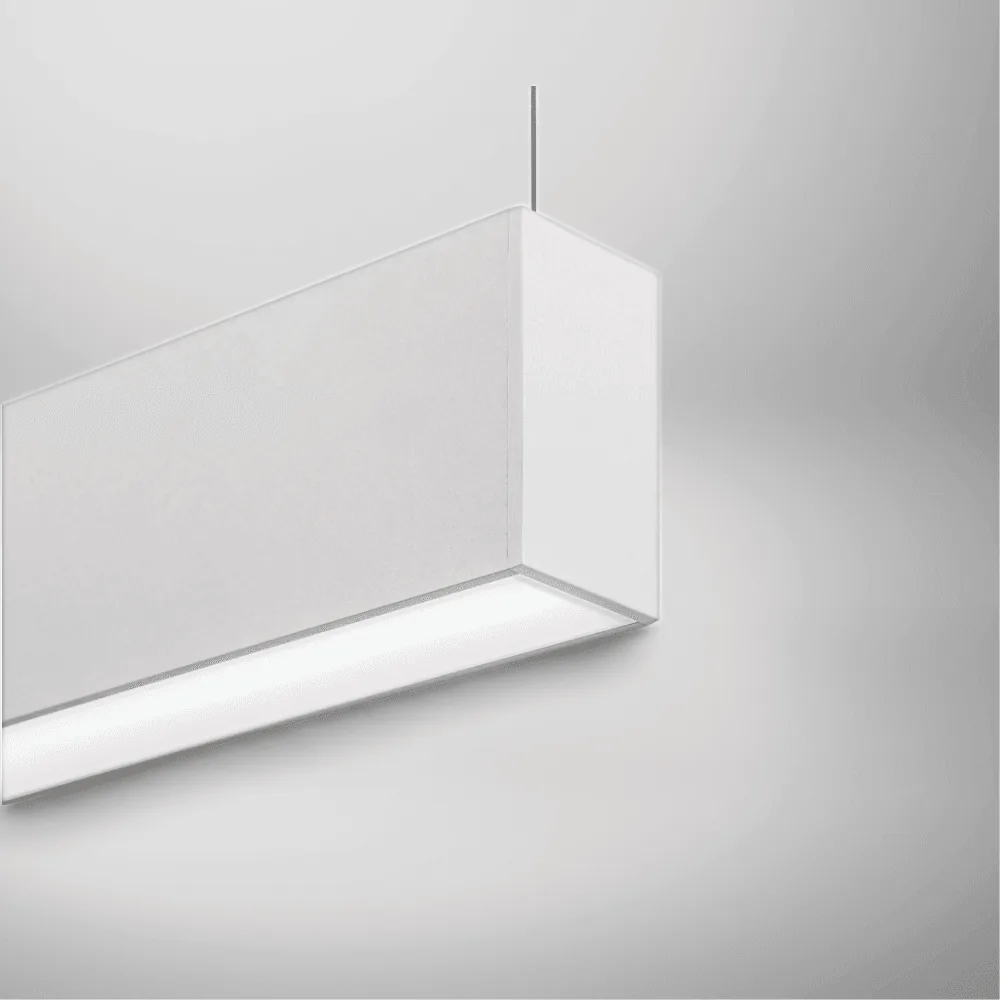

Stream is a suspended direct indirect linear luminaire designed for architectural and commercial applications requiring balanced illumination.
- Output
- 2,275–4,675 lm
- Colour temperature
- 3000K / 4000K model dependent
01 / 08
OutputSee model schedule
Colour temperature3000K / 4000K
Controls/ECO: SwitchDIM, DALI or DSI
Configuration0 listed options
At a glance
Stream suspended direct indirect linear luminaire quick specification.
Check the installation, output, colour temperature and control information for this suspended direct indirect linear luminaire before reviewing the full model schedule.
Technical referenceNot to scale
Key specificationSpecification summary
- 01MountingSuspended linear LED luminaire
- 02CCT
- 3000K / 4000K
- 03Controls
- /ECO: SwitchDIM, DALI or DSI
- 04Product typesuspended direct indirect linear luminaire
- 62 mm
Width
Product files
Download Stream technical files.
Available files for this exact product are listed below.
Rotational distributionIntensity · cd/klm
Product configurator
Configure your Stream
Choose the Stream model first, then add only the control, optic, emergency, finish or mounting options required for the project.
LuminaireProduct family
suspended direct indirect linear luminaireStream suspended direct indirect linear luminaire. Review the current model schedule and compatible options.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
Technical description
Suspended direct indirect linear luminaire specification for Stream.
Stream suspended direct indirect linear luminaire. Output: 2,275–4,675 lm; system power: 16.5–28 W. Colour temperature: 3000K / 4000K. For an office scheme, compare mounting and glare requirements across our office lighting range.
Stream construction and mounting
For direct indirect suspended linear lighting specifications, compare the model codes, outputs and available options below.
Performance and installation details include life >72,000 hours (L80 / F10).
Output, optics and colour temperature
Published output and system power are listed by model in the specification schedule.
Published output and system power are listed by model in the specification schedule.
Colour temperature options are 3000K / 4000K.
Controls, emergency and project options
/ECO specifies SwitchDIM, DALI or DSI. /EMI emergency conversion is available except on STREAM.001 and STREAM.002.
Output2,275–4,675 lm
System power16.5–28 W
Colour temperature3000K / 4000K
FinishRAL 9006 grey standard; /WH or /BK
Controls/ECO: SwitchDIM, DALI or DSI
Emergency/EMI except STREAM.001 / .002
See the Lumenloop linear lighting range for related mounting, output and optic options.
Product typesuspended direct indirect linear luminaire
Model codesSTREAM.001, STREAM.002, STREAM.003, STREAM.004, STREAM.005, STREAM.006
Output2,275–4,675 lm
System power16.5–28 W
Colour temperature3000K / 4000K
FinishRAL 9006 grey standard; /WH or /BK
Controls/ECO: SwitchDIM, DALI or DSI
Emergency/EMI except STREAM.001 / .002
Models, options and accessories
Stream model codes and specification options.
Choose the Stream base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes6 listed configurations
6 models are shown with output, CCT and power information where available.
2,275 lm / 3000K / 16.5 W
2,425 lm / 4000K / 16.5 W
3,425 lm / 3000K / 23.5 W
3,625 lm / 4000K / 23.5 W
4,400 lm / 3000K / 28 W
4,675 lm / 4000K / 28 W
Additional Stream options and accessories Product images and specification choices
Finish/WH
White body

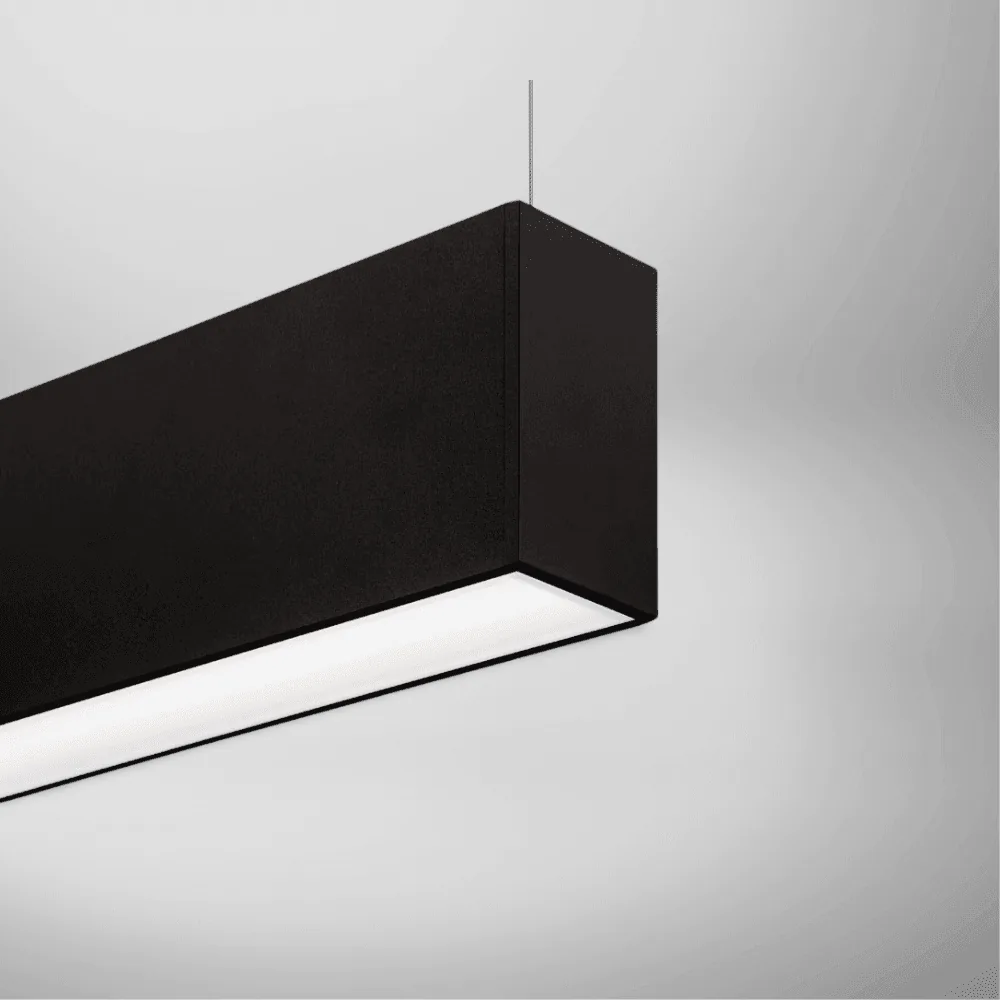

Finish/BK
Black body
OutputModel-dependent; see schedule
Lower output
OutputModel-dependent; see schedule
Higher output
Controls/ECO
SwitchDIM, DALI or DSI
Controls/BTC
Casambi Bluetooth control including dimming
Emergency/EMI
EM conversion; excludes STREAM.001 and STREAM.002
Emergency/EMSI
3-hour self-test emergency integral indicator
Emergency/EMDI
3-hour DALI emergency, integral indicator; unavailable on 850 mm models. DALI driver required.
Optic/LG
Low-glare prismatic lens
AccessoriesSTREAM.ACC.01
180 degree butt-joint bracket
AccessoriesSTREAM.ACC.02
90 degree butt-joint bracket
Custom configurationSTREAM.ACC.03
Other colours and specifications available on request
Custom configurationSTREAM.ACC.03
Custom body colours
Custom configurationSTREAM.ACC.03
Custom colours
AccessoriesSTREAM.ACC.04
Diffuser removal tool
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Stream
Why specify this suspended direct indirect linear luminaire?
Stream suspended direct indirect linear luminaire. Output: 2,275–4,675 lm; system power: 16.5–28 W. Colour temperature: 3000K / 4000K.
Stream suspended direct indirect linear luminaire. Output: 2,275–4,675 lm; system power: 16.5–28 W. Colour temperature: 3000K / 4000K.
Stream options kept clear for project specification
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
architectural
Stream is available for projects requiring architectural lighting.
commercial
Stream is available for projects requiring commercial lighting.
high efficacy
Stream is available for projects requiring high efficacy lighting.
hospitality
Stream is available for projects requiring hospitality lighting.
Output2,275–4,675 lm
Linear
Use Stream where linear lighting is required.
Suspended
Use Stream where suspended lighting is required.
Commercial interiors
Stream suspended direct indirect linear luminaire. Output: 2,275–4,675 lm; system power: 16.5–28 W. Colour temperature: 3000K / 4000K.
Commercial interiors
Stream suspended direct indirect linear luminaire. Output: 2,275–4,675 lm; system power: 16.5–28 W. Colour temperature: 3000K / 4000K.
Compare Stream with the wider linear when reviewing output, optics, mounting, controls and emergency requirements.
direct indirect linear LED lighting system
Radiance
Lumenloop Radiance is a UK-made direct indirect linear LED lighting system for offices, schools and healthcare spaces.
Compare product →
modular continuous linear LED system
Line
Line is a modular continuous linear LED system for commercial interiors, combining Tridonic technology with a modular design for offices, schools, and industrial environments.
Compare product →
UK-made recessed LG7 linear luminaire
Flow
Flow is a UK-made recessed LG7 linear luminaire for low-glare recessed lighting for offices, schools, and retail.
Compare product →Specification questions
Stream details worth checking.
6 configurations are listed: STREAM.001, STREAM.002, STREAM.003, STREAM.004, STREAM.005, STREAM.006.
Published output 2,275–4,675 lm and system power 16.5–28 W. See the model schedule for each specification.
Fixed-output operation is listed for this product.
No emergency suffix is listed for this product.
The configurator shows the product dimensional drawing. The product datasheet contains further construction and installation information.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Stream datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
