Straight sections842 mm, 1261 mm and 1540 mm
LINEAR continuous-run connection sections
Lumenlinecontinuous linear lighting blank sections
Complete the linear run.
Without adding another light source.
Lumenline provides non-luminous blank connection and infill sections for continuous direct linear lighting runs, complete with through-wiring.
Choose from three straight sections and an equal 90-degree corner, with separate body, infill, start/end and suspension options.
- Section sizes
- 842 / 1261 / 1540 mm plus 150 x 150 mm corner
- Electrical
- Through-wired non-luminous component
- Compatibility
- 173 and 22 Series continuous linear systems
01 / 01
Body profile72 mm wide x 62 mm deep
ElectricalThrough-wiring included
Standard finishRAL 9006 grey
Configuration4 models / 7 suffixes
Product configurator
Configure your Lumenline
Choose the required blank section, then add the body, infill, end or suspension accessories needed for the continuous run.
System componentProduct family
blank connection and infill sections for continuous linear lighting systemsLumenline provides 850 mm, 1.2 m and 1.5 m blank sections plus a 90-degree corner for compatible continuous linear runs, with through-wiring, infills, ends and suspension options.
QuantityNumber of sections
Added to the quotation email
Technical filesProduct and installation information
At a glance
Lumenline continuous-run connection sections at a glance.
Compare the verified section sizes, body profile, wiring, standard finish and compatible linear systems.
Corner section150 mm x 150 mm
Body profile72 mm wide x 62 mm deep
ElectricalThrough-wiring included
Standard finishRAL 9006 grey
Compatible systems173 Series and 22 Series
Product files
Download Lumenline technical files.
Available files for this exact product are listed below.
Technical description
Blank connection sections for continuous direct linear systems.
Lumenline is a UK-made, non-luminous connection section for compatible continuous direct linear lighting systems. The extruded body is supplied with through-wiring and colour-matched aluminium infills to complete straight runs or form an equal 90-degree corner without adding another light source.
Section geometry and profile
Three straight sections are listed at nominal lengths of 850 mm, 1.2 m and 1.5 m. Their recorded overall lengths are 842 mm, 1261 mm and 1540 mm. The equal corner section measures 150 mm x 150 mm, and the body profile is 72 mm wide x 62 mm deep.
Finish, infill and suspension

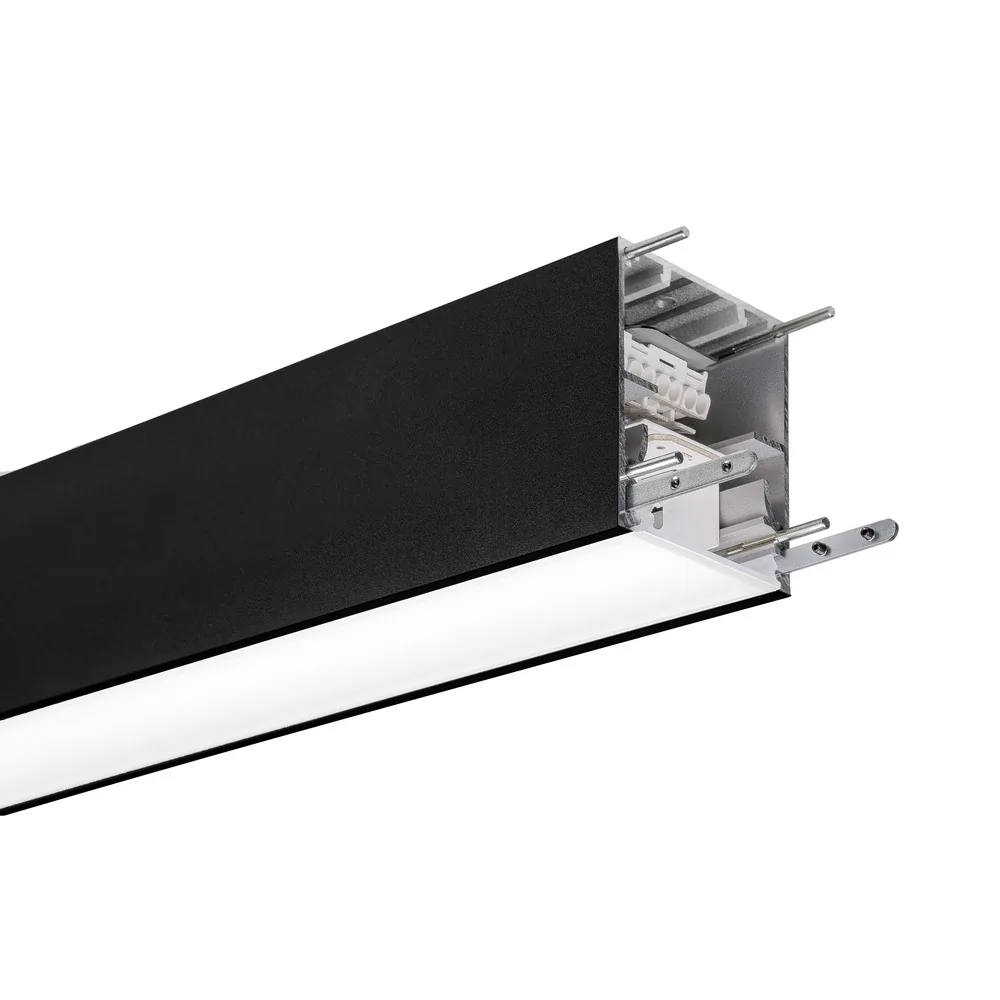

RAL 9006 grey is standard. Body finish suffixes are /WH and /BK; infill finish suffixes are /GI, /WI and /BI. The datasheet also lists /SE and /SUS.163/2/2M accessories.
System compatibility
Lumenline is listed for use with the 173 Series and 22 Series continuous linear ranges. It contains no integral light source, so output, CCT, control gear and emergency operation are specified with the connected luminaires.
Straight sections842 / 1261 / 1540 mm
ElectricalThrough-wiring included
Corner section150 mm x 150 mm
Body profile72 mm x 62 mm
Standard finishRAL 9006 grey
ManufactureMade in the UK
See the Lumenloop linear lighting range for related mounting, output and optic options.
Product typeBlank connection section for continuous direct linear systems
Compatible systems173 Series and 22 Series
Body profile72 mm wide x 62 mm deep
ElectricalThrough-wiring included
FinishRAL 9006 grey standard; /WH and /BK body finishes
Infills/GI, /WI and /BI finish suffixes
Accessories/SE and /SUS.163/2/2M
| Model | Section | Overall size |
|---|---|---|
| LUMENLINE.001 | 850 mm direct section | 842 mm |
| LUMENLINE.002 | 1.2 m direct section | 1261 mm |
| LUMENLINE.003 | 1.5 m direct section | 1540 mm |
| LUMENLINE.004 | 90-degree corner section | 150 mm x 150 mm |
Models, options and accessories
Lumenline model codes and connection-section options.
Choose the straight or corner section, then set the verified body finish, infill finish and run accessories.
Model codes4 verified sections
Three straight sections and one equal corner section cover the complete source-backed schedule.
842 mm overall72 x 62 mm
1261 mm overall72 x 62 mm
1540 mm overall72 x 62 mm
150 x 150 mmEqual corner
Lumenline options and accessoriesProduct-specific section references
Body finishes/WH · /BK
White or black body finish suffixes; RAL 9006 grey is standard.
Infill finishes/GI · /WI · /BI
Grey, white or black aluminium infill suffixes.
Start and end/SE
Start/end accessory listed for the continuous linear run.
Suspension/SUS.163/2/2M
Suspension kit listed for suspended continuous runs.
Verified suffixes: body /WH or /BK; infill /GI, /WI or /BI; start/end /SE; suspension kit /SUS.163/2/2M.
Why Lumenline
Why specify Lumenline connection sections?
Lumenline completes compatible continuous direct linear systems where a non-luminous section, a change of direction or a through-wired connection is required.
The four verified section codes use one 72 x 62 mm profile, with separate body, infill, start/end and suspension choices.
One section family for straight runs and corners
Choose 842 mm, 1261 mm or 1540 mm overall straight sections, or the 150 x 150 mm equal corner.
RAL 9006 grey is standard, with body and infill finish suffixes available for colour matching.
Continuous-run geometry
Three straight lengths and one equal corner provide four verified section choices.
Through-wired construction
Through-wiring is included for connection through the non-luminous section.
Colour-matched infills
Aluminium infills are available with grey, white or black finish suffixes.
UK-made system component
The product datasheet identifies Lumenline as made in the UK.
Sections4Three straight / one corner
Profile72 x 62 mmWidth x depth
Suffixes7Finishes and accessories
System usesWhere Lumenline fits the run
Straight non-luminous spans
Use the listed straight sections to continue the system without adding a light source.
Equal corners
Use LUMENLINE.004 where the continuous run requires a 90-degree change of direction.

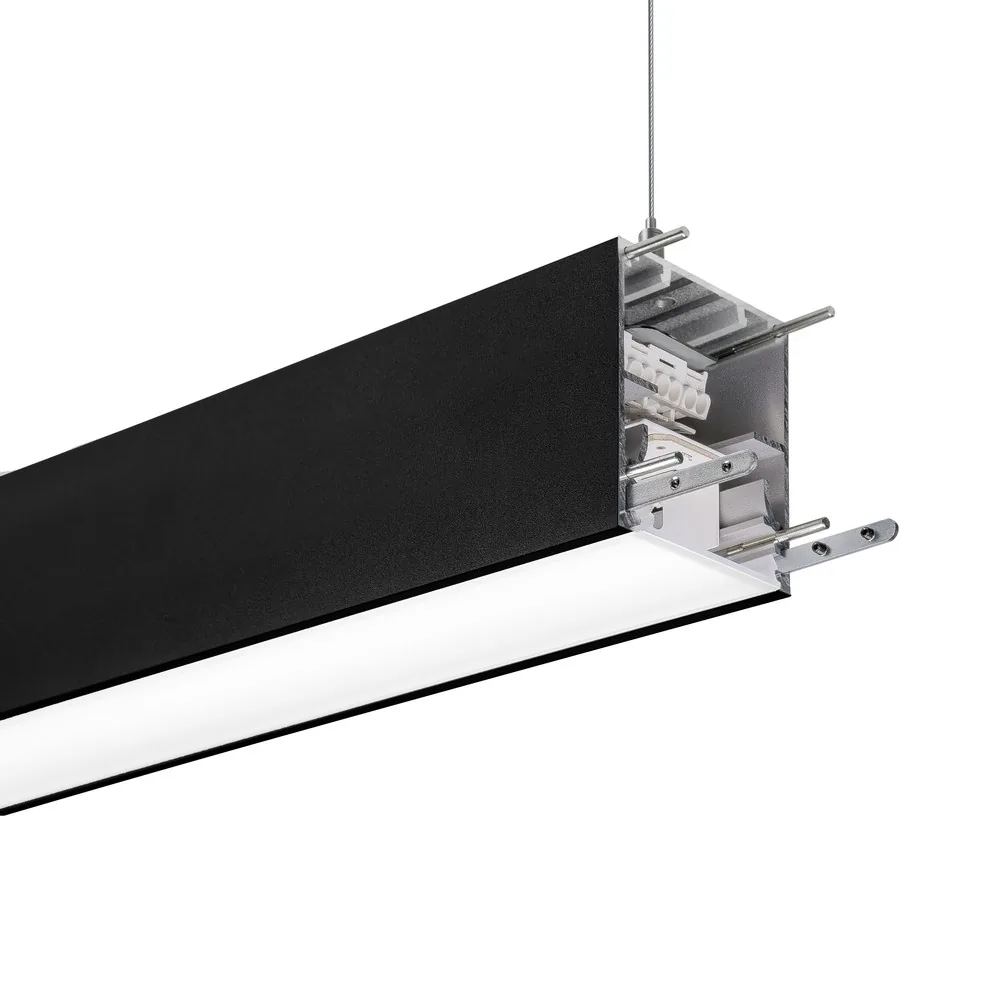

Suspended systems
Add the listed suspension kit where the compatible continuous system is suspended.
Colour-matched runs
Select the body and aluminium infill finish suffixes required for the system.
Compare Lumenline with the wider linear lighting range when selecting the illuminated sections for the same run.
Modular continuous linear LED system
Line
A modular continuous linear LED system with low-glare and TP(a) lens options, surface or suspended mounting, DALI control and emergency variants.
Compare product →
Direct and indirect linear LED system
Radiance
A UK-made direct and indirect linear LED system with LG7-ready optics, 75:25 distribution, three lengths and control options.
Compare product →
Recessed LG7 linear luminaire
Flow
A recessed LG7 linear luminaire with three standard lengths, low-glare optics, DALI control and emergency options.
Compare product →Specification questions
Lumenline details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
4 configurations are listed: LUMENLINE.001, LUMENLINE.002, LUMENLINE.003, LUMENLINE.004.
Lumenline is a non-luminous system component, so lumen output and colour temperature do not apply.
Control gear does not apply to this non-luminous section; controls are specified with the connected luminaires.
Emergency operation does not apply to the non-luminous component itself; any emergency requirement belongs to the connected luminaire.
Use the product datasheet for available dimensional and installation information.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Lumenline datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
