60 deg satin etch
Reflector as standard
Optima LED downlight

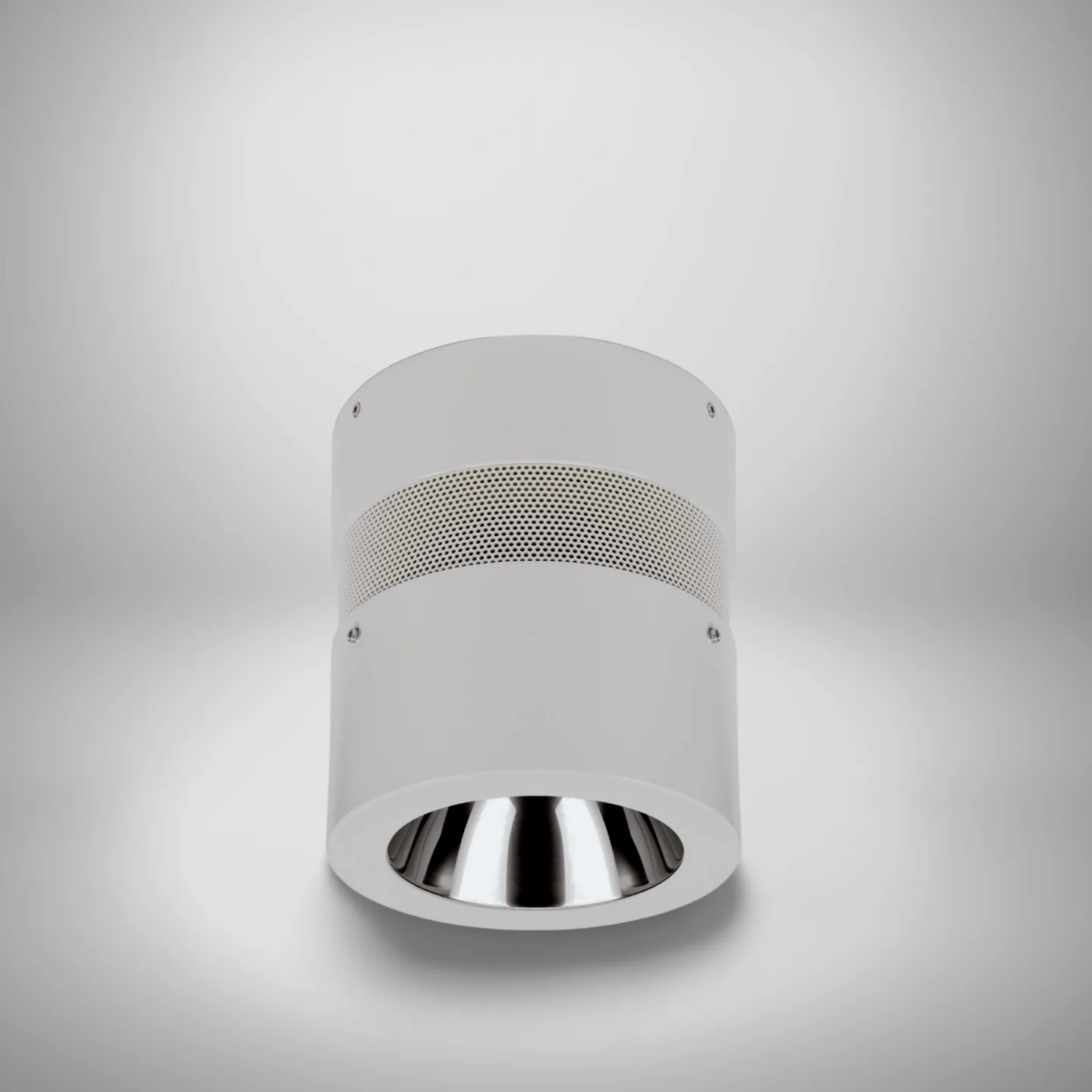

The Optima is a surface-mounted LED downlight, specified for commercial interiors requiring glare control, architectural finish and long-term use.
40 and 50 deg reflector options
Supports controlled distribution and visual comfort in the finished ceiling.
Optics
60 deg satin etch reflector as standard; 40 and 50 deg reflector options
Outputs up to 3800 lm
Output reference for specification and comparison.
Model codes
OPTIMA.001
Mounting
Surface mounted
Optics
60 deg satin etch reflector as standard; 40 and 50 deg reflector options
Controls
Integral DALI dimming option
Luminaire type
LED downlight
Optics
60 deg satin etch reflector as standard; 40 and 50 deg reflector options
Life 60,000 hours (L70 / B10)
Long-life LED performance.
Mounting
Surface mounted
Options And Accessories
Optima options, suspension kits and diffuser accessories.
/T+DALI
Touch dimming and DALI control (/T+DALI) are shown in the source tiles.
/SUSB/SUSG/SUSW
2 metre suspension kits are shown in black (/SUSB), grey (/SUSG) and white (/SUSW).
TA340TA341TA342TA343TA344
Diffuser accessories are shown as clear glass (TA340), centre etched glass (TA341), fully etched glass (TA342), clear polycarbonate (TA343) and opal polycarbonate (TA344).
Custom configuration
Finish combinations, bespoke RAL colours and emergency conversion requirements should be treated as custom configuration and confirmed before ordering.
Download Datasheet
Technical datasheet for specification review.
Installation Guide
Installation guide for site coordination.
Photometric Data
Photometric data pack for lighting calculations.
BIM File
BIM coordination file for project drawings.
Project selection
Available luminaire options and accessories are shown below.
Configure For Enquiry
Configure Optima for enquiry.
Configuration options cover output, optic, finish, control gear and accessories for specification support.
Configured Specification
Selected Optima specification.
Model code
OPTIMA.001
Model code
OPTIMA.001
Technical Description
LED downlight specification for Optima.
The Optima is a surface-mounted LED downlight, specified for commercial interiors requiring glare control, architectural finish and long-term use. With a spun aluminium housing, customisable finishes, and LED technology, this fixture provides glare-controlled lighting for offices, retail, education, and hospitality environments
Performance and installation details include optics: 60 deg satin etch reflector as standard; 40 and 50 deg reflector options, life 60,000 hours (L70 / B10) and mounting: Surface mounted. This section covers output, optics, mounting and control requirements.
Available options include controls: Integral DALI dimming option, finish: Choice of paint finishes; bespoke RAL colours available to order and LED and driver platform: Philips LED and driver system. Model codes, control compatibility and lead times vary by configuration. Available technical files are shown with this product.
Specification-led LED downlight features.
- 60 deg satin etch: Reflector as standard
- 40 and 50 deg reflector options: Supports controlled distribution and visual comfort in the finished ceiling.
- Optics: 60 deg satin etch reflector as standard; 40 and 50 deg reflector options
- Outputs up to 3800 lm: Output reference for specification and comparison.
- Spun aluminium surface downlight: With a wide range of options
- Philips LED and driver system: Gives the product range a recognised LED and driver platform.
- 2 m suspended option: Helps confirm ceiling compatibility and installation conditions.
- Mounting: Surface mounted
Body And Trim Detail
Optima technical reference.
The Optima is a surface-mounted LED downlight, specified for commercial interiors requiring glare control, architectural finish and long-term use.
Key specification points include mounting: Surface mounted, optics: 60 deg satin etch reflector as standard; 40 and 50 deg reflector options and life 60,000 hours (L70 / B10).
Option notes include touch dimming and DALI control /T+DALI, 2 metre suspension kits in black /SUSB, grey /SUSG and white /SUSW, plus diffuser accessories TA340 to TA344. Available technical files are shown with this product.
Specification Choices
Optima specification options.
Output and CCT
OPTIMA.0011,200 lm | 14 W | 3000K
Output and CCT
OPTIMA.0021,300 lm | 14 W | 4000K
Output and CCT
OPTIMA.0031,900 lm | 24 W | 3000K
Output and CCT
OPTIMA.0042,075 lm | 24 W | 4000K
Output and CCT
OPTIMA.0052,550 lm | 34.5 W | 3000K
Output and CCT
OPTIMA.0062,775 lm | 35 W | 4000K
Output and CCT
OPTIMA.0073,475 lm | 46.5 W | 3000K
Output and CCT
OPTIMA.0083,800 lm | 46.5 W | 4000K
Specification reasons
Why specify Optima?
Optics
60 deg satin etch
Reflector as standard
Optics
40 and 50 deg reflector options
Supports controlled distribution and visual comfort in the finished ceiling.
Optics
Optics
60 deg satin etch reflector as standard; 40 and 50 deg reflector options
Performance
Outputs up to 3800 lm
Output reference for specification and comparison.
Mounting
Spun aluminium surface downlight
With a wide range of options
Selection point
Philips LED and driver system
Gives the product range a recognised LED and driver platform.
Product FAQs
Optima specification questions.
Specification notes for contractors, consultants and buyers checking LED downlight options before ordering.
What makes Optima different from a standard LED downlight?
The Optima is a surface-mounted LED downlight, specified for commercial interiors requiring glare control, architectural finish and long-term use. With a spun aluminium housing, customisable finishes, and LED technology, this fixture provides glare-controlled lighting for offices, retail, education, and hospitality environments
Which ceilings or mounting conditions should be checked for Optima?
Mounting: Surface mounted. Check ceiling build-up, access space and fixing method before ordering.
Which outputs, wattages and colour temperatures are available?
Outputs up to 3800 lm: Output reference for specification and comparison. Life 60,000 hours (L70 / B10): Long-life LED performance. Output, colour temperature, control gear and emergency options vary by configuration.
What controls and emergency options can be specified?
Controls: Integral DALI dimming option. Check compatibility before quotation.
Can finishes, accessories or product variations be specified?
Touch dimming and DALI control /T+DALI, 2 metre suspension kits /SUSB, /SUSG and /SUSW, diffuser accessories TA340 to TA344, bespoke finishes, RAL colours and emergency conversions can be considered as part of the project configuration.
Are photometric, BIM or installation files available?
Available resources include datasheet, Installation guide, Photometric data and BIM file for specification reference, product selection and lighting calculations and specification records.
What lead time should be allowed for Optima?
Lead time depends on quantity, finish, control gear, emergency conversion and current production capacity. Confirm the current project lead time with Lumenloop before placing an order.
Project Enquiry
Check product options and datasheets.
Model code, room type, control preference and accessory requirements help identify the correct datasheets, option notes and technical files.
Commercial enquiry
Check Optima against the accent lighting project.
Before Optima is scheduled, confirm lumen output, beam angle, aiming position, CRI, CCT, glare control, driver, DALI or Casambi control, finish, track or mounting detail and emergency context where required.
