Diameter- 203 mm
DOWNLIGHTS low-glare surface mounted downlight
Summitlow-glare surface mounted downlight
Summit.
low-glare surface mounted downlight.

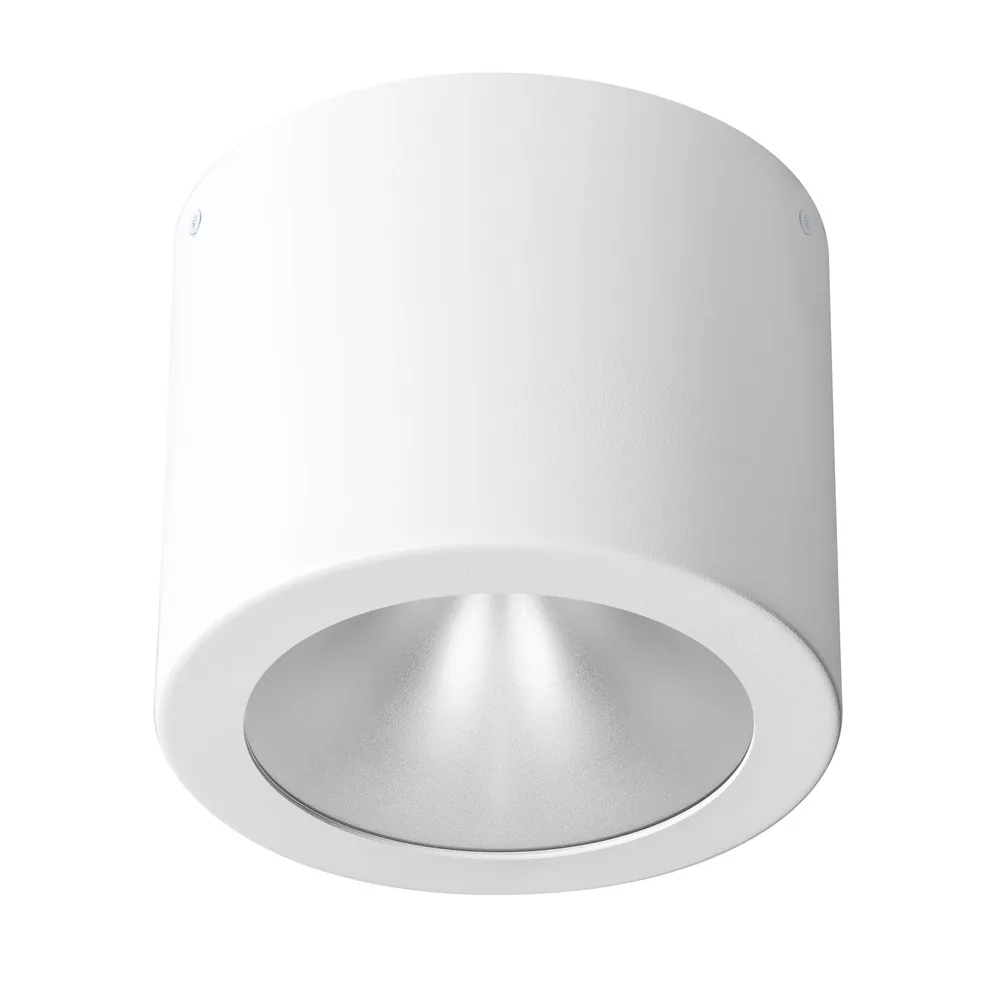

Summit is a low-glare surface mounted downlight for considered commercial lighting schemes. Its range includes Lightweight spun aluminium professional LED surface downlight and Integral Tridonic LED and driver system.
- Output
- 1,175–3,125 lm 6 model codes
- Colour temperature
- 3000K / 4000K model dependent
- Options
- Published options controls and accessories
01 / 05
Model codesSUMMIT.0011,175 lm · 3000K
Output1,175–3,125 lm
Colour temperature3000K / 4000K
ControlsConfirm driver arrangement
MountingSurface mounted — no cut-out
At a glance
Summit low-glare surface mounted downlight quick specification.
Check the installation, output, colour temperature and control information for this low-glare surface mounted downlight before reviewing the full model schedule.
Technical referenceNot to scale
Key specificationProduct summary
- 01MountingSurface mounted — no ceiling cut-out
- 02Controls/ECO control gear; /BTC Casambi
- 165 mm
Emergency/EMI and /EMDI integral emergency options
Product typelow-glare surface mounted downlight
Height
Product files
Download Summit technical files.
Available files for this exact product are listed below.
Rotational distributionIntensity · cd/klm
Product configurator
Configure your Summit
Choose the Summit model first, then add only the control, optic, emergency, finish or mounting options required for the project.
LuminaireProduct family
low-glare surface mounted downlightSummit is a lightweight spun aluminium professional LED surface downlight with integral Tridonic LED and driver system, low-glare multi-faceted reflector and outputs up to 3125 lm. RAL9016 brilliant white is standard, with integral DALI, wireless and emergency options available.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
Technical description
Low-glare surface mounted downlight specification for Summit.
Summit's technical information also covers Low-glare multi-faceted reflector; DALI, wireless and emergency options available. This allows the product to be matched to the intended mounting, output and control requirements without extending the published specification.
Summit construction and mounting
For surface downlight specifications, compare the model codes, outputs and available options below.
Performance and installation details include optics: Low-glare multi-faceted reflector as standard, finish: Brilliant white RAL9016 as standard and mounting: Surface mounted.
Controls, emergency and project options
Available options include controls: Integral DALI and wireless control options available where specified and LED and driver platform: Integral Tridonic LED and driver system. Model codes, control compatibility and lead times vary by configuration.
DALI, wireless and emergency options available.
Control options include Confirm driver arrangement.
Output1,175–3,125 lm
System power9.5–23 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsConfirm driver arrangement
Emergency/EMI and /EMDI options
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typelow-glare surface mounted downlight
Model codesSUMMIT.001–SUMMIT.006
Output1,175–3,125 lm
System power9.5–23 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsConfirm driver arrangement
Emergency/EMI and /EMDI options
Why Summit
Why specify this low-glare surface mounted downlight?
Listed choices: Control gear option, Casambi wireless network, Integral emergency, Integral emergency option /EMDI.
The six models cover 1,175–3,125 lm in 3000K and 4000K, with published finish, reflector, control, emergency and suspension options.
Summit options kept clear for project specification
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
architectural
Summit is available for projects requiring architectural lighting.
commercial
Summit is available for projects requiring commercial lighting.
surface mounted
Summit is available for projects requiring surface mounted lighting.
downlight
Summit is available for projects requiring downlight lighting.
Output1,175–3,125 lm
Downlights
Use Summit where downlights lighting is required.
Commercial interiors
Listed choices: Control gear option, Casambi wireless network, Integral emergency, Integral emergency option /EMDI.
Commercial interiors
Listed choices: Control gear option, Casambi wireless network, Integral emergency, Integral emergency option /EMDI.
Commercial interiors
Listed choices: Control gear option, Casambi wireless network, Integral emergency, Integral emergency option /EMDI.
Compare Summit with the wider downlights when reviewing output, optics, mounting, controls and emergency requirements.
low-glare LED downlight
Beam
Beam is a low-glare LED downlight designed for spaces that require high-quality, focused lighting with minimal glare.
Compare product →
compact surface mounted LED downlight
Crown
Crown is a compact surface mounted LED downlight with integral Philips LED and driver system, low-glare multi-faceted reflector and outputs up to 3,125 lm.
Compare product →
Tridonic reflector architectural downlight
Glow
Glow is a Tridonic reflector architectural downlight for controlled downlight performance.
Compare product →Specification questions
Summit details worth checking.
6 configurations are listed: SUMMIT.001, SUMMIT.002, SUMMIT.003, SUMMIT.004, SUMMIT.005, SUMMIT.006.
Published models cover 1,175–3,125 lm. Colour-temperature choices are 3000K / 4000K.
The datasheet lists /ECO control gear and /BTC Casambi options. Confirm the driver and control arrangement for the selected specification.
The datasheet lists /EMI and /EMDI integral emergency options. Confirm the required operating and testing arrangement for the project.
No ceiling cut-out is required for the surface-mounted Summit. Check the dimensional drawing and installation guide for the body size and fixing details.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Summit datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
