SURFACE MOUNTED compact surface mounted LED downlight

Compact surface mounted LED downlight – Crown

Spun aluminium.
Low-glare surface light.

Crown is a compact surface mounted LED downlight with integral Philips LED and driver system, low-glare multi-faceted reflector and outputs up to 3,250 lm. Available options include DALI, wireless control and emergency versions, with RAL9016 brilliant white as standard.

Outputs extend to 3,250 lm, with RAL9016 brilliant white as standard and verified TouchDIM, DALI, Casambi and emergency options.

Output: 1,300–3,250 lm 6 model codes
Colour temperature: 3000K / 4000K model dependent
Options: 6 listed control, emergency and body

Request a quote Download datasheet

Build your specification

Crown surface-mounted LED downlight on a high-resolution white background

01 / 07

Surface-mounted LED downlightUp to 3,250 lmSpun aluminium body with low-glare reflector

Output: 1,300–3,250 lm
CCT: 3000K / 4000K
Options: DALI + wireless

Model codesCROWN.0011,300 lm · 3000K CROWN.0021250 lm · 4000K

◉Output1,300–3,250 lm

◎Colour temperature3000K / 4000K

⊕ControlsDALI and Casambi wireless

▤FinishBrilliant white RAL9016

Product configurator

Configure your Crown

Select the output and CCT model, then choose the control, emergency and performance and reflector options required for the project.

▣LuminaireProduct family

compact surface mounted LED downlightLightweight spun aluminium body with integral Philips LED and driver system

Colour temperatureChoose the colour temperature, then an available output.

OutputOutputs shown are available at the selected colour temperature.

ControlsSelect one control option if required

EmergencySelect one emergency option if required

Optical specificationSelect colour rendering and reflector

FinishBrilliant white RAL9016 standard

Performance / bodyAvailable options

PerformanceAvailable options

AccessoriesAvailable options

Wireless Casambi single wall switchOptional accessory

Wireless Casambi twin wall switchOptional accessory

⊕QuantityNumber of fittings

fittings

▤Technical filesProduct information

Datasheet Installation guide Photometric data BIM file Technical brochure

At a glance

Crown compact surface mounted LED downlight quick specification.

Check the installation, output, colour temperature and control information for this compact surface mounted LED downlight before reviewing the full model schedule.

Configure Crown Request pricing

Crown technical line drawing — **Crown**Product geometry and mounting reference

Key specificationSource-backed summary

01Mounting: Surface mounted — no ceiling cut-out
02Diameter: 203 mm
03Output: 1,300–3,250 lm
04System power: 9.5–24.5 W
05CCT: 3000K / 4000K
06Controls: Non-dimmable, TouchDIM, DALI, Casambi

Product files

Download Crown technical files.

Available files for this exact product are listed below.

DatasheetPDF download Installation guidePDF download Photometric dataZIP download BIM fileZIP download Technical brochurePDF download

Polar luminous intensityCROWN.001 · standard multi-faceted reflector

Rotational distributionIntensity · cd/klm

Technical description

Crown compact surface mounted LED downlight specification and installation.

Crown is a lightweight spun aluminium professional LED surface downlight with integral Philips LED and driver system, low-glare multi-faceted reflector and outputs up to 3,250 lm. The surface mount installation requires no ceiling cut-out, and the integrated LED fitting is available in 3000K / 4000K with DALI and Casambi controls.

Low-glare reflector and integral driver system

The standard finish is brilliant white RAL9016. The current structured code table lists six output and CCT models from 1,300 lm to 3,250 lm.

Controls, emergency and reflector options

Available options include Touch dimming or DALI control gear, Casambi wireless, integral non-maintained ILEM emergency, DALI/self-test integral ILEM emergency, high CRI and a 65-degree satin etched reflector.

Output1,300–3,250 lm

Colour temperature3000K / 4000K

MountingSurface mounted

FinishBrilliant white RAL9016

DriverIntegral Philips LED and driver system

Download Crown datasheet Configure Crown

See the Lumenloop commercial downlights range for related mounting, output and optic options.

Product typeCompact surface-mounted LED downlight

Model schedule

Model	Output	CCT	System power
CROWN.001	1,300 lm	3000K	9.5 W
CROWN.002	1,350 lm	4000K	9.5 W
CROWN.003	2,025 lm	3000K	15 W
CROWN.004	2,100 lm	4000K	15 W
CROWN.005	3,150 lm	3000K	24.5 W
CROWN.006	3,250 lm	4000K	24.5 W

Output1,300–3,250 lm

System power9.5–24.5 W

Colour temperature3000K / 4000K

FinishRAL9016 brilliant white standard; black RAL9005 /BK, grey RAL9006 /GY, soft white RAL9010 /WH and custom RAL colours

ControlsNon-dimmable standard; TouchDIM or DALI /T+DALI; Casambi /BTC

EmergencyIntegral ILEM emergency /EMI; DALI or self-test emergency /EMDI

Models and options

Crown model codes and specification options.

Review the current model codes, controls, emergency choices and finishes, CRI and reflector options against the datasheet.

Model codes6 listed configurations

Each Crown model is shown with its output, colour temperature and system power.

3000KCROWN.001

1,300 lm9.5 W

4000KCROWN.002

1,350 lm9.5 W

3000KCROWN.003

2,025 lm15 W

4000KCROWN.004

2,100 lm15 W

3000KCROWN.005

3,150 lm24.5 W

4000KCROWN.006

3,250 lm24.5 W

Source option imagery

Finish, control and emergency details.

The current source option tiles are retained for review against the Crown datasheet.

Additional Crown optionsSource-backed specification choices

Finish/BK

Black — RAL 9005

Finish/GY

Grey — RAL 9006

Finish/WH

Soft white — RAL 9010

Crown 65 degree satin etched reflector option

Performance / body/SA65

65° satin etched reflector

Controls/T+DALI

Touch dimming or DALI control gear

Controls/BTC

Casambi wireless network inc. dimming

Crown integral non-maintained ILEM emergency option

Emergency/EMI

Emergency integral ILEM

Emergency/EMDI

DALI / self-test emergency integral ILEM

Performance/R9

Premium White LED

Crown two metre suspension kit with mounting plate

Accessories/SUS

2 m suspension kit with mounting plate

Accessories/SUS.B

2 m suspension kit

AccessoriesBTWS001

Wireless Casambi single wall switch

AccessoriesBTWS002

Wireless Casambi twin wall switch

Crown custom RAL colour product variation

Product variationsPV

Any RAL colour — contact sales

Configure these options Request a quote

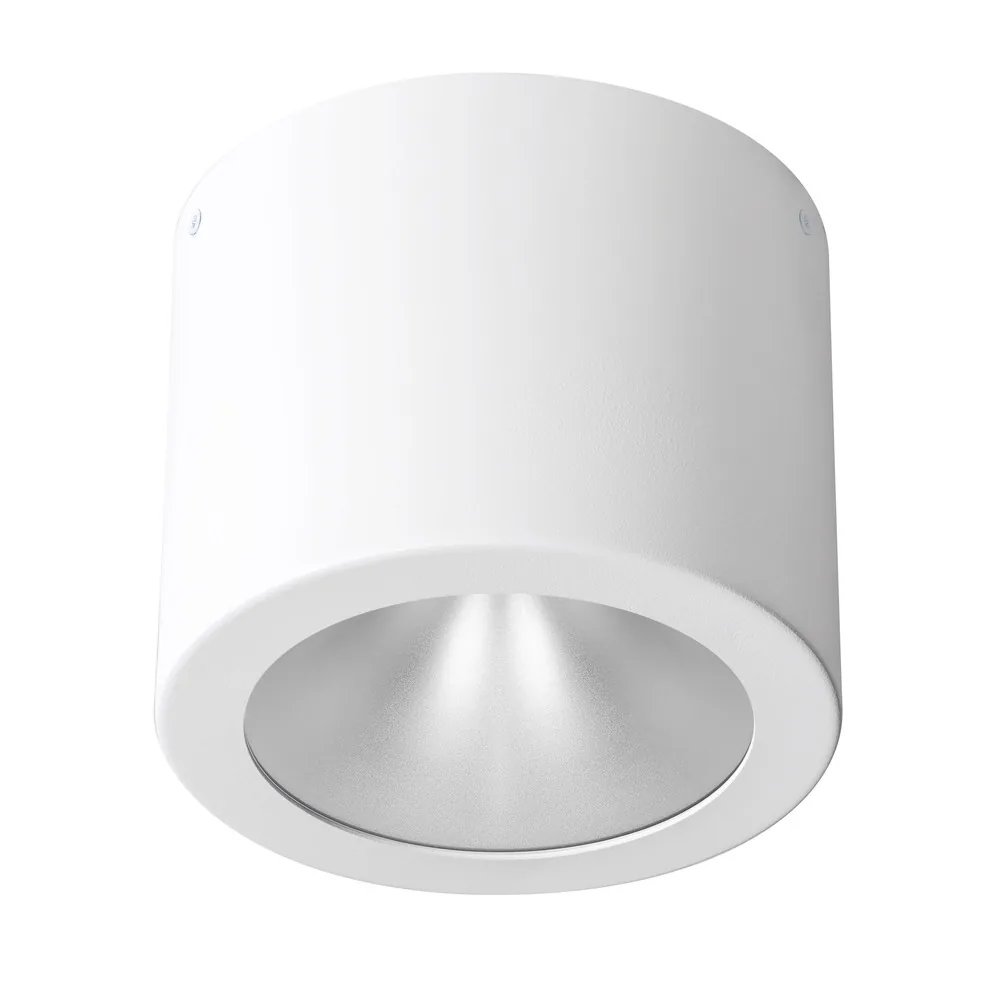

Crown surface mounted LED downlight product reference

Why Crown

Why specify Crown?

Crown brings a lightweight spun aluminium body, integral Philips LED and driver system and a low-glare multi-faceted reflector to commercial interiors.

Its six model codes and separate option choices keep output, colour temperature, controls and emergency requirements visible.

Surface mounted

A professional surface downlight for commercial interiors.

Output range

Six listed models from 1,300 lm to 3,250 lm.

Option clarity

Controls, emergency and reflector options remain separate specification decisions.

Build your Crown Specification support

Specification questions

Crown details worth checking.

Does Crown need a ceiling cut-out?

No ceiling cut-out is required for the surface-mounted Crown. Check the dimensional drawing and installation guide for the body size and fixing details.

Which Crown model codes are available?

6 configurations are listed: CROWN.001, CROWN.002, CROWN.003, CROWN.004, CROWN.005, CROWN.006.

Which outputs and colour temperatures are available?

Models cover 1,300–3,250 lm. Colour-temperature choices are 3000K / 4000K.

Which options can be specified?

Options include Touch dimming or DALI control gear, Casambi wireless, integral non-maintained ILEM emergency, DALI/self-test integral ILEM emergency, high CRI and a 65-degree satin etched reflector.

Is the Crown datasheet available?

Yes. The Crown datasheet is linked in the hero, configurator and technical section.

What makes Crown different from a standard surface downlight?

Crown combines a lightweight spun aluminium body, an integral Philips LED and driver system and a low-glare multi-faceted reflector in a compact surface-mounted fitting.

Which Crown finishes and body options are listed?

RAL 9016 brilliant white is standard, with black, grey and soft-white body finishes available. High colour rendering (/R9) and the 65-degree satin etched reflector (/SA65) are separate optical options.

How do I request a quotation for Crown?

Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.

What is the standard lead time for Crown?

Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
