60 deg satin etch
Reflector as standard
Optima Suspended suspended LED luminaire

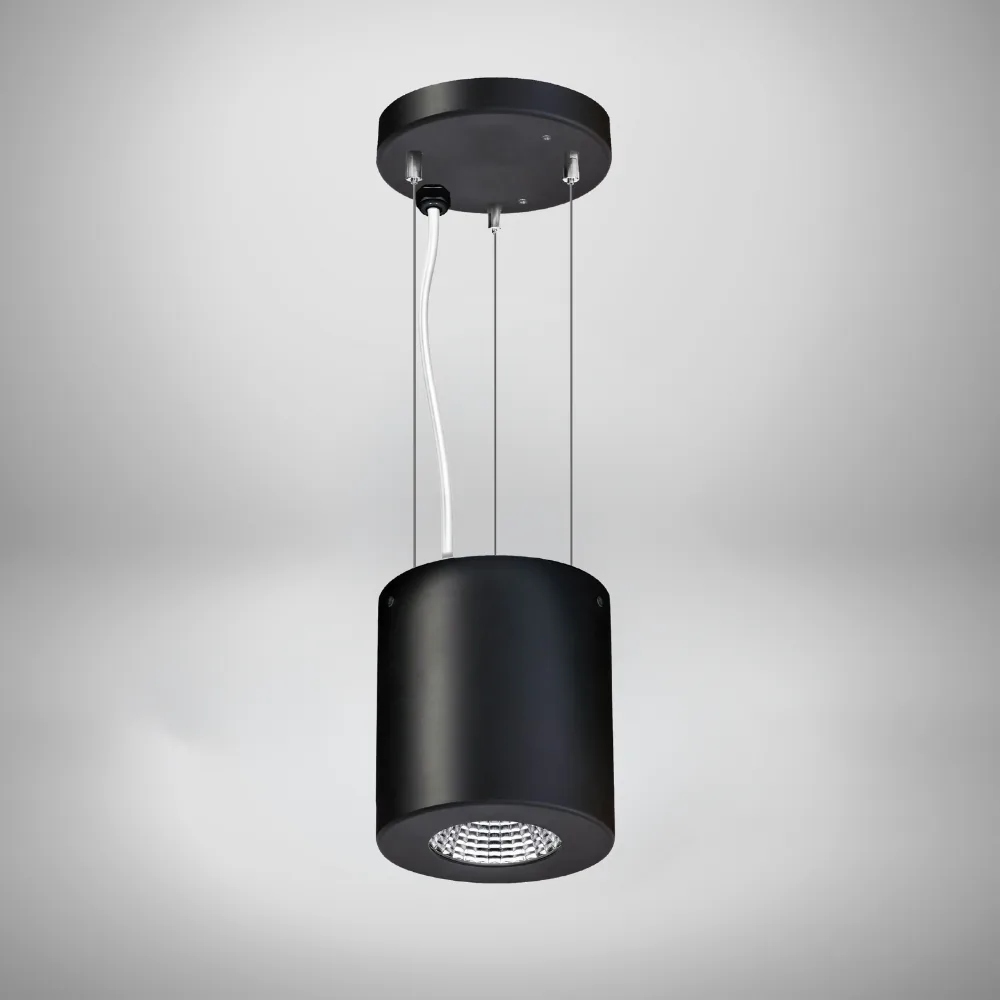

Optima Suspended is a suspended LED downlight for architectural lighting, commercial interiors and hospitality environments.
40 and 50 deg reflector options
Supports controlled distribution and visual comfort in the finished ceiling.
Optics
60 deg satin etch reflector as standard; 40 and 50 deg reflector options
Outputs up to 3800 lm
Output reference for specification and comparison.
Model codes
OPTIMASUSPENDED.001
Mounting
Suspended
Optics
60 deg satin etch reflector as standard; 40 and 50 deg reflector options
Controls
Integral DALI dimming option
Luminaire type
Suspended LED luminaire
Optics
60 deg satin etch reflector as standard; 40 and 50 deg reflector options
Life 60,000 hours (L70 / B10)
Long-life LED performance.
Mounting
Suspended
Download Datasheet
Technical datasheet for specification review.
Installation Guide
Installation guide for site coordination.
Photometric Data
Photometric data pack for lighting calculations.
BIM File
BIM coordination file for project drawings.
Project selection
Available luminaire options and accessories are shown below.
Configure For Enquiry
Configure Optima Suspended for enquiry.
Configuration options cover output, optic, suspension, control gear and accessories for specification support.
Configured Specification
Selected Optima Suspended specification.
Model code
OPTIMASUSPENDED.001
Model code
OPTIMASUSPENDED.001
Technical Description
Suspended LED luminaire specification for Optima Suspended.
Optima Suspended is a suspended LED downlight with a spun aluminium body, 60 degree satin-etched reflector and RAL finish options for commercial interiors and hospitality spaces
Performance and installation details include optics: 60 deg satin etch reflector as standard; 40 and 50 deg reflector options, life 60,000 hours (L70 / B10). This section covers output, optics, mounting and control requirements.
Available options include controls: Integral DALI dimming option, finish: Choice of paint finishes; bespoke RAL colours available to order and LED and driver platform: Philips LED and driver system. Model codes, control compatibility and lead times vary by configuration. Available technical files are shown with this product.
Specification-led suspended LED luminaire features.
- 60 deg satin etch: Reflector as standard
- 40 and 50 deg reflector options: Supports controlled distribution and visual comfort in the finished ceiling.
- Optics: 60 deg satin etch reflector as standard; 40 and 50 deg reflector options
- Outputs up to 3800 lm: Output reference for specification and comparison.
- Spun aluminium surface downlight: With a wide range of options
- Philips LED and driver system: Gives the product range a recognised LED and driver platform.
- 2 m suspended option: Helps confirm ceiling compatibility and installation conditions.
- Mounting: Suspended
Product Construction Reference
Optima Suspended technical reference.
Optima Suspended is a suspended LED downlight for architectural lighting, commercial interiors and hospitality environments.
Model code: OPTIMASUSPENDED.001, optics: 60 deg satin etch reflector as standard; 40 and 50 deg reflector options and life 60,000 hours (L70 / B10).
Option notes include tunable white + DALI /T+DALI, 50 degree multi-faceted reflector /MF50, 40 degree specular reflector /SP40, 2 metre suspension kits in black /SUSB, grey /SUSG and white /SUSW, plus diffuser accessories TA340 to TA344. Available technical files are shown with this product.
Specification Choices
Optima Suspended specification options.
Output and CCT
OPTIMASUSPENDED.0011,200 lm | 14.0 W | 3000K | 3000K
Output and CCT
OPTIMASUSPENDED.0022,075 lm | 24.0 W | 4000K | 4000K
Output and CCT
OPTIMASUSPENDED.0033,800 lm | 46.5 W | 4000K | 4000K
Options And Accessories
Optima Suspended options, finishes and controls.
/T+DALI
Tunable white + DALI /T+DALI
/MF50/SP40
50 degree multi-faceted reflector /MF50; 40 degree specular reflector /SP40
/SUSB/SUSG/SUSW
2 metre suspension kits in black /SUSB, grey /SUSG and white /SUSW
TA340TA341TA342TA343TA344
Clear glass TA340; centre etched glass TA341; fully etched glass TA342; clear polycarbonate TA343; opal polycarbonate TA344
Specification reasons
Why specify Optima Suspended?
Optics
60 deg satin etch
Reflector as standard
Optics
40 and 50 deg reflector options
Supports controlled distribution and visual comfort in the finished ceiling.
Optics
Optics
60 deg satin etch reflector as standard; 40 and 50 deg reflector options
Performance
Outputs up to 3800 lm
Output reference for specification and comparison.
Mounting
Spun aluminium surface downlight
With a wide range of options
Selection point
Philips LED and driver system
Gives the product range a recognised LED and driver platform.
Product FAQs
Optima Suspended specification questions.
Specification notes for contractors, consultants and buyers checking suspended LED luminaire options before ordering.
What makes Optima Suspended different from a standard suspended LED luminaire?
Optima Suspended is a suspended LED downlight with a spun aluminium body, 60 degree satin-etched reflector and RAL finish options for commercial interiors and hospitality spaces
Which ceilings or mounting conditions should be checked for Optima Suspended?
Mounting: Suspended. Check ceiling build-up, access space and fixing method before ordering.
Which outputs, wattages and colour temperatures are available?
Outputs up to 3800 lm: Output reference for specification and comparison. Life 60,000 hours (L70 / B10): Long-life LED performance. Output, colour temperature, control gear and emergency options vary by configuration.
What controls and emergency options can be specified?
Controls and options: Tunable white + DALI /T+DALI, 50 degree multi-faceted reflector /MF50, 40 degree specular reflector /SP40, suspension kits /SUSB, /SUSG and /SUSW, and diffuser accessories TA340 to TA344. Check the control strategy, emergency requirement and selected base model before quotation.
Can finishes, accessories or product variations be specified?
40 and 50 deg reflector options: Supports controlled distribution and visual comfort in the finished ceiling.
Are photometric, BIM or installation files available?
Available files include the datasheet, installation guide, photometric data and BIM file for specification work, coordination and installation planning.
What lead time should be allowed for Optima Suspended?
Lead time depends on quantity, finish, control gear, emergency conversion and current production capacity. Confirm the current project lead time with Lumenloop before placing an order.
Project Enquiry
Check product options and datasheets.
Model code, room type, control preference and accessory requirements help identify the correct datasheets, option notes and technical files.
