MountingSurface mounted — no ceiling cut-out
SURFACE MOUNTED surface mounted LED downlight
Optimasurface mounted LED downlight
Architectural surface form.
Controlled reflector light.
The Optima is a surface-mounted LED downlight, specified for commercial interiors requiring glare control, architectural finish and long-term use.
Eight 3000K and 4000K models cover 1,200-3,800 lm, with reflector, finish, suspension, control and accessory choices for commercial interiors.
- Output
- 1,200–3,800 lm 8 model codes
- Colour temperature
- 3000K / 4000K model dependent
- Optics
- 60° standard 40° and 50° options
01 / 05
Output1,200–3,800 lm
Colour temperature3000K / 4000K
ControlsTouch dimming / DALI option
MountingSurface mounted — no cut-out
Product configurator
Configure your Optima
Choose the Optima model first, then add only the control, optic, emergency, finish or mounting options required for the project.
LuminaireProduct family
surface-mounted LED downlightUK-made spun-aluminium surface downlight with Philips LED and driver technology, controlled reflector light and a 200 mm diameter body.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Optima surface mounted LED downlight quick specification.
Check the installation, output, colour temperature and control information for this surface mounted LED downlight before reviewing the full model schedule.
Dimensions200 mm diameter × 238 mm high
Output1,200–3,800 lm
System power14 W / 24 W / 34.5 W / 35 W / 46.5 W
CCT3000K / 4000K
ControlsTouch dimming / DALI option
Product files
Download Optima technical files.
Available files for this exact product are listed below.
Verified distributionIntensity · cd/klm
Technical description
LED downlight specification for Optima.

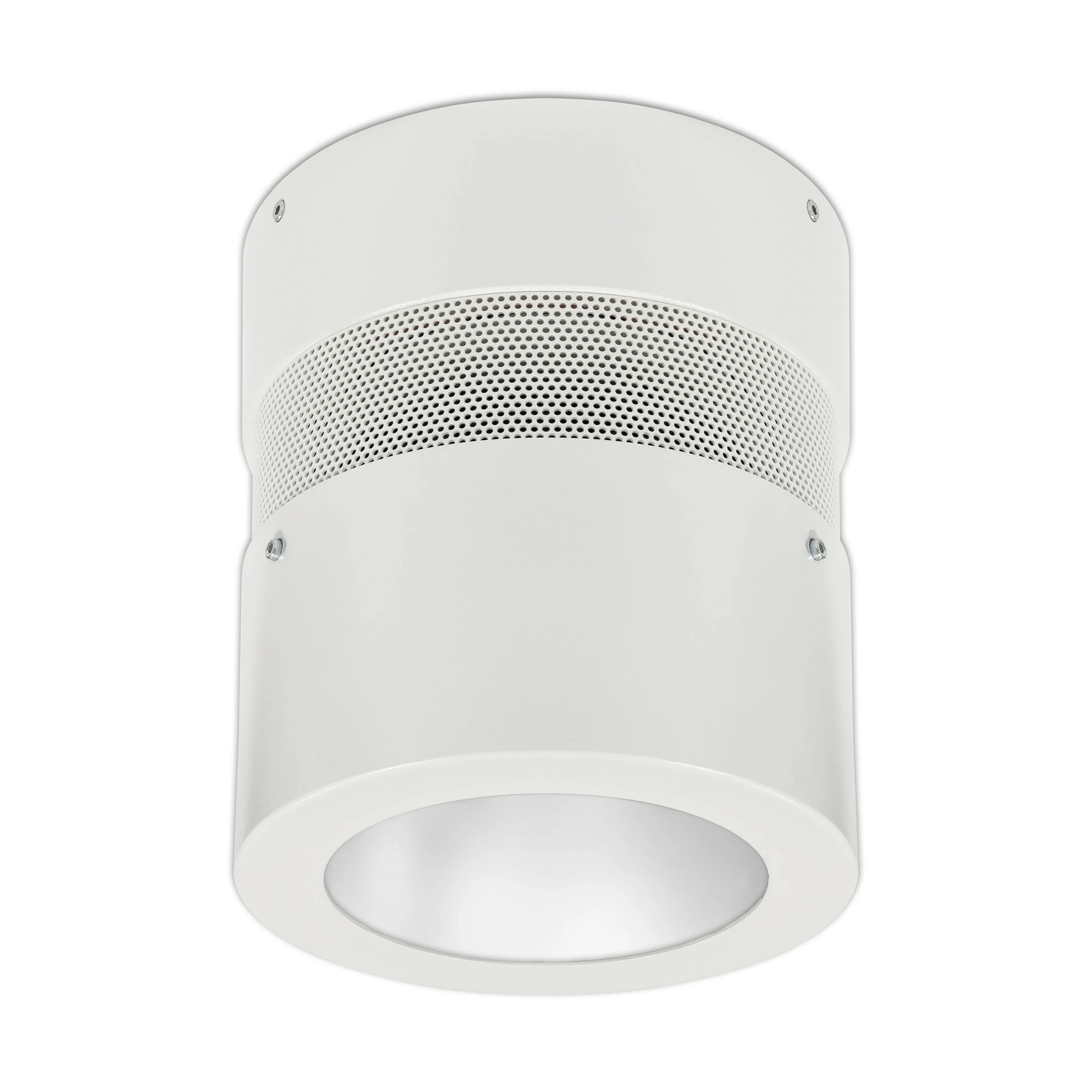

Optima is a UK-made surface-mounted LED downlight with a spun-aluminium housing, Philips LED and driver technology, and a controlled reflector system. Eight model codes provide outputs from 1,200 lm to 3,800 lm in 3000K or 4000K.
Optima construction and mounting
The cylindrical body is 200 mm in diameter and 238 mm high. The base fitting mounts directly to the ceiling without a cut-out.
White, grey and black 2 m suspension kits are separately listed for pendant configurations.
Output, optics and colour temperature

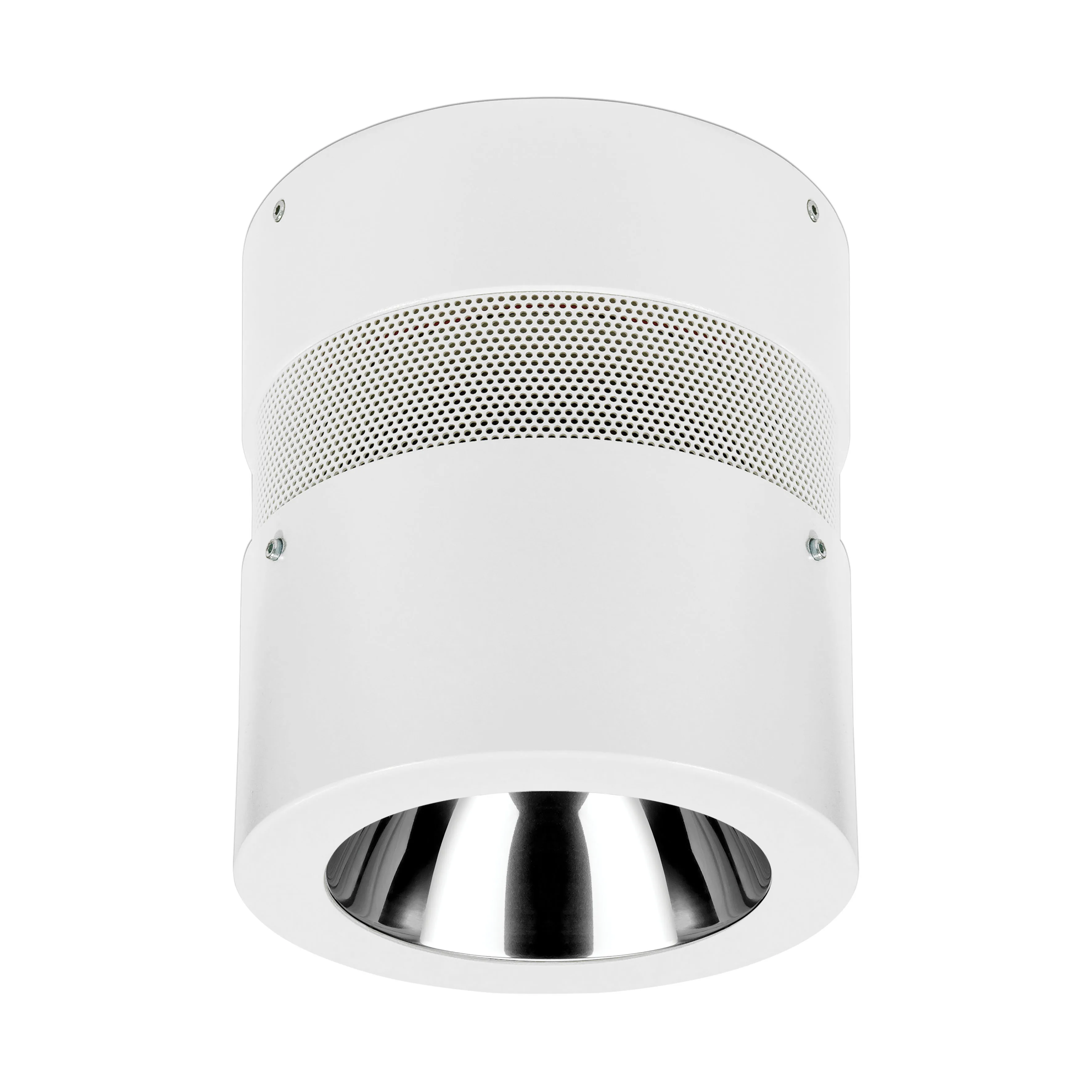

A 60 degree satin-etched reflector is standard, with 40 degree SP40 and 50 degree MF50 reflector options.
The eight 3000K and 4000K models cover 14 W to 46.5 W system power and have a declared lifetime of 60,000 hours to L70/B10.
Controls, finish and emergency options
The /T+DALI option provides touch dimming or DALI control. Listed finish examples are /WBW, /WGW, /BGB and /BBB, with other RAL colours available through Contact Sales.
Emergency conversions are available through Contact Sales and require confirmation for the selected model and control arrangement.
Product files
The datasheet, surface installation guide, LDT archive and BIM package are available above for specification and design work.
Output1,200–3,800 lm
System power14 W / 24 W / 34.5 W / 35 W / 46.5 W
Colour temperature3000K / 4000K
Finish/WBW, /WGW, /BGB, /BBB; other RAL colours on request
ControlsDALI
EmergencyAvailable through Contact Sales
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typesurface mounted LED downlight
Model codesOPTIMA.001, OPTIMA.002, OPTIMA.003, OPTIMA.004, OPTIMA.005, OPTIMA.006, OPTIMA.007, OPTIMA.008
Output1,200–3,800 lm
System power14 W / 24 W / 34.5 W / 35 W / 46.5 W
Colour temperature3000K / 4000K
Finish/WBW, /WGW, /BGB, /BBB; other RAL colours on request
ControlsNon-dimmable; /T+DALI touch dimming or DALI
EmergencyAvailable through Contact Sales
Dimensions200 mm diameter x 238 mm high
Optics60 degree satin-etched reflector standard; 40 degree SP40 and 50 degree MF50 options
Lifetime60,000 hours L70/B10
MountingSurface mounted; 2 m suspension kits separately available
Models, options and accessories
Optima model codes and specification options.
Choose the Optima base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes8 listed configurations
8 model configurations are shown with their output, CCT, power and finish information where available.
1,200 lm14 W
1,300 lm14 W
1,900 lm24 W
2,075 lm24 W
2,550 lm34.5 W
2,775 lm35 W
3,475 lm46.5 W
3,800 lm46.5 W
Additional Optima options and accessoriesProduct images and specification choices
Controls/T+DALI
Touch dimming or DALI
Mounting/SUSW
2 m white suspension kit
Mounting/SUSG
2 m grey suspension kit
Mounting/SUSB
2 m black suspension kit
Finish/WBW
White body, black reflector, white heatsink
Finish/WGW
White body, grey reflector, white heatsink
Finish/BGB
Black body, grey reflector, black heatsink
Finish/BBB
Black body, black reflector, black heatsink
AccessoriesTA340
Clear glass
AccessoriesTA341
Centre-etched glass
AccessoriesTA342
Fully etched glass
AccessoriesTA343
Clear polycarbonate
AccessoriesTA344
Opal polycarbonate
Custom configurationContact sales
Emergency conversions
Custom configurationCustom configuration
Any RAL colour
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Optima
Why specify this surface mounted LED downlight?
Optima combines a clean spun-aluminium cylinder with controlled reflector light for solid or exposed commercial ceilings.
Eight model codes, three verified reflector distributions and a broad set of sourced finish, suspension and front-accessory options support project-specific schedules.
Spun-aluminium body
A 200 mm diameter architectural surface fitting.
Eight model codes
Outputs from 1,200 to 3,800 lumens in 3000K and 4000K.
Reflector choice
A 60 degree satin reflector with 40 and 50 degree alternatives.
UK made
Philips-powered construction assembled for project configuration.
Output1,200–3,800 lm8 listed models
CCT3000K / 4000KModel dependent
Optics60° / 50° / 40°Verified reflector distributions
Typical applicationsWhere Optima is specified
Commercial interiors
Surface-mounted downlighting for solid or exposed ceilings.
Retail
Reflector-controlled light with multiple finish combinations.
Hospitality
An architectural cylindrical form for public interiors.
Refurbishment
A surface solution where recessed mounting is unsuitable.
Compare Optima with the wider commercial downlights when reviewing output, optics, mounting, controls and emergency requirements.
suspended architectural LED downlight
Optima Suspended
Optima Suspended is a suspended LED downlight with a spun aluminium body, 60 degree satin-etched reflector and RAL finish options for commercial interiors and hospitality spaces
Compare product →
compact surface mounted LED downlight
Crown
Crown is a compact surface mounted LED downlight with integral Philips LED and driver system, low-glare multi-faceted reflector and outputs up to 3,125 lm.
Compare product →
low-glare surface mounted downlight
Summit
Summit is a low-glare surface mounted downlight with integral Tridonic LED and driver system, low-glare multi-faceted reflector and outputs up to 3,125 lm.
Compare product →Specification questions
Optima details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
8 configurations are listed: OPTIMA.001, OPTIMA.002, OPTIMA.003, OPTIMA.004, OPTIMA.005, OPTIMA.006, OPTIMA.007, OPTIMA.008.
The product family covers 1,200–3,800 lm. Colour-temperature choices are 3000K / 4000K.
The /T+DALI option provides touch dimming or DALI control. Confirm the required control gear and wiring arrangement when ordering.
Emergency conversions are available through Contact Sales and must be confirmed for the selected model and control arrangement.
No ceiling cut-out is required for the surface-mounted Optima. Check the dimensional drawing and installation guide for the body size and fixing details.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Optima datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
Product quotation
Request a quotation for Optima.
Send the selected code, quantity and any mounting, control, emergency or finish requirements. Your configurator choices are carried into the form automatically.
Configuration retainedThe product code and quantity update as you configure the fitting.
Useful project detailAdd the application, required date and any option requirements you already know.
Direct contactPrefer to speak? Call 02045 721 554 or email Lumenloop.
Average lead time10 working days for standard product configurations. Custom accessories, custom finishes and other custom variations are excluded; contact us to confirm timing.
