Output1,200–3,025 lm

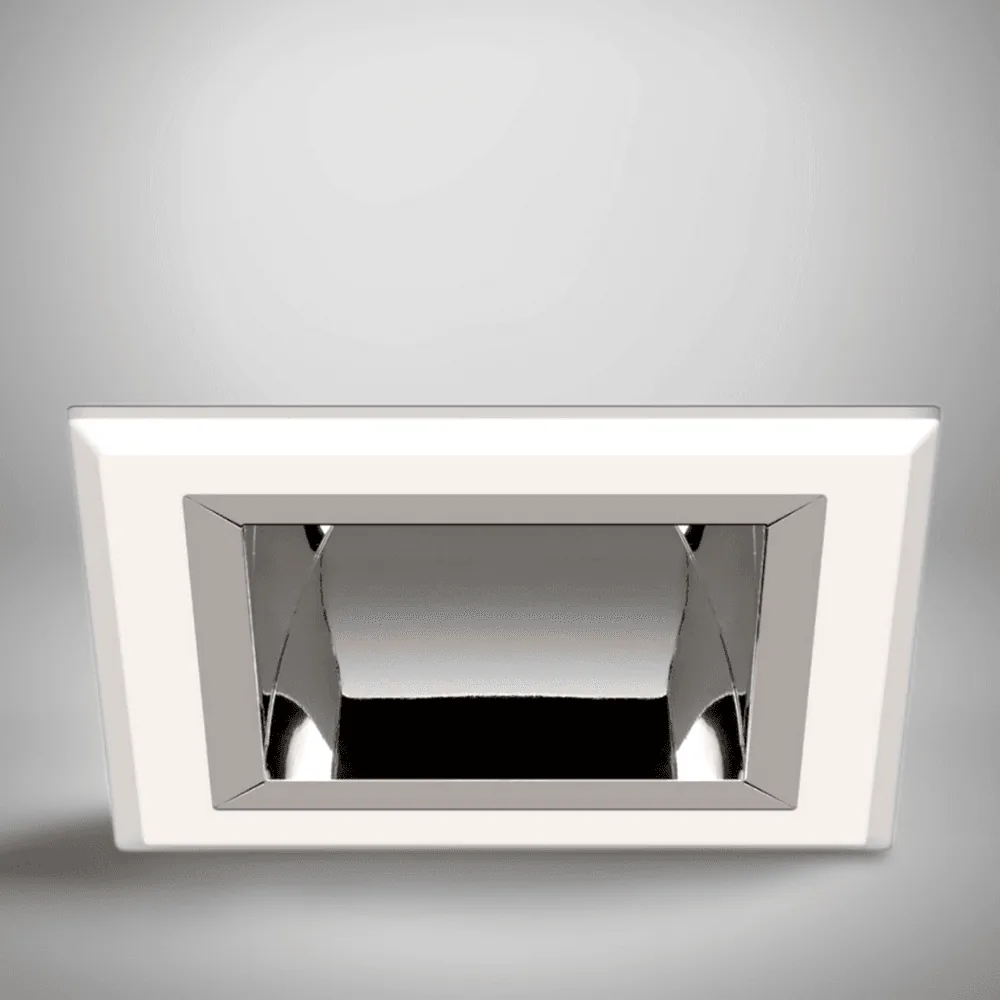

DOWNLIGHTS square recessed LED downlight
Optihigh-output tunable-white LED downlight
Opti.
Square aperture. Controlled output.
Opti is a high-output tunable-white LED downlight for considered commercial lighting schemes. Its source-backed range includes Tridonic LED module and Outputs up to 3025 lumens.
- Output
- 1,200–3,025 lm
- Reflector
- 96% highly specular
- Rated life
- >50,000 h 5-year warranty
01 / 04
Output1,200–3,025 lm
System power10–26 W
Body height112 mm
Ceiling cut-out140 × 140 mm
Product configurator
Configure your Opti
Choose one published Opti code, then add only the required control, emergency and universal-bezel suffixes.
Tunable-white versions cannot use the fixed-CCT control upgrades or emergency conversions; confirm the tunable-white control arrangement.
LuminaireProduct family
Square recessed LED downlightTridonic technology, 96% specular reflector, 170 × 170 mm bezel and 140 × 140 mm ceiling cut-out.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Opti square recessed LED downlight specification.
Review the aperture, output, colour temperature and control information before choosing a model.
Technical referenceNot to scale
Key specificationSpecification summary
- 01Ceiling cut-out
- 140 × 140 mm
- 02Bezel
- 170 × 170 mm
- 03Output
- 1,200–3,025 lm
- 04System power
- 10–26 W
- 05CCT
- 3000K / 4000K / 2700–6500K tunable white
- 06Controls
- SwitchDIM / DALI / DSI / Casambi
Product files
Download Opti technical files.
Available files for this exact product are listed below.
C0 plane distributionIntensity · cd/klm
Technical description
High-output tunable-white LED downlight specification for Opti.
Opti's technical information also covers Efficacy up to 118.1 lm/W; Versatile commercial application. This allows the product to be matched to the intended mounting, output and control requirements without extending the published specification.
Body, bezel and mounting
The 170 × 170 mm bezel sits over a 140 × 140 mm ceiling cut-out. Body height is 112 mm, and the listed ceiling-thickness range is 5–35 mm.
The fitting is supplied with a 500 mm supply lead and includes short-circuit, overload and temperature protection.
Output and colour temperature
Fixed 3000K and 4000K entries span 1,200–3,025 lm. OPTI.2000/TUNE provides 1,725 lm across a 2700–6500K tunable-white range.
The current datasheet assigns both 2,075 lm and 3,025 lm rows to OPTI.2002 and OPTI.2004. Confirm the required output when requesting a quotation.
Controls, emergency and decorative accessories
/ECO covers SwitchDIM, DALI or DSI control gear. /BTC provides Casambi Bluetooth wireless control including dimming.
Four emergency suffixes separate standard, DALI and self-test conversions from integral-indicator arrangements. /UB enables the Decorative variant needs confirmation–Decorative variant needs confirmation decorative bezel accessories.
System power10–26 W
Reflector96% specular
Body height112 mm
Controls/ECO / /BTC
Emergency/EM / /EMD / /EMI / /EMDI
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typeSquare recessed LED downlight
Model codesOPTI.2000/TUNE, OPTI.2001, OPTI.2002, OPTI.2003, OPTI.2004
Output1,200–3,025 lm
System power10–18 W
Colour temperature3000K / 4000K / 2700–6500K tunable white
Bezel170 × 170 mm
Ceiling cut-out140 × 140 mm
Body height112 mm
Ceiling thickness5–35 mm
Reflector96% highly specular
Rated life>50,000 hours L80/F10
Warranty5 years
Controls/ECO SwitchDIM, DALI or DSI; /BTC Casambi
Emergency/EM, /EMD, /EMI, /EMDI
Models, options and accessories
Opti model codes and specification options.
Choose one unique Opti code, then add only the control, emergency and bezel options required.
Model codes5 unique published codes
Each card is one published Opti model code with every output, CCT and power row currently assigned to it.
1,725 lm / 2700–6500K / 18 W
1,200 lm / 3000K / 11 W
2,075 lm / 3000K / 19 W
1,200 lm / 4000K / 10 W
2,075 lm / 4000K / 18 W
3,025 lm / 3000K / 26 W
3,025 lm / 4000K / 26 W
See model schedule the current datasheet assigns both the 2,075 lm and 3,025 lm rows to OPTI.2002 and OPTI.2004. State the required output when requesting a quotation.
Additional Opti options and accessoriesPublished product choices
Universal bezel/UB
Universal bezel for decorative accessories
Emergency/EM
Emergency conversion
Emergency/EMD
DALI and self-test emergency conversion
Emergency/EMI
Integral indicator for emergency conversion
Emergency/EMDI
Integral indicator for DALI and self-test emergency conversion
Controls/ECO
SwitchDIM, DALI or DSI control gear
Controls/BTC
Casambi Bluetooth wireless network including dimming
Decorative bezelsDecorative variant needs confirmation–Decorative variant needs confirmation
Clear, opal, clear-halo and opal-halo acrylic accessories; specify with /UB
Decorative variant needs confirmation–Decorative variant needs confirmation decorative bezels require the /UB universal bezel. The /ECO and /BTC control methods require their corresponding control gear and wiring or commissioning arrangements.
Why Opti
Why specify Opti?
Opti combines a clean square aperture with Tridonic technology, a 96% specular reflector and fixed or tunable-white colour-temperature choices.
Published output reaches 3,025 lm, with rated life above 50,000 hours and a five-year warranty.
Controls, emergency and bezel options kept explicit
SwitchDIM, DALI and DSI share the /ECO control-gear suffix; Casambi wireless control remains a distinct /BTC choice.
Emergency conversions, integral indicators and decorative bezel accessories are then selected separately.
96% reflector
Highly specular optical surface.
Tunable white
2700–6500K on OPTI.2000/TUNE.
>50,000 hours
Long-life published product record.
Universal bezel
Decorative variant needs confirmation–Decorative variant needs confirmation decorative accessories.
Output1,200–3,025 lmFixed and tunable
Power10–26 WModel dependent
Codes5 uniqueCurrent datasheet
Specification checksBefore ordering Opti
Ceiling aperture
Confirm the 140 × 140 mm cut-out, 112 mm body height and 5–35 mm ceiling thickness.
Output row
State the required output for OPTI.2002 or OPTI.2004 because each code has two published performance rows.
Control method
Keep /ECO wired controls separate from /BTC Casambi wireless control.
Compare Opti with the wider commercial downlight range when reviewing aperture, output and control requirements.
tunable white LED downlight
Dynamic
Tunable white LED downlight. Review the model schedule and compatible options.
Compare product →
high-output LED downlight
Efficace
High-output LED downlight. Review the model schedule and compatible options.
Compare product →
low-profile high-output LED downlight
Napoleon
Low-profile high-output LED downlight. Review the model schedule and compatible options.
Compare product →Specification questions
Opti details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
Five unique codes are published: OPTI.2000/TUNE, OPTI.2001, OPTI.2002, OPTI.2003 and OPTI.2004. The current datasheet assigns two performance rows to OPTI.2002 and OPTI.2004, so state the required output when requesting a quotation.
Fixed 3000K and 4000K models cover 1,200–3,025 lm. OPTI.2000/TUNE is a 1,725 lm tunable-white model covering 2700–6500K.
The /ECO suffix covers SwitchDIM, DALI or DSI control gear. /BTC provides Casambi Bluetooth wireless control including dimming.
The listed emergency suffixes are /EM, /EMD, /EMI and /EMDI. They separate standard, DALI and self-test conversions from integral-indicator arrangements.
Opti requires a 140 × 140 mm ceiling cut-out, with a 170 × 170 mm bezel and a 112 mm body height.
The LDT archive contains a standard reflector distribution and a distinct Decorative variant needs confirmation opal-acrylic distribution. The preview excludes OPTI.2000/TUNE because no tunable-white LDT file is supplied.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
Product quotation
Request a quotation for Opti.
Send the selected code, quantity, required output and any control, emergency or decorative-bezel requirements. Your configurator choices are carried into the form automatically.
Configuration retainedThe product code and quantity update as you configure the fitting.
Useful project detailAdd the application, required date and any option requirements you already know.
Direct contactPrefer to speak? Call 02045 721 554 or email Lumenloop.
Average lead time10 working days for standard product configurations. Custom accessories, custom finishes and other custom variations are excluded; contact us to confirm timing.
