Low-glare reflector set
60 degree satin etched as standard, with /MF50 multi-faceted and /SP40 specular reflector choices.
Commercial downlight / low glare / Tridonic / IP65 options

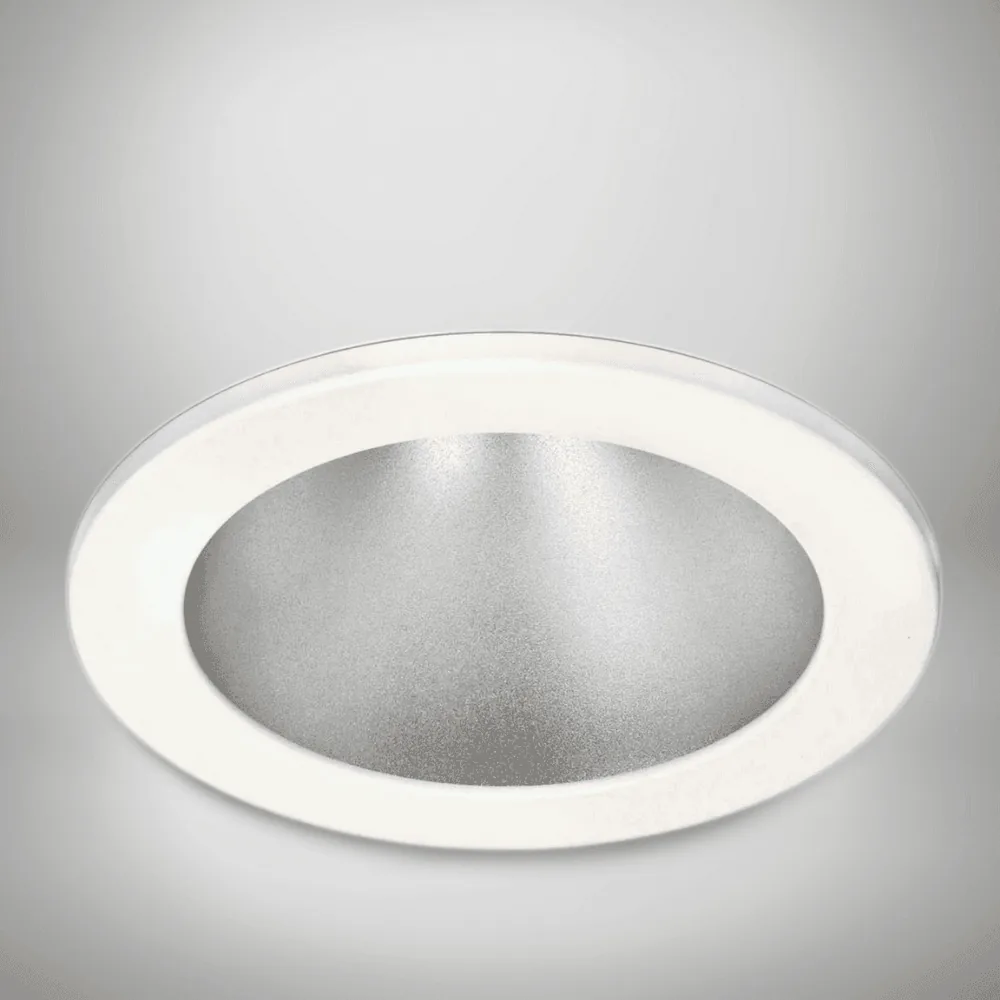

Dynamic LED downlight
Dynamic is a commercial LED downlight with a 195 mm bezel, 176 mm cut-out, low-glare reflector choices and Tridonic control, emergency and IP65 accessory options.
Tridonic control platform
Tridonic Advance LED and driver technology with /ECO and /BTC control suffixes plus emergency options.
Ceiling fit

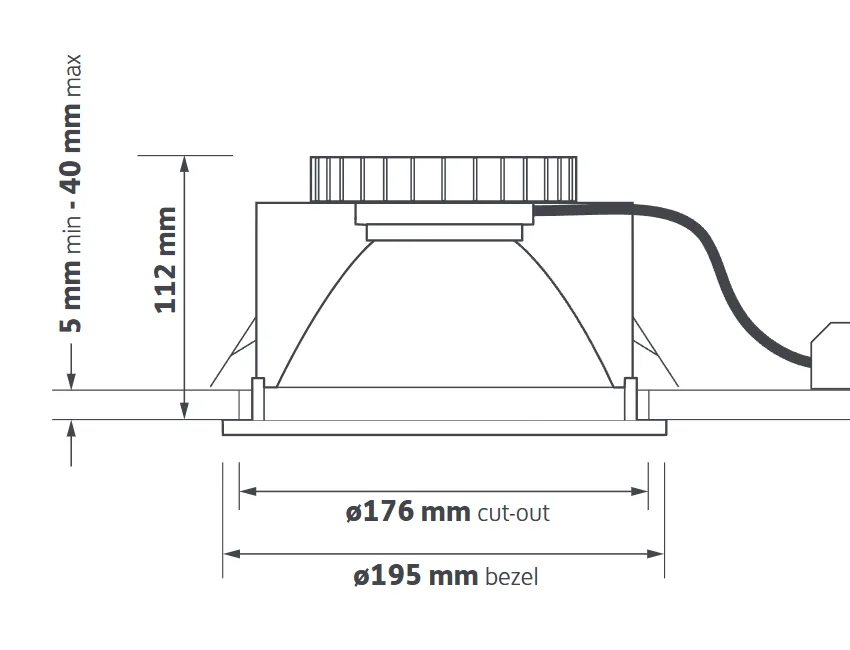

195 mm bezel, 176 mm cut-out, 112 mm depth and 5-40 mm ceiling thickness from the current source drawing.
IP65 and bezel accessories
/65, IP65 glass and polycarbonate accessories, TA300 bezel finishes and anti-tamper options are all listed in the source pack.
Model references
DYNAMIC.000 to DYNAMIC.004
Cut-out
176 mm
Depth
112 mm
Controls
/ECO, /BTC, /EM
Luminaire type
Commercial LED downlight
Lumen output range
1075-2825 lm
Dimensions
195 mm bezel, 176 mm cut-out, 112 mm depth
Colour temperature
3000K, 4000K and tunable white
Specification Choices
Dynamic specification options.
Output and CCT
DYNAMIC.0011,150 lm | 11 tcW | 3000K
Output and CCT
DYNAMIC.0031,075 lm | 10 W | 4000K
Output and CCT
DYNAMIC.0021,900 lm | 19.5 tcW | 3000K
Output and CCT
DYNAMIC.0041,875 lm | 18 tcW | 4000K
Output and CCT
DYNAMIC.0001,725 lm | 17.5 tcW | Tunable white
Options And Accessories
Dynamic options, finishes and controls.
/ECO/BTC
SwitchDIM, DALI or DSI control gear /ECO, or Casambi Bluetooth wireless /BTC.
/EM/EMD/EMI/EMDI
EM conversion /EM, self-test or DALI emergency /EMD, and integral indicator variants /EMI and /EMDI.

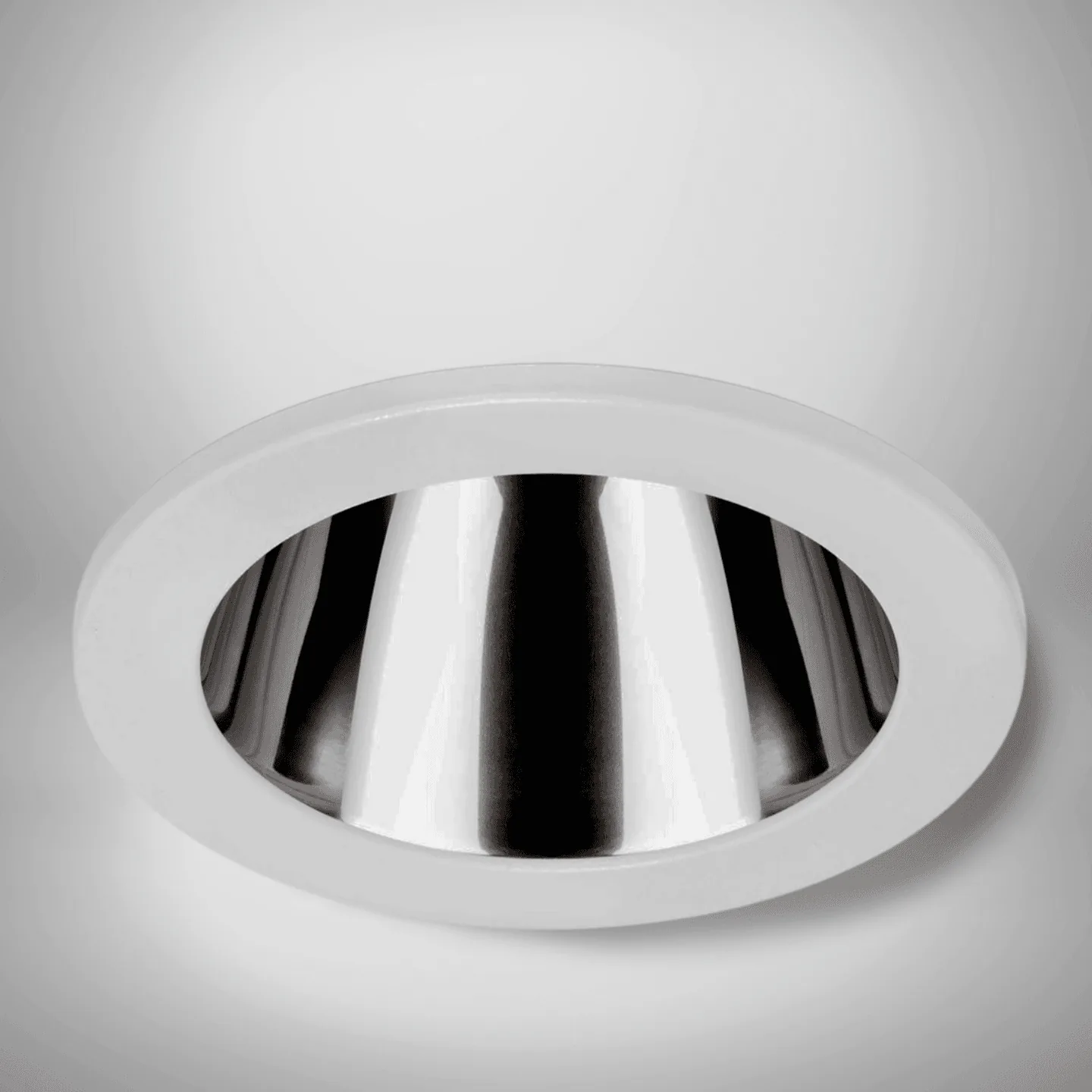

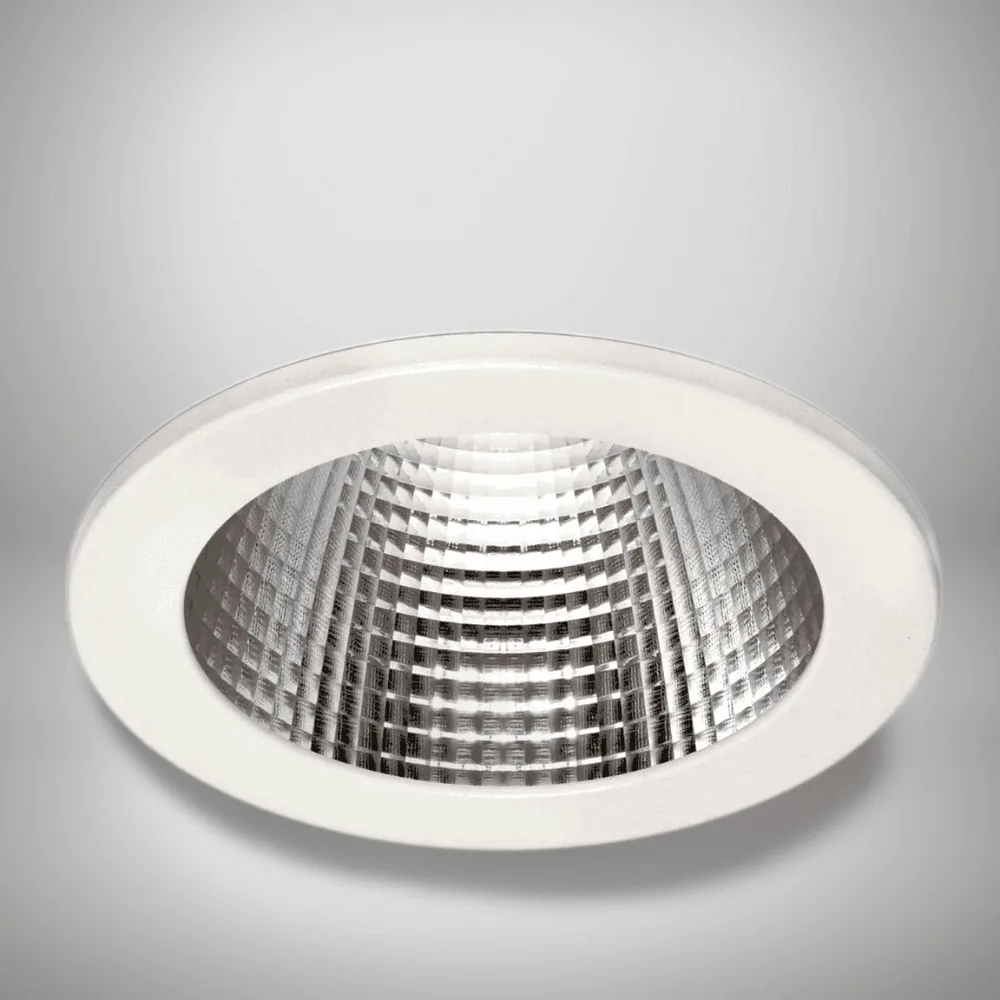

/MF50/SP40
50 degree multi-faceted /MF50 and 40 degree specular /SP40 reflector options for different distribution requirements.
/65IP65/002/195IP65/008/195IP65/009/195
Universal bezel /65 with clear glass, clear polycarbonate and opal polycarbonate IP65 accessories.
TA300/WHTA300/BWHTA300/BLTA300/GY
TA300 bezel finishes in RAL9010 white, RAL9016 brilliant white, RAL9005 black and RAL9006 grey.
LCP/XETAT300GF208GF218GF008GF010
LCP/XET tunable-white controls, AT300 anti-tamper bezels and matching anti-tamper driver or bit accessories.
Download Datasheet
Technical datasheet for product reference.
Project selection
Available luminaire options and accessories are shown below.
Configure For Enquiry
Configure Dynamic for enquiry.
Select the output, optic, finish, control gear and accessories needed for the project, then send the configuration to Lumenloop for specification support.
Configured Specification
Selected Dynamic specification.
Selection reference
DYNAMIC.001
Selection reference
DYNAMIC.001
Body And Trim Detail
Dynamic quick technical reference.
Dynamic is a recessed commercial LED downlight with a 195 mm bezel, 176 mm cut-out and 112 mm depth.
The current source lists 5-40 mm ceiling thickness, a 60 degree satin etched reflector as standard, and /MF50 or /SP40 reflector alternatives.
Control, emergency and accessory options include /ECO, /BTC, /EM, /EMD, /EMI, /EMDI, /65 IP65 accessories, TA300 bezel finishes and LCP/XET tunable-white controls.
Specification reasons
Why specify Dynamic?
Optics
60 deg satin etched reflector
Standard reflector arrangement for controlled distribution in commercial interiors.
Performance
Efficacies up to 114.4 llm/tcW
Supports output planning where wattage and delivered lumens both matter on the schedule.
Ingress protection
IP54 & IP65 options
Lets the fitting be matched to protected ceiling conditions and IP65 bezel accessory requirements.
Controls
Tridonic Advance LED and driver
Supports /ECO and /BTC control choices with the emergency suffixes shown in the current source.
Controls
Dimming and emergency options
/EM, /EMD, /EMI and /EMDI keep the luminaire aligned with the emergency strategy.
Accessories
Bezel and control accessories
TA300 finishes, /65 IP65 parts, LCP/XET and anti-tamper accessories expand the specification range.
Product FAQs
Dynamic specification questions.
Specification notes for contractors, consultants and buyers checking LED downlight options before ordering.
What makes Dynamic different from a standard LED downlight?
Dynamic combines a large-format commercial downlight body with Tridonic LED and driver technology, low-glare reflector options, tunable-white availability and a wide accessory set.
Which ceilings or mounting conditions should be checked for Dynamic?
Check the 176 mm cut-out, 112 mm depth, 195 mm bezel and the 5-40 mm ceiling-thickness range shown in the current source drawing before final selection.
Which outputs, wattages and colour temperatures are available?
The current source lists outputs from 1075 lm to 2825 lm, wattages from 10 tcW to 26.5 tcW, and 3000K, 4000K or 2700K-6500K tunable-white variants.
What controls and emergency options can be specified?
Controls: SwitchDIM, DALI or DSI /ECO; Casambi wireless /BTC. Emergency: EM conversion /EM, DALI or self-test EM conversion /EMD, integral indicator EM conversion /EMI and integral indicator DALI or self-test EM conversion /EMDI. Confirm compatibility with the project control strategy, emergency schedule and selected base model before final selection.
Can finishes, accessories or product variations be specified?
Yes. The source pack shows TA300 bezel finishes, /65 IP65 accessories, LCP/XET tunable-white controls and anti-tamper accessory arrangements for project-specific configurations.
Are photometric, BIM or installation files available?
The current page links the latest Dynamic datasheet. Ask the specification team for the latest installation, photometric or BIM file set before issuing the final schedule.
What lead time should be allowed for Dynamic?
Lead time depends on quantity, finish, control gear, emergency conversion and current production capacity. Confirm the current project lead time with Lumenloop before placing an order.
Product Support
Check product options and datasheets.
Share the selected code, room type, control preference and any accessory requirements. Lumenloop can provide datasheets, option notes and supporting files for the selected fitting.
