Ceiling cut-out140 × 140 mm
SQUARE LOW GLARE high-output LED downlight
Efficacehigh-output LED downlight
Square aperture.
High-output control.
Efficace is a high-output LED downlight for commercial and architectural applications. It uses a die-cast bezel, Philips DLM LED technology, a 96% specular reflector and a 60,000-hour lifespan.
- Output
- 1,075–4,800 lm 8 model codes
- Colour temperature
- 3000K / 4000K model dependent
- Options
- 16 listed controls and accessories
01 / 05
Output1,075–4,800 lm
Colour temperature3000K / 4000K
ControlsDALI, Casambi
Ceiling cut-out140 × 140 mm
Product configurator
Configure your Efficace
Choose the Efficace model first, then add only the control, optic, emergency, finish or mounting options required for the project.
LuminaireProduct family
high-output LED downlightThe Efficace Series is a UK-made LED downlight for commercial and architectural applications. It uses a die-cast bezel, Philips DLM LED technology, a 96% specular reflector and a 60,000-hour lifespan
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Efficace high-output LED downlight quick specification.
Check the installation, output, colour temperature and control information for this high-output LED downlight before reviewing the full model schedule.
Bezel170 × 170 mm
Output1,075–4,800 lm
System power11–48 W
CCT3000K / 4000K
ControlsDALI, Casambi
Product files
Download Efficace technical files.
Available files for this exact product are listed below.
Technical description
High-output LED downlight specification for Efficace.
Efficace is a UK-made high-output LED downlight for commercial and architectural applications. It uses a die-cast bezel, Philips DLM LED technology and a 96% specular reflector, with outputs from 1,075 to 4,800 lm. Product life is listed as >60,000 hours (L70 / B10).

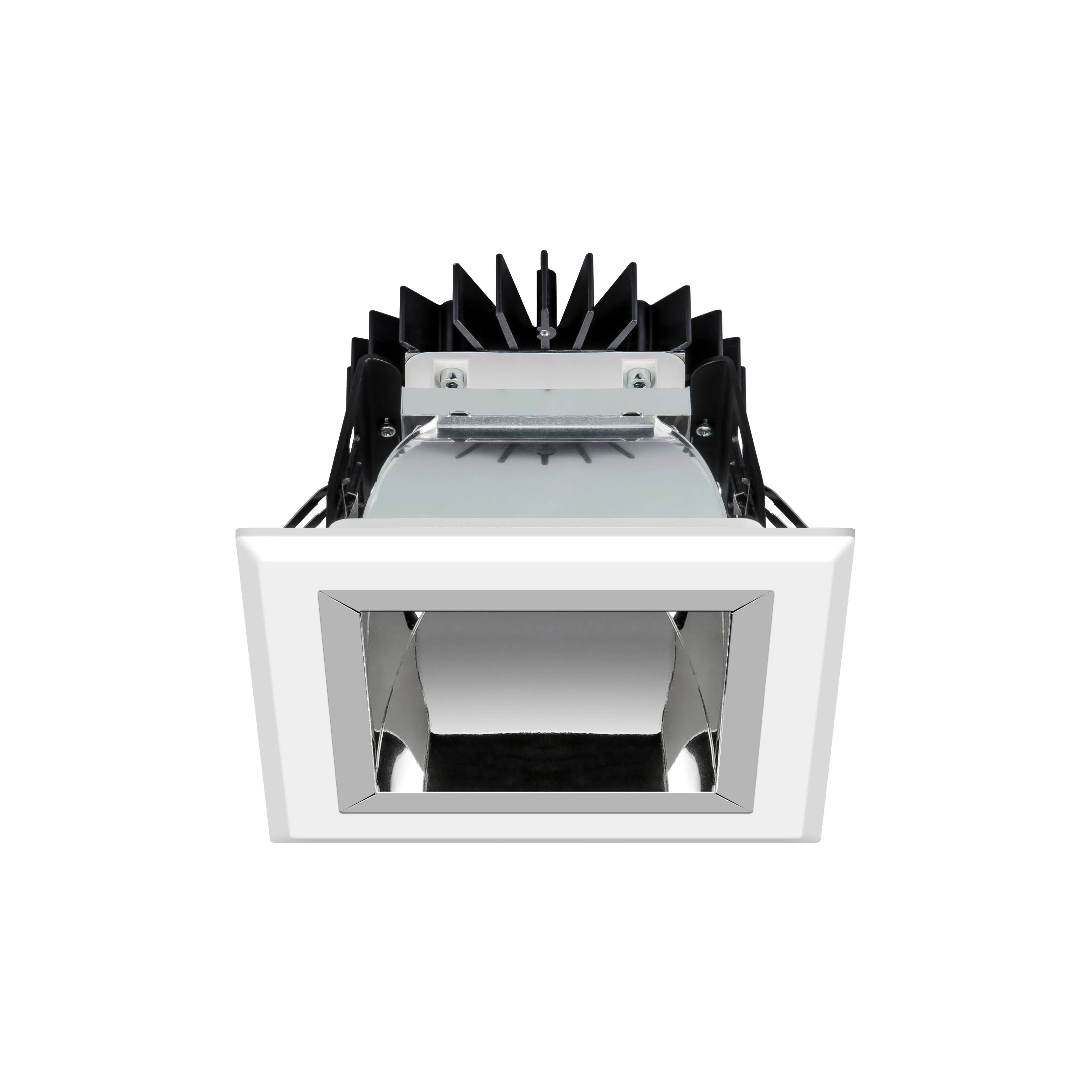

Efficace construction and mounting
Performance and installation details include life >60,000 hours (L70 / B10).
Output, optics and colour temperature
96% specular reflector and 60,000-hour lifespan.
Efficace output is 1,075–4,800 lm.
System power options are 11–48 W.
Controls, emergency and project options
Control options include Touch dimming or DALI, Casambi wireless control.
Emergency options include 3-hour emergency, Self-test or DALI emergency, Emergency with integral indicator, DALI emergency with integral indicator.
Output1,075–4,800 lm
System power11–48 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsDALI, Casambi
EmergencyThree-hour emergency, Self-test emergency, DALI emergency, Integral emergency
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typehigh-output LED downlight
Model codesEFFICACE.001, EFFICACE.002, EFFICACE.003, EFFICACE.004, EFFICACE.005, EFFICACE.006, EFFICACE.007, EFFICACE.008
Output1,075–4,800 lm
System power11–48 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsDALI, Casambi
EmergencyThree-hour emergency, Self-test emergency, DALI emergency, Integral emergency
Models, options and accessories
Efficace model codes and specification options.
Choose the Efficace base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes8 listed configurations
8 models are shown with output, CCT and power information where available.
1,075 lm3000K11 W
1,075 lm4000K11 W
2,075 lm3000K20 W
2,075 lm4000K20 W
3,075 lm3000K31 W
3,075 lm4000K30 W
4,800 lm3000K48 W
4,800 lm4000K48 W
Additional Efficace options and accessoriesProduct images and specification choices
Controls/T+DALI
Touch dimming or DALI
Controls/BTC
Casambi wireless control
Emergency/EM
3-hour emergency

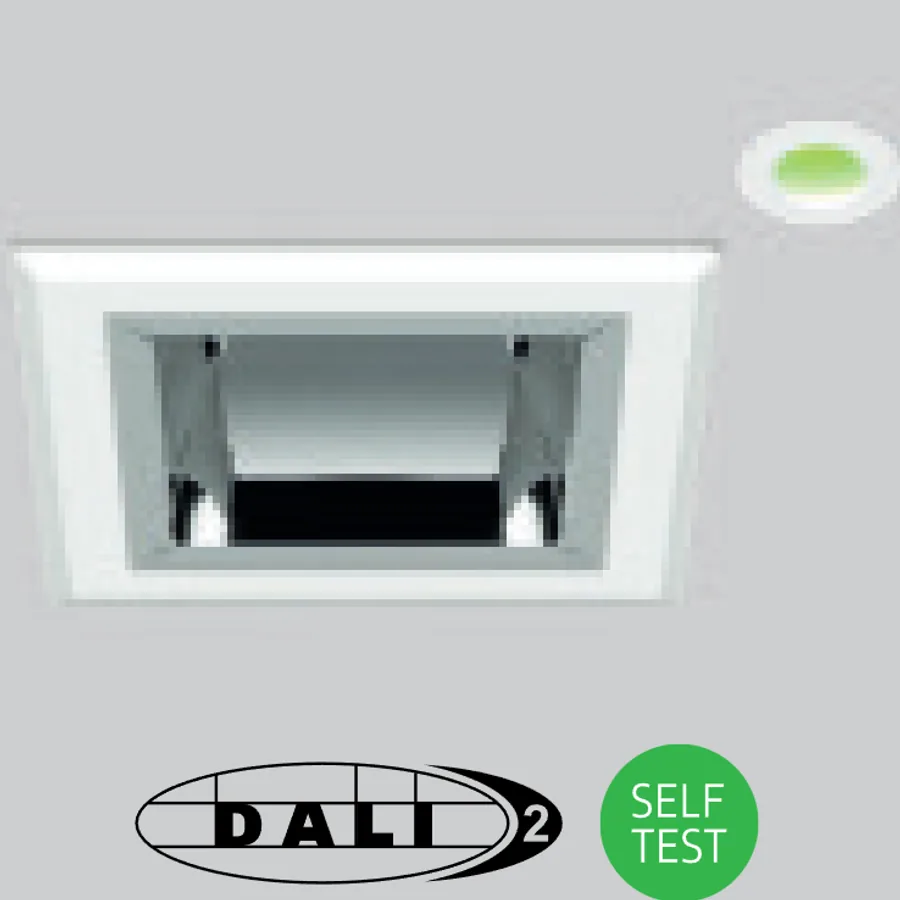

Emergency/EMD
Self-test or DALI emergency
Emergency/EMI
Emergency with integral indicator

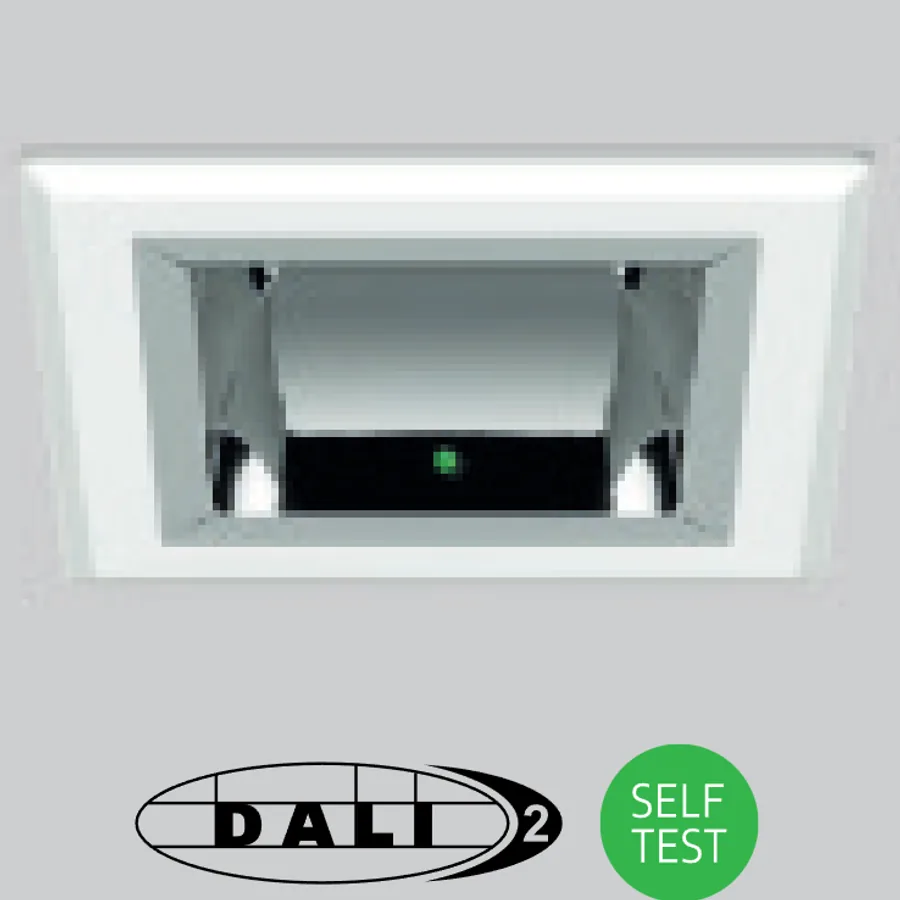

Emergency/EMDI
DALI emergency with integral indicator
Bezel/UB
Universal bezel

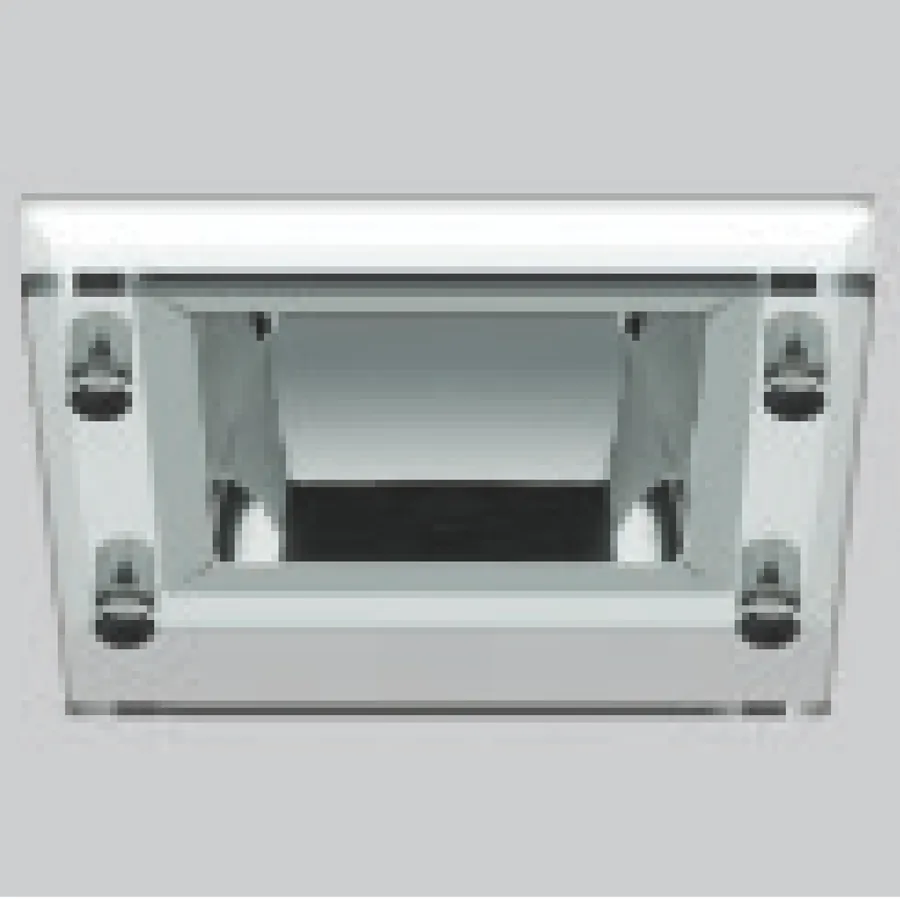

Decorative bezelDA001
Decorative accessory DA001
Decorative bezelDA002
Decorative accessory DA002

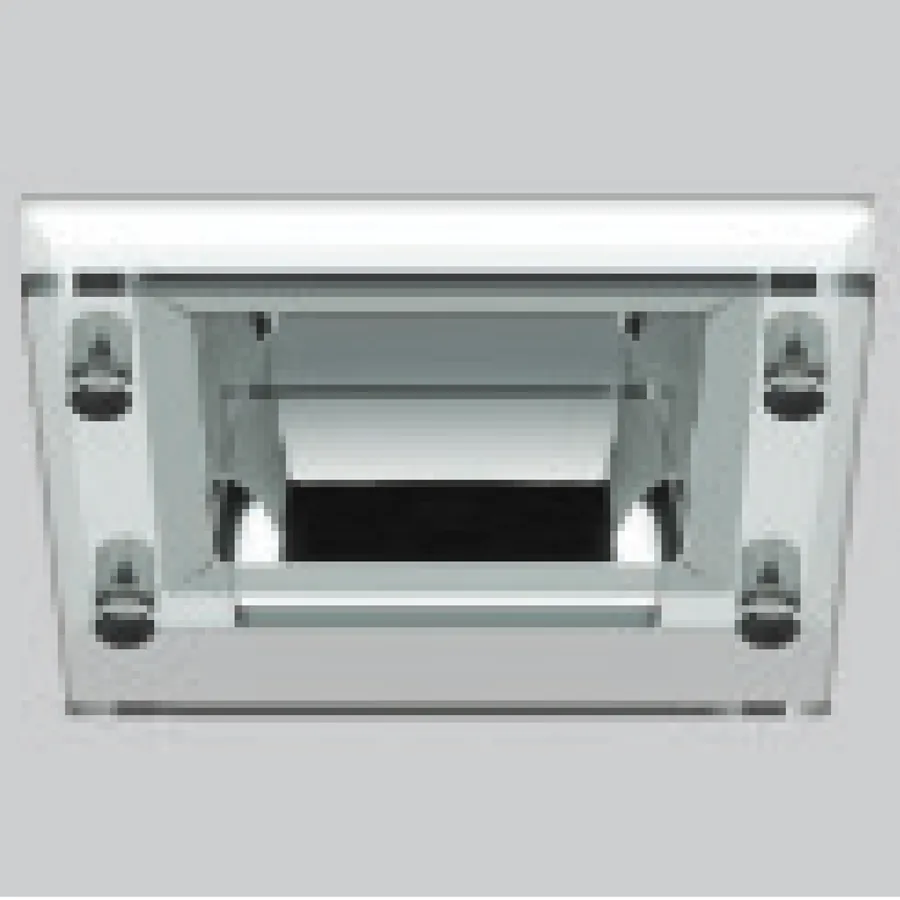

Decorative bezelDA003
Decorative accessory DA003
Decorative bezelDA004
Decorative accessory DA004
Custom configurationCustom configuration
Any RAL bezel colour
Custom configurationCustom configuration
Black reflector

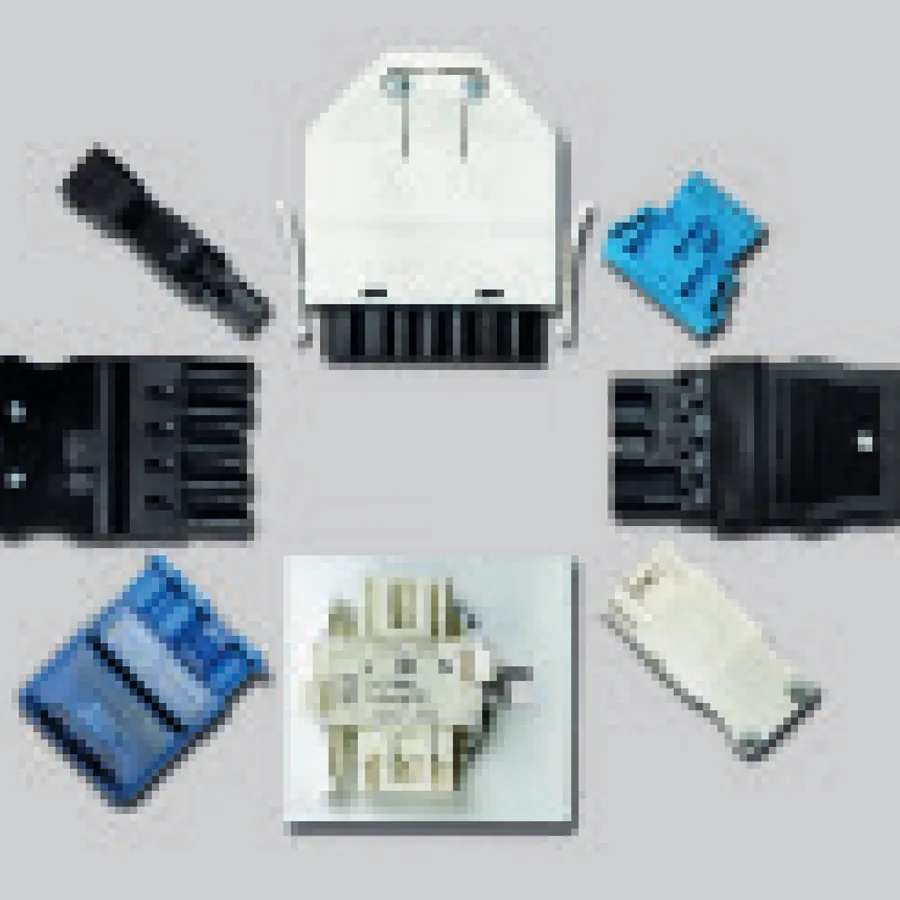

Custom configurationCustom configuration
Choice of connectors

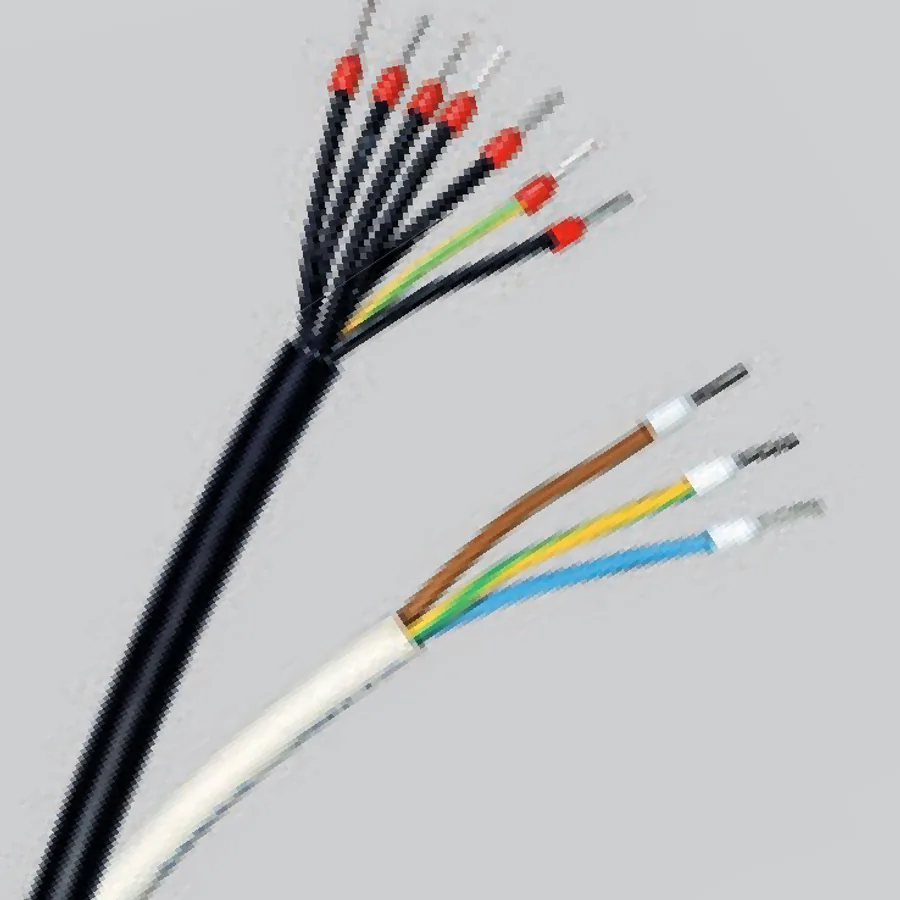

Custom configurationCustom configuration
LSOH or LSF cable
Custom configurationCustom configuration
High-ambient build
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Efficace
Why specify this high-output LED downlight?
The Efficace Series is a UK-made LED downlight for commercial and architectural applications. It uses a die-cast bezel, Philips DLM LED technology, a 96% specular reflector and a 60,000-hour lifespan
The 8-model family combines 1,075–4,800 lm, 3000K / 4000K and 16 listed configuration choices without changing the core product identity.
Eight model codes with controls, emergency and decorative bezels kept clear
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
Square die-cast bezel
A defined square aperture for architectural and commercial ceilings.
High-output range
Eight models extend from 1,075 to 4,800 lumens.
96% reflector efficiency
A 75 degree highly specular reflector supports controlled efficient light.
Controls and emergency
DALI, Casambi and four emergency arrangements are separately specified.
Output1,075–4,800 lm8 listed models
CCT3000K / 4000KModel dependent
Options16Controls and accessories
Typical applicationsWhere Efficace is specified
Retail
Square recessed lighting for customer and display areas.
Commercial interiors
High-output general lighting with a defined ceiling detail.
Hospitality
Controlled recessed lighting for reception and public areas.
Refurbishment
A broad output range with control and emergency choices.
Compare Efficace with the wider commercial downlights when reviewing output, optics, mounting, controls and emergency requirements.
high-efficacy IP54 LED downlight

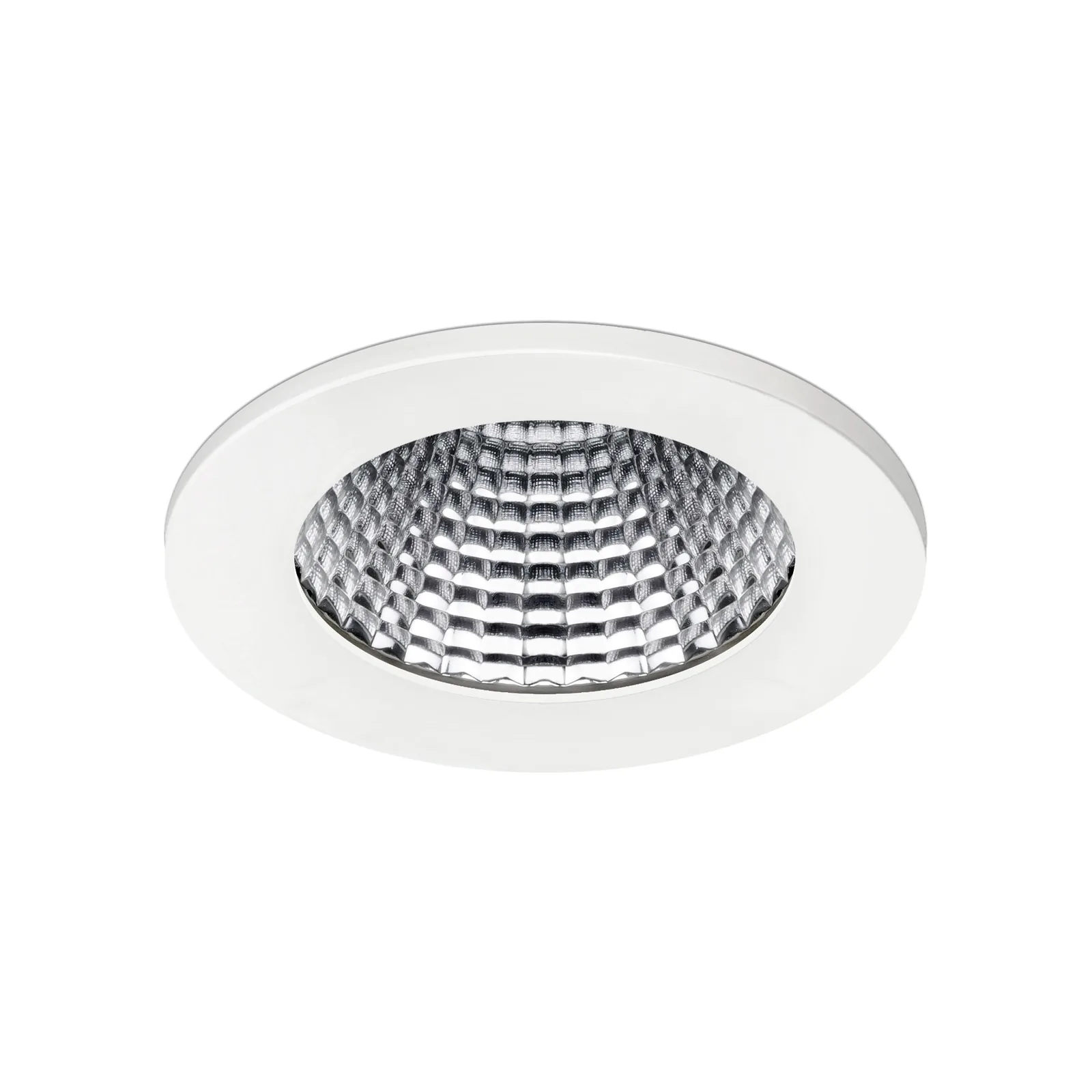

Eco
Eco is a high-efficacy IP54 LED downlight with high efficacy and sustainability-focused product options.
Compare product →
thin-bezel IP54 LED downlight
Halo
Halo is a thin-bezel IP54 LED downlight with luminaire efficacy up to 104 lumens per watt.
Compare product →
low-profile high-output LED downlight
Napoleon
Napoleon is a low-profile high-output LED downlight designed for spaces with limited ceiling voids, providing practical output with a shallow installation depth.
Compare product →Specification questions
Efficace details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
8 configurations are listed: EFFICACE.001, EFFICACE.002, EFFICACE.003, EFFICACE.004, EFFICACE.005, EFFICACE.006, EFFICACE.007, EFFICACE.008.
Published models cover 1,075–4,800 lm. Colour-temperature choices are 3000K / 4000K.
Control options include DALI, Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options include Three-hour emergency, Self-test emergency, DALI emergency, Integral emergency. Select the emergency requirement separately from the base model and normal control method.

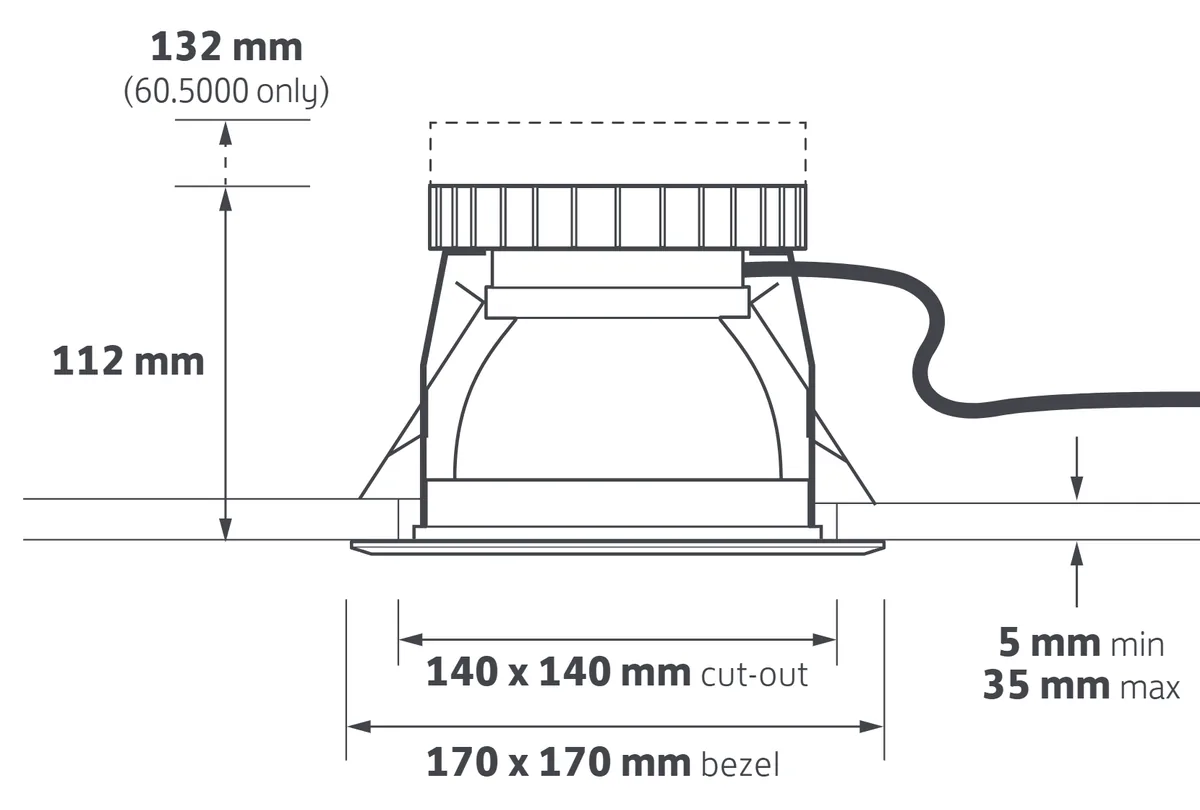

The Efficace requires a 140 × 140 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Efficace datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
