DOWNLIGHTS low-glare high-output LED downlight
Low-glare high-output LED downlight – Napoleon
Napoleon.
low-glare high-output LED downlight.

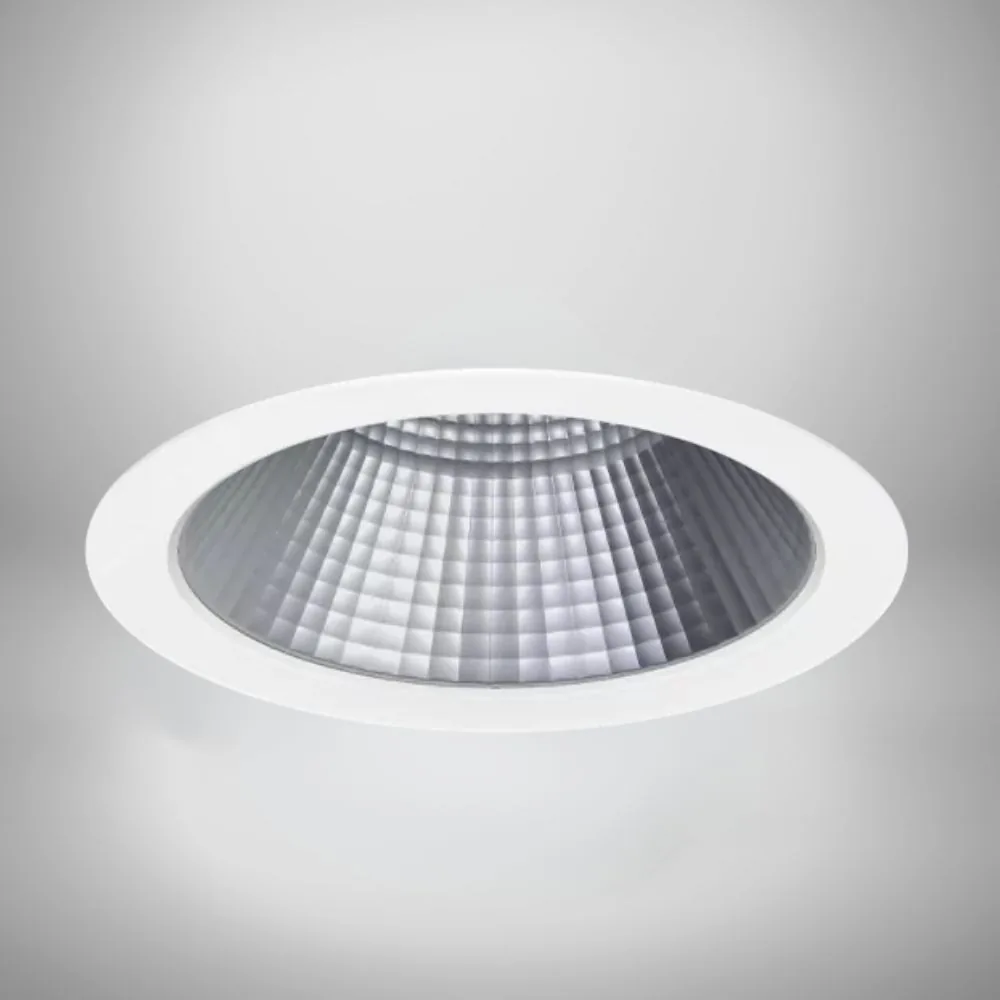

Napoleon is a recessed LED downlight with a slimline die-cast bezel and low-glare aluminium reflector. Body height is 140 mm, or 160 mm for models above 5,000 lm. The ceiling cut-out is 222 mm, the standard bezel is 232 mm and the maximum ceiling thickness is 35 mm. Allow additional space for the driver, any emergency gear and installation clearance.
- Output
- 5,675 lm 10 model codes
- Colour temperature
- 3000K / 4000K model dependent
- Options
- 9 listed controls and accessories
01 / 05
OutputUp to 5,675 lm
Product codes.001–.010
ControlsDALI, Casambi
Ceiling cut-out222 mm
Product configurator
Configure your Napoleon
Choose the Napoleon model first, then add only the control, optic, emergency, finish or mounting options required for the project.
LuminaireProduct family
low-glare high-output LED downlightNapoleon is a recessed LED downlight with a 232 mm bezel and 222 mm ceiling cut-out. The listed model references span 1,275–5,675 lm at 3000K or 4000K, with system power from 9.5 W to 48 W.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Napoleon low-glare high-output LED downlight quick specification.
Check the installation, output, colour temperature and control information for this low-glare high-output LED downlight before reviewing the full model schedule.
Technical referenceNot to scale
Key specificationProduct datasheet
- 01Ceiling cut-out
- 222 mm
- 02Bezel
- 232 mm
- 03Output
- 5,675 lm
- 04Controls
- DALI, Casambi
- 05Emergency
- Emergency conversion, DALI emergency
- 06Protection
- IP54 / IP65
Product files
Download Napoleon technical files.
Available files for this exact product are listed below.
Standard distribution · 16.001–16.010Intensity · cd/klm
Technical description
Low-glare high-output LED downlight specification for Napoleon.
Napoleon's technical information also covers Discreet 232 mm bezel; Outputs up to 5,300 lumens. This allows the product to be matched to the intended mounting, output and control requirements without extending the published specification.
Napoleon construction and mounting
Body height is 140 mm, or 160 mm for models above 5,000 lm. The ceiling cut-out is 222 mm, the standard bezel is 232 mm and the maximum ceiling thickness is 35 mm. Allow additional space for the driver, any emergency gear and installation clearance.
For recessed downlight specifications, compare the model codes, outputs and available options below.
The listed output range is 1,275–5,675 lm. Select the base model first, then specify the applicable control, emergency and ingress-protection suffixes separately.
Output, optics and colour temperature
The verified model references span 1,275–5,675 lm at 3000K or 4000K.
Controls, emergency and project options
/T+DALI is a tunable-white DALI option; /BTC is a Casambi wireless option.
Emergency suffixes /EM, /EMP, /EMI and /EMPI are listed separately in the product options.
System power9.5–48 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsDALI, Casambi
EmergencyEmergency and DALI emergency with remote or integral indicators
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typelow-glare high-output LED downlight
Model codesNAPOLEON.001–NAPOLEON.010
Output5,675 lm
System power9.5–48 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsDALI, Casambi
EmergencyEmergency and DALI emergency with remote or integral indicators
Models, options and accessories
Napoleon model codes and specification options.
Choose the Napoleon base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes10 configurations
Five power levels, each available in 3000K and 4000K. Outputs shown are luminaire lumens.
1,275 lm9.5 W
1,325 lm9.5 W
2,025 lm15 W
2,075 lm15 W
3,175 lm25 W
3,250 lm25 W
4,600 lm39 W
4,725 lm39 W
5,525 lm48 W
5,675 lm48 W
Additional Napoleon options and accessoriesProduct images and specification choices
Controls/T+DALI
Touch dimming or DALI control gear
Controls/BTC
Casambi Bluetooth wireless control
Emergency/EM
Emergency with remote indicator
Emergency/EMP
DALI emergency with remote indicator
Emergency/EMI
EM Pro emergency with integral indicator
Emergency/EMPI
EM Pro DALI emergency with integral indicator
Ingress Protection/54
IP54 protected option
Ingress Protection/65
IP65 protected option
Performance/R9
High colour rendering module
AccessoriesBEZEL/LENS
Bezel and lens accessory.
AccessoriesIP65/002/195
IP65 accessory.
AccessoriesIP65/008/195
IP65 accessory.
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Napoleon
Why specify this low-glare high-output LED downlight?
Napoleon is a recessed LED downlight with a 232 mm bezel and 222 mm ceiling cut-out. The listed model references span 1,275–5,675 lm at 3000K or 4000K, with system power from 9.5 W to 48 W.
The visible model references run from 1,275 lm at 3000K and 9.5 W to 5,675 lm at 4000K and 48 W.
Napoleon options kept clear for project specification
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
98% recyclable
Napoleon is available for projects requiring 98% recyclable lighting.
commercial
Napoleon is available for projects requiring commercial lighting.
high CRI
Napoleon is available for projects requiring high cri lighting.
high efficacy
/R9 is listed as a high-colour-rendering option.
Output5,675 lm10 listed models
CCT3000K / 4000KModel dependent
Options9Controls and accessories
Typical applicationsWhere Napoleon is specified
Downlights
Use Napoleon where a 222 mm ceiling cut-out and 232 mm bezel suit the ceiling detail.
Commercial interiors
Napoleon is a recessed LED downlight with a 232 mm bezel and 222 mm ceiling cut-out. The listed model references span 1,275–5,675 lm at 3000K or 4000K, with system power from 9.5 W to 48 W.
Commercial interiors
Napoleon is a recessed LED downlight with a 232 mm bezel and 222 mm ceiling cut-out. The listed model references span 1,275–5,675 lm at 3000K or 4000K, with system power from 9.5 W to 48 W.
Commercial interiors
Napoleon is a recessed LED downlight with a 232 mm bezel and 222 mm ceiling cut-out. The listed model references span 1,275–5,675 lm at 3000K or 4000K, with system power from 9.5 W to 48 W.
Compare Napoleon with the wider downlights when reviewing output, optics, mounting, controls and emergency requirements.
high-output LED downlight
Efficace
Efficace is a high-output LED downlight for commercial and architectural applications.
Compare product →
low-profile architectural LED downlight
Fusion
Fusion is a low-profile architectural LED downlight for flexible commercial downlight performance with a clean architectural finish.
Compare product →
high-output tunable-white LED downlight
Opti
Opti is a high-output tunable-white LED downlight for optimal illumination across various environments.
Compare product →Specification questions
Napoleon details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
10 configurations are available: NAPOLEON.001–NAPOLEON.010, with five power levels in 3000K and 4000K.
The product family covers 1,275–5,675 lm. Colour-temperature choices are 3000K / 4000K.
Control options include DALI, Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency and DALI emergency options are available with remote or integral indicators. Select the emergency requirement separately from the base model and normal control method.
The Napoleon requires a 222 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.

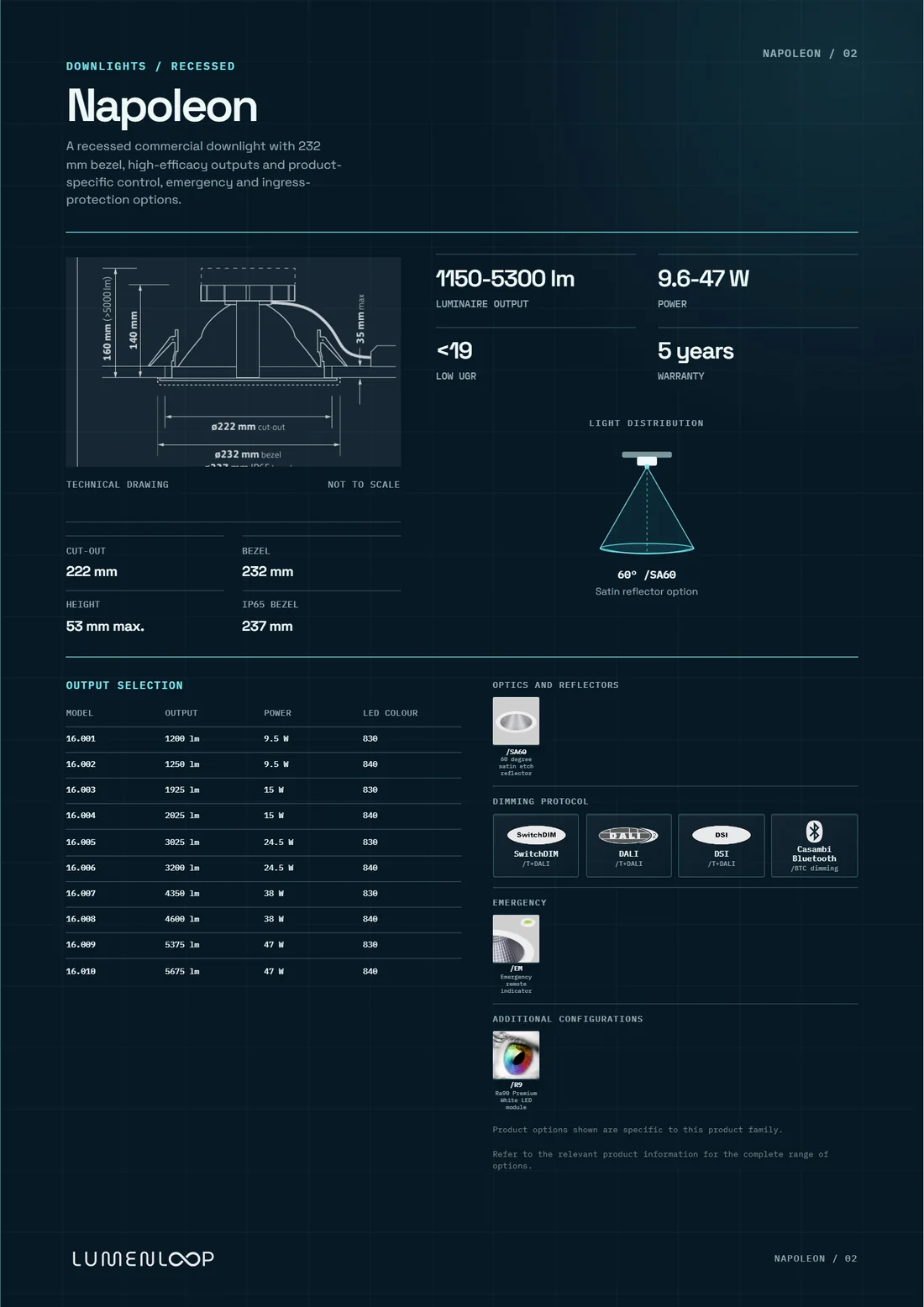

Yes. The Napoleon datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
