Output1,025–4,550 lm

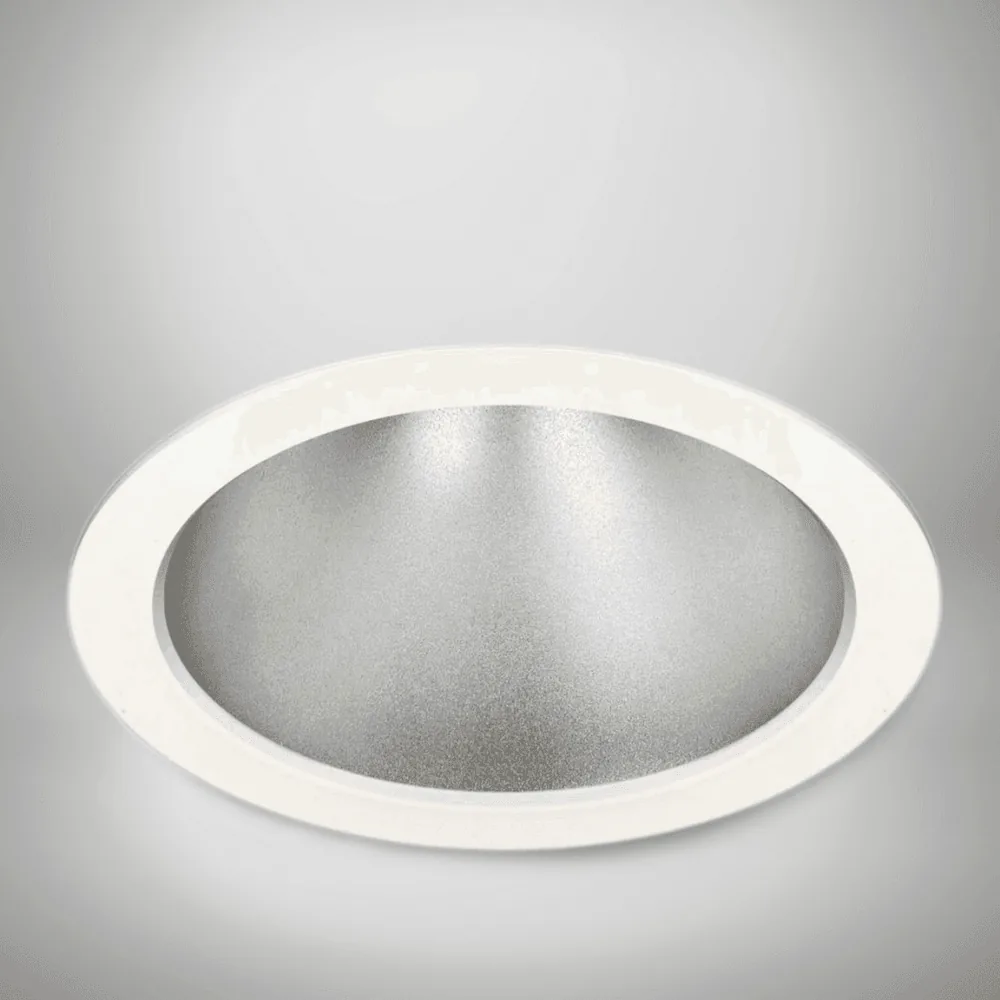

LARGE FORMAT low-profile architectural LED downlight
Fusionlow-profile architectural LED downlight
Broaden the aperture.
Keep the detail clean.
Fusion is a low-profile architectural LED downlight for recessed commercial lighting. The 1,025 to 4,550 lumen range, 3000K, 4000K and tunable-white choices, and interchangeable reflector and control options create a flexible downlight for coordinated interior specifications.
- Output
- 1,025–4,550 lm 9 model codes
- Colour temperature
- 3000K / 4000K / 2700–6500K model dependent
- Options
- 9 listed controls and accessories
01 / 08
Output1,025–4,550 lm
Colour temperature3000K / 4000K / 2700–6500K
ControlsDALI, Casambi
Ceiling cut-out176 mm
Product configurator
Configure your Fusion
Choose the Fusion model first, then add only the control, optic, emergency, finish or mounting options required for the project.
LuminaireProduct family
low-profile architectural LED downlightThe Fusion LED Downlight is built for flexible commercial downlight performance with a clean architectural finish. Featuring a low-profile bezel crafted in RAL 9016 white, this large-diameter downlight sits neatly across commercial applications while keeping the ceiling detail clean
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Low-profile architectural LED downlight specification for Fusion.
Check the installation, output, colour temperature and control information for this low-profile architectural LED downlight before reviewing the full model schedule.
Technical referenceNot to scale
Key specificationCatalogue page 28
- 01Ceiling cut-out
- 176 mm
- 02Bezel
- 192 mm
- 03Output
- 1,025–4,550 lm
- 04System power
- 9.5–46.5 W
- 05CCT
- 3000K / 4000K / 2700–6500K
- 06Controls
- DALI, Casambi
Product files
Download Fusion technical files.
Available files for this exact product are listed below.
C0 plane distributionIntensity · cd/klm
Technical description
LED downlight specification for Fusion.
The Fusion low-profile LED downlight uses a 192 mm RAL 9016 white bezel and a 176 mm ceiling cut-out to create a consistent large-diameter recessed detail. Outputs extend from 1,025 to 4,550 lumens, with system powers from 9.5 W to 46.5 W and a rated life above 60,000 hours (L70 / B10).
Fusion construction and mounting
Specify the recessed downlight by lumen output, wattage, colour temperature, beam and control requirement. Optical choices include a 50-degree multi-faceted reflector and a 40-degree specular reflector, with an IP54 sealed-lens option available for protected applications.
Performance and installation details include life >60,000 hours (L70 / B10). This section covers output, optics, mounting and controls.
Finish is RAL 9016 white.
Output, optics and colour temperature
Fusion output is 1,025–4,550 lm.
Colour temperature options are 3000K / 4000K / 2700–6500K.
Controls, emergency and project options
Control options include Tunable white + DALI, Casambi wireless.
Emergency options include 3-hour emergency, Self-test / DALI emergency, Maintained emergency, DALI emergency.
System power9.5–46.5 W
Colour temperature3000K / 4000K / 2700–6500K
FinishRAL 9016 white
ControlsDALI, Casambi
EmergencyThree-hour emergency, Maintained emergency, Self-test emergency, DALI emergency
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typelow-profile architectural LED downlight
Model codesFUSION.001, FUSION.002, FUSION.003, FUSION.004, FUSION.005, FUSION.006, FUSION.007, FUSION.008, FUSION.000
Output1,025–4,550 lm
System power9.5–46.5 W
Colour temperature3000K / 4000K / 2700–6500K
FinishRAL 9016 white
ControlsDALI, Casambi
EmergencyThree-hour emergency, Maintained emergency, Self-test emergency, DALI emergency
Models, options and accessories
Fusion model codes and specification options.
Choose the Fusion base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes9 listed configurations
9 models are shown with output, CCT and power information where available.
1,025 lm3000K9.5 W
1,100 lm4000K9.5 W
1,750 lm3000K17.5 W
1,900 lm4000K17.5 W
2,700 lm3000K30.5 W
2,925 lm4000K30.5 W
4,200 lm3000K46.5 W
4,550 lm4000K46.5 W
1,925 lm2700–6500K27.5 W
Additional Fusion options and accessoriesProduct images and specification choices
Controls/T+DALI
Touch dimming or DALI control gear
Controls/BTC
Casambi wireless network including dimming
Emergency/EM
Emergency remote indicator
Emergency/EMD
DALI emergency remote indicator
Emergency/EMS
Self test emergency remote indicator
Emergency/EMI
Emergency integral indicator
Emergency/EMDI
DALI emergency integral indicator
Emergency/EMSI
Self test emergency integral indicator
Ingress protection/54
IP54 sealed lens
Beam & optics/MF50
50° multi-facet reflector
Beam & optics/SP40
40° specular reflector
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Fusion
Why specify this low-profile architectural LED downlight?
Fusion provides one low-profile downlight family for fixed-white and tunable-white lighting schemes. Standard 3000K and 4000K models are complemented by 2700K to 6500K tunable-white versions, while TouchDIM, DALI and Casambi options support project lighting control. Three-hour, self-test, DALI and maintained emergency variants are also available.
The 9-model family combines 1,025–4,550 lm, 3000K / 4000K / 2700–6500K and 9 listed configuration choices without changing the core product identity.
A larger downlight format without losing configuration flexibility
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
Large-diameter format
Broad ceiling presence for larger commercial interiors.
Low-profile bezel
Clean RAL9016 visible finish around the optical system.
Nine model choices
Multiple output and colour-temperature configurations.
Controls and emergency
Control, emergency and performance suffixes remain explicit.
Output1,025–4,550 lm9 listed models
CCT3000K / 4000K / 2700–6500KModel dependent
Options9Controls and accessories
Typical applicationsWhere Fusion is specified
Commercial interiors
General downlighting for larger circulation and open spaces.
Hospitality
Clean recessed lighting for reception and public areas.
Retail
Higher-output ambient lighting across customer spaces.
Refurbishment
Multiple model choices within one consistent ceiling format.
Compare Fusion with the wider commercial downlights when reviewing output, optics, mounting, controls and emergency requirements.
low-glare LED downlight
Beam
Beam is a low-glare LED downlight designed for spaces that require high-quality, focused lighting with minimal glare.
Compare product →
Tridonic reflector architectural downlight
Glow
Glow is a Tridonic reflector architectural downlight for controlled downlight performance.
Compare product →
low-profile high-output LED downlight
Napoleon
Napoleon is a low-profile high-output LED downlight designed for spaces with limited ceiling voids, providing practical output with a shallow installation depth.
Compare product →Specification questions
Fusion details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
9 configurations are listed: FUSION.001, FUSION.002, FUSION.003, FUSION.004, FUSION.005, FUSION.006, FUSION.007, FUSION.008, FUSION.000.
The listed models cover 1,025–4,550 lm. Colour-temperature choices are 3000K / 4000K / 2700–6500K.
Control options include DALI, Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options include Three-hour emergency, Maintained emergency, Self-test emergency, DALI emergency. Select the emergency requirement separately from the base model and normal control method.
The Fusion requires a 176 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Fusion datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
