Ceiling cut-out222 mm
DOWNLIGHTS low-profile high-output LED downlight
Napoleonlow-profile high-output LED downlight
Napoleon.
low-profile high-output LED downlight.

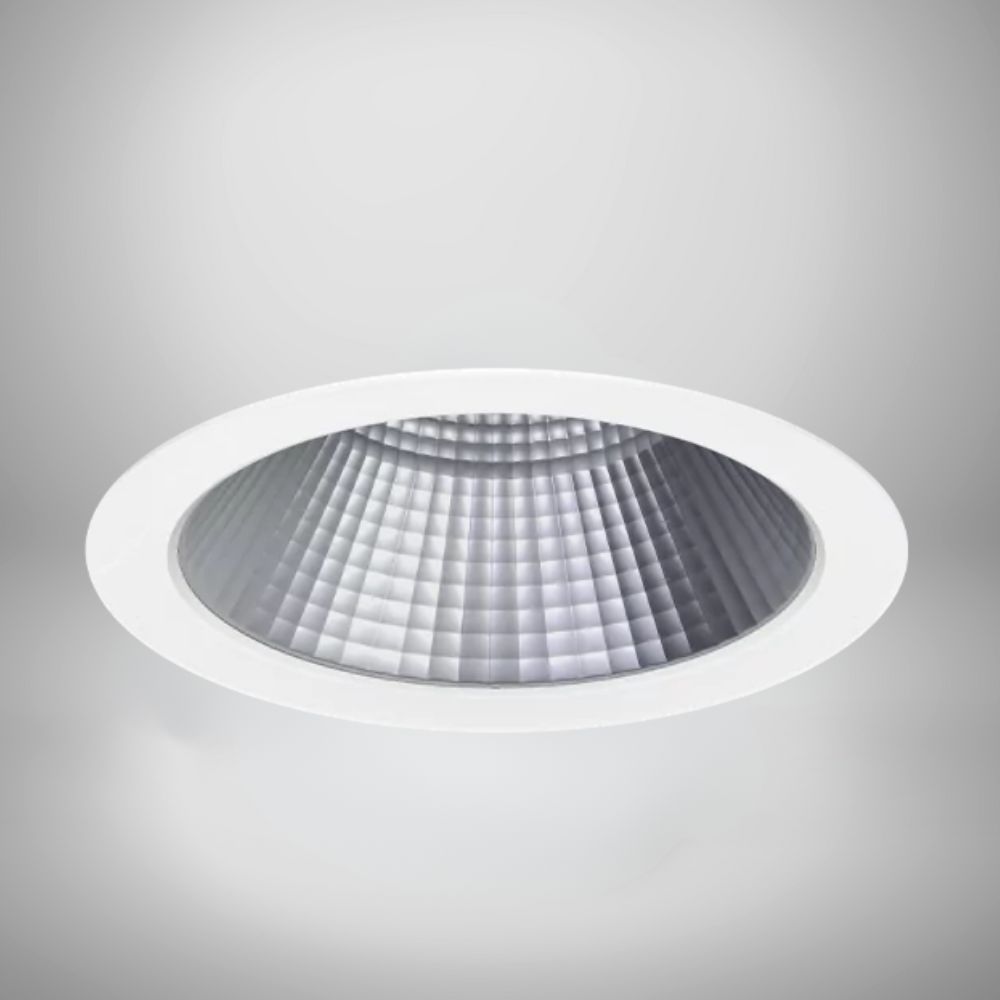

Napoleon is a low-profile high-output LED downlight designed for spaces with limited ceiling voids, providing practical output with a shallow installation depth.
- Output
- 5,300 lm 2 model codes
- Colour temperature
- Configured CCT model dependent
- Options
- 9 listed controls and accessories
01 / 05
OutputUp to 5,300 lm
Product codes.001 and .010
ControlsDALI, Casambi
Ceiling cut-out222 mm
Product configurator
Configure your Napoleon
Choose the Napoleon model first, then add only the control, optic, emergency, finish or mounting options required for the project.
LuminaireProduct family
low-profile high-output LED downlightNapoleon is a recessed LED downlight with a 232 mm bezel and 222 mm ceiling cut-out. The listed model references span 1,150–5,300 lm at 3000K or 4000K, with 9.5 W and 47 W examples.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Napoleon low-profile high-output LED downlight quick specification.
Check the installation, output, colour temperature and control information for this low-profile high-output LED downlight before reviewing the full model schedule.
Bezel232 mm
Output5,300 lm
ControlsDALI, Casambi
EmergencyEmergency conversion, DALI emergency
ProtectionIP54 / IP65
Product files
Download Napoleon technical files.
Available files for this exact product are listed below.
Standard distribution · 16.001–16.010Intensity · cd/klm
Technical description
LED downlight specification for Napoleon.
Napoleon is a recessed LED downlight with a 232 mm bezel and 222 mm ceiling cut-out. The listed model references span 1,150–5,300 lm at 3000K or 4000K, with 9.5 W and 47 W examples.
Napoleon construction and mounting
For shallow recess downlight specifications, compare the model codes, outputs and available options below.
The listed output range is 1,150–5,300 lm. Select the base model first, then specify the applicable control, emergency and ingress-protection suffixes separately.
Output, optics and colour temperature
The verified model references span 1,150–5,300 lm at 3000K or 4000K.
Controls, emergency and project options
/T+DALI is a tunable-white DALI option; /BTC is a Casambi wireless option.
Emergency suffixes /EM, /EMP, /EMI and /EMPI are listed separately in the product options.
Output5,300 lm
System powerSee datasheet
Colour temperatureConfigured CCT
FinishSee datasheet
ControlsDALI, Casambi
EmergencyThree-hour emergency, Maintained emergency, Integral emergency
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typelow-profile high-output LED downlight
Model codesNAPOLEON.001, NAPOLEON.010
Output5,300 lm
System powerSee datasheet
Colour temperatureConfigured CCT
FinishSee datasheet
ControlsDALI, Casambi
EmergencyThree-hour emergency, Maintained emergency, Integral emergency
Models, options and accessories
Napoleon model codes and specification options.
Choose the Napoleon base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes2 listed configurations
2 model configurations are shown with their output, CCT, power and finish information where available.
1,150 lm9.5 W
5,300 lm47 W
Additional Napoleon options and accessoriesProduct images and specification choices
Controls/T+DALI
Tunable white with DALI control
Controls/BTC
Casambi Bluetooth wireless control
Emergency/EM
3-hour emergency conversion
Emergency/EMP
Emergency conversion pack
Emergency/EMI
Maintained emergency conversion
Emergency/EMPI
Emergency pack with integral indicator
Ingress Protection/54
IP54 protected option
Ingress Protection/65
IP65 protected option
Performance/R9
High colour rendering module
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Napoleon
Why specify this low-profile high-output LED downlight?
Napoleon is a recessed LED downlight with a 232 mm bezel and 222 mm ceiling cut-out. The listed model references span 1,150–5,300 lm at 3000K or 4000K, with 9.5 W and 47 W examples.
The visible model references run from 1,150 lm at 3000K and 9.5 W to 5,300 lm at 4000K and 47 W.
Napoleon options kept clear for project specification
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
98% recyclable
Napoleon is available for projects requiring 98% recyclable lighting.
commercial
Napoleon is available for projects requiring commercial lighting.
high CRI
Napoleon is available for projects requiring high cri lighting.
high efficacy
/R9 is listed as a high-colour-rendering option.
Output5,300 lm2 listed models
CCTConfigured CCTModel dependent
Options9Controls and accessories
Typical applicationsWhere Napoleon is specified
Downlights
Use Napoleon where a 222 mm ceiling cut-out and 232 mm bezel suit the ceiling detail.
Commercial interiors
Napoleon is a recessed LED downlight with a 232 mm bezel and 222 mm ceiling cut-out. The listed model references span 1,150–5,300 lm at 3000K or 4000K, with 9.5 W and 47 W examples.
Commercial interiors
Napoleon is a recessed LED downlight with a 232 mm bezel and 222 mm ceiling cut-out. The listed model references span 1,150–5,300 lm at 3000K or 4000K, with 9.5 W and 47 W examples.
Commercial interiors
Napoleon is a recessed LED downlight with a 232 mm bezel and 222 mm ceiling cut-out. The listed model references span 1,150–5,300 lm at 3000K or 4000K, with 9.5 W and 47 W examples.
Compare Napoleon with the wider downlights when reviewing output, optics, mounting, controls and emergency requirements.
high-output LED downlight
Efficace
Efficace is a high-output LED downlight for commercial and architectural applications.
Compare product →
low-profile architectural LED downlight

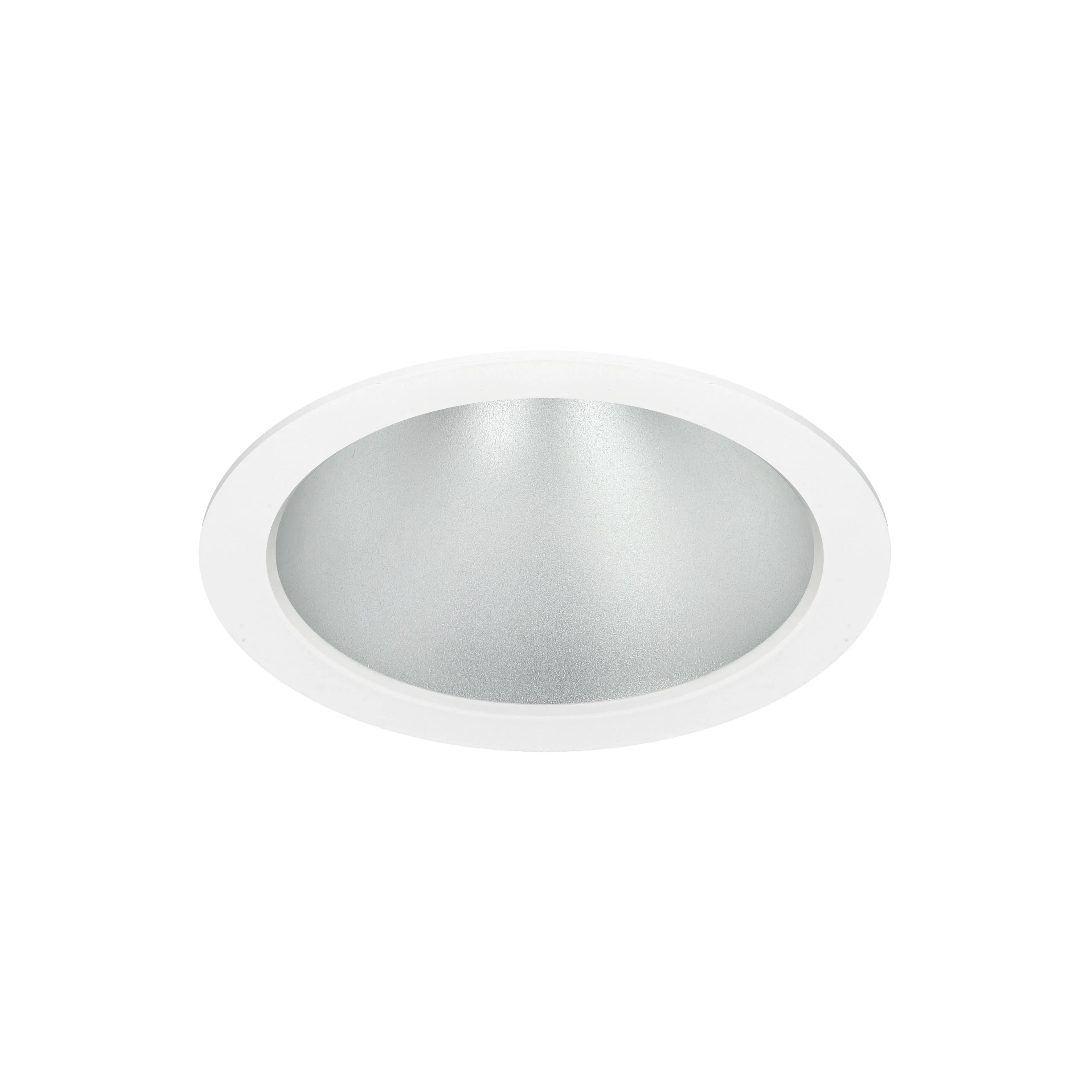

Fusion
Fusion is a low-profile architectural LED downlight for flexible commercial downlight performance with a clean architectural finish.
Compare product →
high-output tunable-white LED downlight
Opti
Opti is a high-output tunable-white LED downlight for optimal illumination across various environments.
Compare product →Specification questions
Napoleon details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
2 configurations are listed: NAPOLEON.001, NAPOLEON.010.
The product family covers 1,150–5,300 lm. Colour-temperature choices are 3000K / 4000K.
Control options include DALI, Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options include Three-hour emergency, Maintained emergency, Integral emergency. Select the emergency requirement separately from the base model and normal control method.

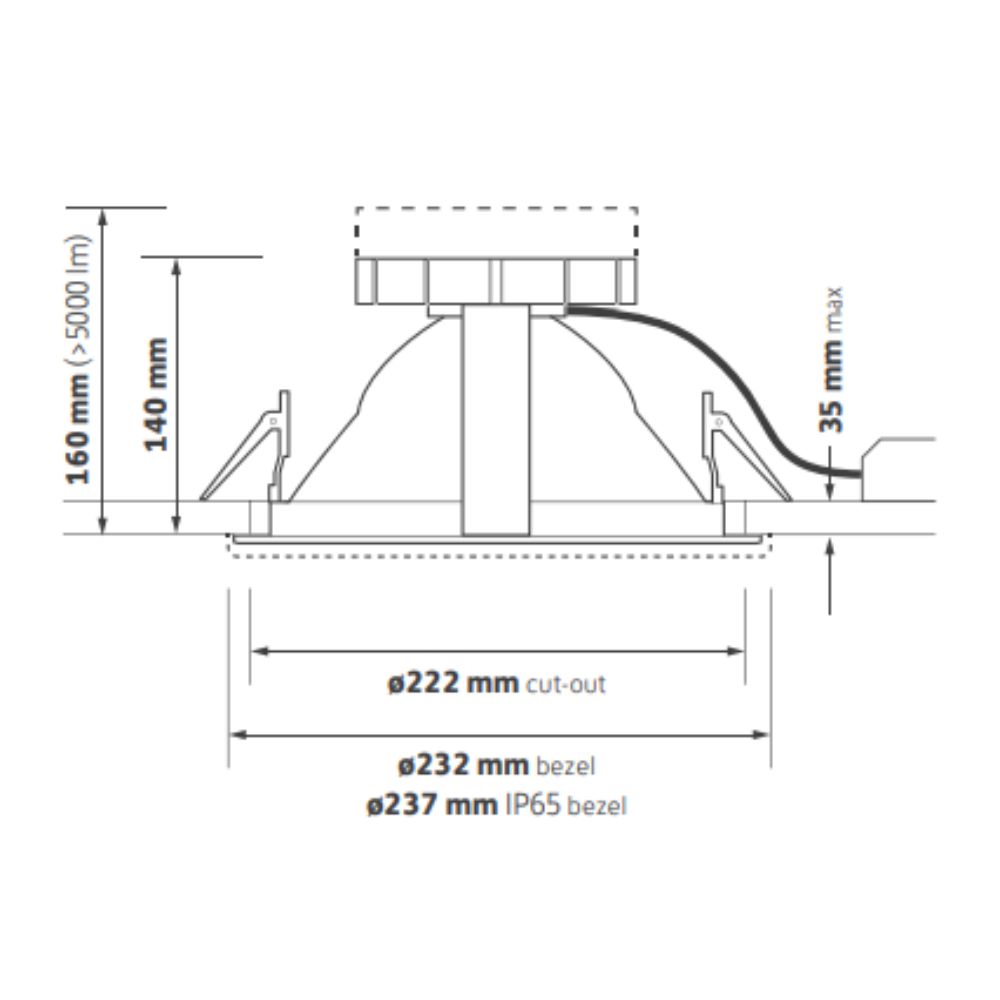

The Napoleon requires a 222 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Napoleon datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
