Output1,100–4,975 lm
HIGH EFFICACY high-efficacy IP54 LED downlight
Ecohigh-efficacy IP54 LED downlight
High efficacy.
Low-glare control.
Published output and system power are listed by model in the specification schedule.
- Output
- 1,100–4,975 lm
- Colour temperature
- 3000K / 4000K model dependent
- Options
- 38 listed controls and accessories
01 / 07
OutputSee model schedule
Colour temperature3000K / 4000K
ControlsDALI, Casambi
Ceiling cut-outØ 110 mm
Product configurator
Configure your Eco
Choose the Eco model first, then add only the control, optic, emergency, finish or mounting options required for the project.
LuminaireProduct family
high-efficacy IP54 LED downlightThe Eco LED Downlight uses Philips LED technology with high efficacy and sustainability-focused product options. With module efficacies reaching up to 192 lumens per watt, this downlight offers a range of options for both performance and control, making it suitable for a variety of applications
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Eco high-efficacy IP54 LED downlight quick specification.
Check the installation, output, colour temperature and control information for this high-efficacy IP54 LED downlight before reviewing the full model schedule.

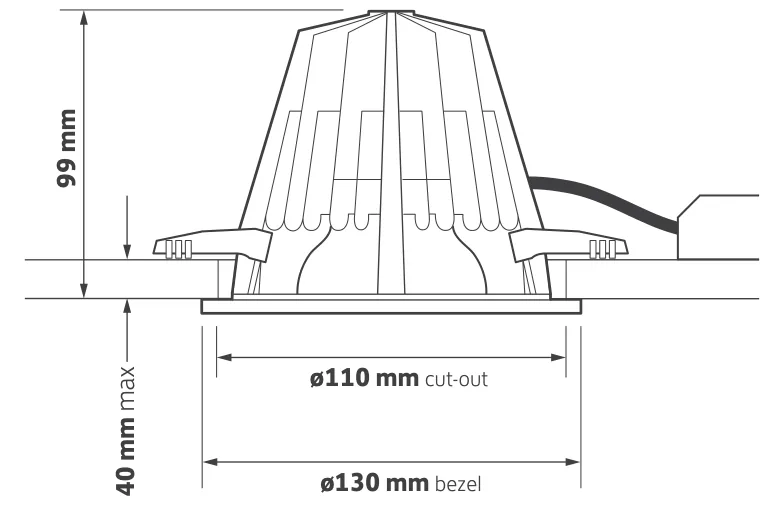

Technical referenceNot to scale
Key specificationSpecification summary
- 01Ceiling cut-out
- Ø 110 mm
- 02Bezel diameter
- Ø 130 mm
- 03Output
- 1,100–4,975 lm
- 04System power
- 8–40.5 W
- 05CCT
- 3000K / 4000K
- 06Controls
- DALI, Casambi
Product files
Download Eco technical files.
Available files for this exact product are listed below.
Technical description
IP54 commercial LED downlight specification for Eco.
The Eco commercial LED downlight combines a compact recessed format with IP54 glass options and high-efficiency Philips LED technology. Its 1,000 to 4,550 lumen range, five system-power choices and 3000K or 4000K colour temperatures support low-glare general lighting across commercial interiors.
Eco construction and mounting
Specify the Eco recessed downlight by lumen output, system power, colour temperature and reflector. A 110 mm ceiling cut-out and 130 mm bezel are consistent across the range, simplifying coordination where several output packages are used on one project.
Performance and installation details include life >66,000 hours (L90): use as a reference for planned maintenance intervals. Review output, optics, mounting and control requirements against the project schedule.
Output, optics and colour temperature
Eco high-efficacy IP54 LED downlight. Output: 1,100–4,975 lm; system power: 8–40.5 W. Colour temperature: 3000K / 4000K.
Published output and system power are listed by model in the specification schedule.
Published output and system power are listed by model in the specification schedule.
Controls, emergency and project options
This efficient LED downlight is available with 25° and 60° multi-faceted reflectors, a 40° specular reflector or a 50° satin reflector. Ra90 colour rendering can be selected where colour quality is important.
Control options include Touch dimming or DALI, Casambi wireless control.
Emergency options include 3-hour emergency, Self-test or DALI emergency, Wireless mesh emergency, Emergency with integral indicator, DALI emergency with integral indicator, Wireless mesh emergency with integral indicator.
System power8–40.5 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsDALI, Casambi
EmergencyThree-hour emergency, Self-test emergency, DALI emergency, Integral emergency
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typehigh-efficacy IP54 LED downlight
Model codesECO.001, ECO.002, ECO.003, ECO.004, ECO.005, ECO.006, ECO.007, ECO.008, ECO.009, ECO.010
Output1,100–4,975 lm
System power8–40.5 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsDALI, Casambi
EmergencyThree-hour emergency, Self-test emergency, DALI emergency, Integral emergency
Models, options and accessories
Eco model codes and specification options.
Choose the Eco base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes10 listed configurations
10 model configurations are shown with their output, CCT, power and finish information where available.
1,100 lm / 3000K / 8 W
1,125 lm / 4000K / 8 W
1,900 lm / 3000K / 13.5 W
1,950 lm / 4000K / 13.5 W
2,625 lm / 3000K / 19 W
2,700 lm / 4000K / 19 W
3,525 lm / 3000K / 27 W
3,625 lm / 4000K / 27 W
4,825 lm / 3000K / 40.5 W
4,975 lm / 4000K / 40.5 W
Additional Eco options and accessoriesProduct images and specification choices
Beam & Optics/MF25
25 degree multi-faceted reflector
Beam & Optics/MF60
60 degree multi-faceted reflector
Beam & Optics/SP40
40 degree specular reflector
Beam & Optics/SA50
50 degree satin reflector
Performance/R9
Ra90 LED module
Controls/T+DALI
Touch dimming or DALI
Controls/BTC
Casambi wireless control
Emergency/EM
3-hour emergency
Emergency/EMD
Self-test or DALI emergency
Emergency/EMI
Emergency with integral indicator
Emergency/EMDI
DALI emergency with integral indicator
BezelTA200/WH
White bezel - RAL9010
BezelTA200/BWH
Brilliant white bezel - RAL9016
BezelTA200/BL
Black bezel - RAL9005
BezelTA200/GY
Grey bezel - RAL9006
ProtectionIP65/001/130
IP65 clear polycarbonate bezel
ProtectionAT200/WH
White anti-tamper bezel
ProtectionGF008 / GF010
Anti-tamper driver and bit
Mounting accessoryPI200
Plaster-in kit
Halo bezelTA225/WH
White drop clear halo bezel
Halo bezelTA226/WH
White drop opal halo bezel
SnootTA210/FROST
Frosted snoot
SnootTA210/BLUE
Blue snoot
SnootTA210/BLACK
Black snoot
HighlightTA220/FROST
Frosted highlight
HighlightTA220/BLUE
Blue highlight
Decorative bezelTA230/FROST
Frosted decorative bezel
Decorative bezelTA230/BLUE
Blue decorative bezel
ProtectionTA240
IP54 clear glass
ProtectionTA241
IP54 centre-etched glass
ProtectionTA242
IP54 fully etched glass
Mounting accessoryHALOKIT.001
Halo kit
Custom configurationCustom configuration
Any RAL bezel colour
Custom configurationCustom configuration
Honeycomb louvre
Custom configurationCustom configuration
Choice of connectors
Custom configurationCustom configuration
LSOH or LSF cable
Custom configurationCustom configuration
High-ambient build
Custom configurationCustom configuration
Alternative module and accessory colours
Custom configurationCustom configuration

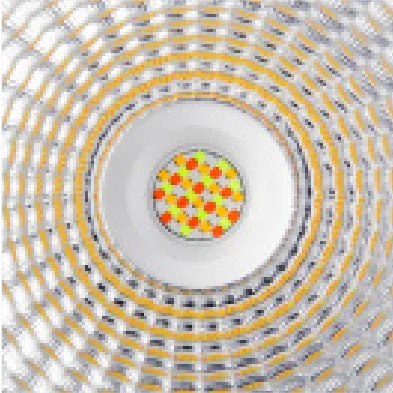

RGBW configuration
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Eco
Why specify this high-efficacy IP54 LED downlight?
Eco high-efficacy IP54 LED downlight. Output: 1,100–4,975 lm; system power: 8–40.5 W. Colour temperature: 3000K / 4000K.
Eco high-efficacy IP54 LED downlight. Output: 1,100–4,975 lm; system power: 8–40.5 W. Colour temperature: 3000K / 4000K.
Ten output and CCT choices with optics, controls and emergency kept explicit
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
High-efficacy platform
Published output and system power are listed by model in the specification schedule.
Ten model codes
Published output and system power are listed by model in the specification schedule.
Reflector system
Multi-faceted, specular and satin reflector choices support different distributions.
Controls and emergency
DALI, Casambi and 4 emergency arrangements remain separate specification choices.
Output1,100–4,975 lm10 listed models
CCT3000K / 4000KModel dependent
Options38Controls and accessories
Typical applicationsWhere Eco is specified
Offices
Low-glare recessed lighting for workspaces, meeting rooms and circulation.
Education
Efficient general lighting for classrooms and shared interiors.
Retail
Reflector and colour-rendering choices for customer and display areas.
Commercial refurbishment
A broad accessory system for different ceiling and control requirements.
Compare Eco with the wider commercial downlights when reviewing output, optics, mounting, controls and emergency requirements.
thin-bezel IP54 LED downlight
Halo
Thin-bezel IP54 LED downlight. Review the model schedule and compatible options.
Compare product →
recyclable LED downlight
Circa
Recyclable LED downlight. Review the model schedule and compatible options.
Compare product →
high-output LED downlight
Efficace
High-output LED downlight. Review the model schedule and compatible options.
Compare product →Specification questions
Eco details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
10 configurations are listed: ECO.001, ECO.002, ECO.003, ECO.004, ECO.005, ECO.006, ECO.007, ECO.008, ECO.009, ECO.010.
Eco high-efficacy IP54 LED downlight. Output: 1,100–4,975 lm; system power: 8–40.5 W. Colour temperature: 3000K / 4000K.
Control options include DALI, Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options include Three-hour emergency, Self-test emergency, DALI emergency, Integral emergency. Select the emergency requirement separately from the base model and normal control method.
The Eco requires a Ø 110 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Eco datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
