Adjustable beam

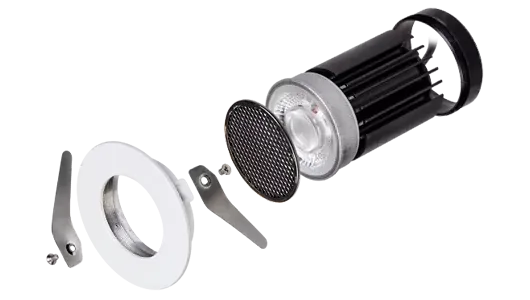

Exploded source image shows the inner light engine adjusting by up to 30 degrees.
Miro adjustable LED downlight
Adjustable recessed LED downlight family with Bridgelux COB LED, CRI 90, 3000K or 4000K colour temperature, white or black finish options and supplied 4000K photometric files.
8 W to 25 W
Four body sizes cover small accent positions through to larger recessed downlight apertures.
CRI 90
Source data lists Bridgelux COB LED with CRI 90 and 3000K or 4000K options.
Photometric pack
Supplied IES files cover 4000K beam variants across B1, C1, D1 and E1 bodies.
Model referencesB1 / C1 / D1 / E1
Power range8 W to 25 W
Cut-outs55-58 mm to 100 mm
RatingIP20 / CRI 90
Luminaire typeAdjustable recessed downlight
Measured output594-2397 lm at 4000K
Body sizes65, 76, 90 and 111 mm diameters
Colour / finish3000K / 4000K, white / black
Photometric Pack4000K IES, LDT and related photometric files.Driver SpecEaglerise driver details are available for checking.
Four body sizesUse cut-out, wattage and beam data to select the starting reference.
Needs confirmationList any dimming or emergency requirement so the selected fitting can be checked before order.
Configure For Enquiry
Configure Miro for enquiry.
Select the body size, colour temperature, finish, beam and driver requirement needed for the project. Lumenloop can confirm compatibility, current availability and project pricing from the selected reference.
Configured Specification
Selected Miro specification.
Selection reference
VLDL003-VARA-B1Selection reference
VLDL003-VARA-B1Technical Description
Adjustable recessed downlight specification for Miro.
Miro is a compact recessed adjustable downlight family for commercial interiors where the luminaire needs a round trim, internal heat sink, COB LED, optic lens and reflector assembly in one ceiling aperture.
The supplied quote lists Bridgelux LED, CRI 90, 3000K or 4000K colour temperature, white or black finish, IP20, Eaglerise on/off driver and four body sizes from 8 W to 25 W. The supplied exploded image also shows the round trim, radiator, COB LED chip, optic lens, vertical 30 deg adjusting component and reflector.
Supplied 4000K IES files cover measured outputs from 594 lm to 2397 lm across the available bodies and beam references. Dimming and emergency requirements need confirmation before quotation because the source quote only lists an on/off driver.
Specification-led Miro features.
- Vertical adjustment: Exploded source image shows the inner light engine adjusting by up to 30 degrees.
- Four wattages: 8 W, 10 W, 15 W and 25 W body references are listed in the supplier quote.
- CRI 90: Supplier quote lists Bridgelux LED with CRI 90.
- Compact apertures: Cut-outs range from 55-58 mm to 100 mm across the supplied models.
- HighRack control: Supplied photometric files cover narrow, medium, wide and 50 deg beam references depending on model size.
- Driver basis: The supplier quote lists Eaglerise on/off control gear.
Product Construction

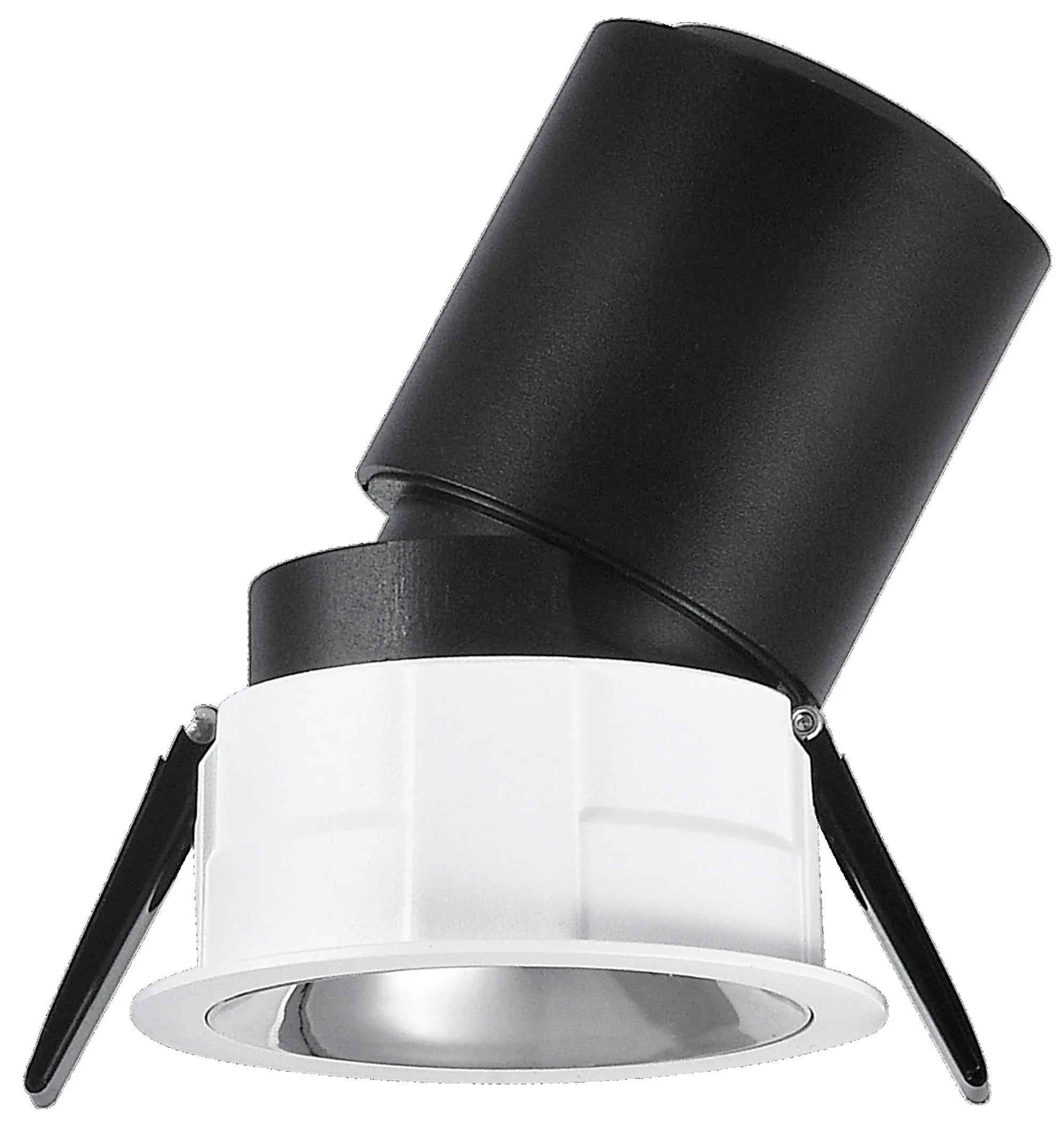

Miro trim, reflector and adjustable head detail.
The supplied product imagery shows the recessed round trim, deep-set reflector and black adjustable head that give Miro its compact architectural downlight format.
Across the listed body sizes, the fitting keeps the same spring-fix recess arrangement and visible trim while stepping up the heat-sink body and output package above the ceiling line.
Model Codes
Miro body-size options.
8 W / 55-58 mm cut-out
VLDL003-VARA-B165 mm diameter x 85 mm height. Supplied 4000K IES files show 594-711 lm.
10 W / 65-68 mm cut-out
VLDL003-VARA-C176 mm diameter x 85 mm height. Supplied 4000K IES files show 682-840 lm.
15 W / 80-85 mm cut-out
VLDL003-VARA-D190 mm diameter x 100 mm height. Supplied 4000K IES files show 1134-1354 lm.
25 W / 100 mm cut-out
VLDL003-VARA-E1111 mm diameter x 125 mm height. Supplied 4000K IES files show 1872-2397 lm.
Options And Checks
Miro finishes, beams and driver basis.

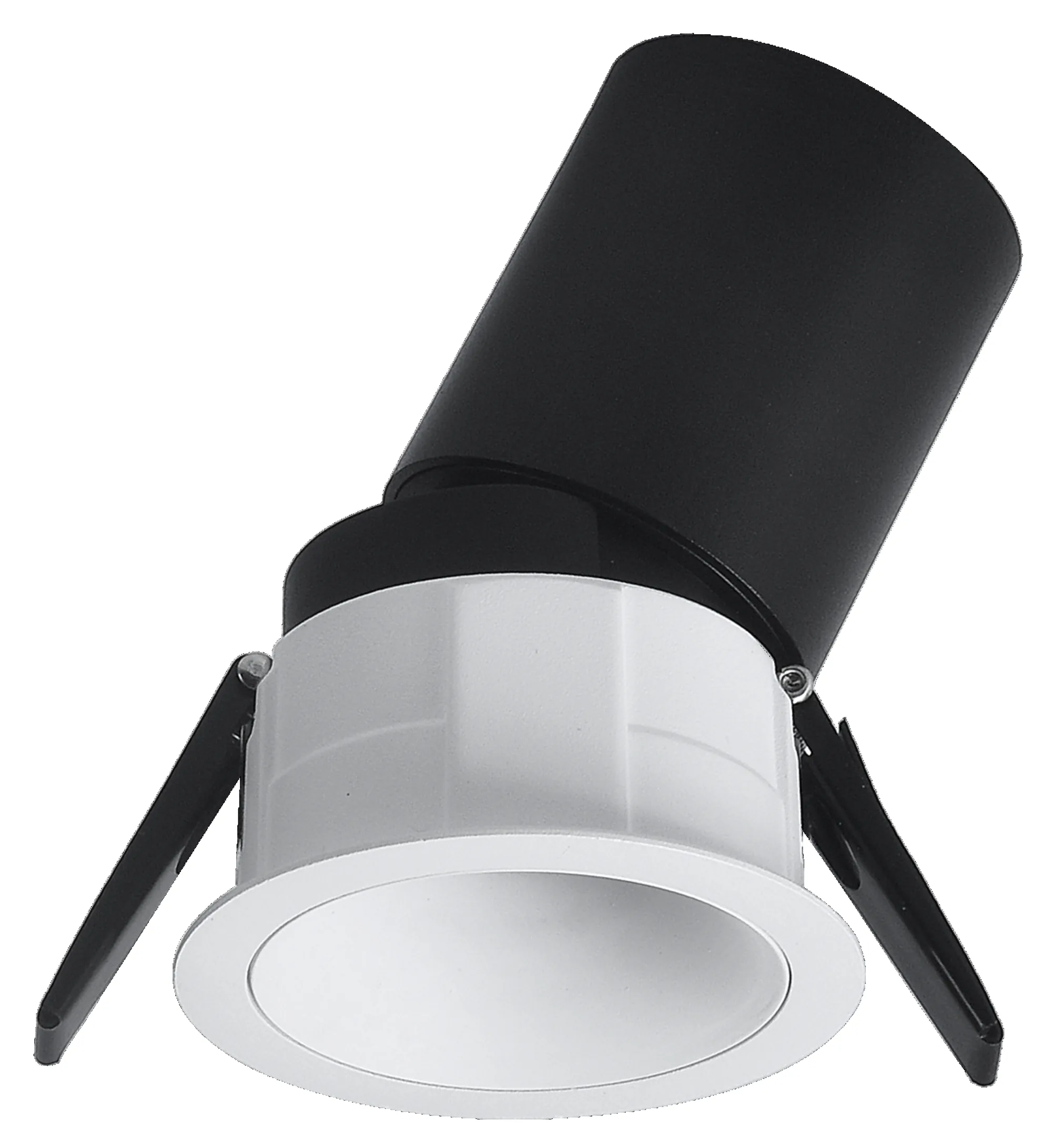

WhiteBlack
Source data lists white and black finish options.
18202430364050 deg
Beam references vary by model in the supplied IES filenames. Confirm the required file before quotation.

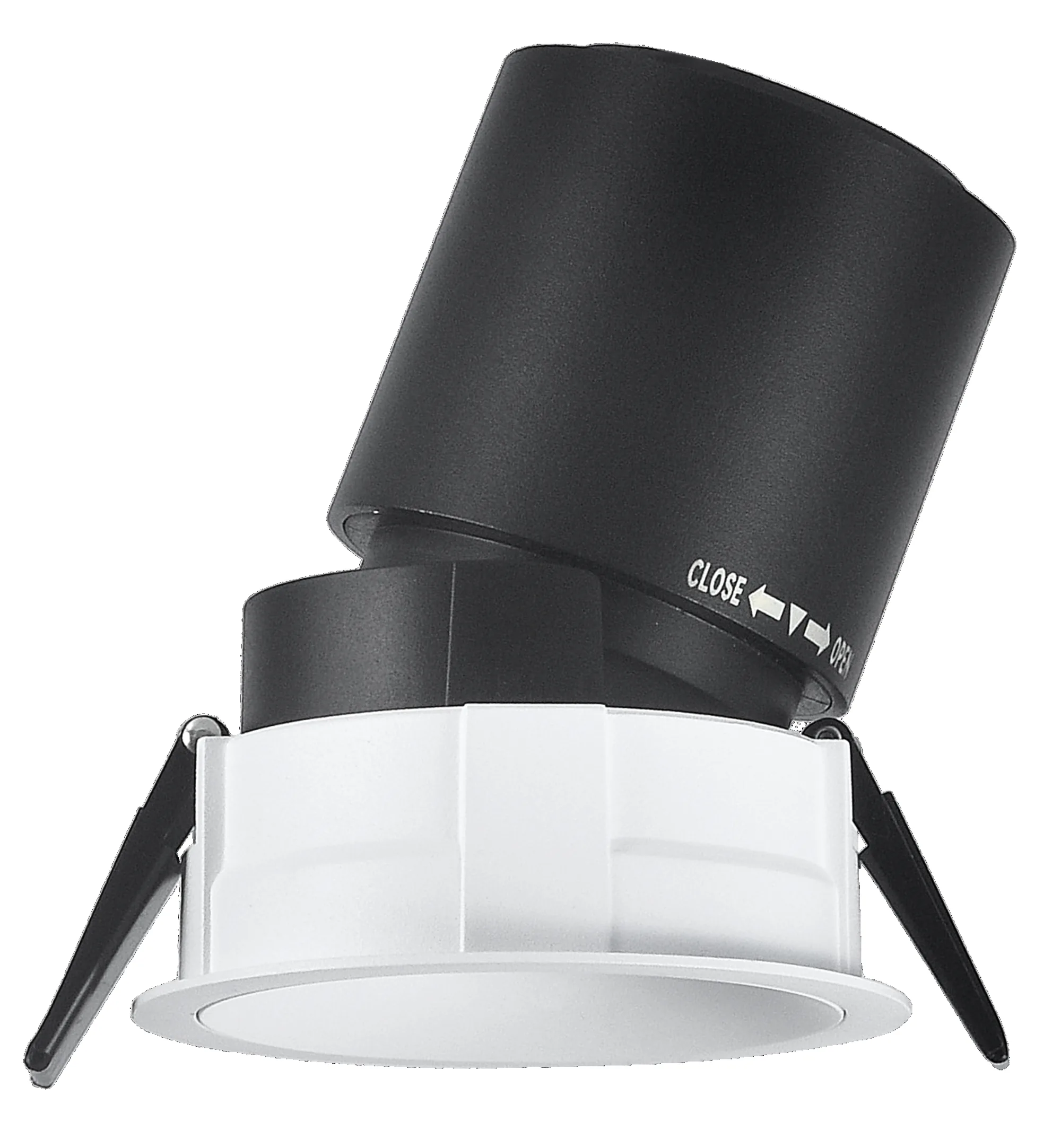

Eaglerise on/off
The supplied quote lists Eaglerise on/off control gear. Dimming and emergency requirements need confirmation.
Specification reasons
Why specify Miro-
Adjustment
Adjustable recessed formatVertical 30 deg adjusting component is shown in the supplied exploded source visual.
Colour quality
CRI 90 sourceSupplier quote lists Bridgelux LED with CRI 90 for the Miro references.
Selection range
Four body sizes8 W, 10 W, 15 W and 25 W references support different aperture and output needs.
Photometrics
IES pack supplied4000K photometric files are available for the supplied size and beam combinations.
Finish
White or blackSource data lists white and black finish options.
Check before order
Driver optionsOn/off driver supply is listed. Confirm dimming and emergency compatibility against the selected fitting before order.
Options And Accessories
Beam, finish and driver notes.
Source-backed configuration notes from the listed photometric files, quote data and product imagery.
B1C1D1E1
The listed family covers B1, C1, D1 and E1 body sizes from 8 W through to 25 W.
18 deg20 deg24 deg30 deg36 deg40 deg50 deg
Photometric files list beam references by body size, with 18, 24 and 36 degree files for C1 and D1, and 20, 30, 40 and 50 degree files for B1 and E1.
WhiteBlack3000K4000K
Source data lists white or black finish options with 3000K and 4000K colour temperatures.
On/offDimming checkEmergency check
The listed control gear is on/off. Confirm dimming and emergency compatibility against the selected fitting before order.
Product FAQs
Miro specification questions.
Specification notes for contractors, consultants and buyers checking adjustable recessed downlight options before ordering.
What is Miro used for?
Miro is an adjustable recessed LED downlight family for commercial interiors where a recessed trim, controlled beam and local aiming adjustment are required.
Which Miro sizes are listed?
The listed range covers B1 at 8 W, C1 at 10 W, D1 at 15 W and E1 at 25 W, with cut-outs from 55-58 mm through to 100 mm.
Which colour temperatures and finishes are available?
Source data lists 3000K and 4000K colour temperatures, CRI 90, and white or black finish options.
What beam angles are available?
The supplied photometric filenames cover 20, 30, 40 and 50 deg references for B1 and E1, and 18, 24, 36 and 50 deg references for C1 and D1.
Are photometric files available?
Yes. The supplied photometric pack contains 4000K photometric files for the listed body sizes and beam variants.
Can Miro be dimmed or emergency converted?
The listed control gear is on/off. Confirm dimming and emergency compatibility against the selected fitting before order.
Product Support
Check Miro configuration details.
Share the selected body size, beam, colour temperature, finish, driver requirement and quantity. Lumenloop can confirm current availability, compatibility and lead time for that selection.
