CIRCULARITY recyclable LED downlight

Recyclable LED downlight – Circa

Circa.
recyclable LED downlight.

Circa is a recyclable LED downlight for architectural and commercial interiors. The Philips SLM LED module and driver provide 1,325–4,650 lm, with 3000K and 4000K models, a 55° reflector and configurable controls and emergency options.

Output
1,325–4,650 lm 8 model codes
Colour temperature
3000K / 4000K model dependent
Options
Configurable controls and emergency
Build your specification

Circa options specification film transcript.

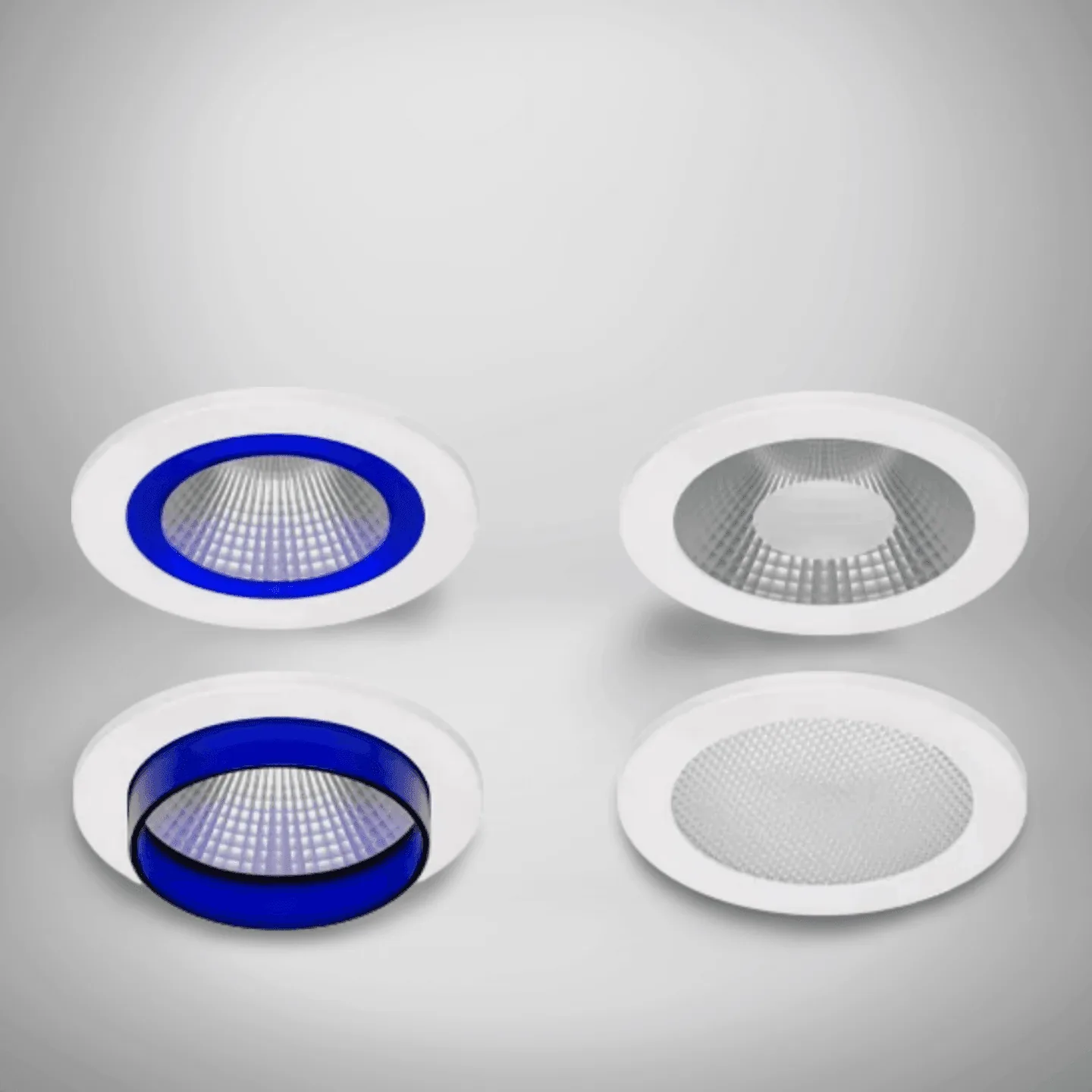

Photographic options sequence with generated background removal and restoration from original product photographs. Separate specified accessories are shown.

  1. Circa faceted reflector, 55 degree beam.
  2. Circa satin reflector, 65 degree beam.
  3. Circa blue hi-light option.
  4. Circa blue snoot option.
  5. Circa centre-etched dropped-glass option.
Recyclable LED downlightLow glareArchitectural and commercial specification
Output
1,325–4,650 lm
CCT
3000K / 4000K
Options
Controls + emergency
Output1,325–4,650 lm
Colour temperature3000K / 4000K
ControlsTouch dimming, DALI, Casambi
Ceiling cut-out176 mm
At a glance

Circa recyclable LED downlight quick specification.

Check the installation, output, colour temperature and control information for this recyclable LED downlight before reviewing the full model schedule.

Technical referenceNot to scale
Circa recessed LED downlight dimensional drawing
CircaProduct geometry and mounting reference
Key specificationPhilips SLM
01Ceiling cut-out
176 mm
02Bezel diameter
192 mm fixed · 195 mm twist-lock · 198 mm IP65
03Output
1,325–4,650 lm
04System power
9.5–38 W
05CCT
3000K / 4000K
06Controls
Fixed output, touch dimming, DALI, Casambi
Product files

Download Circa technical files.

Available files for this exact product are listed below.

Polar luminous intensityCIRCA.001 · 3000K · 9.5 W
Circa polar luminous intensity diagramRotational luminous intensity distribution from the verified Circa LDT archive.
Rotational distributionIntensity · cd/klm
Product configurator

Configure your Circa

Choose the Circa model first, then add the control and emergency options required for the project.

LuminaireProduct family
recyclable LED downlightLow-glare luminaire for high-end architectural and commercial applications
Colour temperature
Colour temperatureChoose the colour temperature, then an available output.
Output
OutputOutputs shown are available at the selected colour temperature.
Controls
ControlsSelect the control method
Emergency
EmergencySelect testing and indicator arrangement
Optics
OpticsAvailable optic options
Protection
ProtectionAvailable protection options
Twist and lock
Twist and lockAvailable body and mounting option
Colour rendering
Colour renderingAvailable colour-rendering option
QuantityNumber of fittings
Technical description

Recyclable LED downlight and sustainable architectural LED downlight specification for Circa.

Circa is a recyclable LED downlight for architectural and commercial interiors. Its Philips SLM LED module and driver provide up to 142 lm/W, with a published life of more than 66,000 hours at L90.

Circa construction and mounting

Circa is a recessed low-glare architectural downlight with a 176 mm ceiling cut-out, a 192 mm standard fixed bezel and a 103 mm body height.

Compare the model codes, outputs and product options below.

Output, optics and colour temperature

The eight listed models cover 1,325–4,650 lm at 3000K or 4000K, with 9.5–38 W system power.

Philips SLM modules and drivers deliver up to 142 luminaire lm/W, with a rated life exceeding 66,000 hours at L90. The standard optic is a 55° multi-faceted aluminium reflector.

Controls, emergency and project options

Standard finish is brilliant white RAL 9016. White RAL 9010, black RAL 9005 and grey RAL 9006 bezel options are listed; other RAL and custom colours are available on request.

Touch dimming and DALI use /T+DALI control gear; select the required control method separately. Casambi wireless uses /BTC. Standard, DALI and wireless-mesh emergency conversions have remote indicators (/EM, /EMD, /EMM) or integral indicators (/EMI, /EMDI, /EMMI).

Optical suffixes include /SA65, /R9 and /54. Twist and lock, IP-rated lens and bezel accessories are also listed in the datasheet.

Datasheets and technical files

Available files include the datasheet, installation guide, photometric data and BIM file for specification work, coordination and installation planning.

Output1,325–4,650 lm
System power9.5–38 W
Colour temperature3000K / 4000K
ControlsTouch dimming / DALI, Casambi wireless
EmergencyRemote and integral emergency arrangements

See the Lumenloop commercial downlights range for related mounting, output and optic options.

Models and options

Circa model codes and specification options.

Choose the base model, then review the available controls and emergency arrangements against the product datasheet.

Model codes8 listed configurations

8 model configurations are shown with their output, CCT and system power.

3000KCIRCA.001
1,325 lm9.5 W
4000KCIRCA.002
1,350 lm9.5 W
3000KCIRCA.003
2,075 lm15 W
4000KCIRCA.004
2,125 lm15 W
3000KCIRCA.005
3,250 lm24.5 W
4000KCIRCA.006
3,350 lm24.5 W
3000KCIRCA.007
4,525 lm37 W
4000KCIRCA.008
4,650 lm38 W
Controls and emergency

Keep each product decision visible.

Controls and emergency arrangements are selected separately so the final fitting code remains clear.

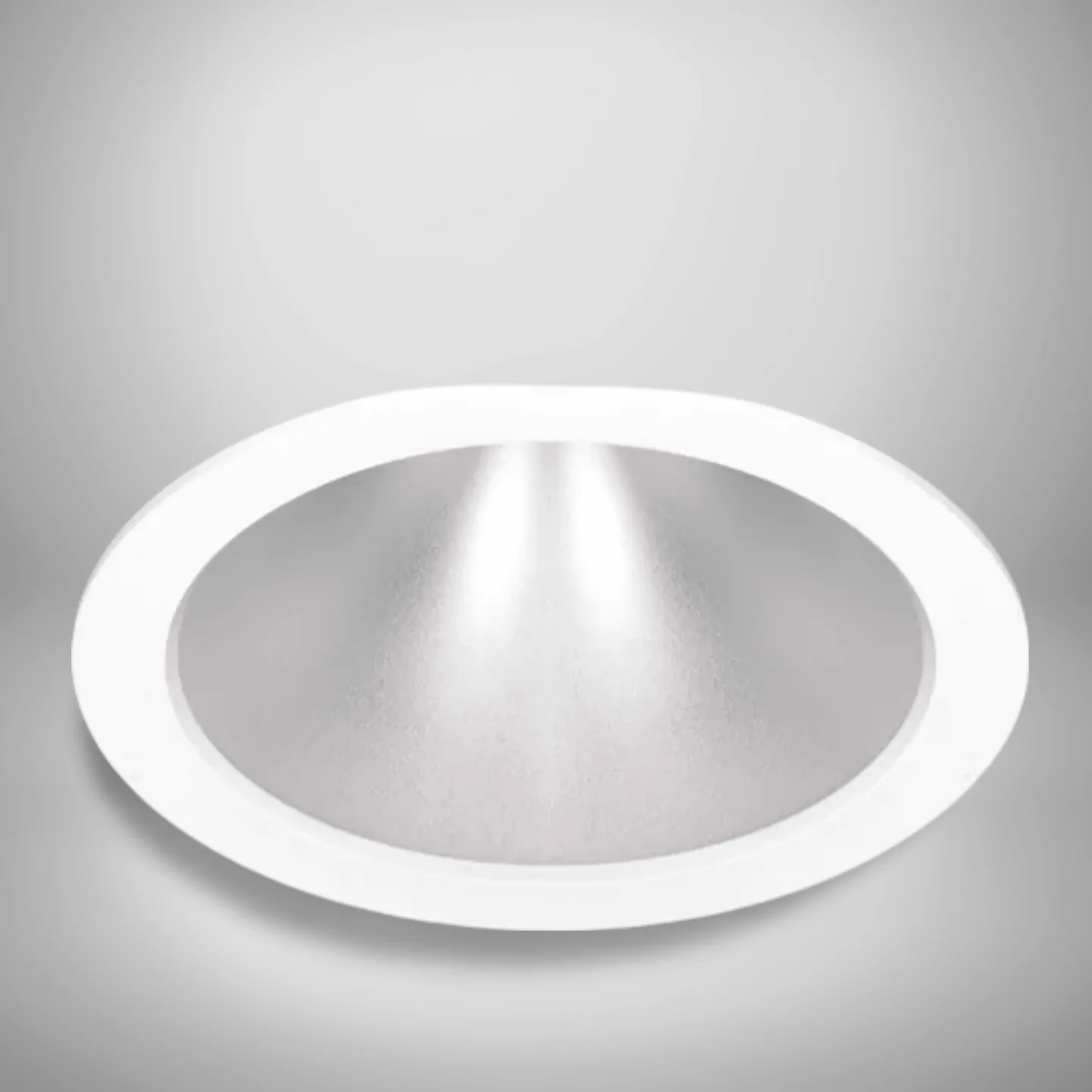

Circa LED downlight product reference
Why Circa

Why specify Circa?

The Circa combines low-glare performance with a sustainability-led product position for high-end architectural and commercial applications.

Its model, control and emergency choices can be reviewed against the product datasheet before quotation.

Low-glare output

1,325–4,650 lm across the eight listed model codes.

Sustainability-led

CIBSE TM66 assessed as Excellent, with a 98% recyclable product family.

Separate choices

Controls and emergency arrangements remain clear in the specification builder.

Specification questions

Circa details worth checking.

The Circa requires a 176 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.

8 configurations are listed: CIRCA.001, CIRCA.002, CIRCA.003, CIRCA.004, CIRCA.005, CIRCA.006, CIRCA.007, CIRCA.008.

Published models cover 1,325–4,650 lm. Colour-temperature choices are 3000K / 4000K.

Fixed output, touch dimming, DALI and Casambi wireless are available. Standard, DALI and wireless-mesh emergency conversions each offer a remote or integral indicator.

Yes. The Circa datasheet is linked in the hero, configurator and technical section.

Circa combines low-glare architectural downlighting with a CIBSE TM66 assessed, 98% recyclable product family.

Circa is intended for architectural and commercial interiors, with eight models across 3000K and 4000K and configurable controls and emergency options.

Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.

Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
