MountingSurface mounted — no ceiling cut-out
SURFACE MOUNTED 150 mm LED downlight
Lumensurface-mounted mini LED downlight
Surface-mounted form.
Controlled reflector light.
Lumen is a surface-mounted mini LED downlight powered by Tridonic, with a 40° multi-faceted reflector as standard, narrow and wide beam reflector options and efficacies up to 132.3 lm/W.
Six model codes cover 1,025–2,450 lm in 3000K and 4000K, with finish, reflector, control, emergency and suspension choices for commercial downlight schedules.
- Output
- 1,025–2,450 lm 6 model codes
- Colour temperature
- 3000K / 4000K model dependent
- Options
- 23 listed controls and accessories
01 / 06
Output1,025–2,450 lm
Colour temperature3000K / 4000K
ControlsDALI, SwitchDIM, DSI
MountingSurface mounted — no cut-out
Product configurator
Configure your Lumen
Choose the Lumen model first, then add only the control, reflector, emergency, finish, suspension or accessory choices required for the project.
LuminaireProduct family
150 mm surface-mounted LED downlightRAL9016 brilliant white and a 40° multi-faceted reflector are standard. Six Tridonic-powered models cover 1,025–2,450 lm at 8–19 W in 3000K or 4000K.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Lumen surface-mounted 150 mm LED downlight quick specification.
Check the mounting, dimensions, output, colour temperature and control information before reviewing the full model schedule.
DimensionsØ 150 × 170 mm
Output1,025–2,450 lm
System power8–19 W
CCT3000K / 4000K
ControlsNon-dimmable; /ECO SwitchDIM, DSI or DALI
Product files
Download Lumen technical files.
Available files for this exact product are listed below.
Verified distributionIntensity · cd/klm
Technical description
150 mm surface-mounted LED downlight specification for Lumen.
Lumen is a professional 150 mm surface-mounted LED downlight with Tridonic LED and driver components, six verified model codes and a 40° multi-faceted reflector as standard. The range covers 1,025–2,450 lm, 8–19 W and 3000K or 4000K.
Lumen construction and mounting

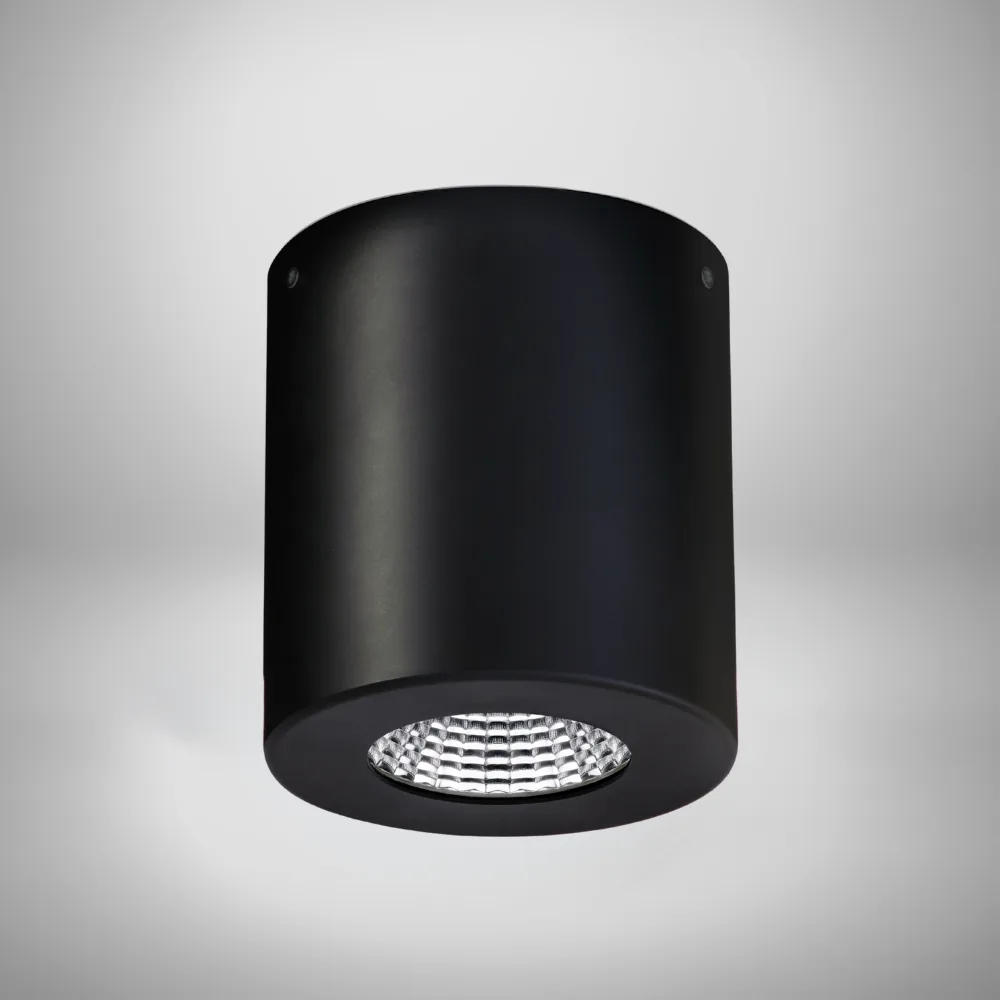

The cylindrical surface can measures 150 mm in diameter and 170 mm high, with no ceiling cut-out required. The installation guide shows a removable gear tray, safety tether and surface fixings.

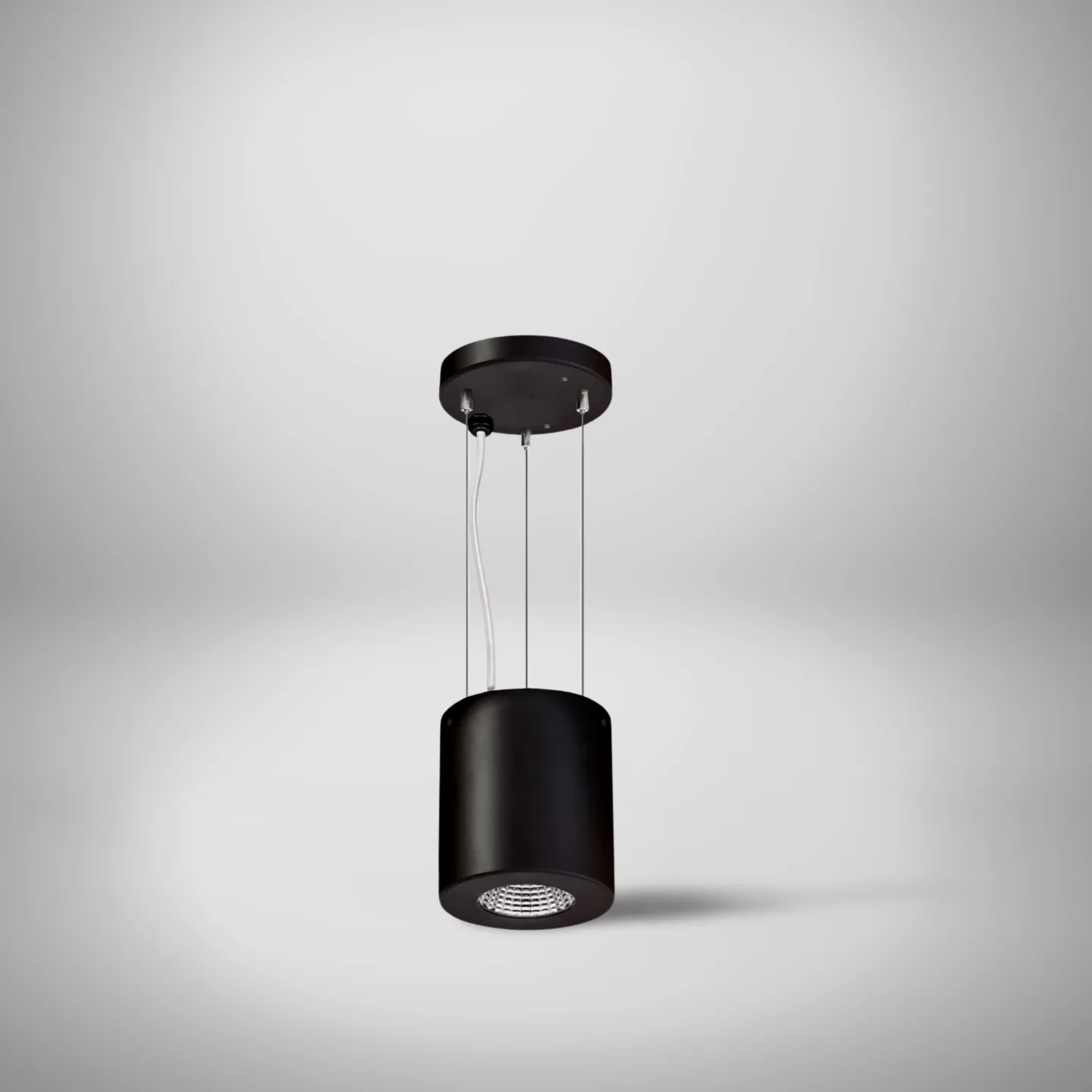

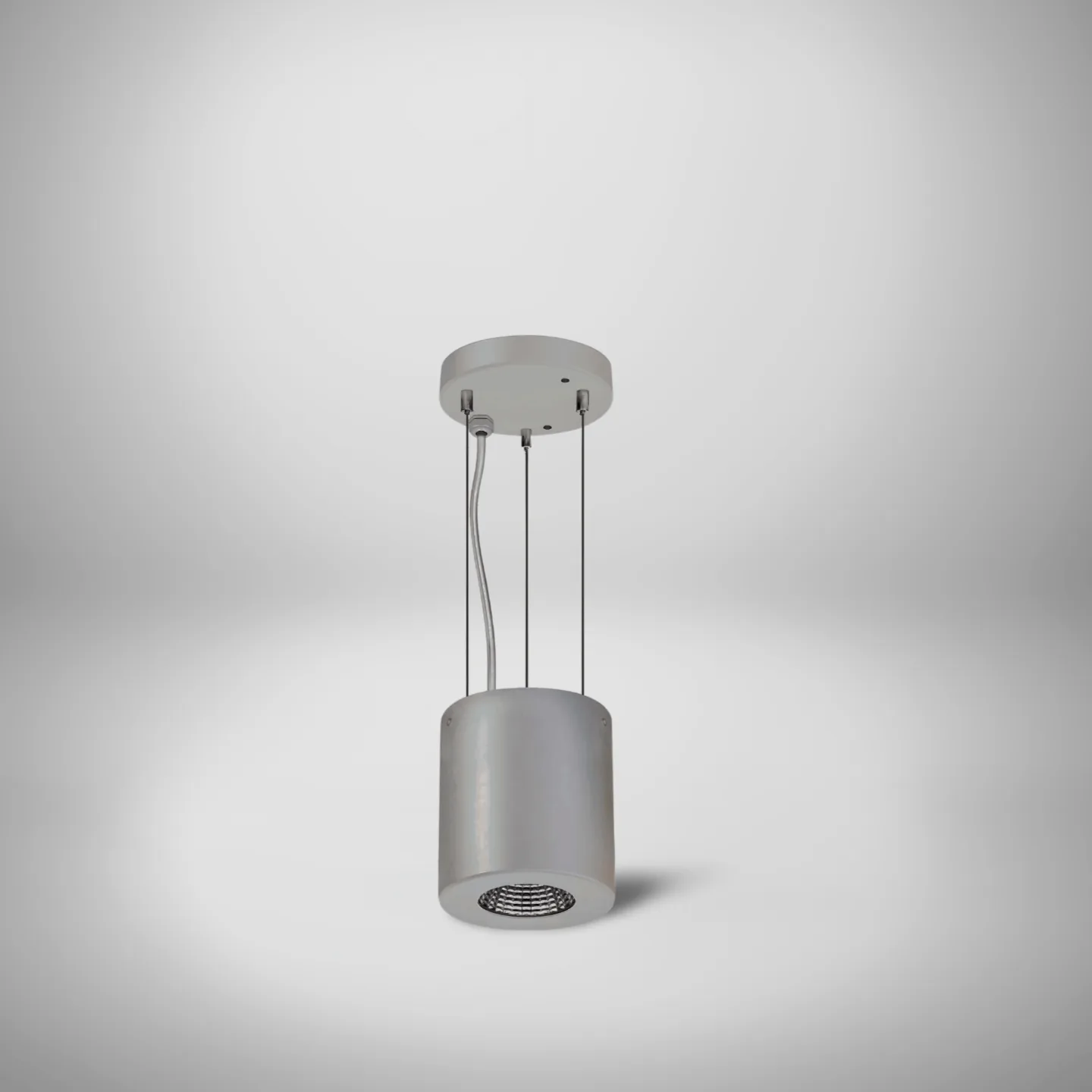

Suspended arrangements are available as /SUS with a 2 m, three-wire suspension and ceiling plate, or /SUS.B with three 2 m suspension wires.
Output, optics and colour temperature
A 40° multi-faceted reflector is standard. Optional 40° specular, 50° satin, 25° multi-faceted and 60° multi-faceted reflectors are listed in the datasheet.
The six model codes pair three power levels with 3000K and 4000K outputs from 1,025 to 2,450 lm.
Controls, emergency and finish choices
Non-dimmable operation is standard. /ECO provides SwitchDIM, DALI or DSI; /EMI adds integral emergency, while integral DALI emergency is a custom configuration.
RAL9016 brilliant white is standard. /WH is RAL9010, /BK is RAL9005 and /GY is RAL9006, with other RAL colours available as a custom configuration.
Output1,025–2,450 lm
System power8–19 W
Colour temperature3000K / 4000K
Standard finishRAL9016 brilliant white
ControlsNon-dimmable; SwitchDIM, DALI or DSI option
EmergencyIntegral emergency; DALI emergency custom
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product type150 mm surface-mounted LED downlight
Model codesLUMEN.001, LUMEN.002, LUMEN.003, LUMEN.004, LUMEN.005, LUMEN.006
Output1,025–2,450 lm
System power8–19 W
Colour temperature3000K / 4000K
DimensionsØ 150 × 170 mm
Standard optic40° multi-faceted reflector
Standard finishRAL9016 brilliant white
ControlsNon-dimmable standard; /ECO SwitchDIM, DALI or DSI
Emergency/EMI integral emergency; integral DALI emergency by custom configuration
Models, options and accessories
Lumen model codes and specification options.
Choose the Lumen base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes6 listed configurations
6 models are shown with output, CCT and power information where available.
1,025 lm3000K8 W
1,075 lm4000K8 W
1,725 lm3000K14 W
1,800 lm4000K14 W
2,375 lm3000K19 W
2,450 lm4000K19 W
Additional Lumen options and accessoriesProduct images and specification choices
Finish/WH
White surface can, RAL9010

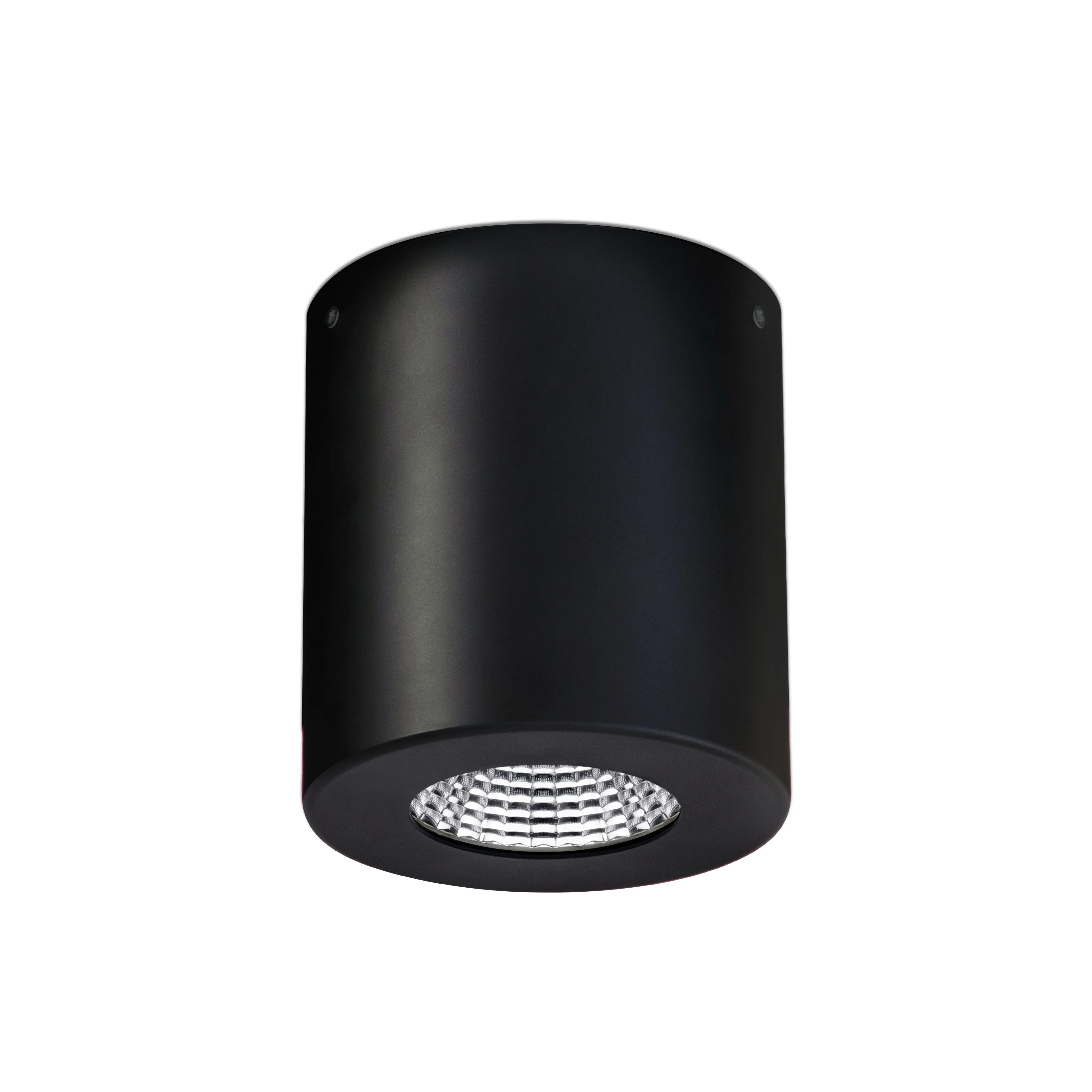

Finish/BK
Black surface can, RAL9005
Finish/GY
Grey surface can, RAL9006
Beam & Optics/SP40
40°ree specular reflector
Beam & Optics/SA50
50 degree satin reflector
Beam & Optics/MF25
25 degree multi-faceted reflector
Beam & Optics/MF60
60 degree multi-faceted reflector
Controls/ECO
SwitchDIM, DALI or DSI
Driver/TOP
100,000-hour Tridonic Excite driver

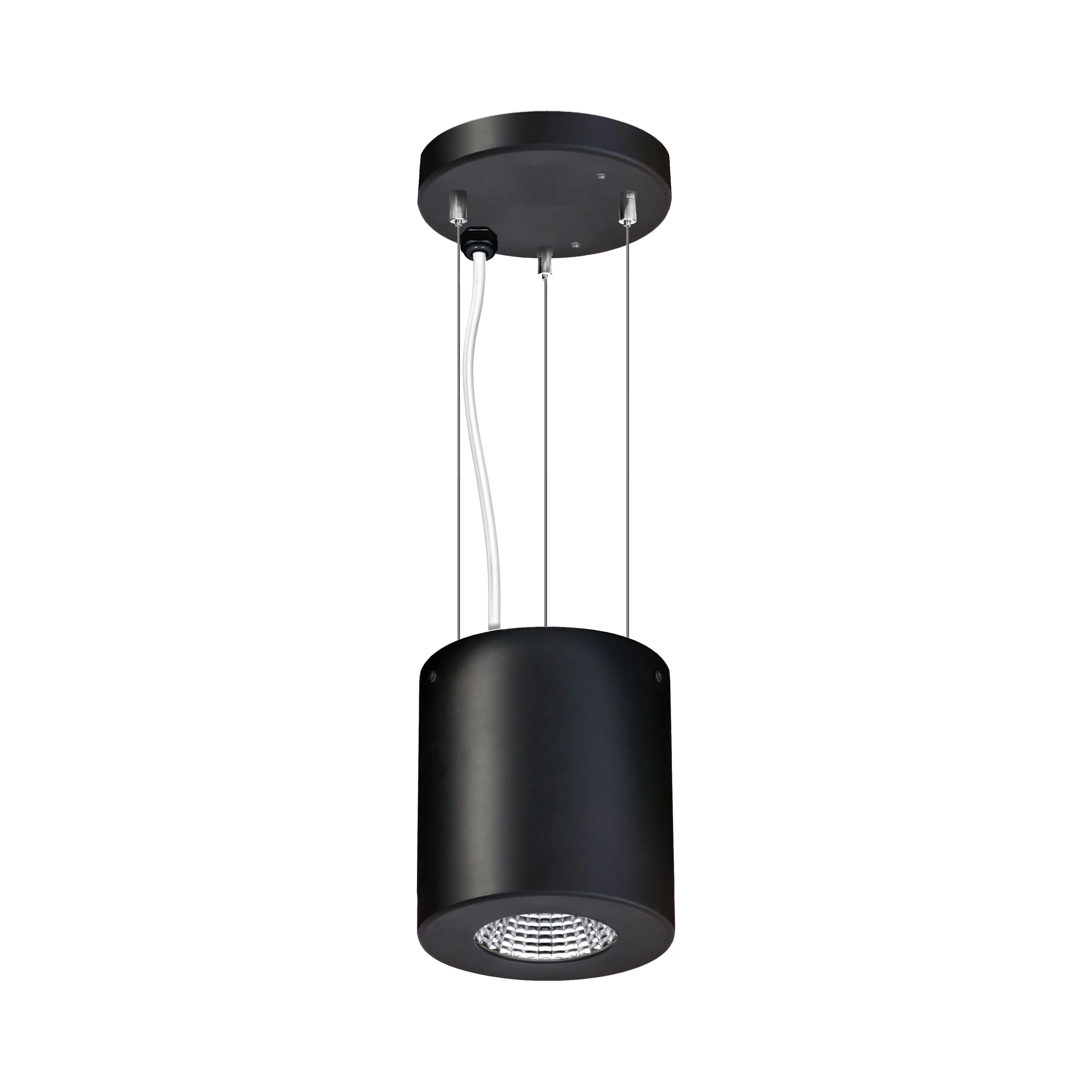

Mounting/SUS
2 m suspension, three wires and ceiling plate
Mounting/SUS.B
2 m suspension, three wires
Emergency/EMI
Integral emergency
HighlightTA220/FROST
Frosted highlight
HighlightTA220/BLUE
Blue highlight
SnootTA210/BLACK
Black snoot
SnootTA210/FROST
Frosted snoot
SnootTA210/BLUE
Blue snoot
ProtectionTA240
IP54 clear glass
ProtectionTA241
IP54 centre-etched glass
ProtectionTA242
IP54 fully etched glass
Custom configurationCustom configuration
Any RAL body colour
Custom configurationCustom configuration
Integral DALI emergency
Custom configurationCustom configuration
Plug and socket arrangement
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Lumen
Why specify this surface-mounted 150 mm LED downlight?
Lumen combines a compact 150 mm surface can with a Tridonic LED and driver platform, controlled reflector choices and six verified model codes. RAL9016 brilliant white and a 40° multi-faceted reflector are standard.
The 6-model family combines 1,025–2,450 lm, 3000K / 4000K and 23 listed configuration choices without changing the core product identity.
One surface can with finish, reflector and suspension choices kept explicit
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
Surface-mounted body
A 150 mm diameter can where recessed mounting is not suitable.
Six model codes
3000K and 4000K choices extend from 1,025 to 2,400 lumens.
Reflector range
Multi-faceted, specular and satin distributions are separately available.
Surface or suspended
Finish, driver, suspension and emergency arrangements remain visible choices.
Output1,025–2,450 lm6 listed models
CCT3000K / 4000KModel dependent
Options23Controls and accessories
Typical applicationsWhere Lumen is specified
Commercial interiors
Surface-mounted downlighting for exposed or solid ceilings.
Retail
Controlled reflector light for customer and display areas.
Hospitality
A cylindrical architectural fitting for reception and public spaces.
Refurbishment
A surface solution where a recessed ceiling aperture is unavailable.
Compare Lumen with the wider commercial downlights when reviewing output, optics, mounting, controls and emergency requirements.
suspended mini LED downlight
Lumen Suspended
Lumen Suspended takes the same compact reflector-led family into a dedicated suspended format.
Compare product →
compact surface mounted LED downlight
Crown
Crown is a compact surface-mounted LED downlight with integral Philips LED and driver components and outputs up to 3,125 lm.
Compare product →
surface-mounted LED downlight
Optima
Optima is a surface-mounted LED downlight for commercial interiors requiring glare control and an architectural finish.
Compare product →Specification questions
Lumen details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
No ceiling cut-out is required for the surface-mounted Lumen. Check the dimensional drawing and installation guide for the body size and fixing details.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Lumen datasheet is linked in the hero, product files and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
Lumen combines a compact cylinder format with Tridonic gear, a 40° multi-faceted reflector as standard, narrow and wide beam reflector options, and six standard model codes from 1,025 lm to 2,450 lm.
The current model table runs from LUMEN.001 at 1,025 lm / 8 W up to LUMEN.006 at 2,450 lm / 19 W, in 3000K and 4000K options.
/ECO provides SwitchDIM, DALI or DSI control gear.
The current product pack shows surface-mounted and suspended cylinder formats for the Lumen family.
Lumen uses a multi-faceted 40° reflector as standard, with narrow and wide beam reflector options also listed.
RAL9016 brilliant white is listed as standard, with other RAL colours available.
Current local resources include the datasheet, installation guide and BIM file.
