DimensionsPRODUCT DRAWING WITH DIMENSIONS. Ordering Information
IP65 / IK08 IP65 vapour-proof LED batten

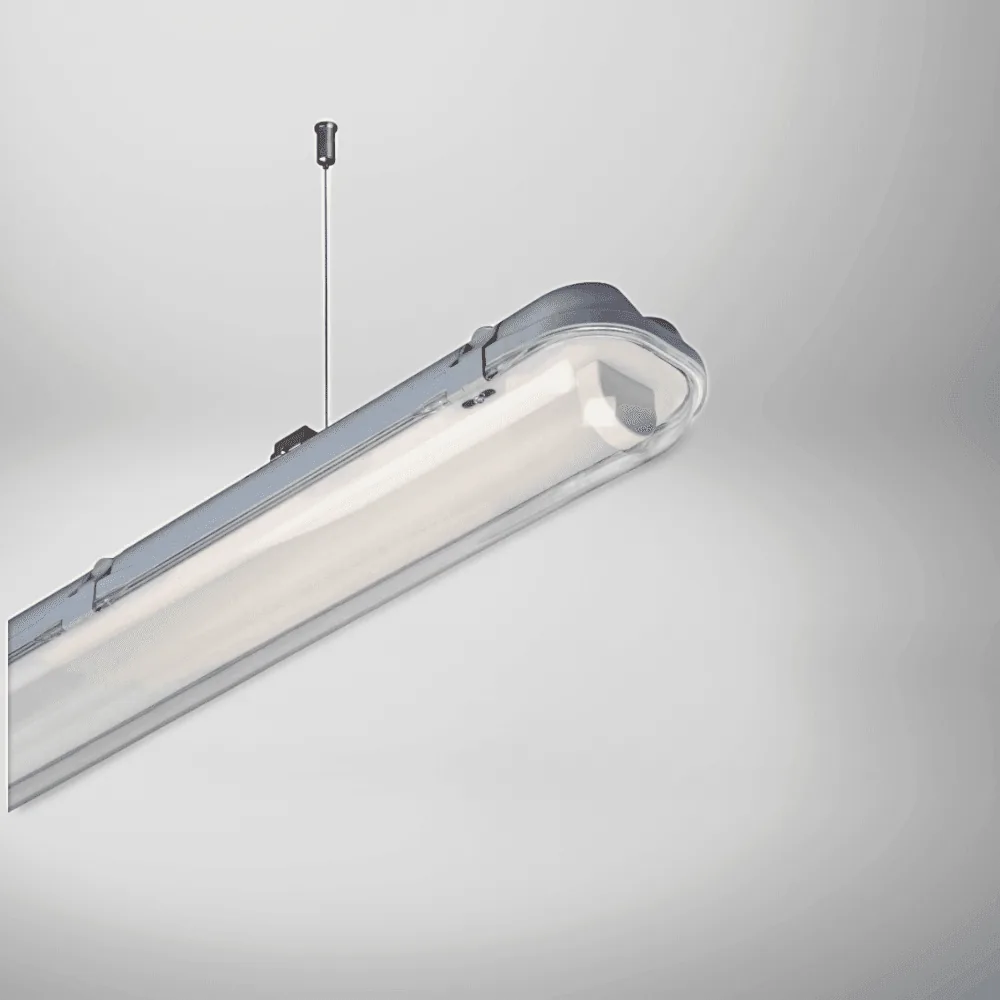

AegisIP65 vapour-proof LED batten
Built to endure.
Configured to perform.
Aegis is an IP65, IK08 vapour-proof LED batten with eight 4 ft and 5 ft 4000K models from 3,675-9,250 lm, plus control, emergency and accessory options.
- Output
- 3675–9250 lm 8 model codes
- System efficacy
- Up to 161 lm/W datasheet values
- Rated life
- >50,000 h L70
01 / 05
ProtectionIP65 + IK08
Formats4 ft and 5 ft
ControlsDALI, SwitchDIM, DSI, Casambi, PIR sensor
EmergencyDALI emergency
Product configurator
Configure your Aegis
Choose the length and output first, then add control gear, sensor operation, emergency conversion and mounting accessories. The full quotation code updates with every selection.
LuminaireProduct family
IP65 vapour-proof LED battenVapour-proof surface, suspended or wall-mounted linear fitting
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Aegis IP65 vapour-proof LED batten quick specification.
Check the installation, output, colour temperature and control information for this IP65 vapour-proof LED batten before reviewing the full model schedule.
Output3675–9250 lm
CCT4000K
ControlsDALI, SwitchDIM, DSI, Casambi, PIR sensor
EmergencyEmergency /EMI, DALI emergency /EMDI
ProtectionIP65 and IK08 vapour-proof LED batten
Product files
Download Aegis technical files.
Available files for this exact product are listed below.

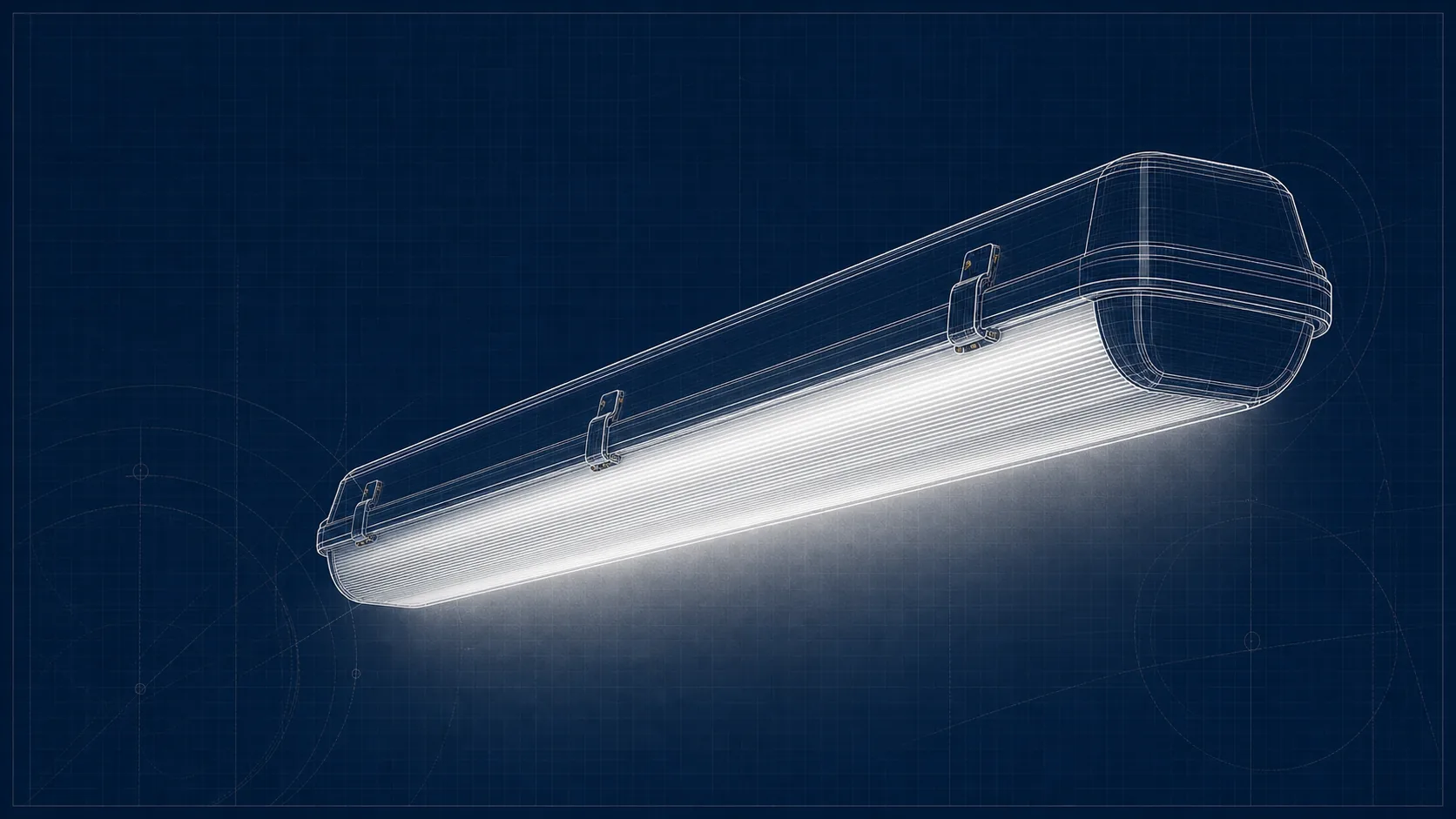

Technical description
Protected linear light. Precise project choice.
Aegis is an IP65 vapour-proof LED batten for commercial and industrial projects requiring reliable dust, moisture and impact protection without reducing output choice or control flexibility.
IP65 and IK08 construction
The Gen 2 fitting uses an injection-moulded polycarbonate body with a micro-prismatic V0 diffuser. IP65 protection supports dusty, wet and wash-down-prone commercial environments, while IK08 addresses impact resistance in exposed service areas.

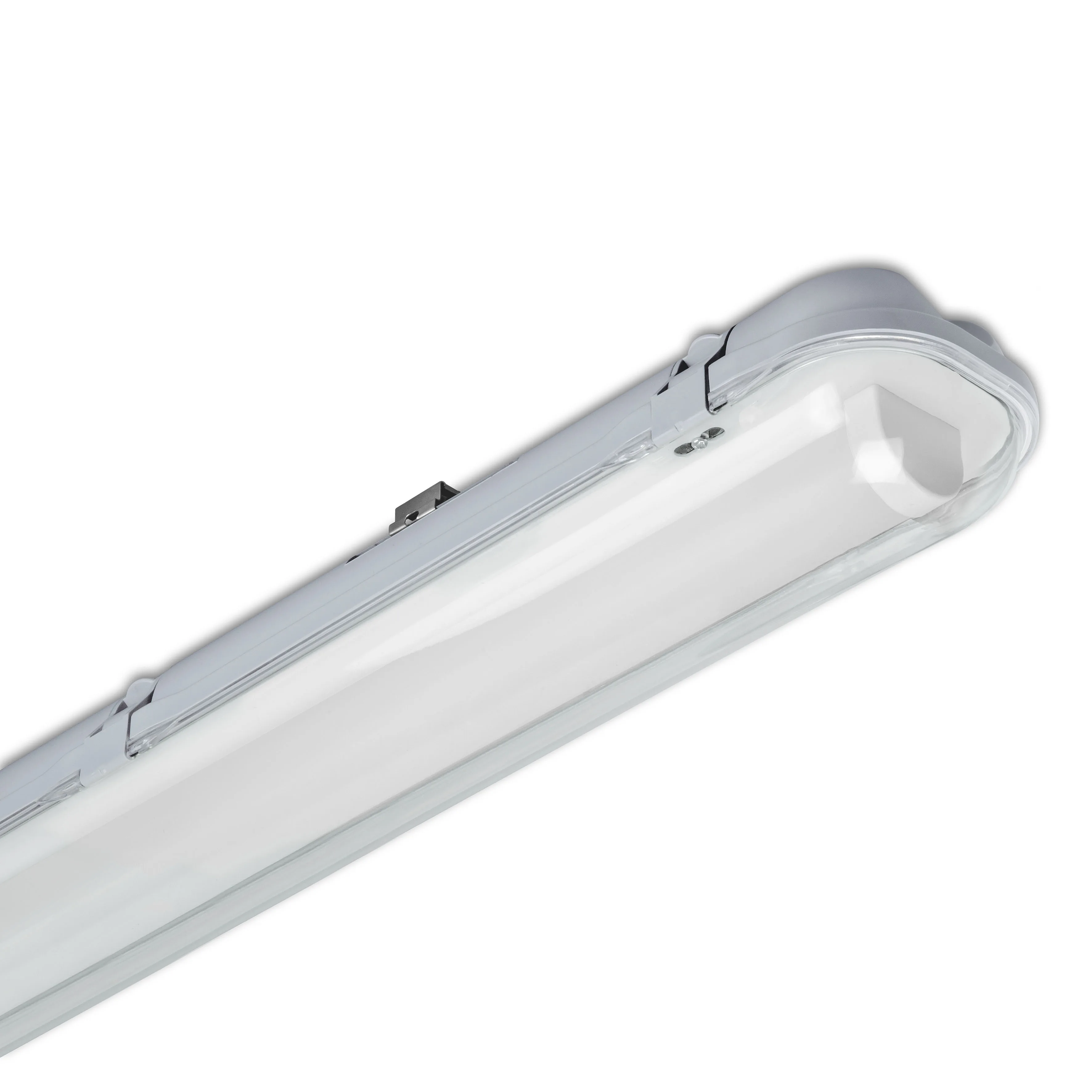

Aegis is available for surface, suspended and wall-mounted installation. A 2 m suspension kit, corner mounting kit and anti-tamper kit extend the same family across different building conditions.
4 ft and 5 ft output range
Eight 4000K model codes span 3675 to 9250 lumens. Four 4 ft models run from 23 W to 40.5 W, while four 5 ft models run from 33 W to 59 W.
Published luminaire efficacy reaches 161 lm/W. The Ra80, 3 SDCM LED platform uses Tridonic power and is rated above 50,000 hours to L70.
Controls, sensors and emergency
The /ECO suffix covers SwitchDIM, DALI, DALI Data or DSI. Casambi wireless dimming uses /BTC and remains a separate control-gear selection.
PIR on/off and PIR dimming use /SO and /SD respectively. Emergency /EMI and DALI emergency /EMDI are selected separately so the normal control method and emergency arrangement remain clear in the fitting code.
IP65 ingress protectionDusty, wet and wash-down-prone interiors
IK08 impact ratingHigh-impact polycarbonate construction
3675–9250 lmEight 4 ft and 5 ft model codes
Up to 161 lm/WEfficient project performance
DALI and CasambiWired and wireless control choices
>50,000 hoursL70 rated LED platform
See the Lumenloop commercial LED batten lights range for related mounting, output and optic options.
Product typeIP65 vapour-proof LED batten
Model codesAEGIS.001 to AEGIS.008
Lengths4 ft and 5 ft
Output3675 to 9250 lumens
System power23 to 59 W
Efficacy150 to 161 lm/W
Colour temperature4000K
Colour qualityRa80 / 3 SDCM
BodyInjection-moulded polycarbonate
DiffuserMicro-prismatic V0 diffuser
ProtectionIP65 / IK08
ControlsDALI, SwitchDIM, DSI, Casambi, PIR sensor
SensorsPIR on/off or PIR dimming
EmergencyDALI emergency
MountingSurface, suspended, wall or corner mounting
Rated life>50,000 hours L70
ComplianceUKCA / CE; Declaration of Conformity available
Models, options and accessories
Aegis model codes and specification options.
Select one of eight output and length combinations, then add only the control, sensor, emergency and installation accessories required by the project.
Model codes8 listed configurations
All models are 4000K and retain the same IP65, IK08 construction.
3675 lm23 W159 lm/W
4475 lm28.5 W157 lm/W
5325 lm34.5 W154 lm/W
6100 lm40.5 W150 lm/W
5300 lm33 W161 lm/W
6625 lm41.5 W160 lm/W
7950 lm50 W159 lm/W
9250 lm59 W157 lm/W
Control gear
/ECO
SwitchDIM, DALI, DALI Data or DSI
Wireless control
/BTC
Casambi wireless network including dimming

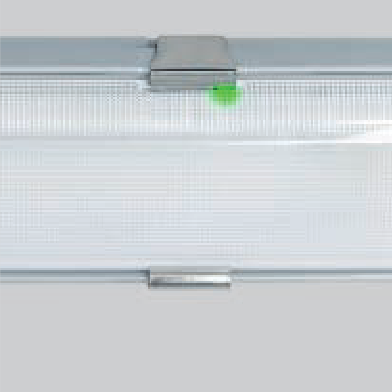

Emergency
/EMI
Integral emergency
Emergency

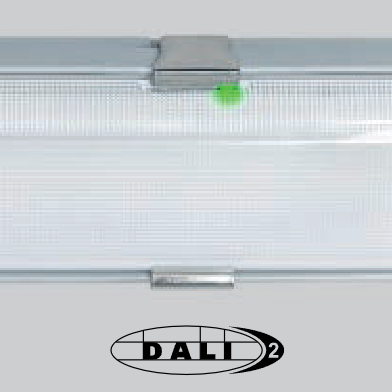

/EMDI
DALI emergency
Sensor
/SO
PIR sensor — on/off
Sensor
/SD
PIR sensor — dim

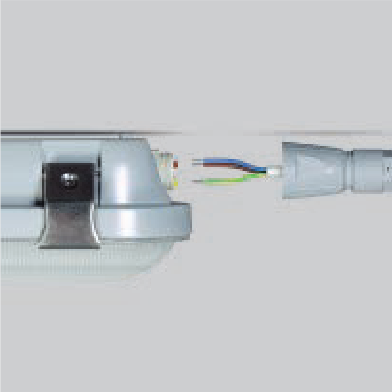

Connector
/PAP
QuickWire connector, 3-core only
Accessory

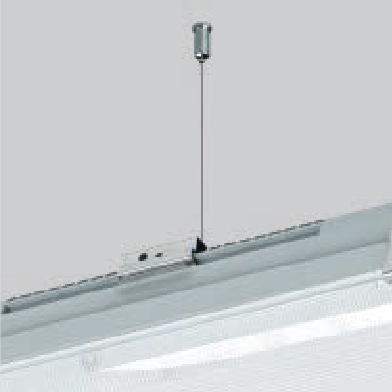

AEGIS.ACC.01
2 m suspension kit
Accessory

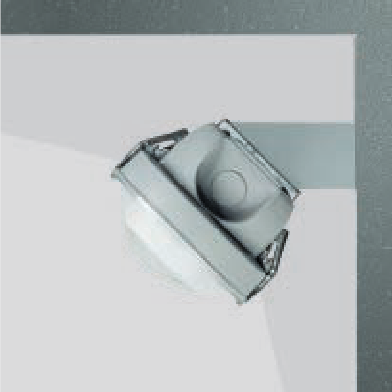

AEGIS.ACC.02
Corner mounting kit

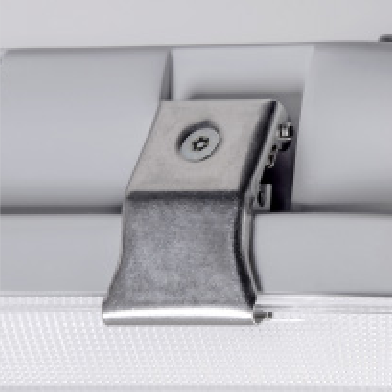

Accessory
AEGIS.ACC.03
Anti-tamper kit
Accessory
AEGIS.ACC.04
Sensor programming remote
Custom configuration
Contact sales
Philips MasterConnect wireless control
Custom configuration
Contact sales
HubSense wireless control
Custom configuration
Contact sales

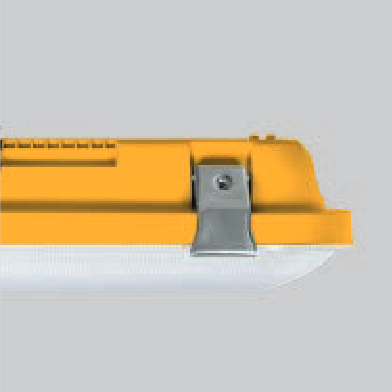

Any RAL colour
Control methods require the matching driver and wiring arrangement. Confirm sensor and emergency requirements separately.
Why Aegis
Why specify this IP65 vapour-proof LED batten?
Aegis combines an IP65 enclosure, IK08 impact protection and a high-efficacy LED platform in one 4 ft and 5 ft family.
Its broad output range makes it suitable for straightforward batten replacement as well as higher-output logistics, plant and service environments.
One robust family for simple and controlled installations
The standard fitting can remain fixed output, or be configured for DALI, SwitchDIM, DSI, Casambi, PIR on/off or PIR dimming.
Emergency, DALI emergency, suspension, corner mounting, anti-tamper and connector choices remain explicit in the product specification.
Protected construction
IP65 ingress protection and IK08 impact resistance for demanding interiors.
High system efficacy
Published efficacy from 150 to 161 lm/W across the ordering table.
Flexible installation
Surface, suspended, wall and corner-mounting arrangements are available.
Controls and emergency
Wired, wireless, sensor and emergency options are selected separately.
Output3675–9250 lmEight listed models
Life>50,000 hL70
ProtectionIP65 / IK08Ingress and impact
Typical applicationsWhere Aegis is specified
Plant and service rooms
Protected linear lighting for dusty or moisture-prone technical areas.
Logistics and storage
High-output 4 ft and 5 ft choices for working and circulation zones.
Car parks
Impact-resistant linear lighting with sensor and emergency options.
Back-of-house areas
Durable, efficient lighting for service corridors and operational spaces.
Compare Aegis with the wider commercial led battens when reviewing output, optics, mounting, controls and emergency requirements.
4ft commercial LED batten
Glide
Glide is a 4ft commercial LED batten with the Glide , a 4ft LED batten featuring Tridonic technology and ultra-high efficacy up to 131 lm/tcW.
Compare product →
UK-made recessed LG7 linear luminaire
Flow
Flow is a UK-made recessed LG7 linear luminaire for low-glare recessed lighting for offices, schools, and retail.
Compare product →
industrial LED high bay light
HighRack
Industrial high-bay luminaire for warehouse aisles, high-rack storage and industrial halls
Compare product →Specification questions
Aegis details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
Aegis is rated IP65 for ingress protection and IK08 for impact resistance.
The range includes four 4 ft models from 3675 to 6100 lumens and four 5 ft models from 5300 to 9250 lumens, all at 4000K.
The /ECO suffix covers SwitchDIM, DALI, DALI Data or DSI and requires the matching control gear and project wiring.
Yes. /BTC provides Casambi wireless control including dimming. Philips MasterConnect and HubSense are listed as custom configurations requiring confirmation.
Use /SO for PIR on/off operation or /SD for PIR dimming. A sensor programming remote is listed as AEGIS.ACC.04.
Emergency options include DALI emergency. Select the emergency requirement separately from the base model and normal control method.
Surface mounting is standard. A 2 m suspension kit and corner mounting kit are listed, and the product is also described for wall-mounted installation.
The available Aegis downloads are the datasheet, installation guide and photometric data.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
