Low glare prismatic lens
Available to aid LG7 compliance
Flow low-glare linear LED luminaire

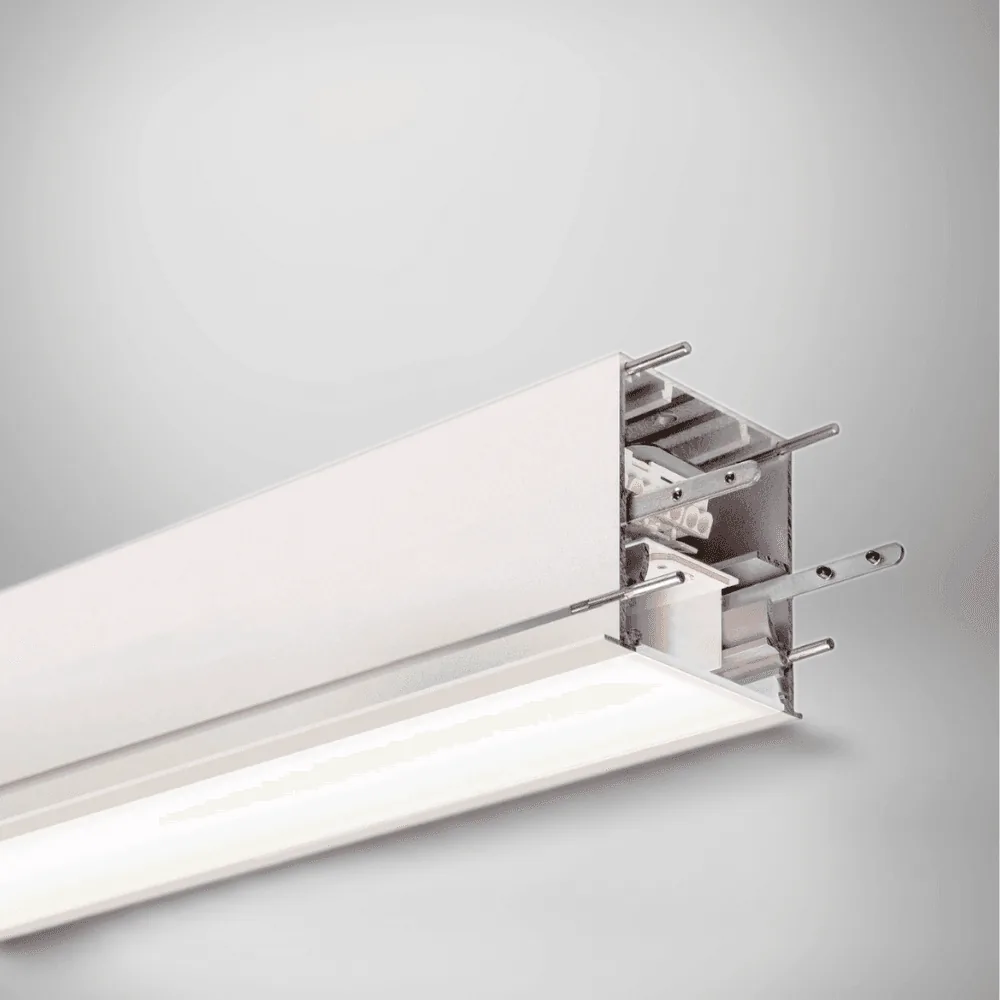

The Flow is a UK-made, recessed LED linear luminaire offering seamless, low-glare lighting for offices, schools, and retail.
Efficacy up to 127 llm/W
Output reference for specification and comparison.
Recessed extruded continuous linear profile luminaire
Helps confirm ceiling compatibility and installation conditions.
Available in 3 standard lengths
Supports the selected specification.
Model references
FLOW.001
Life >72,000 hours (L80 / F10)
Long-life LED performance.
Efficacy up to 127 llm/W
Output reference for specification and comparison.
Specification resources
Download Datasheet, Installation Guide, BIM File
Luminaire type
Low-glare linear LED luminaire
Life >72,000 hours (L80 / F10)
Long-life LED performance.
Low glare prismatic lens
Available to aid LG7 compliance
Download Datasheet
Technical datasheet for specification review.
Installation Guide
Installation guide for site coordination.
BIM File
BIM coordination file for project drawings.
Project selection
Available luminaire options and accessories are shown below.
Configure For Enquiry
Configure Flow for enquiry.
Select the output, optic, finish, control gear and accessories needed for the project, then send the configuration to Lumenloop for specification support.
Configured Specification
Selected Flow specification.
Selection reference
FLOW.001
Selection reference
FLOW.001
Technical Description
Low-glare linear LED luminaire specification for Flow.
The Flow is a UK-made, recessed LED linear luminaire offering seamless, low-glare lighting for offices, schools, and retail. Available in three lengths with tunable outputs, it supports LG7 compliance, DALI dimming (/+ECO), and emergency conversion (/EMI). Key specification details include life >72,000 hours (L80 / F10).
Performance and installation details include life >72,000 hours (L80 / F10). This section covers output, optics, mounting and control requirements.
Supporting resources include datasheet, Installation guide and BIM file, where published.
Specification-led low-glare linear LED luminaire features.
- Low glare prismatic lens: Available to aid LG7 compliance
- Efficacy up to 127 llm/W: Output reference for specification and comparison.
- Recessed extruded continuous linear profile luminaire: Helps confirm ceiling compatibility and installation conditions.
- Available in 3 standard lengths: Supports the selected specification.
- Tridonic LED and driver system: Gives the product range a recognised LED and driver platform.
- TP(a) opal lens for: Feature, general and visual areas
- Life >72,000 hours (L80 / F10): Long-life LED performance.
- Manufactured, tested and validated: In the UK

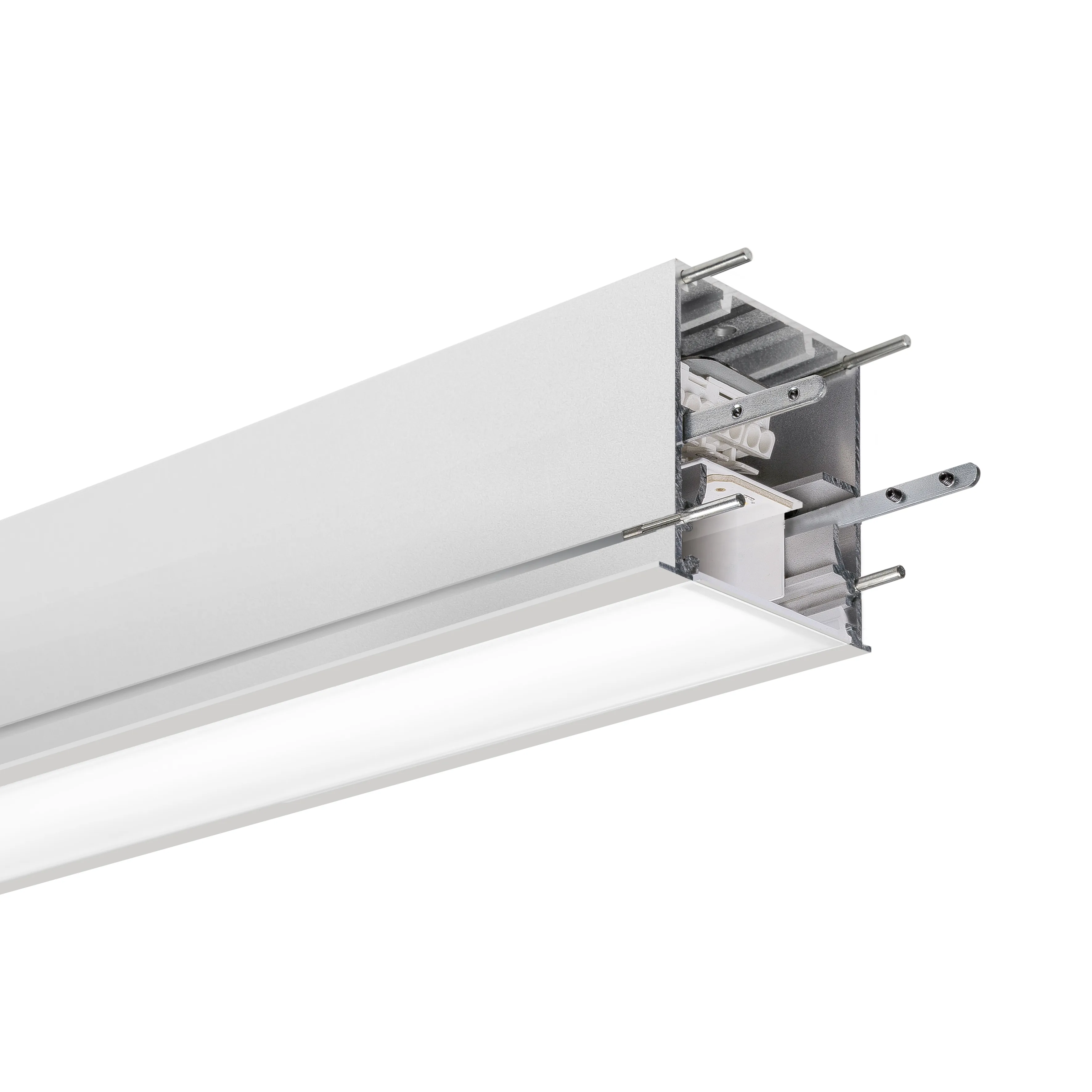

Body And Mounting Reference
Flow quick technical reference.
The Flow is a UK-made, recessed LED linear luminaire offering seamless, low-glare lighting for offices, schools, and retail.
Key specification points include life >72,000 hours (L80 / F10).
Project notes include Controls: DALI / SwitchDIM / DSI /ECO. Emergency: Maintained emergency /EMI. Accessories: Lens removal tool PT001, joining and through-wire kit JKIT and end cap pair SECAP. Supporting files include datasheet, Installation guide and BIM file.
Specification Choices
Flow specification options.
Output and CCT
FLOW.0011,725 lm | 21 W | 3000K | 850 mm
Output and CCT
FLOW.0021,825 lm | 21 W | 4000K | 850 mm
Output and CCT
FLOW.0032,575 lm | 30 W | 3000K | 1.2 m
Output and CCT
FLOW.0042,725 lm | 30 W | 4000K | 1.2 m
Output and CCT
FLOW.0053,150 lm | 35 W | 3000K | 1.5 m
Output and CCT
FLOW.0063,325 lm | 35 W | 4000K | 1.5 m
Options And Accessories
Flow options and accessories.
/LO/HO
Low output (/LO) and high output (/HO) package options.
/ECO
DALI / SwitchDIM / DSI control gear (/ECO).
/EMI
Maintained emergency option (/EMI).
/LG
Low-glare lens option (/LG).
PT001JKITSECAP
Lens removal tool PT001; joining and through-wire kit JKIT; end cap pair SECAP.
Specification reasons
Why specify Flow?
Optics
Low glare prismatic lens
Available to aid LG7 compliance
Performance
Efficacy up to 127 llm/W
Output reference for specification and comparison.
Mounting
Recessed extruded continuous linear profile luminaire
Helps confirm ceiling compatibility and installation conditions.
Controls
Available in 3 standard lengths
Supports the selected specification.
Selection point
Tridonic LED and driver system
Gives the product range a recognised LED and driver platform.
Optics
TP(a) opal lens for
Feature, general and visual areas
Product FAQs
Flow specification questions.
Specification notes for contractors, consultants and buyers checking low-glare linear LED luminaire options before ordering.
What makes Flow different from a standard low-glare linear LED luminaire?
The Flow is a UK-made, recessed LED linear luminaire offering seamless, low-glare lighting for offices, schools, and retail. Available in three lengths with tunable outputs, it supports LG7 compliance, DALI dimming (/+ECO), and emergency conversion (/EMI). Key specification details include life >72,000 hours (L80 / F10).
Which ceilings or mounting conditions should be checked for Flow?
Check the mounting method, ceiling construction, access space and installation guide before the luminaire is added to the final schedule.
Which outputs, wattages and colour temperatures are available?
Life >72,000 hours (L80 / F10): Long-life LED performance. Output, colour temperature, control gear and emergency options vary by configuration.
What controls and emergency options can be specified?
Controls: DALI / SwitchDIM / DSI /ECO. Emergency: Maintained emergency /EMI. Confirm compatibility with the project control strategy, emergency schedule and selected base model before quotation.
Can finishes, accessories or product variations be specified?
Accessories: Lens removal tool PT001, joining and through-wire kit JKIT and end cap pair SECAP. Include the required finish, accessory or special variation in the quote request so Lumenloop can price the correct version.
Are photometric, BIM or installation files available?
Available resources include the datasheet, Installation Guide and BIM file for specification reference and product selection.
What lead time should be allowed for Flow?
Lead time depends on quantity, finish, control gear, emergency conversion and current production capacity. Confirm the current project lead time with Lumenloop before placing an order.
Product Support
Check product options and datasheets.
Share the selected code, room type, control preference and any accessory requirements. Lumenloop can provide datasheets, option notes and supporting files for the selected fitting.
