HIGH OUTPUT linear LED mid-bay luminaire

HighRacklinear LED mid-bay luminaire

Reach the floor.
Control the aisle.

HighRack is a Gen 2 linear mid-bay luminaire for retail and industrial lighting, using Vossloh-Schwabe LED and driver technology. Six 4000K Ra80 models provide 5,675–21,225 lm at 31.5–128 W.

Output: 5,675–21,225 lm
Colour temperature: 4000K
Options: 18 listed controls and accessories

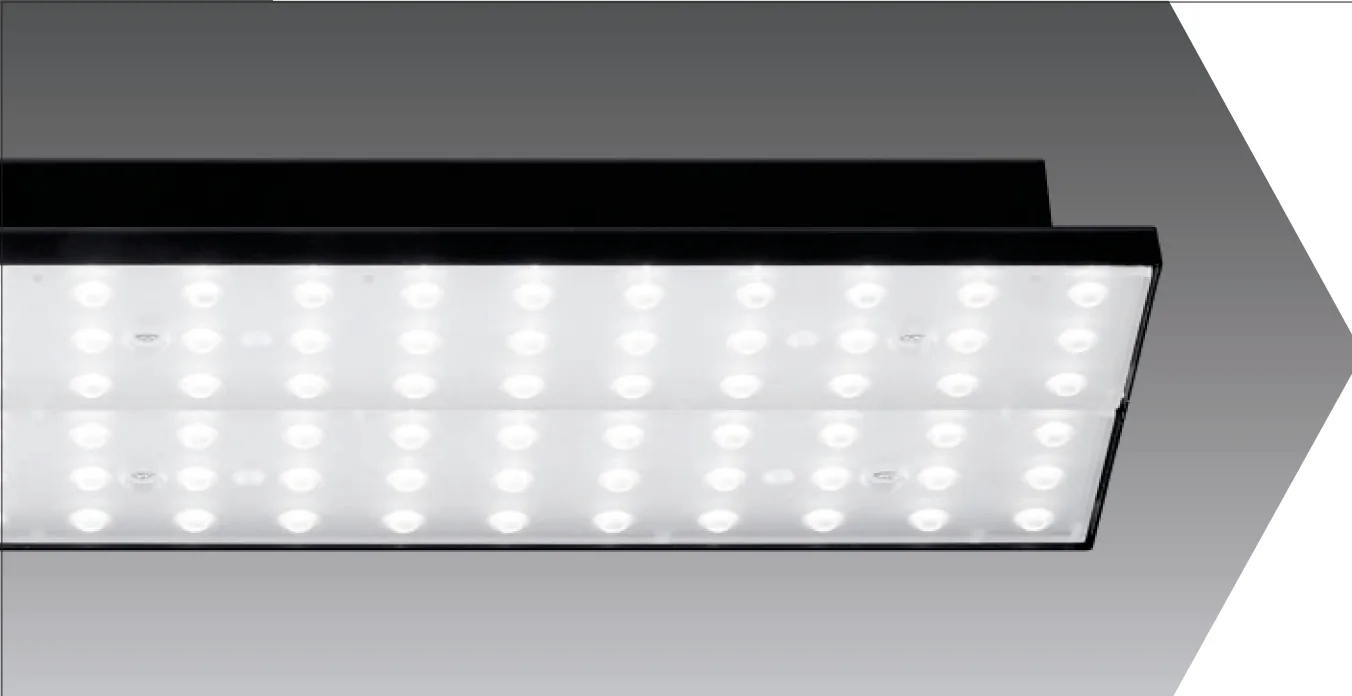

HighRack current linear LED mid-bay luminaire

01 / 02

Linear LED mid-bay5,675–21,225 lm80° matt lens as standard

Output: 5,675–21,225 lm
CCT: 4000K
Options: 18 listed

HIGHRACK.001575 mm · 5,675 lm HIGHRACK.002575 mm · 7,725 lm HIGHRACK.003575 mm · 10,625 lm HIGHRACK.0041150 mm · 11,325 lm HIGHRACK.0051150 mm · 15,450 lm HIGHRACK.0061150 mm · 21,225 lm

Output5,675–21,225 lm

Colour temperature4000K

ControlsSwitched / touch dimming or DALI / Casambi

ConfigurationProject options

Product configurator

Configure your HighRack

Choose the HighRack model first, then add only the control, optic, emergency, finish or mounting options required for the project.

High-power emergency and track mounting require a 1150 mm model. PIR dimming requires a confirmed DALI driver arrangement.

LuminaireProduct family

linear LED mid-bay luminaireGen 2 Vossloh-Schwabe LED and driver system; 4000K Ra80.

Output and lengthSelect the required output and length

Sensor program remoteChoose one sensor program remote

Suspension accessoryChoose one suspension accessory

FinishSelect the required finish

ControlsSelect the required controls

OpticsSelect the required optics

EmergencySelect the required emergency

SensorSelect the required sensor

MountingSelect the required mounting

QuantityNumber of fittings

fittingsAdded to the quotation email

Technical filesProduct and design information

Datasheet

At a glance

HighRack linear LED mid-bay luminaire quick specification.

Check the installation, output, colour temperature and control information for this linear LED mid-bay luminaire before reviewing the full model schedule.

Configure HighRack Request pricing

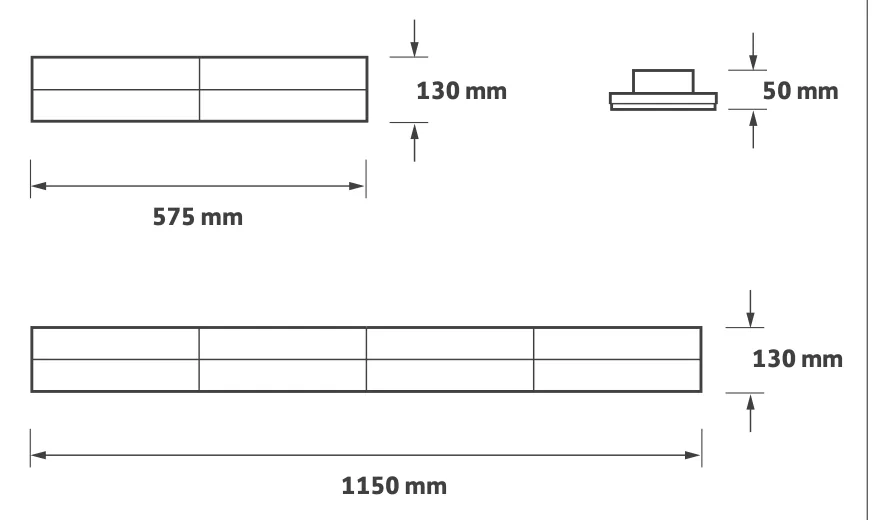

HighRack current dimensions: 575 or 1150 mm long, 130 mm wide and 50 mm high — **HighRack**Product geometry and mounting reference

Key specificationCatalogue page 56

01Mounting: Surface and suspended mounting; track mounting on 1150 mm models only
02Output: 5,675–21,225 lm
03System power: 31.5–128 W
04CCT: 4000K
05Controls: Switched / touch dimming or DALI / Casambi
06Emergency: Emergency with integral indicator, DALI emergency

Product files

Download HighRack technical files.

Available files for this exact product are listed below.

DatasheetPDF download

Photometric information

Current photometric information needs confirmation. Contact Lumenloop with the project requirement.

Technical description

HighRack specification.

HighRack is a Gen 2 linear mid-bay luminaire for retail and industrial lighting, using Vossloh-Schwabe LED and driver technology. Six 4000K Ra80 models provide 5,675–21,225 lm at 31.5–128 W.

High-power emergency and track mounting are available on 1150 mm models only.

PIR dimming requires DALI gear; confirm whether the driver upgrade is included in the complete sensor arrangement.

Standard output figures apply to the standard 80° optic; confirm performance for other optics.

3000K and 5000K are custom enquiries; standard model rows are 4000K.

Product typelinear LED mid-bay luminaire

Model codesHIGHRACK.001, HIGHRACK.002, HIGHRACK.003, HIGHRACK.004, HIGHRACK.005, HIGHRACK.006

Output5,675–21,225 lm

System power31.5–128 W

Colour temperature4000K

FinishMatt black RAL9005; matt white option

ControlsSwitched / touch dimming or DALI / Casambi

Emergency3-hour integral indicator; DALI-2 alternatives. High-power versions on 1150 mm models only.

Models, options and accessories

HighRack model codes and specification options.

Choose the HighRack base model, then review the available controls, emergency arrangements, optics and accessories.

Model codes6 listed configurations

575 mm · 5,675 lmHIGHRACK.001

5,675 lm / 31.5 W / 4000K / 575 mm

575 mm · 7,725 lmHIGHRACK.002

7,725 lm / 44.5 W / 4000K / 575 mm

575 mm · 10,625 lmHIGHRACK.003

10,625 lm / 65 W / 4000K / 575 mm

1150 mm · 11,325 lmHIGHRACK.004

11,325 lm / 61.5 W / 4000K / 1150 mm

1150 mm · 15,450 lmHIGHRACK.005

15,450 lm / 88 W / 4000K / 1150 mm

1150 mm · 21,225 lmHIGHRACK.006

21,225 lm / 128 W / 4000K / 1150 mm

Options and accessories

Configure the available HighRack options.

Review the available controls, emergency arrangements, sensors, mounting accessories and custom configurations for the selected luminaire.

Additional HighRack options and accessoriesProduct images and specification choices

Finish/WH

matt white RAL 9016 body

Controls/T+DALI

touch dimming OR DALI control gear

Controls/BTC

Casambi wireless network including dimming

Optics/30

30-degree narrow matt lens

Optics/60

60-degree medium matt lens

Optics/110

110-degree extra-wide matt lens

Optics/RSL

retail double symmetrical lens

Optics/DAL

data-centre double asymmetrical lens

Emergency/EMI

three-hour emergency, integral indicator, 2.3W emergency power

Emergency/EMDI

three-hour DALI-2 emergency, integral indicator, 2.3W emergency power

Emergency/EMIHP

three-hour high-power emergency, integral indicator, 9W emergency power; 1150 mm models only.

Emergency/EMDIHP

three-hour DALI-2 high-power emergency, integral indicator, 9W emergency power; 1150 mm models only.

Sensor/SO

PIR occupancy sensor on/off

Sensor/SD

PIR dimming requires a DALI driver. Confirm the complete driver/sensor arrangement with the quotation.

Mounting/TK

track mounting; 1150 mm models only.

Mounting/TKDALI

DALI track mounting; 1150 mm models only.

AccessoryHIGHRACK.ACC.01

Suspension kit with two 2 m wire suspensions.

Custom configurationFinishes and CCT

Other RAL colours and 3000K or 5000K LED options are available on request.

Custom configurationConnectors and lenses

Plug and socket arrangements and additional lenses are available on request.

Custom configurationExtended lengths

Extended luminaires are available on request.

Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.

Configure these options Request a quote

HighRack current Gen 2 LED mid-bay luminaire

Why HighRack

Why specify this linear LED mid-bay luminaire?

Gen 2 Vossloh-Schwabe LED and driver system; six 4000K Ra80 models.

HighRack linear LED mid-bay luminaire. Output: 5,675–21,225 lm; system power: 31.5–128 W. Colour temperature: 4000K.

High output with the optic and control strategy kept explicit

Base model, control, emergency and accessory decisions remain visibly separate in the configurator.

This keeps the fitting code readable while retaining the breadth of the current product range.

High-output range

Six model choices from 5,675 to 21,225 lumens.

Aisle optics

Standard 80° lens with 30°, 60°, 110°, retail and data-centre lens options.

PIR occupancy control

On/off sensing or PIR dimming with a confirmed DALI driver arrangement.

Flexible mounting

Surface and suspended mounting; track mounting on 1150 mm models only.

Output5,675–21,225 lm6 listed models

CCT4000KModel dependent

Options18Controls and accessories

Typical applicationsWhere HighRack is specified

High-rack warehouses

Controlled illumination between tall storage aisles.

Industrial halls

High-output general lighting for demanding interiors.

Distribution centres

Sensor and control options for long operating hours.

Retail back-of-house

Robust high-bay illumination for storage and service areas.

Compare HighRack with the wider warehouse and industrial lighting when reviewing output, optics, mounting, controls and emergency requirements.

Build your HighRack Specification support

Specification questions

HighRack details worth checking.

Direct answers for consultants, contractors and commercial lighting buyers.

Configure HighRack Ask about HighRack

Which HighRack model codes are available?

6 configurations are listed: HIGHRACK.001, HIGHRACK.002, HIGHRACK.003, HIGHRACK.004, HIGHRACK.005, HIGHRACK.006.

Which outputs and colour temperatures are available?

Models cover 5,675–21,225 lm and 31.5–128 W. See the model schedule for individual output, power and CCT.

Which control options can be specified?

Switched / touch dimming or DALI / Casambi. High-power emergency and track mounting are available on 1150 mm versions only.

Which emergency options are available?

Three-hour integral emergency or DALI-2 emergency is available at 2.3 W. The 9 W high-power options are available on 1150 mm models only.

Where can the dimensions be checked?

575 or 1150 × 130 × 50 mm.

How do I request a quotation?

Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554 .

Is the HighRack datasheet available?

Yes. The HighRack datasheet is linked in the hero, configurator and technical section.

What is the standard lead time for HighRack?

Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
