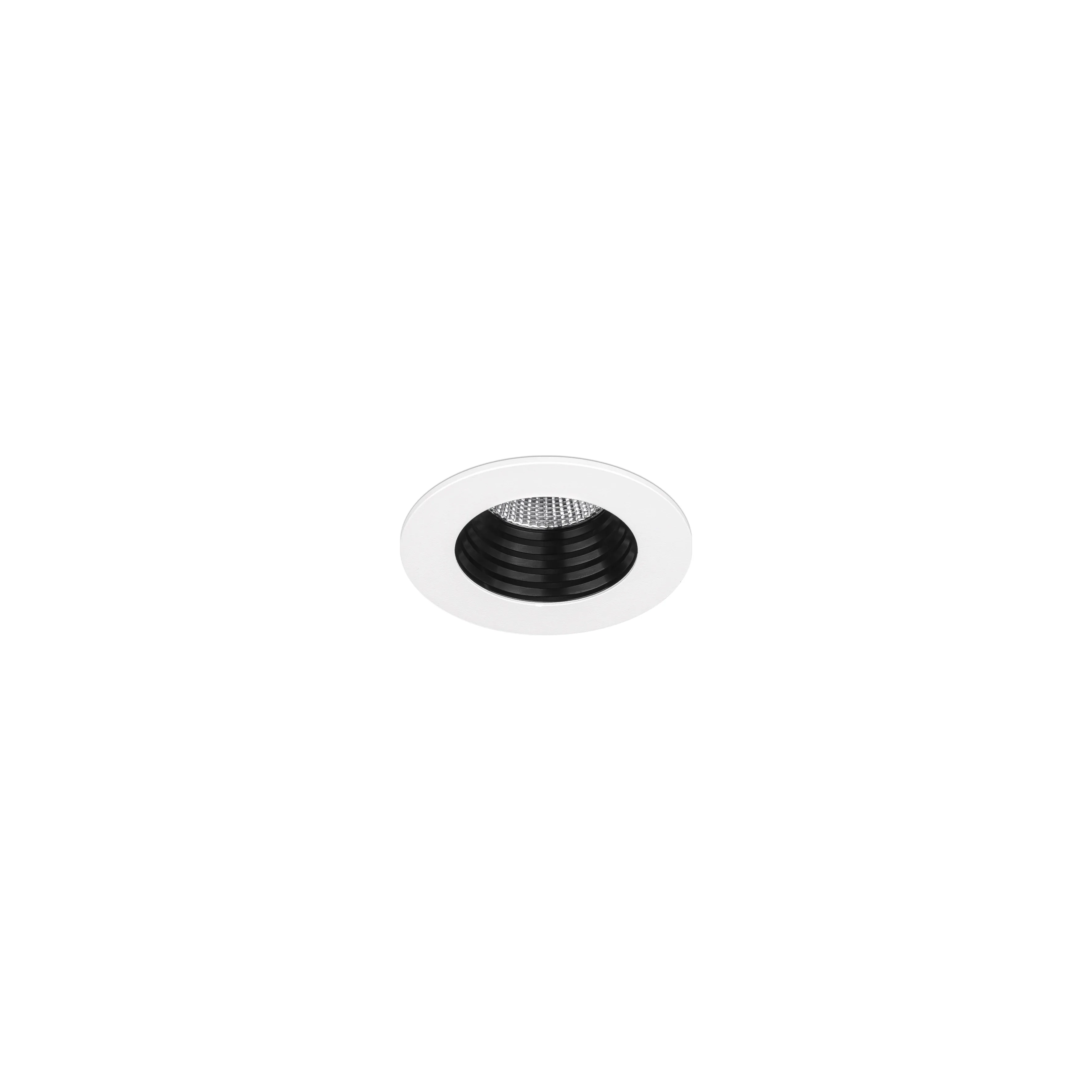

The Vortex 31 Series is a compact LED downlight with an 80mm bezel and 70 mm cut-out, designed for architectural applications where low-glare, high-quality lighting is essential.

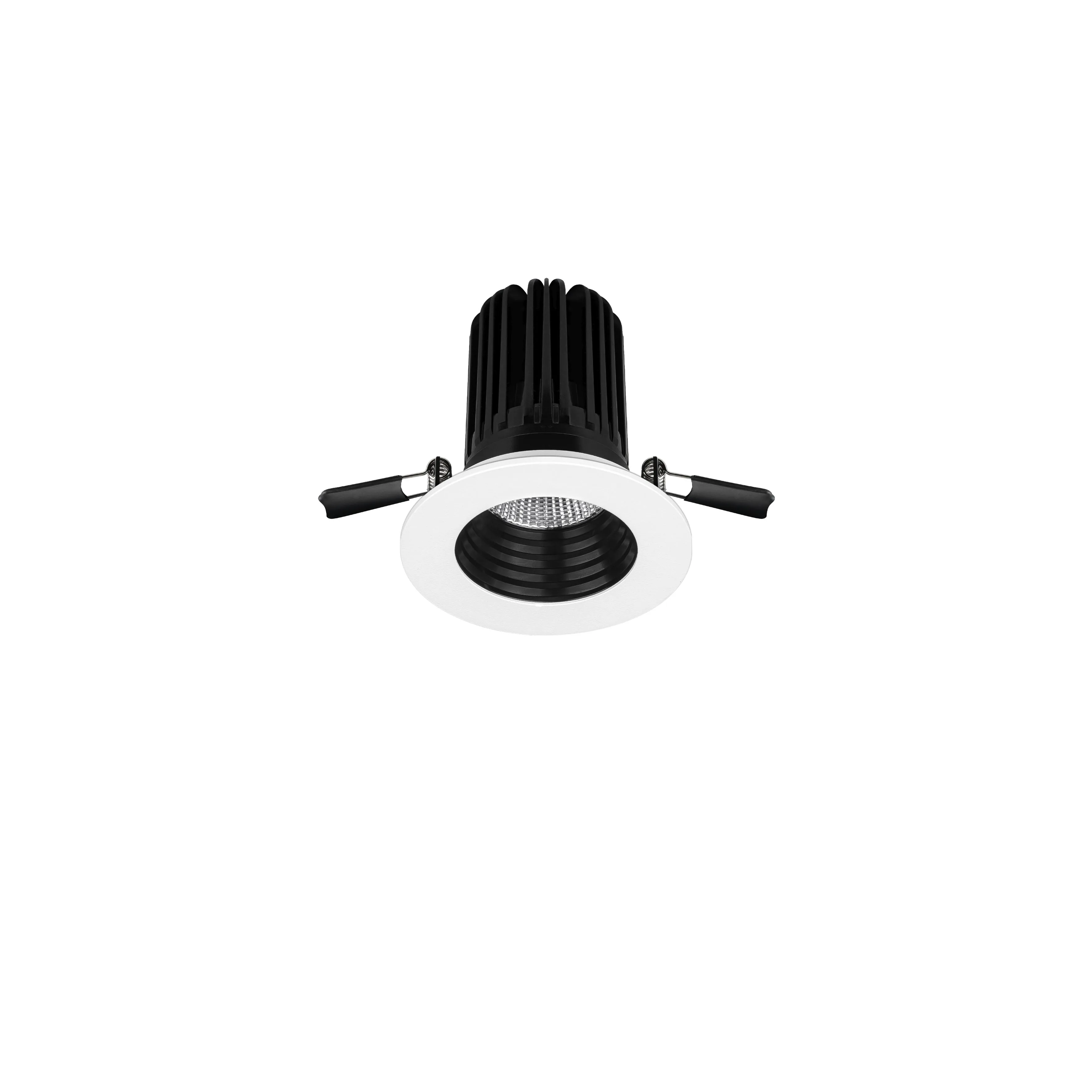

It features a 36° faceted reflector, a die-cast bezel, and an injection-molded low-glare baffle. This luminaire has a lifespan of over 50,000 hours and includes options for dimming, DALI, emergency modes, and Bluetooth Casambi wireless control. Available in 3000 K or 4000 K colour temperatures, it is flicker-free in compliance with IEE PAR1789.
The Vortex 31 Series is an integral LED downlight engineered for seamless ceiling integration in commercial and retrofit applications.
Combining a low-glare 36° faceted reflector with IEEE PART 789 2015 flicker-free compliance, this professional-grade luminaire delivers reliable illumination for offices, retail spaces, and hospitality venues. Backed by a 5-year warranty and >50,000-hour lifespan, it offers a cost-effective LED downlight replacement solution.
Recessed commercial downlight design: Minimal 70mm cut-out simplifies retrofitting into existing ceilings.
Emergency lighting conversion (/EM/EMD): 3-hour backup ensures safety compliance during power failures.
Flicker-free IEEE compliance: Eliminates eye strain in prolonged-use environments like offices.
36° precision reflector: Reduces glare while enhancing task lighting accuracy.
Dimmable commercial lighting: Supports phase-cut (/MDIM), DALI, DSI, and wireless Casambi (/BTC).
Die-cast aluminium bezel: Robust construction with durable injection-moulded baffle.
50,000-hour L70 lifespan: Slashes maintenance costs in high-ceiling installations.
Energy-saving performance: 8W consumption optimises operational efficiency.
Self-test emergency option (/EMD): Automated diagnostics for regulatory peace of mind.
| Specification | Details |
|---|---|
| Model Reference | 31.001, 31.002 |
| Lumen Output | 750 lm (31.001), 775 lm (31.002) |
| Colour Temperature | 3000K (830), 4000K (840) |
| Power Consumption | 8W |
| Bezel Diameter | 80 mm |
| Cut-out Requirement | 70 mm |
| Overall Diameter | 95 mm |
| Lifespan Rating | >50,000 hours (L70/F50) |
| Compliance | IEEE PART 789 2015 |
| Version | Code Suffix | Description |
|---|---|---|
| Phase-cut dimming | /MDIM | Mains-dimmable for trailing/leading edge |
| Wired digital control | /ECO | SwitchDIM, DALI, or DSI protocol support |
| Bluetooth wireless system | /BTC | Casambi-enabled dimming & scene control |
| Emergency backup | /EM | 3-hour non-maintained safety lighting |
| Self-test emergency | /EMD | Automated testing with DALI integration |
| Model Code | Finish | Option Suffix | Configuration Notes |
|---|---|---|---|
| 31.001 | Standard White | – | 750 lm, 3000K, no options |
| 31.001 | Standard White | /MDIM | Adds phase-cut dimming |
| 31.001 | Standard White | /EM | Adds 3-hour emergency conversion |
| 31.002 | Standard White | /BTC | Adds Casambi wireless control |
| 31.002 | Standard White | /EMD | Adds self-test emergency with DALI |
| Custom | Any RAL colour | Specify | Bespoke architectural colour matching |
Office corridors and open-plan workspaces
Retail store ambient lighting and displays
Hotel lobby and hospitality venue downlighting
Healthcare facility emergency lighting systems
Educational institution LED downlight retrofits
Commercial building entrances and lift lobbies
Restaurant mood lighting and dining areas
Museum exhibit illumination
Rapid LED downlight replacement: 70mm cut-out fits standard retrofit openings.
Commercial-grade durability: Die-cast construction withstands high-traffic environments.
Energy cost reduction: 8W operation lowers electricity expenditure by 60% vs halogens.
Future-proof controls: DALI and Casambi compatibility for smart building integration.
Safety compliance: Emergency options meet BS 5266 standards for public spaces.
