Output550–775 lm

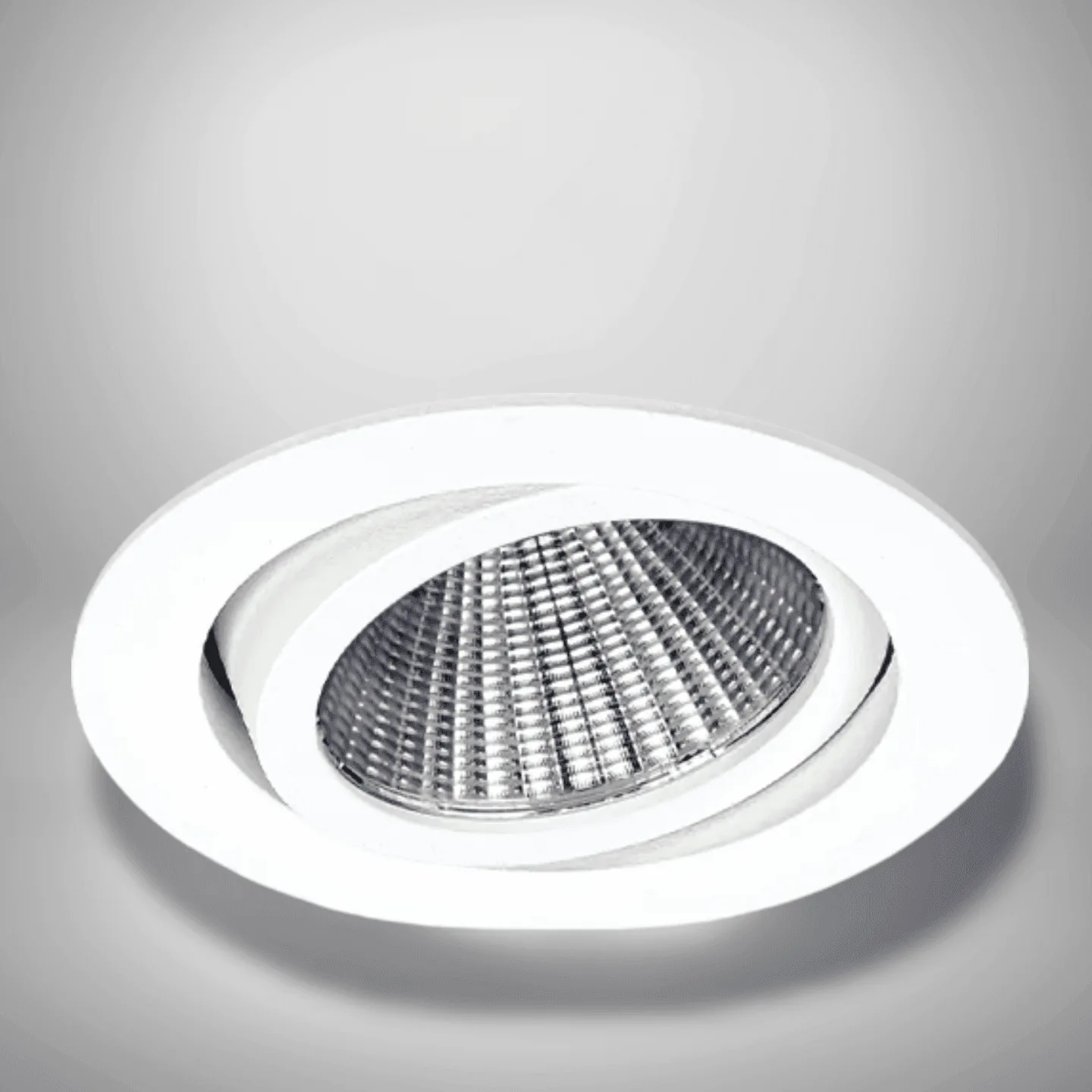

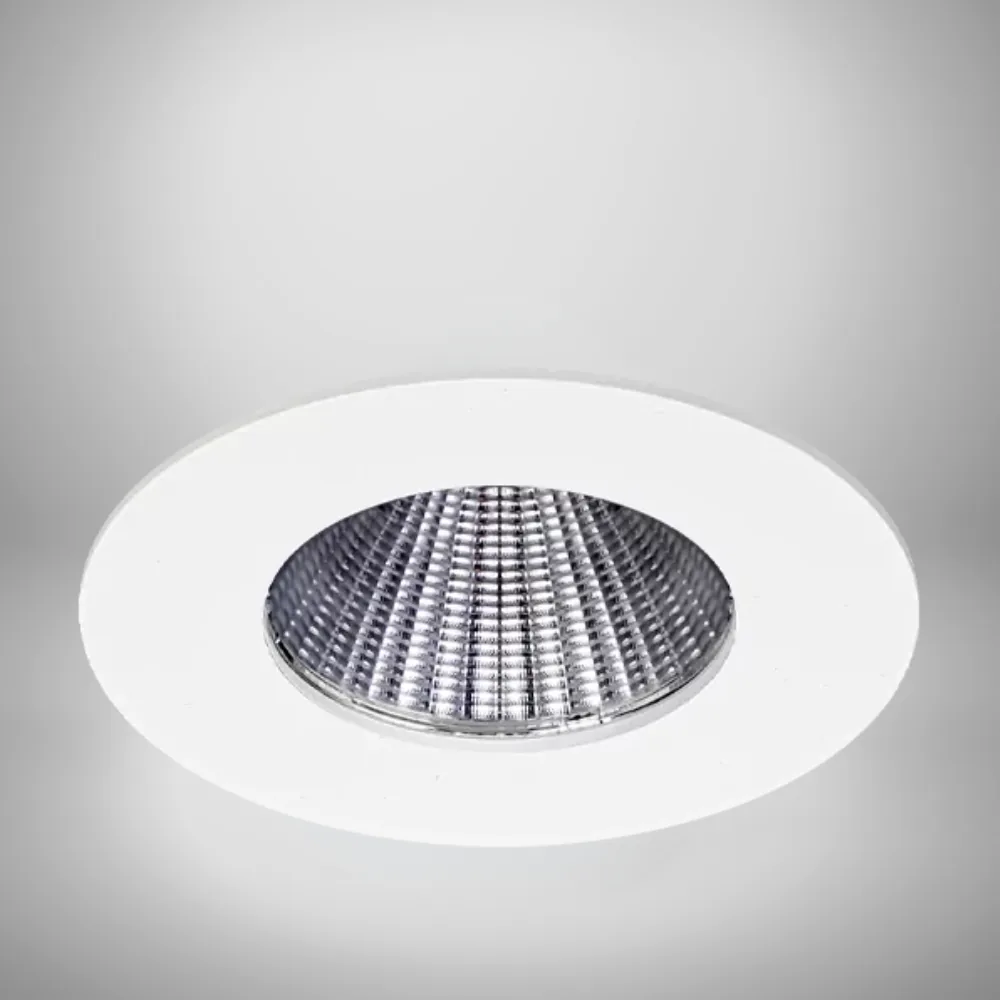

DOWNLIGHTS Tridonic reflector architectural downlight
GlowTridonic reflector architectural downlight
Glow.
Tridonic reflector architectural downlight.
Glow is a Tridonic reflector architectural downlight for controlled downlight performance.
- Output
- 550–775 lm
- Colour temperature
- 2700K / 3000K / 4000K model dependent
- Options
- 10 listed controls and accessories
01 / 02
OutputSee model schedule
Colour temperature2700K / 3000K / 4000K
ControlsMains dimming, DALI, SwitchDIM, DSI, Casambi
Ceiling cut-out67 mm
Product configurator
Configure your Glow
Choose the Glow model first, then add only the control, optic, emergency, finish or mounting options required for the project.
LuminaireProduct family
Tridonic reflector architectural downlightThe Glow architectural LED downlight uses a Tridonic SLE LED engine and multi-facet reflector for controlled downlight performance
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Glow Tridonic reflector architectural downlight quick specification.
Check the installation, output, colour temperature and control information for this Tridonic reflector architectural downlight before reviewing the full model schedule.
Technical referenceNot to scale
Key specificationCatalogue page 30
- 01Ceiling cut-out
- 67 mm
- 02Bezel
- 76 mm
- 03Output
- 550–775 lm
- 04System power
- 6–9.5 W
- 05CCT
- 2700K / 3000K / 4000K
- 06Controls
- Mains dimming, SwitchDIM, DSI, DALI, Casambi
Product files
Download Glow technical files.
Available files for this exact product are listed below.
Rotational distributionIntensity · cd/klm
Technical description
Architectural LED downlight specification for Glow.
Glow Tridonic reflector architectural downlight. Output: 550–775 lm; system power: 6–9.5 W. Colour temperature: 2700K / 3000K / 4000K.
Glow construction and mounting
The 76 mm bezel and 67 mm cut-out suit the compact recessed format. Refer to the dimensional drawing and installation guide for the installation details.
Output, optics and colour temperature
Published output and system power are listed by model in the specification schedule.
Controls and emergency options
Phase-cut mains dimming, SwitchDIM, DSI, DALI and Casambi are separate control arrangements. Emergency options use remote indicators, with DALI / self-test and wireless-mesh variants.
System power6–9.5 W
Colour temperature2700K / 3000K / 4000K
ControlsMains dimming, DALI, SwitchDIM, DSI, Casambi
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typeArchitectural recessed LED downlight
Model codesGLOW.001 to GLOW.006
Cut-out / bezel67 mm / 76 mm
Output550–775 lm
System power6–9.5 W
Colour temperature2700K / 3000K / 4000K
ControlsPhase-cut mains dimming, SwitchDIM, DSI, DALI, Casambi
EmergencyRemote-indicator, DALI / self-test and wireless-mesh variants
Models, options and accessories
Glow model codes and specification options.
Choose the Glow base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes6 listed configurations
6 models are shown with output, CCT and power information where available.
550 lm / 2700K / 7.5 W
575 lm / 3000K / 6 W
600 lm / 4000K / 6 W
725 lm / 2700K / 9.5 W
750 lm / 3000K / 7.5 W
775 lm / 4000K / 7.5 W
Additional Glow options and accessoriesProduct images and specification choices
Controls/MDIM
Phase-cut mains dimming
Controls/ECO
SwitchDIM / DALI / DSI
Controls/BTC
Casambi wireless network (inc dimming)
Emergency/EM
Emergency remote indicator
Emergency/EMD
DALI / self-test EM remote indicator
Body/T
Tilt
Finish/BL
Black RAL 9005
Body & Finish/BLT
Tilt Black RAL 9005
Optics/NB
24° lens
Performance/9
High colour rendering LED module
Custom configurationConnector choice
Choice of connectors.
Custom configurationRAL bezel colour
Any RAL colour bezel.
Custom configurationCable
LSOH / LSF cable.
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Glow
Why specify this Tridonic reflector architectural downlight?
The Glow architectural LED downlight uses a Tridonic SLE LED engine and multi-facet reflector for controlled downlight performance
Glow Tridonic reflector architectural downlight. Output: 550–775 lm; system power: 6–9.5 W. Colour temperature: 2700K / 3000K / 4000K.
Glow options kept clear for project specification
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
adjustable
Glow is available for projects requiring adjustable lighting.
architectural
Glow is available for projects requiring architectural lighting.
commercial
Glow is available for projects requiring commercial lighting.
Downlights
Glow is available for projects requiring downlights lighting.
Output550–775 lm6 listed models
CCT2700K / 3000K / 4000KModel dependent
Options10Controls and accessories
Typical applicationsWhere Glow is specified
Downlights
Use Glow where downlights lighting is required.
Commercial interiors
The Glow architectural LED downlight uses a Tridonic SLE LED engine and multi-facet reflector for controlled downlight performance
Commercial interiors
The Glow architectural LED downlight uses a Tridonic SLE LED engine and multi-facet reflector for controlled downlight performance
Commercial interiors
The Glow architectural LED downlight uses a Tridonic SLE LED engine and multi-facet reflector for controlled downlight performance
Compare Glow with the wider downlights when reviewing output, optics, mounting, controls and emergency requirements.
low-glare LED downlight
Beam
Low-glare LED downlight. Review the model schedule and compatible options.
Compare product →
low-glare surface mounted downlight
Summit
Surface-mounted downlight. Review the model schedule and compatible options.
Compare product →
TM66 assessed LED downlight
Vero
TM66 assessed LED downlight. Review the model schedule and compatible options.
Compare product →Specification questions
Glow details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
6 configurations are listed: GLOW.001, GLOW.002, GLOW.003, GLOW.004, GLOW.005, GLOW.006.
Glow Tridonic reflector architectural downlight. Output: 550–775 lm; system power: 6–9.5 W. Colour temperature: 2700K / 3000K / 4000K.
Control options include Mains dimming, DALI, SwitchDIM, DSI, Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options use remote indicators, with DALI / self-test and wireless-mesh variants. Select the emergency requirement separately from the base model and normal control method.
The Glow requires a 67 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Glow datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
Product quotation
Request a quotation for Glow.
Send the selected code, quantity and any mounting, control, emergency or finish requirements. Your configurator choices are carried into the form automatically.
Configuration retainedThe product code and quantity update as you configure the fitting.
Useful project detailAdd the application, required date and any option requirements you already know.
Direct contactPrefer to speak? Call 02045 721 554 or email Lumenloop.
Average lead time10 working days for standard product configurations. Custom accessories, custom finishes and other custom variations are excluded; contact us to confirm timing.
