Ultra-shallow recessed format
Low-profile downlight body for discreet ceiling integration.
Void ultra-shallow low-glare LED downlight
Void is an ultra-shallow low-glare LED downlight with 1,150 lm to 5,300 lm outputs, 3000K and 4000K base models, a multi-faceted aluminium reflector and control, emergency and ingress options for commercial recessed lighting schedules.
Multi-faceted reflector
Low-glare aluminium reflector with satin etched reflector option.
Efficacy up to 133 llm/tcW
Recorded delivered performance across the Void base models.
Controls, emergency and IP options
/ECO, /BTC, /EM family and IP54 or IP65 selections for project requirements.
Model range
VOID.001 /.002 /.003 /.004 /.005 /.006 /.007 /.008 /.009 /.010
Optics
Multi-faceted reflector with satin etched reflector option
Outputs
1,150 lm to 5,300 lm in 3000K and 4000K
Specification resources
Datasheet and Photometric Data
Luminaire type
Ultra-shallow recessed low-glare LED downlight
Life
60,000 hours (L90)
Controls
DALI / SwitchDIM / DSI /ECO or Casambi wireless /BTC
Ingress and mounting
IP54 /54, IP65 /65 and top access driver /TOP
Download Datasheet
Technical datasheet for specification review.
Photometric Data
Photometric data pack for lighting calculations.
Project selection
Select the base model and required control, emergency, ingress, performance or mounting suffixes below.
Configure For Enquiry
Configure Void for enquiry.
Select the output, optic, finish, control gear and accessories needed for the project, then send the configuration to Lumenloop for specification support.
Configured Specification
Selected Void specification.
Selection reference
VOID.001
Selection reference
VOID.001
Technical Description
Low-glare LED downlight specification for Void.
Void is an ultra-shallow low-glare LED downlight with a brilliant white RAL 9016 die-cast bezel, a multi-faceted aluminium reflector and base models from 1,150 lm to 5,300 lm in 3000K and 4000K. The range is recorded with efficacy up to 133 llm/tcW, MacAdam colour tolerance below 3 SDCM and a life rating of 60,000 hours (L90).
Specifier options recorded on the current page include DALI / SwitchDIM / DSI (/ECO), Casambi wireless (/BTC), emergency variants /EM, /EMP, /EMI and /EMPI, IP54 or IP65 versions, high CRI /R9 and top access driver /TOP. Supporting resources currently listed are the datasheet and photometric data pack.
Specification-led low-glare LED downlight features.
- Low-glare reflector: Multi-faceted aluminium reflector with satin etched reflector option.
- Delivered performance: Recorded efficacy up to 133 llm/tcW across the Void range.
- Colour consistency: MacAdam colour tolerance below 3 SDCM.
- Controls: DALI / SwitchDIM / DSI /ECO and Casambi wireless /BTC.
- Emergency options: /EM, /EMP, /EMI and /EMPI.
- Ingress and mounting: IP54 /54, IP65 /65 and top access driver /TOP.
- Performance option: High CRI /R9 for colour-critical spaces.
- Warranty: 5 year warranty recorded on the current page.
Body And Trim Detail
Void body and mounting reference.

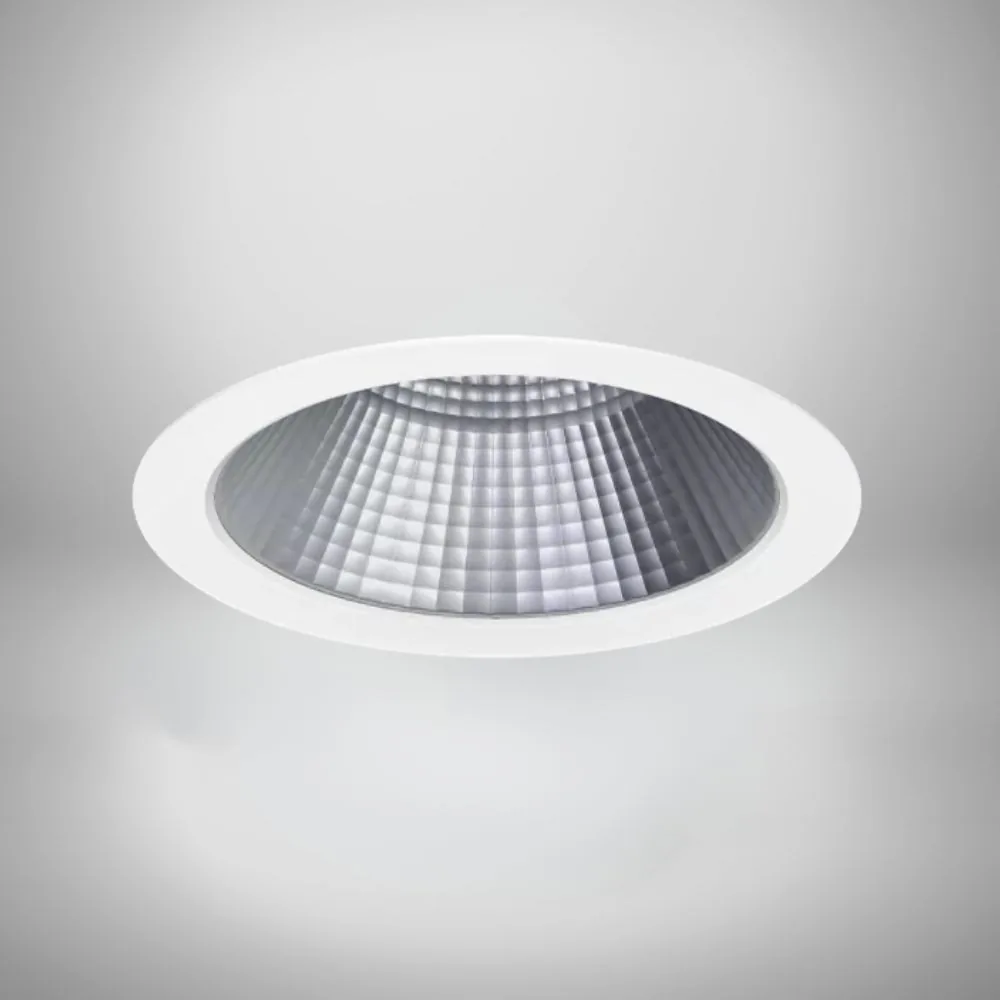

Void uses an ultra-shallow recessed downlight body with a white die-cast bezel, reflector assembly and accessory components arranged for discreet commercial ceiling integration.
The exploded source view helps confirm the reflector, bezel and mounting arrangement before finalising control, ingress and emergency suffixes against the schedule.
Top access driver /TOP, IP54 /54, IP65 /65 and Custom configuration bezel variations should be checked against the required ceiling condition before issue.
Specification Choices
Base models for Void.
Output and CCT
VOID.0011,150 lm | 9.5 W | 3000K
Output and CCT
VOID.0021,200 lm | 9.5 W | 4000K
Output and CCT
VOID.0031,825 lm | 14.5 W | 3000K
Output and CCT
VOID.0041,900 lm | 14.5 W | 4000K
Output and CCT
VOID.0053,100 lm | 24.5 W | 3000K
Output and CCT
VOID.0063,250 lm | 24.5 W | 4000K
Output and CCT
VOID.0074,500 lm | 37.0 W | 3000K
Output and CCT
VOID.0084,700 lm | 37.0 W | 4000K
Output and CCT
VOID.0095,100 lm | 44.5 W | 3000K
Output and CCT
VOID.0105,300 lm | 44.5 W | 4000K
Options And Accessories
Void controls, emergency and accessory options.
Control, ingress, mounting and accessory references.
/ECO/BTC
DALI / SwitchDIM / DSI (/ECO) or Casambi wireless (/BTC).
/EM/EMP/EMI/EMPI
3-hour emergency (/EM), emergency pack (/EMP), maintained emergency (/EMI) and emergency pack with indicator (/EMPI).
/54/65
IP54 option (/54) or IP65 option (/65) for the required environment.
/R9
High CRI (/R9) for colour-critical specification work.
/TOP
Top access driver (/TOP) where the mounting arrangement requires it.
BTWS001BTWS002
Wireless Casambi single and twin wall switch accessories for compatible control layouts.
Custom configuration
Special bezel variation available.
Specification reasons
Why specify Void?
Optics
Multi-faceted reflector
Low-glare aluminium reflector with satin etched reflector option.
Format
Ultra-shallow recessed body
Compact ceiling integration for specification-led recessed downlight layouts.
Performance
Efficacy up to 133 llm/tcW
Recorded delivered performance across the Void base models.
Consistency
MacAdam <3 SDCM
Recorded colour consistency for repeated commercial ceiling runs.
Ingress
IP54 and IP65 options
Choose /54 or /65 to match the environmental requirement.
Controls
Controls and emergency options
/ECO, /BTC and the recorded emergency suffixes support project-specific control strategy.
Product FAQs
Void specification questions.
Source-backed notes for contractors, consultants and buyers reviewing recessed low-glare downlight selections.
What makes Void different from a standard low-glare LED downlight?
Void is an ultra-shallow low-glare LED downlight with a brilliant white RAL 9016 die-cast bezel, a multi-faceted aluminium reflector, MacAdam colour tolerance below 3 SDCM and a life rating of 60,000 hours (L90).
Which outputs, wattages and colour temperatures are available?
Recorded base models cover 1,150 lm to 5,300 lm, with wattages from 9.5 W to 44.5 W and 3000K or 4000K versions across the range.
What controls and emergency options can be specified?
Controls recorded on the page are DALI / SwitchDIM / DSI /ECO and Casambi wireless /BTC. Emergency options are /EM, /EMP, /EMI and /EMPI.
Can ingress protection and mounting options be specified?
Void includes IP54 /54, IP65 /65 and top access driver /TOP options for projects that need those installation conditions.
Are accessory and variation references available?
Source tiles on the page include Casambi wall switch accessories BTWS001 and BTWS002, IP65 accessory references and a bezel variation tile for Custom configuration requests.
Are photometric and datasheet files available?
The current Void page record includes a datasheet download and photometric data pack for specification review and lighting calculations.
Related commercial paths
Where this downlight sits in the commercial range.
Related pages cover the parent downlight range, emergency variants, controls and application context.
Commercial downlights
Parent category for low-glare, adjustable, IP-rated and emergency-ready downlight families.
Emergency downlightsEmergency downlight route where emergency conversion or self-test is part of the brief.
IP65 downlightsProtected downlight guidance for washrooms, bathrooms and hospitality areas.
Lighting controlsDALI, Casambi, mains dimming and switching routes for commercial luminaires.
Product Support
Confirm controls, emergency and accessory details.
Share the selected code, control strategy, emergency requirement and any accessory or variation notes. Lumenloop can review the recorded Void options and support files for that selection.
