800 lm / 2700K / 9.5 W
MINIATURE mini LED downlight
Axismini LED downlight
Reduce the aperture.
Keep the adjustment.
Published output and system power are listed by model in the specification schedule.
- Output
- 800–1,425 lm
- Colour temperature
- 2700K / 3000K / 4000K model dependent
- Options
- 10 listed controls and accessories
01 / 07
OutputSee model schedule
Colour temperature2700K / 3000K / 4000K
ControlsMains dimming, DALI, SwitchDIM, DSI, Casambi
Ceiling cut-out67 mm
Product configurator
Configure your Axis
Choose the Axis model first, then add only the control, optic, emergency, finish or mounting options required for the project.
Models .001–.003 use a mains-dimmable driver on board; control and emergency upgrades are unavailable.
LuminaireProduct family
mini LED downlightAxis mini LED downlight. Review the current model schedule and compatible options.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Axis mini LED downlight quick specification.
Check the installation, output, colour temperature and control information for this mini LED downlight before reviewing the full model schedule.

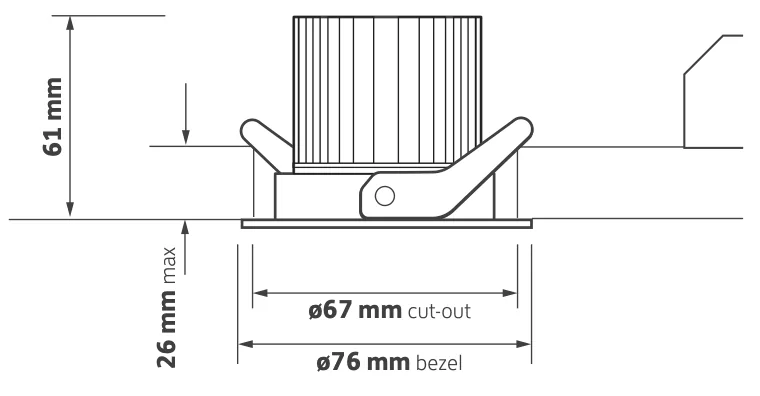

Technical referenceNot to scale
Key specificationCatalogue page 14
- 01Ceiling cut-out
- 67 mm
- 02Bezel
- 76 mm
- 03Output
- 800–1,425 lm
- 04System power
- 9.5–14 W
- 05CCT
- 2700K / 3000K / 4000K
- 06Controls
- Mains dimming, SwitchDIM, DSI, DALI, Casambi
Product files
Download Axis technical files.
Available files for this exact product are listed below.
Rotational distributionIntensity · cd/klm
Technical description
Mini LED downlight specification for Axis.
Published output and system power are listed by model in the specification schedule.
Optics, controls and emergency
The Axis photometric archive provides standard and narrow-beam /NB distributions. Controls and emergency options are shown separately in the product configurator.
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Model codesAXIS.001 to AXIS.009
Output800–1,425 lm
System power9.5–14 W
Colour temperature2700K / 3000K / 4000K
Models, options and accessories
Axis model codes and specification options.
Choose the Axis base model, then review the available controls, emergency arrangements, optics and accessories.
825 lm / 3000K / 9.5 W
875 lm / 4000K / 9.5 W
975 lm / 2700K / 10 W
1,075 lm / 3000K / 10 W
1,125 lm / 4000K / 10 W
1,275 lm / 2700K / 14 W
1,400 lm / 3000K / 14 W
1,425 lm / 4000K / 14 W
Additional Axis options and accessoriesProduct images and specification choices
Controls/MDIM
Phase-cut mains dimming
Controls/ECO
Specification dimming and control gear
Controls/BTC
Casambi Bluetooth wireless control
Emergency/EM
3-hour emergency conversion
Emergency/EMD
Self-test or DALI emergency conversion

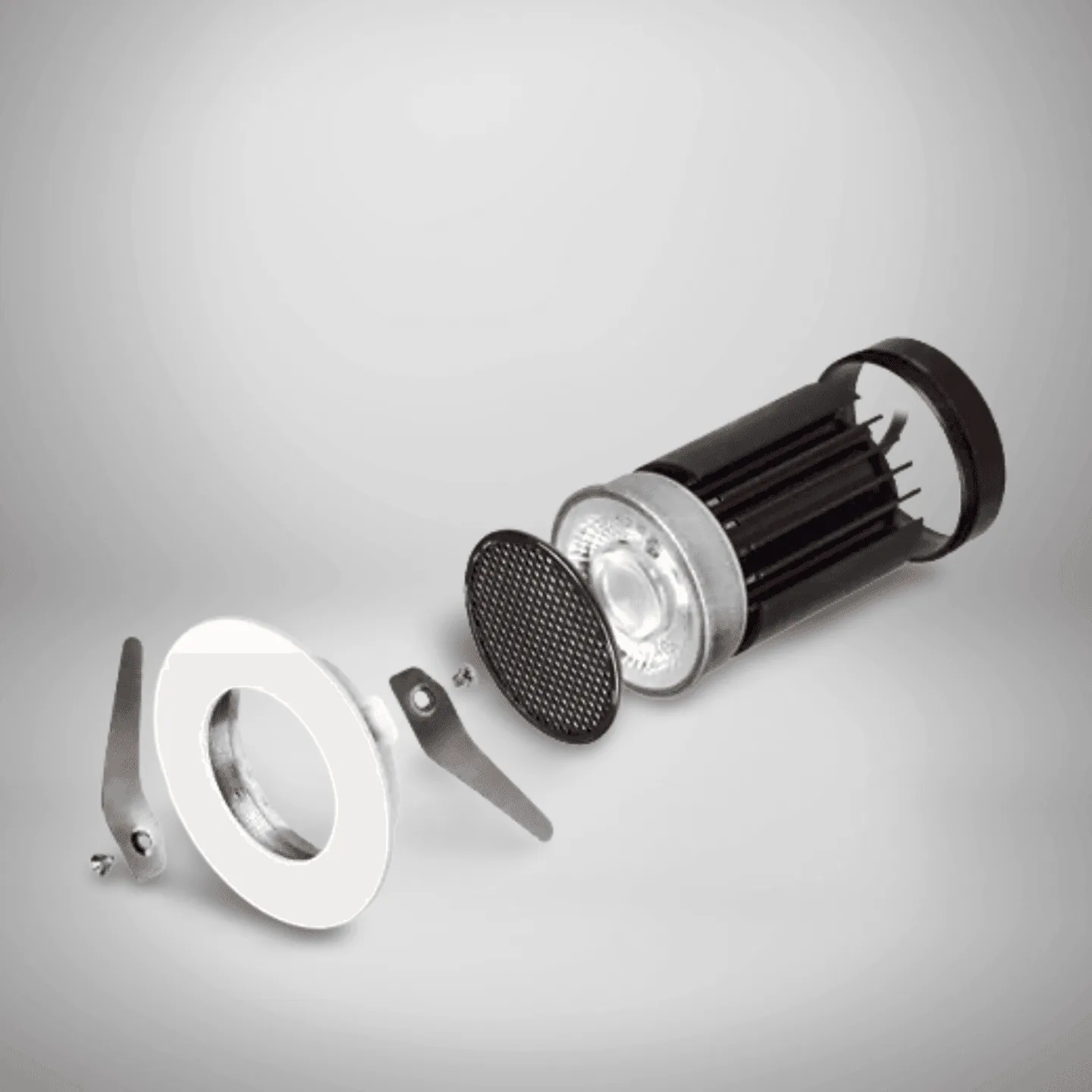

Body & mounting/T
Tilt body option
Body & mounting/BL
Black baffle
Body & mounting/BLT
Black tilt baffle
Beam & optics/SNB
Super narrow beam optic
Beam & optics/NB
Narrow beam optic
Accessories/HC
Honeycomb louvre
Product variationContact sales
Choice of connectors
Product variationContact sales
Any RAL colour bezel
Product variationContact sales
LSOH / LSF cable
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Axis
Why specify this mini LED downlight?
Published output and system power are listed by model in the specification schedule.
Axis mini LED downlight. Output: 800–1,425 lm; system power: 9.5–14 W. Colour temperature: 2700K / 3000K / 4000K.
Small-format downlighting without giving up control or emergency choices
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
Fixed or tilt bezel
Choose the ceiling detail and adjustment required for the space.
36 degree lens
A controlled standard distribution for compact architectural lighting.
9 model choices
Published output and system power are listed by model in the specification schedule.
Controls and emergency
Mains dimming, DALI, Casambi and 2 emergency arrangements are listed.
Output800–1,425 lm9 listed models
CCT2700K / 3000K / 4000KModel dependent
Options10Controls and accessories
Typical applicationsWhere Axis is specified
Hospitality
Compact directional lighting for bedrooms, reception and lounge areas.
Retail
Adjustable accent lighting for displays and fitting rooms.
Commercial interiors
A restrained ceiling aperture for circulation and feature areas.
Refurbishment
Finish, control and emergency choices within one miniature family.
Compare Axis with the wider commercial downlights when reviewing output, optics, mounting, controls and emergency requirements.
low-glare LED downlight
Beam
Low-glare LED downlight. Review the model schedule and compatible options.
Compare product →
pinhole LED downlight
Prism
Miniature architectural LED downlight. Review the model schedule and compatible options.
Compare product →
IP54 LED downlight
Aero
IP54 LED downlight. Review the model schedule and compatible options.
Compare product →Specification questions
Axis details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
9 configurations are listed: AXIS.001, AXIS.002, AXIS.003, AXIS.004, AXIS.005, AXIS.006, AXIS.007, AXIS.008, AXIS.009.
Axis mini LED downlight. Output: 800–1,425 lm; system power: 9.5–14 W. Colour temperature: 2700K / 3000K / 4000K.
Control options include Mains dimming, DALI, SwitchDIM, DSI, Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options include Three-hour emergency, Self-test emergency, DALI emergency. Select the emergency requirement separately from the base model and normal control method.
The Axis requires a 67 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Axis datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
