Output550–775 lm

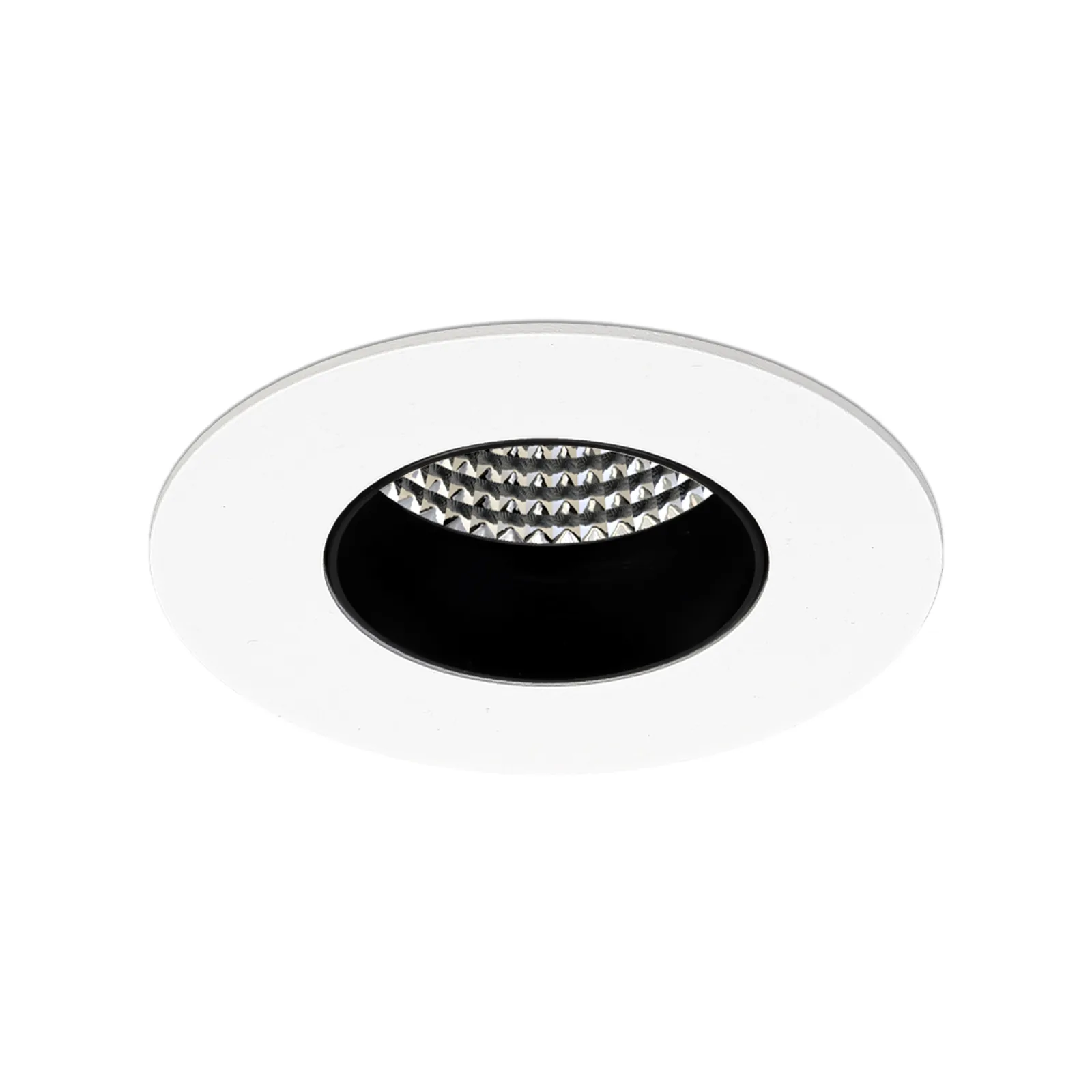

DOWNLIGHTS UGR16 retrofit LED downlight
VividUGR16 retrofit LED downlight
Vivid.
UGR16 retrofit LED downlight.
Published output and system power are listed by model in the specification schedule.
- Output
- 550–775 lm
- Colour temperature
- 2700K / 3000K / 4000K model dependent
- Options
- 14 listed controls and accessories
01 / 07
OutputSee model schedule
Colour temperature2700K / 3000K / 4000K
ControlsDALI, SwitchDIM, DSI, Casambi
Ceiling cut-out67 mm
At a glance
Vivid UGR16 retrofit LED downlight quick specification.
Check the installation, output, colour temperature and control information for this UGR16 retrofit LED downlight before reviewing the full model schedule.
Technical referenceNot to scale
Key specificationSpecification summary
- 01Ceiling cut-out
- 67 mm
- 02Bezel
- 76 mm
- 03Output
- 550–775 lm
- 04System power
- 6–9.5 W
- 05CCT
- 2700K / 3000K / 4000K
- 06Controls
- Mains dimming, SwitchDIM, DSI, DALI, Casambi
Product files
Download Vivid technical files.
Available files for this exact product are listed below.
Rotational distributionIntensity · cd/klm
Product configurator
Configure your Vivid
Choose the Vivid model first, then add only the control, optic, emergency, finish or mounting options required for the project.
LuminaireProduct family
UGR16 retrofit LED downlightVivid UGR16 retrofit LED downlight. Review the current model schedule and compatible options.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
Technical description
UGR16 retrofit LED downlight specification for Vivid.
Published output and system power are listed by model in the specification schedule.

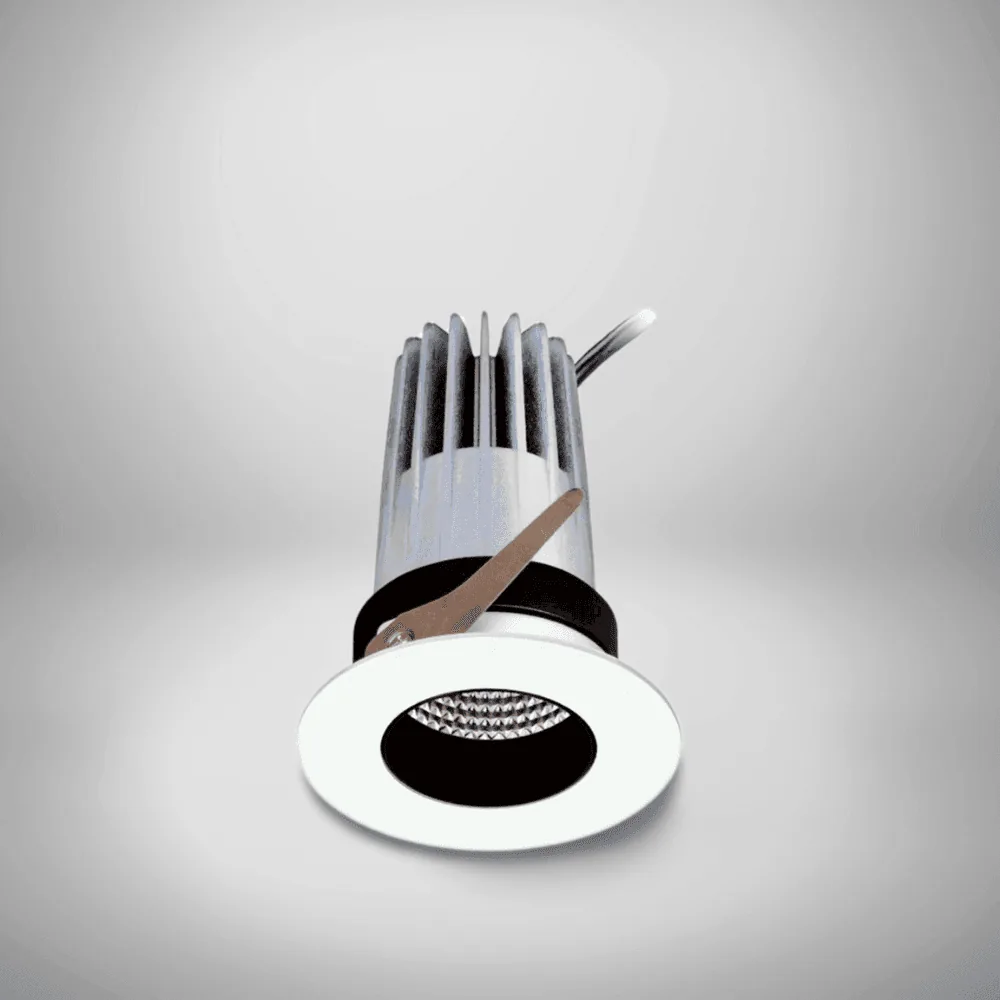

Vivid construction and mounting
For pinhole downlight specifications, compare the model codes, outputs and available options below.
Performance and installation details include life >60,000 hours (L80/F10).
Output, optics and colour temperature
Published output and system power are listed by model in the specification schedule.
Published output and system power are listed by model in the specification schedule.
Published output and system power are listed by model in the specification schedule.
Controls, emergency and project options
Control options include DALI / SwitchDIM / DSI, Casambi wireless.
Emergency options include 3-hour emergency, Self-test / DALI emergency, Wireless mesh emergency.
System power6–9.5 W
Colour temperature2700K / 3000K / 4000K
FinishSee datasheet
ControlsDALI, SwitchDIM, DSI, Casambi
EmergencyThree-hour emergency, Self-test emergency, DALI emergency
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typeUGR16 retrofit LED downlight
Model codesVIVID.001, VIVID.002, VIVID.003, VIVID.004, VIVID.005, VIVID.006
Output550–775 lm
System power6–9.5 W
Colour temperature2700K / 3000K / 4000K
FinishSee datasheet
ControlsDALI, SwitchDIM, DSI, Casambi
EmergencyThree-hour emergency, Self-test emergency, DALI emergency
Models, options and accessories
Vivid model codes and specification options.
Choose the Vivid base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes6 listed configurations
6 model configurations are shown with their output, CCT, power and finish information where available.
550 lm / 2700K / 7.5 W
575 lm / 3000K / 6 W
600 lm / 4000K / 6 W
725 lm / 2700K / 9.5 W
750 lm / 3000K / 7.5 W
775 lm / 4000K / 7.5 W
Additional Vivid options and accessoriesProduct images and specification choices
Controls/MDIM
Phase-cut mains dimming
Controls/ECO
SwitchDIM, DALI2 and DSI control gear
Controls/BTC
Casambi wireless network including dimming
Emergency/EM
Emergency remote indicator
Emergency/EMD
DALI / self-test emergency remote indicator

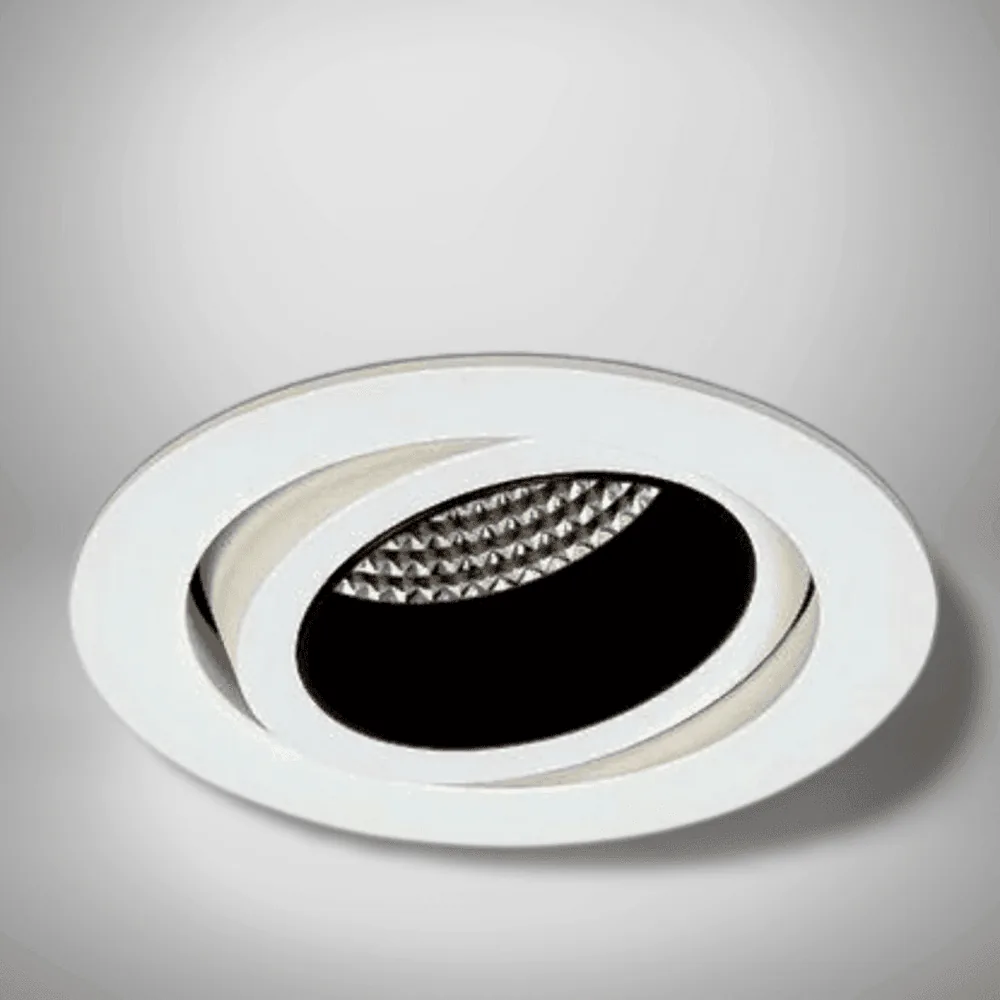

Body & mounting/T
Tilt body
Finish/BL
Black RAL 9005
Finish/BLT
Tilt black RAL 9005
Baffle/WSB
White softlight baffle
Baffle/GB
Gold baffle
Optics/NB
24° lens
Performance/9
Ra90 LED module (standard on 2700K)
Accessory/HC
Honeycomb louvre
Accessory/54
IP54 ribbed glass
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Vivid
Why specify this UGR16 retrofit LED downlight?
Published output and system power are listed by model in the specification schedule.
Vivid UGR16 retrofit LED downlight. Output: 550–775 lm; system power: 6–9.5 W. Colour temperature: 2700K / 3000K / 4000K.
Vivid options kept clear for project specification
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
architectural
Vivid is available for projects requiring architectural lighting.
commercial
Vivid is available for projects requiring commercial lighting.
residential
Vivid is available for projects requiring residential lighting.
Downlights
Vivid is available for projects requiring downlights lighting.
Output550–775 lm
Downlights
Use Vivid where downlights lighting is required.
Commercial interiors
Published output and system power are listed by model in the specification schedule.
Commercial interiors
Published output and system power are listed by model in the specification schedule.
Commercial interiors
Published output and system power are listed by model in the specification schedule.
Compare Vivid with the wider downlights when reviewing output, optics, mounting, controls and emergency requirements.
pinhole LED downlight
Prism
Prism is a pinhole LED downlight with a 67 mm cut-out, low-glare matt black baffle, fixed and tilt body options, Tridonic SLA Essence LED engine and standard 36 deg lens for specification-led interior lighting.
Compare product →
IP54 LED downlight
Aero
Aero is an IP54 LED downlight designed for commercial applications.
Compare product →
adjustable LED downlight
AeroLux
AeroLux is an adjustable LED downlight with a 36 degree faceted reflector, low-profile die-cast bezel, 3000K or 4000K model codes, and DALI, Casambi and emergency options for architectural, retail and hospitality interiors.
Compare product →Specification questions
Vivid details worth checking.
6 configurations are listed: VIVID.001, VIVID.002, VIVID.003, VIVID.004, VIVID.005, VIVID.006.
Published output 550–775 lm and system power 6–9.5 W. See the model schedule for each specification.
Control options include DALI, SwitchDIM, DSI, Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options include Three-hour emergency, Self-test emergency, DALI emergency. Select the emergency requirement separately from the base model and normal control method.
The Vivid requires a 67 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Vivid datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
