Ceiling detail76 mm bezel · 67 mm cut-out
DOWNLIGHTS architectural LED downlight

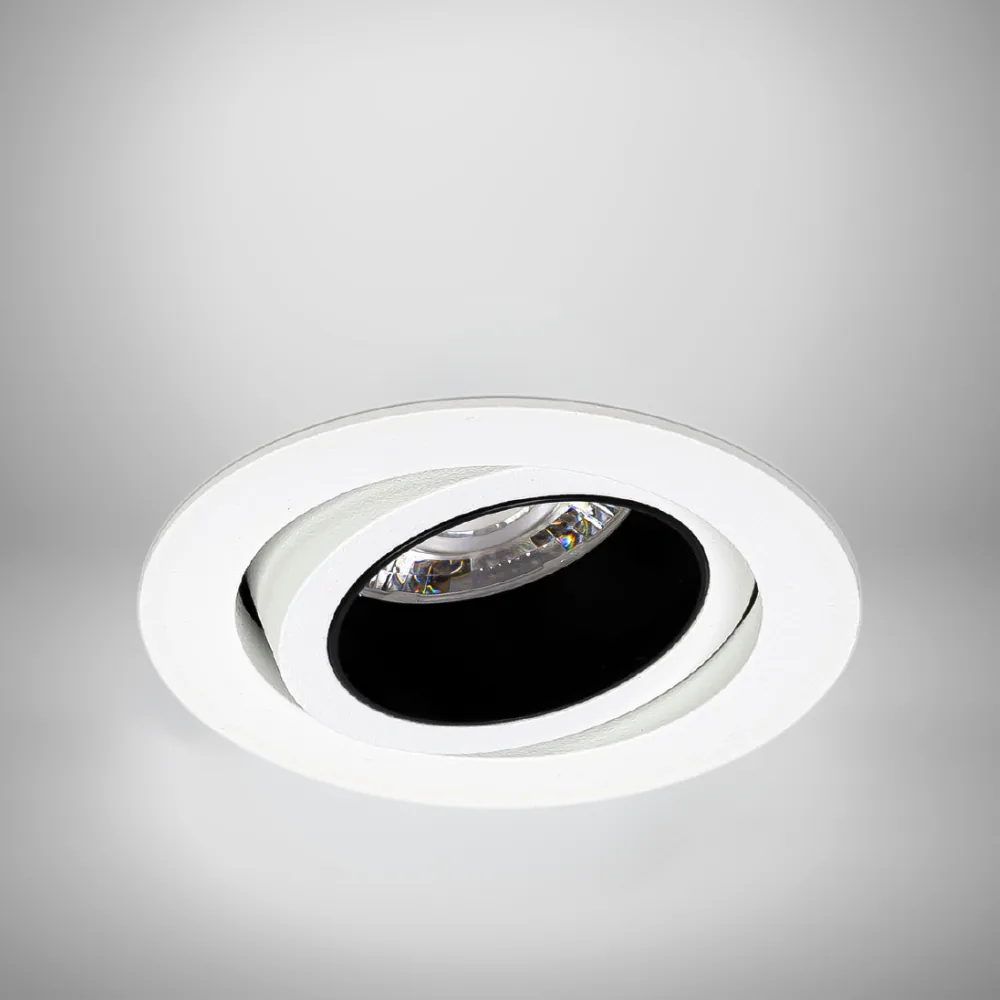

Prismpinhole LED downlight
Small ceiling detail.
Controlled architectural light.
Prism is a pinhole LED downlight for considered commercial lighting schemes. Its source-backed range includes Compact recessed architectural LED downlight and 67 mm cut-out.
Prism offers nine Tridonic SLA Essence model references in 2700K, 3000K and 4000K, with fixed or tilt bodies. Refer to the model schedule; output and selected power values need confirmation before specification.
- Output
- 700–1,250 lm
- Ceiling cut-out
- 67 mm 76 mm bezel
- Optics
- 36° standard 12° and 24° lens options
01 / 02
OutputSee model schedule
Colour temperature2700K / 3000K / 4000K
ControlsMains dimming, DALI, SwitchDIM, DSI, Casambi
Ceiling cut-outØ 67 mm
At a glance
Prism miniature LED downlight at a glance.
Six verified facts covering the ceiling detail, performance, optics and product options.
Technical referenceNot to scale
Key specificationSpecification summary
- 01Ceiling detail
- 67 mm cut-out · 76 mm bezel
- 02Output
- 700–1,250 lm
- 03System power
- 9.5–14 W
- 04Colour quality
- 2700K / 3000K / 4000K · CRI 90
- 05Optics
- 36° standard · 12° / 24° options
- 06Control and emergency
- Options available on PRISM.004–.009
Product files
Download Prism technical files.
Available files for this exact product are listed below.
C0 plane distributionIntensity · cd/klm
Product configurator
Configure your Prism
Choose the output and colour temperature first, then add the body, control gear, emergency, lens, baffle and accessory suffixes required.
Models .001–.003 use a mains-dimmable driver on board; control and emergency upgrades are unavailable. Super-narrow optics are unavailable on .004–.006.
LuminaireProduct family
Miniature architectural LED downlight76 mm bezel, 67 mm cut-out, CRI 90 Tridonic SLA Essence engine, matt black low-glare baffle and 36° lens as standard.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
Technical description
Pinhole LED downlight specification for Prism.
Prism's technical information also covers Low-glare matt black baffle; Fixed and tilt body options with Tridonic SLA Essence LED engine. This allows the product to be matched to the intended mounting, output and control requirements without extending the published specification.
Output, colour quality and optics
The model schedule identifies the 2700K, 3000K and 4000K versions. Output and selected power values need confirmation before ordering. CRI 90 colour quality and 3-step MacAdam consistency are specified.
The standard lens is 36°. The /NB suffix provides a 24° lens, while /SNB provides a 12° lens and is not available with PRISM.004, PRISM.005 or PRISM.006.
Control gear and emergency
/MDIM is phase-cut mains dimming; /ECO requires SwitchDIM, DALI or DSI control gear; /BTC is the Casambi wireless option.
Remote-indicator emergency options are /EM, /EMD for DALI or self-test emergency. Control gear and emergency options are not available with PRISM.001, PRISM.002 or PRISM.003.
Service life and finish variations
Lumen maintenance is L90/B10 at more than 54,000 hours and the datasheet lists a five-year warranty. Non-standard connector, RAL colour and LSOH/LSF cable arrangements are Custom configuration.
Output700–1,250 lm
Colour qualityCRI 90 · 3 SDCM
Standard opticFixed body · white RAL 9016
Low glareMatt black baffle · <19
Service lifeL90/B10 · >54,000 h
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typeMiniature architectural recessed LED downlight
Dimensions76 mm bezel · 67 mm cut-out · 80 / 90 / 110 mm body heights
Standard finishWhite RAL 9016 bezel · matt black baffle
Optics36° standard · /SNB 12° · /NB 24°
ControlsNon-dimmable standard · /MDIM phase-cut · /ECO SwitchDIM / DALI / DSI · /BTC Casambi
Emergency/EM remote indicator · /EMD DALI / self-test
Warranty5 years
| Model | Output | CCT | System power | Efficacy |
|---|---|---|---|---|
| PRISM.001 | 700 lm | 2700K | 9.5 W | 74 lm/W |
| PRISM.002 | 725 lm | 3000K | 9.5 W | 76 lm/W |
| PRISM.003 | 750 lm | 4000K | 9.5 W | 79 lm/W |
| PRISM.004 | 850 lm | 2700K | 10 W | 85 lm/W |
| PRISM.005 | 925 lm | 3000K | 10 W | 93 lm/W |
| PRISM.006 | 975 lm | 4000K | 10 W | 98 lm/W |
| PRISM.007 | 1,125 lm | 2700K | 14 W | 80 lm/W |
| PRISM.008 | 1,225 lm | 3000K | 14 W | 88 lm/W |
| PRISM.009 | 1,250 lm | 4000K | 14 W | 89 lm/W |
Models, options and accessories
Prism model codes and specification options.
Choose one verified model code, then add only the suffixes required for the body, control gear, emergency, lens, baffle or accessory.
Model codes9 verified models
Every datasheet model is shown separately with its output, colour temperature and system power.
700 lm / 2700K / 9.5 W
725 lm / 3000K / 9.5 W
750 lm / 4000K / 9.5 W
850 lm / 2700K / 10 W
925 lm / 3000K / 10 W
975 lm / 4000K / 10 W
1,125 lm / 2700K / 14 W
1,225 lm / 3000K / 14 W
1,250 lm / 4000K / 14 W
Prism options and accessoriesProduct-specific image references
Controls/MDIM
Phase-cut mains dimming.
Controls/ECO
SwitchDIM, DALI or DSI.
Controls/BTC
Casambi wireless network including dimming.
ControlsBTWS001
Wireless Casambi single wall switch.
ControlsBTWS002
Wireless Casambi twin wall switch.

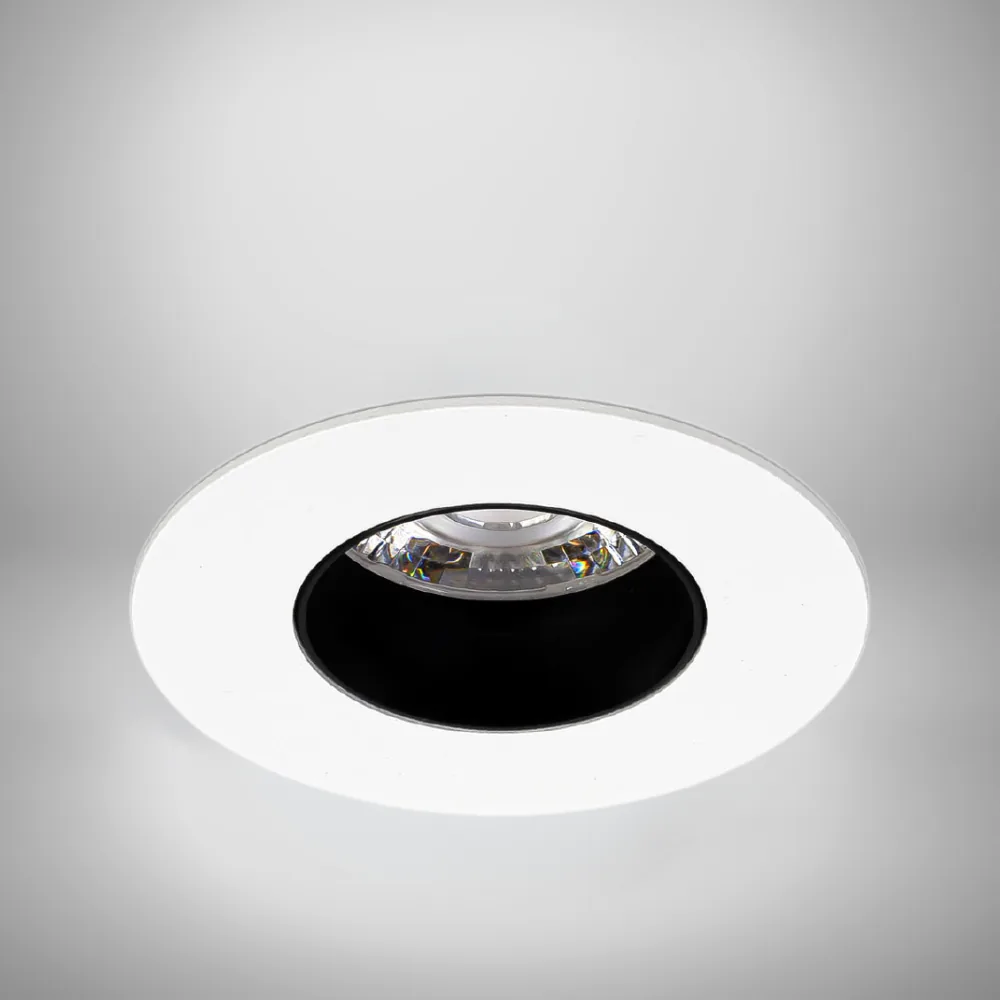

Emergency/EM
Emergency remote indicator.
Emergency/EMD
DALI or self-test emergency remote indicator.

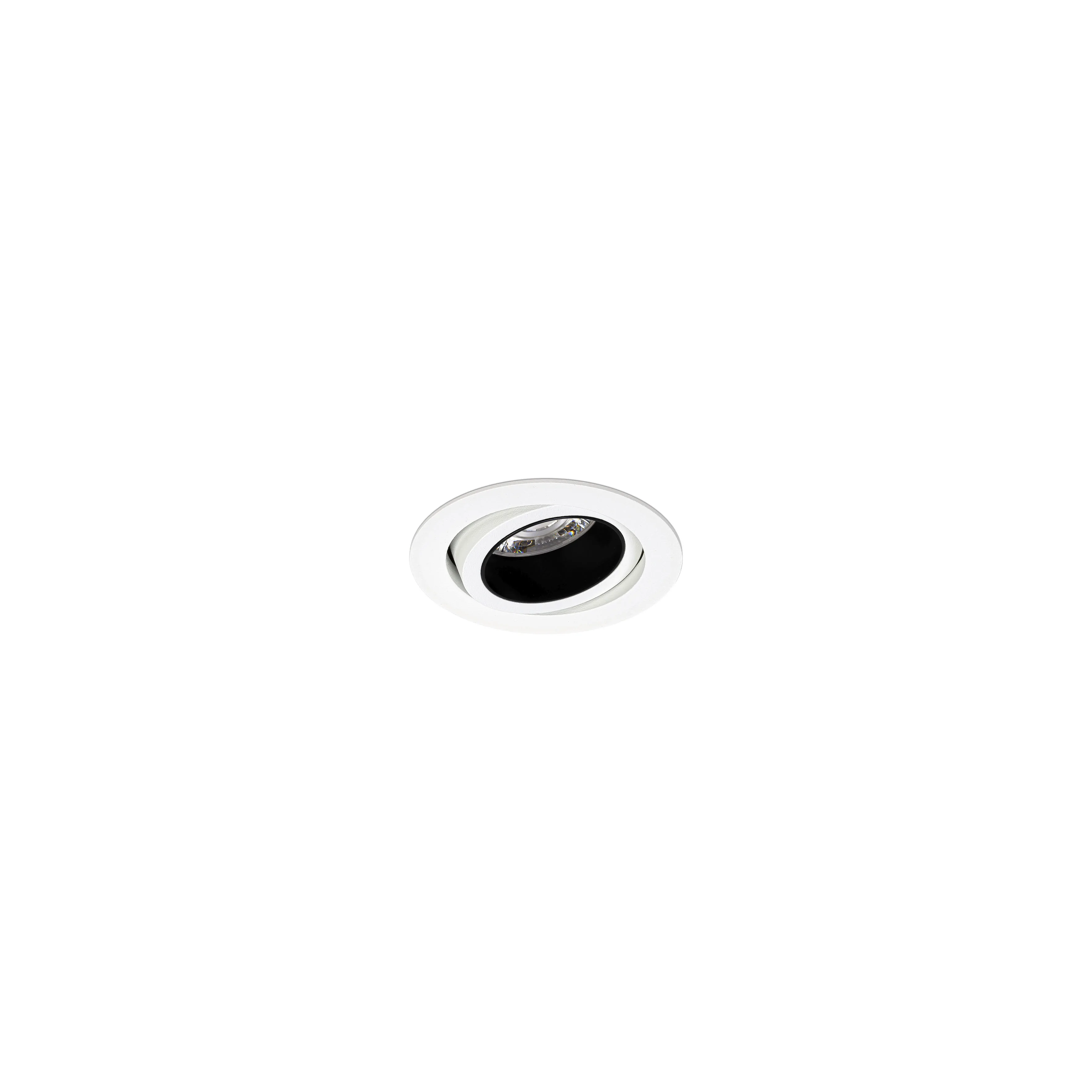

Body/T
Tilt body.
Body/BL
Black RAL 9005 body.
Body/BLT
Tilt black RAL 9005 body.

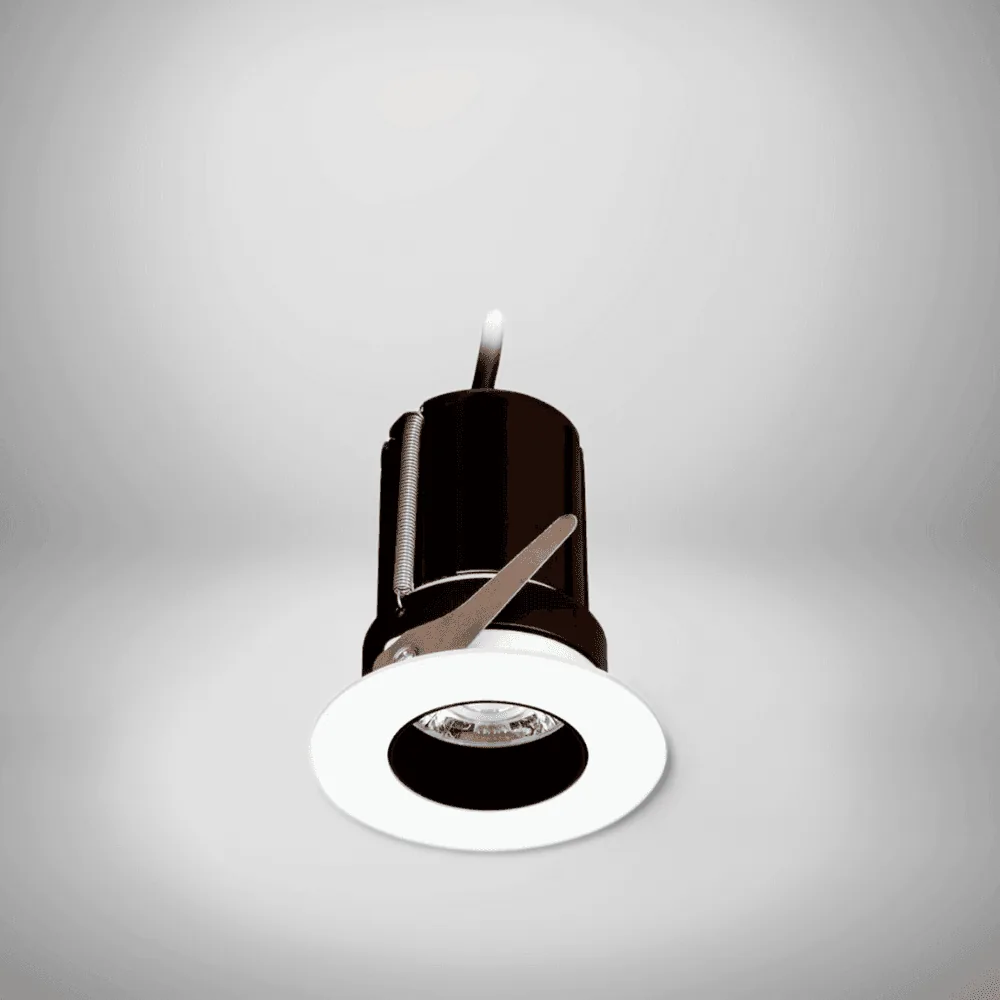

Baffle/WSB
White softlight baffle.
Baffle/GB
Gold baffle.
Lens/SNB
12° lens; not available with PRISM.004 / 5 / 6.
Lens/NB
24° lens.
Accessory/HC
Honeycomb louvre.
Custom configurationChoice of connectors
Available on request.
Custom configurationAny RAL colour bezel
Available on request.
Custom configurationLSOH / LSF cable
Available on request.
Standard construction uses a white RAL 9016 bezel, matt black baffle and 36° lens. Choice of connectors, other RAL colours and LSOH/LSF cable are Custom configuration.
Why Prism
Why specify Prism?
Prism keeps the ceiling aperture small while offering nine output and colour-temperature combinations, fixed or tilt bodies and three lens families.
Its Tridonic SLA Essence engine, CRI 90 colour quality, low-glare baffle and verified control and emergency suffixes provide a detailed architectural specification in a compact body.
One compact family, three power groups
Choose the required colour temperature and model reference from the schedule. Contact Lumenloop to confirm the output and power for the selected configuration.
Body heights are 80 mm, 90 mm and 110 mm across the model groups, with a common 76 mm bezel and 67 mm cut-out.
Low-glare aperture
Matt black baffle and a published low-glare value below 19.
Fixed or tilt body
Choose the standard fixed body or the verified /T and /BLT tilt variants.
CRI 90 colour quality
All nine model codes use CRI 90 engines with 3-step MacAdam consistency.
Project control options
Phase-cut, SwitchDIM, DALI, DSI and Casambi arrangements are separated by control gear suffix.
Output700–1,250 lm9 verified models
Optics36° / 24° / 12°Standard and lens options
Warranty5 yearsDatasheet coverage
Product usesWhere the Prism format helps
Small ceiling apertures
The 67 mm cut-out and 76 mm bezel keep the recessed ceiling detail compact.
Fixed downlighting
Use the standard fixed body where the beam remains centred below the fitting.
Aimed architectural light
Use the tilt-body variants where the light direction needs adjustment.
Low-glare interior lighting
The recessed optical assembly and matt black baffle reduce the brightness visible at the aperture.
Compare Prism with the wider commercial downlight range when selecting aperture size, output, optics, controls and emergency options.
Miniature adjustable LED downlight
Axis
Mini LED downlight. Review the model schedule and compatible options.
Compare product →
Low-glare LED downlight
Beam
Low-glare LED downlight. Review the model schedule and compatible options.
Compare product →
IP54 LED downlight
Aero
IP54 LED downlight. Review the model schedule and compatible options.
Compare product →Specification questions
Prism details worth checking.
Direct answers on model selection, ceiling dimensions, optics, controls, emergency and technical files.
9 configurations are listed: PRISM.001, PRISM.002, PRISM.003, PRISM.004, PRISM.005, PRISM.006, PRISM.007, PRISM.008, PRISM.009.
Prism miniature architectural LED downlight. Output: 700–1,250 lm; system power: 9.5–14 W. Colour temperature: 2700K / 3000K / 4000K.
Control options include Mains dimming, DALI, SwitchDIM, DSI, Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options include Three-hour emergency, Self-test emergency, DALI emergency. Select the emergency requirement separately from the base model and normal control method.
The Prism requires a Ø 67 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Prism datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
Product quotation
Request a quotation for Prism.
Send the selected code, quantity and any mounting, control, emergency or finish requirements. Your configurator choices are carried into the form automatically.
Configuration retainedThe product code and quantity update as you configure the fitting.
Useful project detailAdd the application, required date and any option requirements you already know.
Direct contactPrefer to speak? Call 02045 721 554 or email Lumenloop.
Average lead time10 working days for standard product configurations. Custom accessories, custom finishes and other custom variations are excluded; contact us to confirm timing.
