1,025 lm / 3000K / 9.5 W
DOWNLIGHTS twist and lock LED downlight
Versitwist and lock LED downlight
Versi.
twist and lock LED downlight.

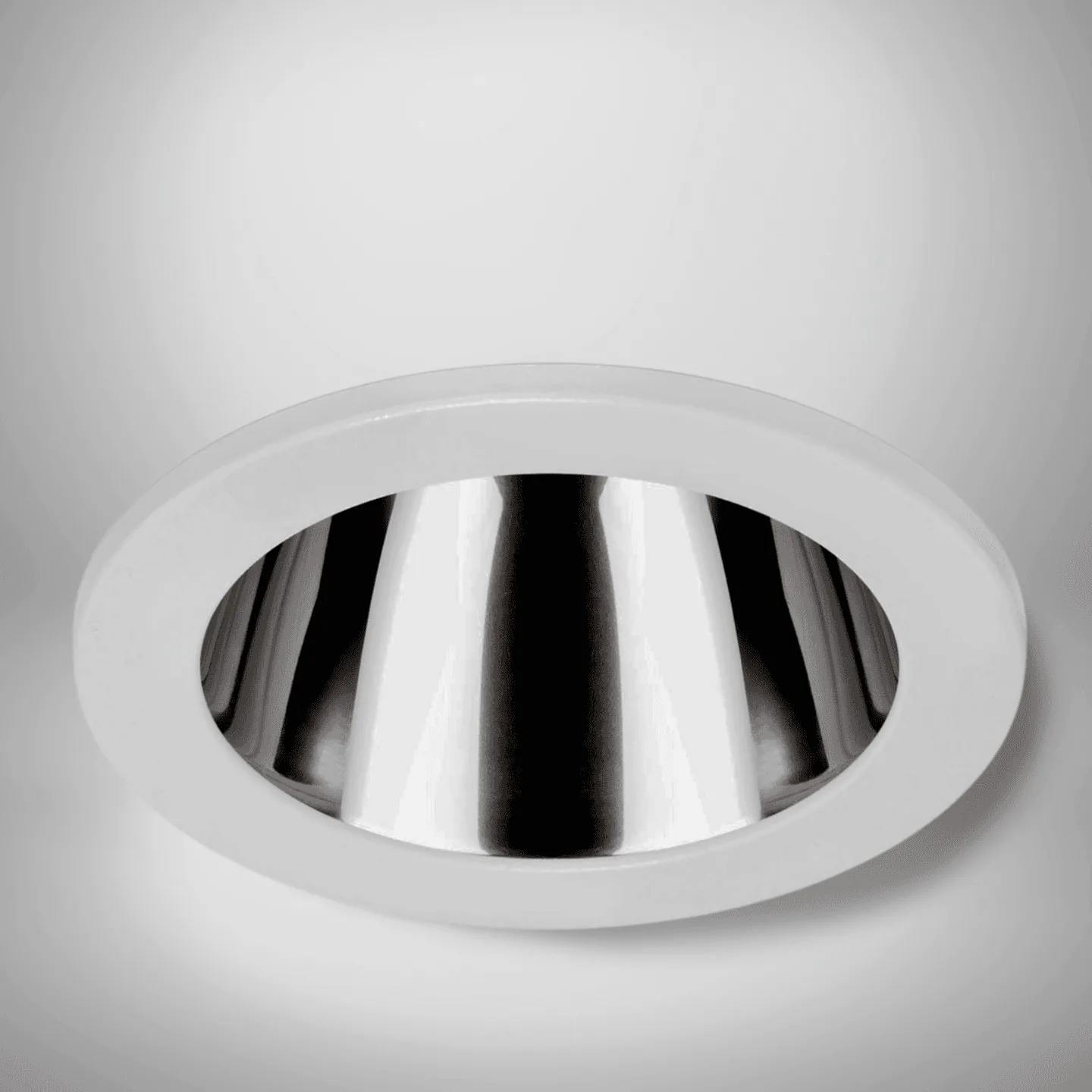

Versi is a twist and lock LED downlight for considered commercial lighting schemes. Its source-backed range includes Powered by Philips light engine and driver system and Twist-and-lock bezel.
- Output
- 1,025–4,550 lm
- Colour temperature
- 3000K / 4000K model dependent
- Options
- 39 listed controls and accessories
01 / 08
Output1,025–4,550 lm
Colour temperature3000K / 4000K
ControlsDALI, Casambi
Ceiling cut-out176 mm diameter
Product configurator
Configure your Versi
Choose the output and colour temperature first, then add the published control, emergency and reflector options required for the project.
LuminaireProduct family
High-performance recessed LED downlightPhilips LED module and driver system
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct information
At a glance
Versi twist and lock LED downlight quick specification.
Check the installation, output, colour temperature and control information for this twist and lock LED downlight before reviewing the full model schedule.
Technical referenceNot to scale
Key specificationSpecification summary
- 01Ceiling cut-out
- 176 mm diameter
- 02Bezel
- 195 mm diameter
- 03Output
- 1,025–4,550 lm
- 04System power
- 9.5–46.5 W
- 05CCT
- 3000K / 4000K
- 06Controls
- DALI, Casambi
Product files
Download Versi technical files.
Available files for this exact product are listed below.
Photometric data
Verified 62-series optical distributions.
Preview the published LDT distributions by reflector before downloading the source files. Beam angle, intensity and footprint values are calculated from the selected source distribution.
C0 / C90 source-plane comparisonIntensity · cd/klm
Technical description
Twist and lock LED downlight specification for Versi.
Source-backed dimensional, output and configuration information for the published Versi range.
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typeHigh-performance recessed LED downlight
Model codesVERSI.001–VERSI.008; 1,025–4,550 lm across 3000K and 4000K
Output and powerVersi high-performance recessed LED downlight. Review the current model schedule and compatible options.
Efficacy90–116 lm/tcW, depending on output and colour temperature
Colour temperature3000K or 4000K
Reflector60° satin etched aluminium standard; /MF50 50° multi-facet and /SP40 40° specular reflectors available
Controls/T+DALI touch dimming or DALI control gear; /BTC Casambi wireless network including dimming
Emergency/EM remote indicator; /EMD DALI / self-test remote indicator; /EMI integral indicator; /EMDI DALI / self-test integral indicator

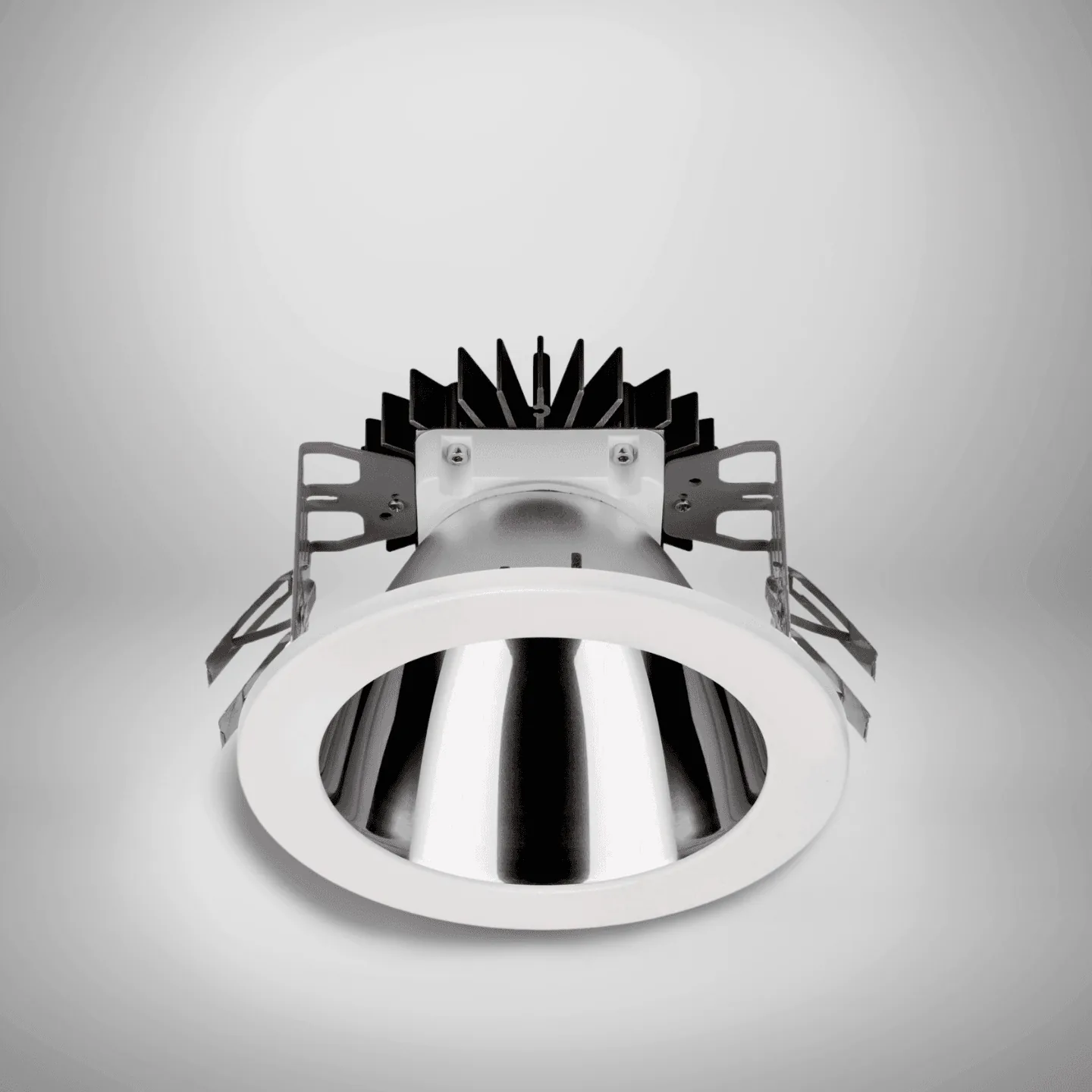

Ingress protectionIP54 and IP65 options
Dimensions176 mm cut-out; 195 mm bezel; 112 mm body depth; 132 mm depth for selected variants
Rated life>60,000 hours L70/B10
Models, options and accessories
Versi model codes and published options.
Versi's technical information also covers Interchangeable accessories; Easy installation for commercial interiors. This allows the product to be matched to the intended mounting, output and control requirements without extending the published specification.
Model codes8 listed configurations
Each card gives the published output, colour temperature, system power and efficacy.
1,100 lm / 4000K / 9.5 W
1,750 lm / 3000K / 17.5 W
1,900 lm / 4000K / 17.5 W
2,700 lm / 3000K / 30 W
2,925 lm / 4000K / 30 W
4,200 lm / 3000K / 46.5 W
4,550 lm / 4000K / 46.5 W
Reflector

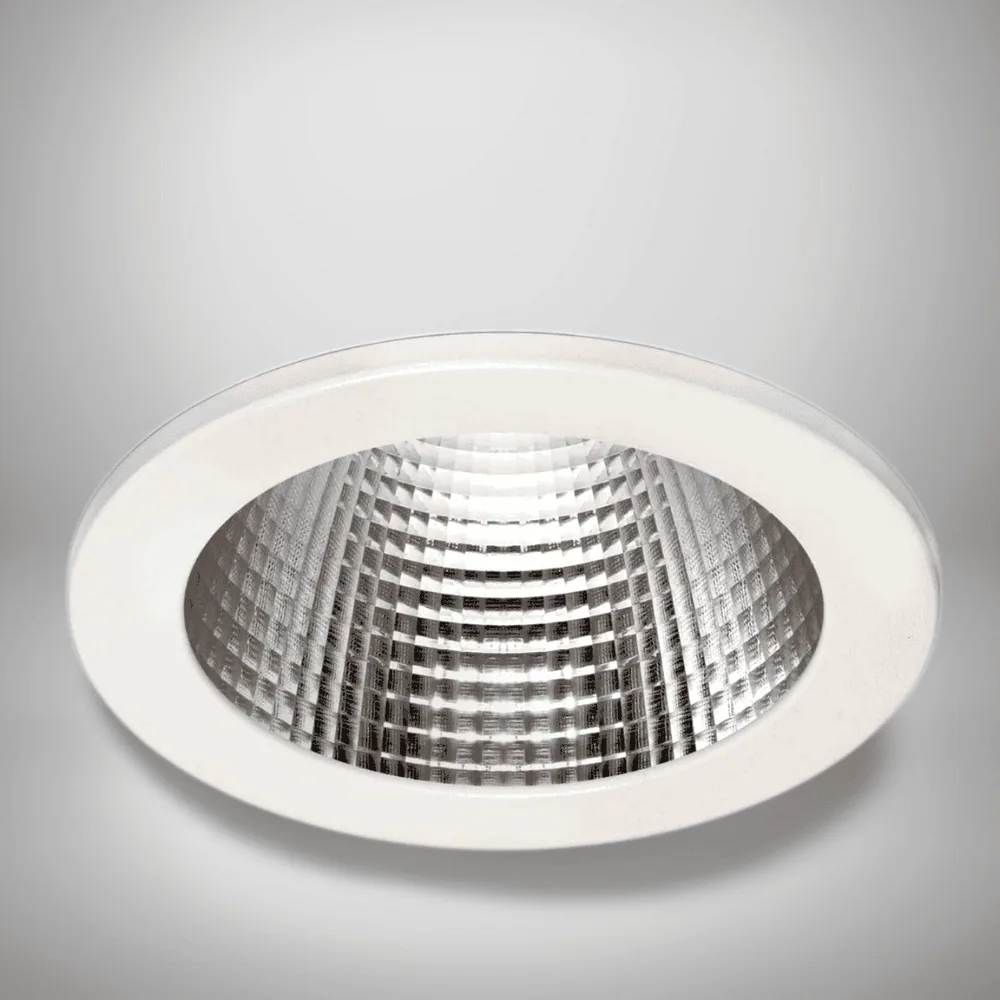

/MF50
50° multi-facet reflector
Reflector
/SP40
40° specular reflector
Controls
/T+DALI
Touch dimming or DALI control gear
Controls
/BTC
Casambi wireless network including dimming
Emergency
/EM
Emergency remote indicator
Emergency
/EMD
DALI / self-test remote indicator
Emergency
/EMI
Emergency integral indicator
Emergency
/EMDI
DALI / self-test integral indicator
IP54 and IP65 options are listed for the range. The published datasheet does not assign an IP suffix, so confirm the selected IP65 arrangement before order placement.
Why Versi
Why specify this twist and lock LED downlight?
The Versi LED Downlight is a commercial luminaire powered by Philips' light engine and driver system. Featuring a versatile twist-and-lock bezel, this downlight allows for easy installation and the incorporation of a range of interchangeable accessories, making it adaptable to various lighting needs and styles
Published model output is 1,025–4,550 lm; system power is 9.5–46.5 W. Colour temperatures: 3000K / 4000K.
Versi options kept clear for project specification
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
commercial
Versi is available for projects requiring commercial lighting.
high lumen package
Versi is available for projects requiring high lumen package lighting.
hospitality
Versi is available for projects requiring hospitality lighting.
IP54
Versi is available for projects requiring ip54 lighting.
Output1,025–4,550 lm8 listed models
CCT3000K / 4000KModel dependent
Options39Controls and accessories
Typical applicationsWhere Versi is specified
Downlights
Use Versi where downlights lighting is required.
Commercial interiors
The Versi LED Downlight is a commercial luminaire powered by Philips' light engine and driver system. Featuring a versatile twist-and-lock bezel, this downlight allows for easy installation and the incorporation of a range of interchangeable accessories, making it adaptable to various lighting needs and styles
Commercial interiors
The Versi LED Downlight is a commercial luminaire powered by Philips' light engine and driver system. Featuring a versatile twist-and-lock bezel, this downlight allows for easy installation and the incorporation of a range of interchangeable accessories, making it adaptable to various lighting needs and styles
Commercial interiors
The Versi LED Downlight is a commercial luminaire powered by Philips' light engine and driver system. Featuring a versatile twist-and-lock bezel, this downlight allows for easy installation and the incorporation of a range of interchangeable accessories, making it adaptable to various lighting needs and styles
Compare Versi with the wider downlights when reviewing output, optics, mounting, controls and emergency requirements.
IP54 LED downlight
Aero
IP54 LED downlight. Review the model schedule and compatible options.
Compare product →
adjustable LED downlight
AeroLux
Adjustable LED downlight. Review the model schedule and compatible options.
Compare product →
mini LED downlight
Axis
Mini LED downlight. Review the model schedule and compatible options.
Compare product →Specification questions
Versi details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
8 configurations are listed: VERSI.001, VERSI.002, VERSI.003, VERSI.004, VERSI.005, VERSI.006, VERSI.007, VERSI.008.
The product family covers 1,025–4,550 lm. Colour-temperature choices are 3000K / 4000K.
Control options include touch dimming or DALI control gear, and Casambi wireless control. Each option requires the matching control gear and wiring arrangement.
Emergency options include remote and integral emergency indicators, with DALI / self-test variants. Select the emergency requirement separately from the base model and normal control method.
The Versi requires a 176 mm diameter ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Versi datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
