Versi 62

emergency light choice of beam angles casambi wireless lighting control

dali options available dimmable lights uk ip65 light uk

The Versi 62 LED Downlight is a high-performance lighting solution powered by Philips’ light engine and driver system.

Featuring a versatile twist-and-lock bezel, this downlight allows for easy installation and the incorporation of a range of interchangeable accessories, making it adaptable to various lighting needs and styles.

With a powerful output of up to 4,550 lumens, the Versi 62 delivers impressive illumination, supported by a 60-degree satin etched reflector that enhances light quality and distribution. The downlight also offers faceted and specular reflector options, allowing users to customize the lighting effect to suit specific environments.

Built for longevity, the Versi 62 boasts a lifespan exceeding 60,000 hours (L70 / B10) and is backed by a 5-year warranty, ensuring reliability and peace of mind. With IP54 and IP65 options available, this downlight is suitable for use in both indoor and outdoor settings, providing protection against dust and water.



📄 Download Datasheet

📄 Installation Guide

📄 Photometric Data

📄 Bim File

uk-made lighting 5 year warranty lighting

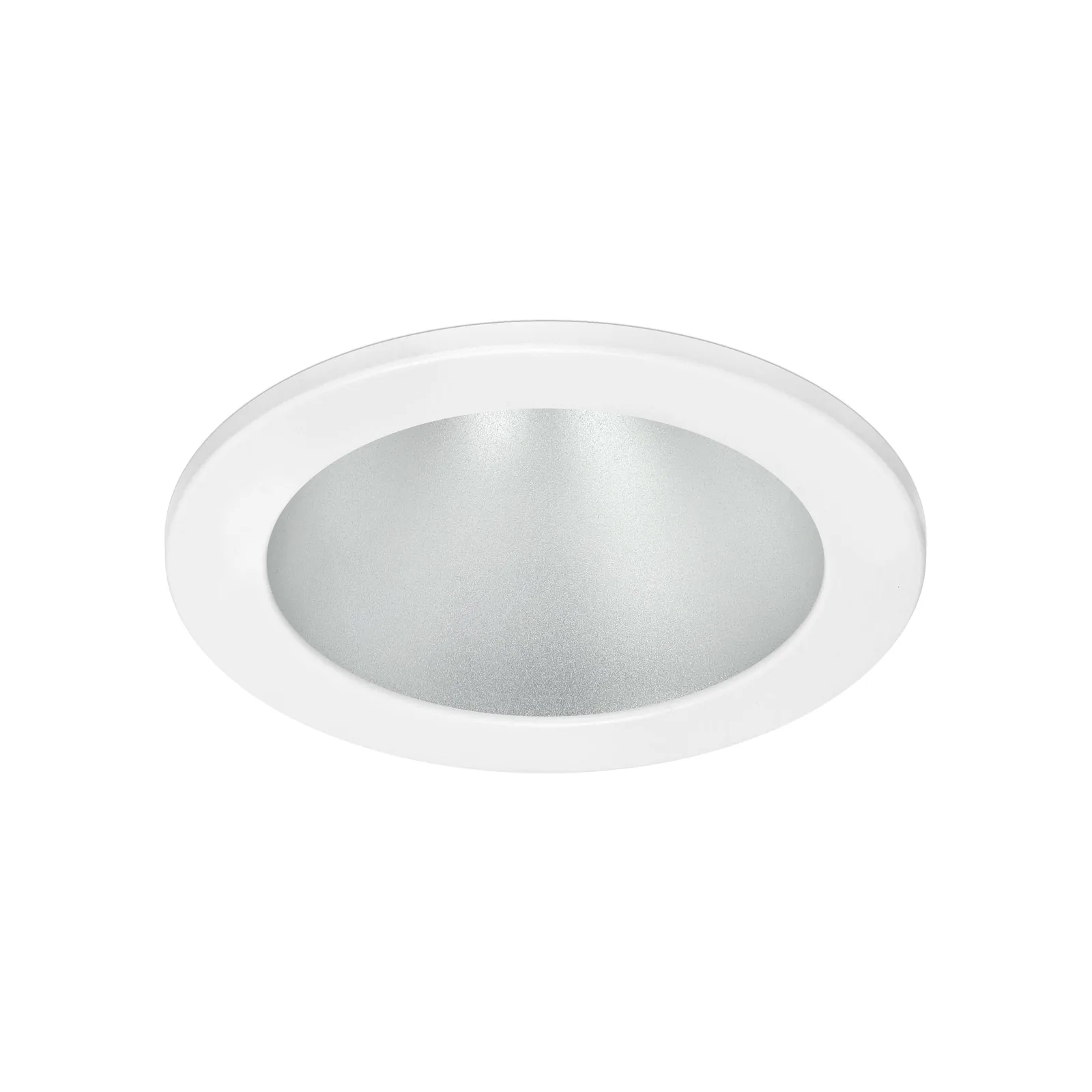

Versi 62 LED Downlight with Twist & Lock Bezel

The Versi 62 is a professional UK-made LED downlight designed for commercial and industrial environments requiring durable, high-performance illumination. Featuring a Philips DLM LED module and driver system, it delivers up to 4550 lumens with a lifespan exceeding 60,000 hours (L70/B10). Its innovative twist & lock bezel (/TL) ensures quick installation, while IP65-rated options provide weatherproof protection for outdoor or high-moisture areas. Ideal for retail, hospitality, and industrial spaces, this downlight combines energy efficiency with MacAdam <3 SDCM colour consistency.



Key Features

  • Twist & lock bezel (/TL): Enables tool-free installation for reduced fitting time.

  • IP65 rating (/65): Full dust/water resistance for outdoor or industrial environments.

  • Philips DLM LED technology: High-efficiency output (up to 116 lm/W) with stable dimming.

  • 60° satin etched reflector: Uniform light distribution with minimal glare.

  • Emergency options: Self-test indicators (/EMD, /EMDI) for safety compliance.

  • UK-made construction: 5-year warranty with 98% recyclable components.

  • Wireless control (/BTC): Casambi Bluetooth integration for app-based dimming.

  • MacAdam <3 SDCM: Exceptional colour consistency for premium lighting quality.



Technical Specifications

Specification Details
Model reference 62.1100.30 to 62.5000.40
Lumen output range 100–4550 lm
Colour temperatures 830 (3000K), 840 (4000K)
Power consumption 9.5–46.5 W
Luminaire efficacy 90–116 lm/W
Cut-out diameter 176 mm
Bezel diameter 195 mm
Compliance IP65 (optional), L70/B10, 5-year warranty



Ordering Information

Model Code Lumens Colour Temp Power (tcW) Efficacy (lm/tcW)
62.1100.30 1025 3000K 9.5 108
62.1100.40 100 4000K 9.5 116
62.2000.30 1750 3000K 17.5 100
62.2000.40 1900 4000K 17.5 109
62.3000.30 2700 3000K 30.0 90
62.3000.40 2925 4000K 30.0 98
62.5000.30 4200 3000K 46.5 90
62.5000.40 4550 4000K 46.5 98



Customisation Options

Category Option Code Description Compatibility
Reflectors
/MF50 50° multi-facet reflector All models
/SP40 40° specular reflector All models
Controls
/T+DALI Touch dimming or DALI control gear All models
/BTC Casambi wireless dimming All models
Bezel Finishes
/WH White bezel (RAL 9010) With /TL
/BWH Brilliant white bezel (RAL 9016) With /TL
/BL Black bezel (RAL 9005) With /TL
/GY Grey bezel (RAL 9006) With /TL
Emergency
/EM Emergency remote indicator All models
/EMD DALI self-test emergency (remote) All models
/EMI Emergency integral indicator All models
/EMDI DALI self-test emergency (integral) All models
IP Rating /65 IP65 option (choose bezel material) All models



Accessories

Accessory Code Description Use Case
HALOKIT.002 Bezel extender halo Enhanced aesthetic projection
TA310/FROST Frosted snoot Soft, diffused accent lighting
TA310/BLUE Blue snoot Themed or decorative lighting
TA384 Frost hi-light Wall grazing effects
TA385 Blue hi-light Architectural highlighting
TA340 IP54 sealed clear glass Semi-protected environments
TA343 IP54 sealed clear polycarbonate Impact-resistant clarity
IP65/002/195 White IP65 bezel with clear glass Outdoor weather protection
IP65/008/195 White IP65 bezel with opal polycarbonate Diffused outdoor lighting



Ideal Applications

  • Retail displays: Model 62.5000.40 (4550 lm) with /MF50 reflector for high-output product lighting.

  • Outdoor entrances: IP65 bezel (/65) with TA343 lens for weather resistance.

  • Hospitality venues: Twist & lock bezel (/TL) in brilliant white (/BWH) for elegant ceilings.

  • Industrial facilities: Emergency self-test indicators (/EMD) for safety-critical areas.



Related Products

  • 78 & 96 Series: 130mm downlights for compact installations.

  • 100 Series: 240mm downlights for higher output requirements.

  • 36, 37 & 39 Series: IP54 downlights for semi-protected environments.

  • 87 Series: Surface/suspended downlights for versatile mounting.



Environmental Protection Options

Code Rating Description Application
Standard IP20 Basic protection Indoor areas
TA317 IP44 Prismatic lens Moisture protection
TA340-344 IP54 Sealed options Wet areas
/65 IP65 Full protection Challenging environments



Bezel Options and Accessories Table

Category Code Description Finish
Standard Bezels TA300/WH White bezel RAL 9010
TA300/BWH Brilliant white RAL 9016
TA300/BL Black bezel RAL 9005
TA300/GY Grey bezel RAL 9006
Glass Options TA301 Dropped outer etched
TA302 Dropped clear
TA303 Dropped centre etched
TA305-307 Halo variations
Decorative TA310/FROST Frosted snoot
TA310/BLUE Blue snoot
TA384 Frost hi-light
TA385 Blue hi-light



Product Variations

  • Custom RAL colours for twist & lock/IP65 bezels
  • High ambient temperature variants
  • LSOH/LSF cable options
  • Connector choices
  • Honeycomb baffle
  • Black snoot option
  • Additional customisation available



Why Specify Different Options?

  1. Output Selection Guide
  • Low power (9.5W): Optimal for corridors and support areas
  • Mid-range (17.5-30.0W): Perfect for standard ceiling heights
  • High output (46.5W): Ideal for atria and feature spaces



  1. Environmental Protection
  • IP44: Basic moisture protection
  • IP54: Increased protection for wet areas
  • IP65: Maximum protection for challenging environments



  1. Control Integration
  • Basic: Fixed output
  • Touch/DALI: Building management integration
  • Wireless: Flexible control without additional wiring
  • Emergency: Multiple monitoring options



  1. Aesthetic Options
  • Standard bezels: Clean architectural integration
  • Dropped glass: Enhanced visual interest
  • Decorative elements: Creative lighting effects
  • Custom finishes: Brand-aligned solutions



Technical Note: All performance data measured at +25°C ambient temperature. Values subject to ±10% tolerance. Continuous product development may affect specifications.
