Output1,200–10,300 lm
DOWNLIGHTS TM66 assessed LED downlight
VeroTM66 assessed LED downlight
Vero.
TM66 assessed LED downlight.
Vero is a TM66 assessed LED downlight for considered commercial lighting schemes. Its source-backed range includes Die-cast bezel in brilliant white and Low-glare multi-faceted 55 degree aluminium reflector.
- Output
- 1,200–10,300 lm
- Colour temperature
- 3000K / 4000K model dependent
- Options
- 43 listed controls and accessories
01 / 08
Output1,200–10,300 lm
Colour temperature3000K / 4000K
ControlsDALI, SwitchDIM, DSI, Casambi
Ceiling cut-outØ 176 mm
At a glance
Vero TM66 assessed LED downlight quick specification.
Check the installation, output, colour temperature and control information for this TM66 assessed LED downlight before reviewing the full model schedule.
Technical referenceNot to scale
Key specificationSpecification summary
- 01Ceiling cut-out
- Ø 176 mm
- 02Output
- 1,200–10,300 lm
- 03System power
- 9–94.5 W
- 04CCT
- 3000K / 4000K
- 05Controls
- SwitchDIM, DSI, DALI, Casambi
- 06Emergency
- Emergency conversion, DALI emergency
Product files
Download Vero technical files.
Available files for this exact product are listed below.
Rotational distribution · C0/C90 checkedIntensity · cd/klm
/TOP and /BTC are available on VERO.001–.008. They are not available on VERO.009–.012.
Product configurator
Configure your Vero
Choose the Vero model first, then add only the control, optic, emergency, finish or mounting options required for the project.
Models .009–.012 require a twist-and-lock or IP65 bezel arrangement. IP54 and optional /TOP upgrades are unavailable on these models; the EXCITE driver is standard. Casambi needs engineering confirmation. Frosted and blue snoot accessories can be specified on enquiry with the exact variant.
LuminaireProduct family

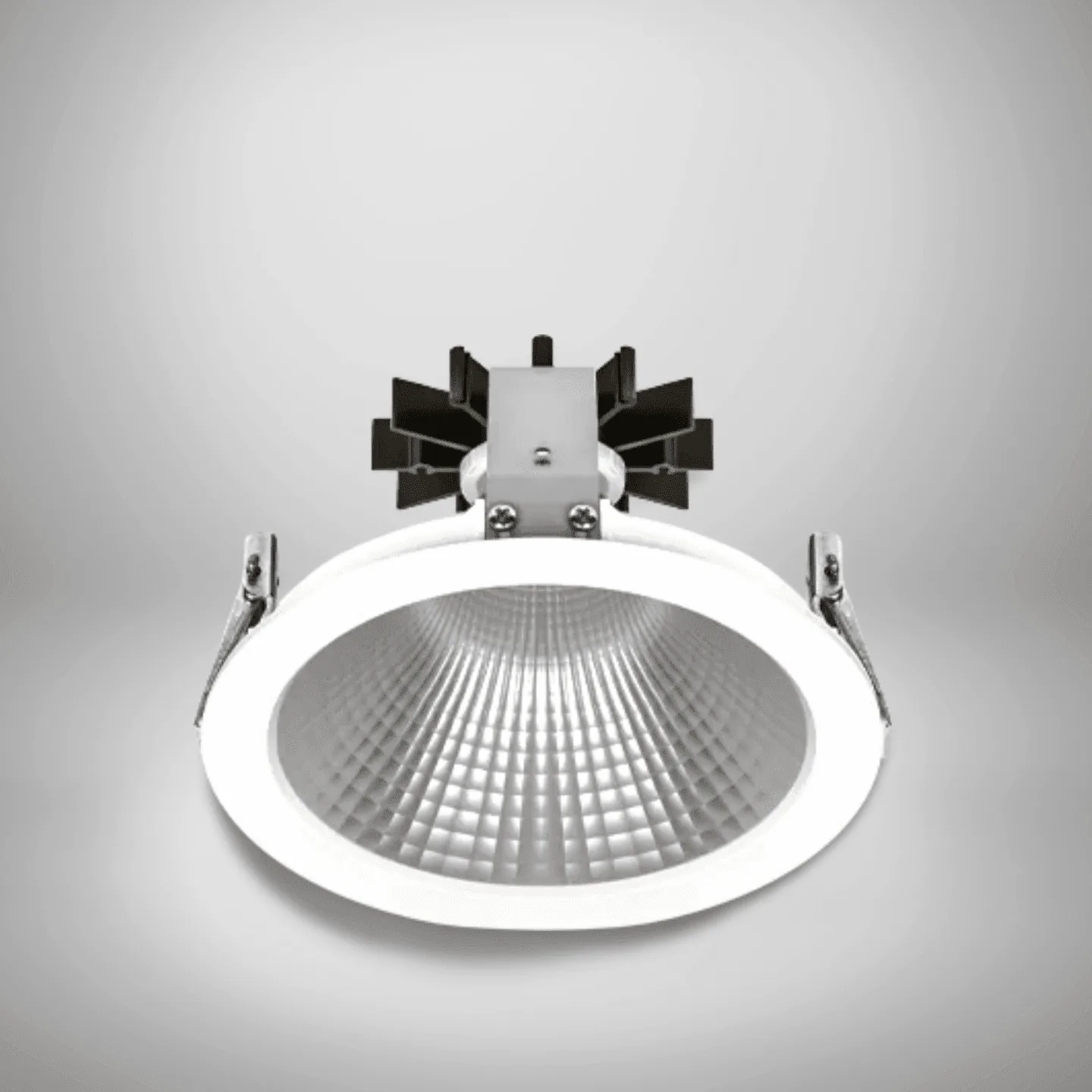

TM66 assessed LED downlightThe Vero LED Downlight is a low-glare luminaire for architectural and commercial applications, with a die-cast bezel in brilliant white (RAL9016) and a low-glare multi-faceted 55 degree aluminium reflector
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
Technical description
TM66 assessed LED downlight specification for Vero.
Vero's technical information also covers CIBSE TM66 assessed family; 98% recyclable family. This allows the product to be matched to the intended mounting, output and control requirements without extending the published specification.
Vero construction and mounting
White finish ( /WH ), white bezel ( /BWH ) and grey finish ( /GY ).
65° satin etched reflector ( /SA65 ), twist-and-lock bezel ( /TL ) and Tridonic EXCITE driver upgrade ( /TOP ).
Output, optics and colour temperature
For low glare downlight specifications, compare the model codes, outputs and available options below.
Vero output is 1,200–10,300 lm.
System power options are 9–94.5 W.
Controls, emergency and project options
DALI / SwitchDIM / DSI ( /ECO ) and Casambi wireless ( /BTC ) control options.
Emergency with remote indicator ( /EM ), EM Pro DALI emergency with remote indicator ( /EMD ), emergency with integral indicator ( /EMI ) and DALI emergency ( /EMDI ).
Control options include DALI / SwitchDIM / DSI, Casambi wireless.
Datasheets and technical files
Available resources include the datasheet, Installation Guide, Photometric data and BIM file for specification reference and product selection.
System power9–94.5 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsDALI, SwitchDIM, DSI, Casambi
EmergencyRemote or integral indicator, standard or EM Pro DALI emergency
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typeTM66 assessed LED downlight
Model codesVERO.001, VERO.002, VERO.003, VERO.004, VERO.005, VERO.006, VERO.007, VERO.008, VERO.009, VERO.010, VERO.011, VERO.012
Output1,200–10,300 lm
System power9–94.5 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsDALI, SwitchDIM, DSI, Casambi
EmergencyRemote or integral indicator, standard or EM Pro DALI emergency
Models, options and accessories
Vero model codes and specification options.
Choose the Vero base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes12 listed configurations
12 models are shown with output, CCT and power information where available.
1,200 lm / 3000K / 9 W
1,250 lm / 4000K / 9 W
1,875 lm / 3000K / 14.5 W
1,975 lm / 4000K / 14.5 W
3,200 lm / 3000K / 24.5 W
3,325 lm / 4000K / 24.5 W
4,625 lm / 3000K / 37 W
4,825 lm / 4000K / 37 W
7,900 lm / 3000K / 65.5 W
8,250 lm / 4000K / 65.5 W
10,025 lm / 3000K / 94.5 W
10,300 lm / 4000K / 94.5 W
Additional Vero options and accessoriesProduct images and specification choices
Finish/WH
White body or bezel finish
Finish/BWH
White bezel or body finish
Finish/GY
Grey body finish
Controls/ECO
SwitchDIM, DALI & DSI
Controls/BTC
Casambi wireless network including dimming
Emergency/EM
Emergency remote indicator
Emergency/EMD
DALI emergency, remote indicator
Emergency/EMI
Emergency integral indicator
Emergency/EMDI
DALI emergency, integral indicator
Ingress Protection/54
IP54 sealed clear lens
Performance/R9
High colour rendering LED module
Optics/SA65
65 degree satin etched reflector

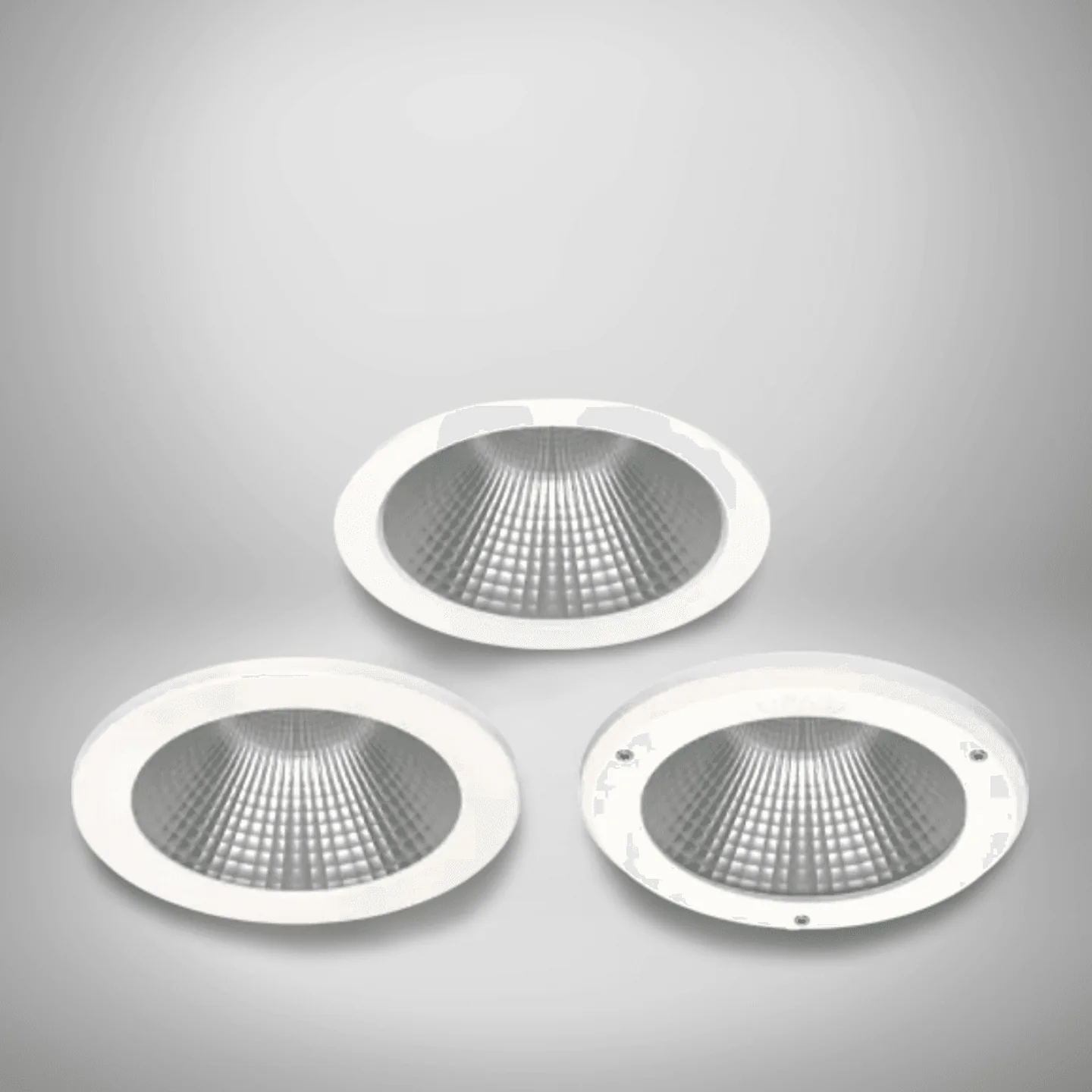

Body & Mounting/TL
Twist and lock bezel
Drivers/TOP
Tridonic Excite Series driver

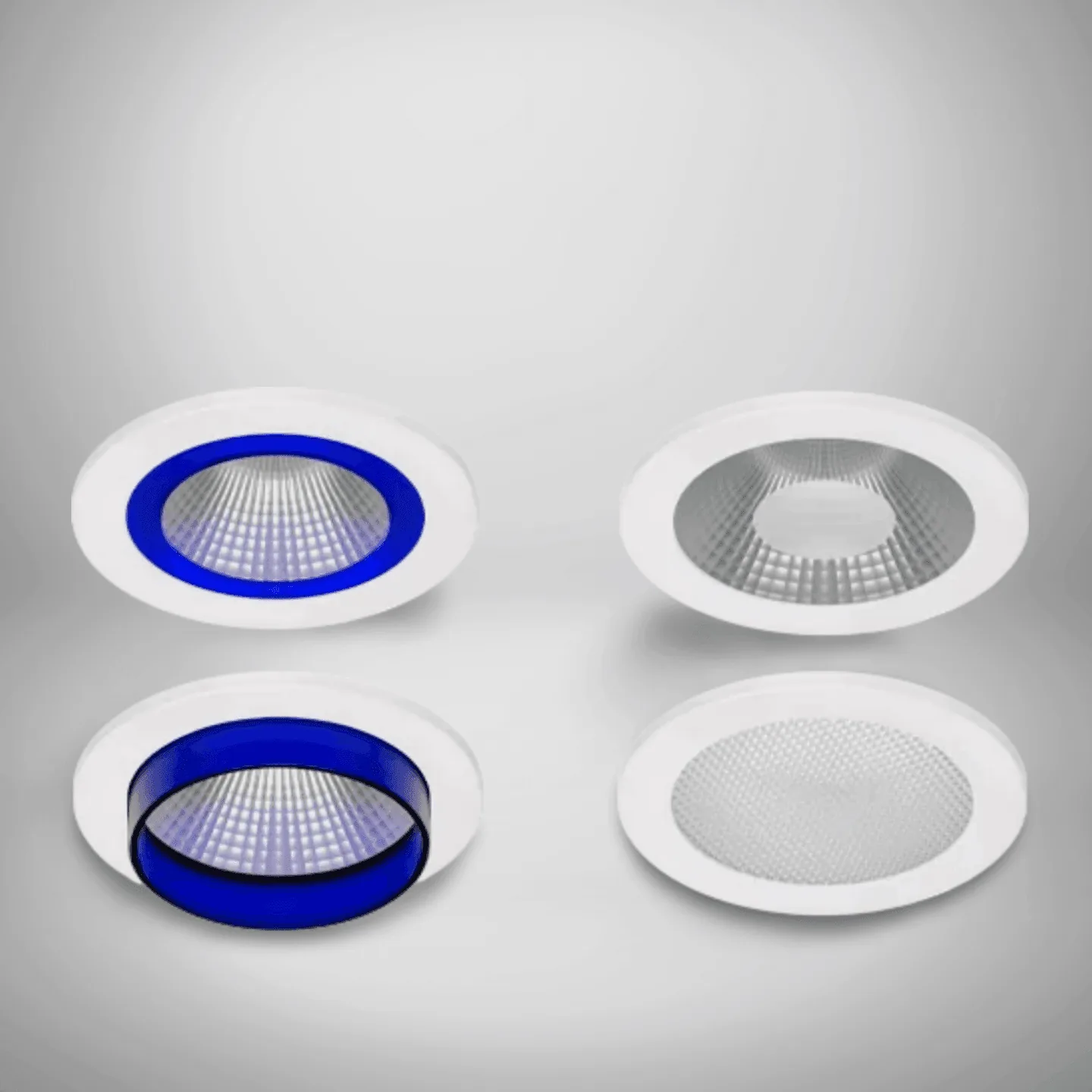

AccessoriesVERO.ACC.01
Wireless Casambi single wall switch
AccessoriesVERO.ACC.02
Wireless Casambi twin wall switch
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Vero
Why specify this TM66 assessed LED downlight?
The Vero LED Downlight is a low-glare luminaire for architectural and commercial applications, with a die-cast bezel in brilliant white (RAL9016) and a low-glare multi-faceted 55 degree aluminium reflector
The 12-model family combines 1,200–10,300 lm, 3000K / 4000K and 16 listed configuration choices without changing the core product identity.
Vero options kept clear for project specification
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
98% recyclable
Vero is available for projects requiring 98% recyclable lighting.
architectural
Vero is available for projects requiring architectural lighting.
cibse tm66 assessed
Vero is available for projects requiring cibse tm66 assessed lighting.
commercial
Vero is available for projects requiring commercial lighting.
Output1,200–10,300 lm12 listed models
CCT3000K / 4000KModel dependent
Options43Controls and accessories
Typical applicationsWhere Vero is specified
Downlights
Use Vero where downlights lighting is required.
Commercial interiors
The Vero LED Downlight is a low-glare luminaire for architectural and commercial applications, with a die-cast bezel in brilliant white (RAL9016) and a low-glare multi-faceted 55 degree aluminium reflector
Commercial interiors
The Vero LED Downlight is a low-glare luminaire for architectural and commercial applications, with a die-cast bezel in brilliant white (RAL9016) and a low-glare multi-faceted 55 degree aluminium reflector
Commercial interiors
The Vero LED Downlight is a low-glare luminaire for architectural and commercial applications, with a die-cast bezel in brilliant white (RAL9016) and a low-glare multi-faceted 55 degree aluminium reflector
Compare Vero with the wider downlights when reviewing output, optics, mounting, controls and emergency requirements.
low-glare LED downlight
Beam
Low-glare LED downlight. Review the model schedule and compatible options.
Compare product →
Tridonic reflector architectural downlight
Glow
Tridonic reflector architectural downlight. Review the model schedule and compatible options.
Compare product →
low-glare surface mounted downlight
Summit
Surface-mounted downlight. Review the model schedule and compatible options.
Compare product →Specification questions
Vero details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
12 configurations are listed: VERO.001, VERO.002, VERO.003, VERO.004, VERO.005, VERO.006, VERO.007, VERO.008, VERO.009, VERO.010, VERO.011, VERO.012.
The listed models cover 1,200–10,300 lm. Colour-temperature choices are 3000K / 4000K.
Control options include DALI, SwitchDIM, DSI, Casambi. Each option requires the matching control gear and wiring arrangement.
/EM and /EMD use remote indicators; /EMI and /EMDI use integral indicators. /EMD and /EMDI provide EM Pro DALI emergency. Select the emergency arrangement separately from normal lighting controls.
The Vero requires a Ø 176 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Vero datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
