Medium beam lens as standard
Supports controlled distribution and visual comfort in the finished ceiling.
Vantage track spotlight
Vantage is a professional LED track spotlight designed for high-performance, flexible lighting in commercial, retail, and architectural spaces.
Super-narrow, narrow and wide
HighRack lens options
MacAdam colour tolerance 3 SDCM
Consistent colour appearance across repeated fittings.
L90 55,000 hours
L90 lumen maintenance at 55,000 hours.
Model references
VANTAGE.001
Life >55,000 hours (L90)
Long-life LED performance.
Outputs up to 5225 lm
Output reference for specification and comparison.
Specification resources
Download Datasheet
Luminaire type
Track spotlight
Life >55,000 hours (L90)
Long-life LED performance.
Medium beam lens as standard
Supports controlled distribution and visual comfort in the finished ceiling.
Download Datasheet
Technical datasheet for specification review.
Project selection
Available luminaire options and accessories are shown below.
Configure For Enquiry
Configure Vantage for enquiry.
Select the output, optic, finish, control gear and accessories needed for the project, then send the configuration to Lumenloop for specification support.
Configured Specification
Selected Vantage specification.
Selection reference
VANTAGE.001
Selection reference
VANTAGE.001
Technical Description
Track spotlight specification for Vantage.
Vantage is a professional LED track spotlight designed for high-performance, flexible lighting in commercial, retail, and architectural spaces. Delivering up to 5,225 lm, it offers precise beam control with multiple lens options and a range of accessories for tailored illumination. Key specification details include life >55,000 hours (L90).
Performance and installation details include life >55,000 hours (L90). This section covers output, optics, mounting and control requirements.
Supporting resources include datasheet, where published.
Specification-led track spotlight features.
- Medium beam lens as standard: Supports controlled distribution and visual comfort in the finished ceiling.
- Super-narrow, narrow and wide: HighRack lens options
- MacAdam colour tolerance 3 SDCM: Consistent colour appearance across repeated fittings.
- L90 55,000 hours: L90 lumen maintenance at 55,000 hours.
- Outputs up to 5225 lm: Output reference for specification and comparison.
- DALI and wireless controls: DALI and wireless options can be aligned with the project control strategy.
- Range of interchangeable accessories available: Supports the selected specification.
- Finish: Ed in white as standard with black option
Optical And Mounting Detail
Vantage quick technical reference.
Vantage is a professional LED track spotlight designed for high-performance, flexible lighting in commercial, retail, and architectural spaces.
Key specification points include life >55,000 hours (L90).
Project notes include Controls: DALI control /DALI and Casambi wireless /BTC. Finish: Black finish /BK. Supporting files include datasheet.
Specification Choices
Vantage specification options.
Output and CCT
VANTAGE.0011,875 lm | 11.5 W | 3000K | White / Black
Output and CCT
VANTAGE.0021,925 lm | 11.5 W | 4000K | White / Black
Output and CCT
VANTAGE.0032,925 lm | 19.0 W | 3000K | White / Black
Output and CCT
VANTAGE.0043,025 lm | 19.0 W | 4000K | White / Black
Output and CCT
VANTAGE.0054,225 lm | 31.5 W | 3000K | White / Black
Output and CCT
VANTAGE.0064,350 lm | 31.5 W | 4000K | White / Black
Output and CCT
VANTAGE.0075,075 lm | 39.5 W | 3000K | White / Black
Output and CCT
VANTAGE.0085,225 lm | 39.5 W | 4000K | White / Black
Options And Accessories
Vantage options, finishes and controls.
/BK
Black finish (/BK) for projects that need the darker body option.
/DALI/BTC
DALI control (/DALI) and Casambi wireless (/BTC) are available.
/SNB/NB/WB
Super narrow beam (/SNB), narrow beam (/NB) and wide beam (/WB) options cover the core optic spread choices.
/LSW/LSB/ASW/ASB/HC

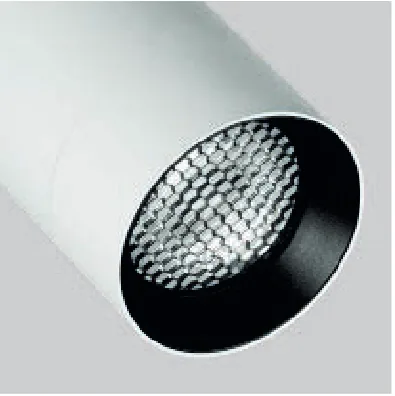

Long snoot white (/LSW), long snoot black (/LSB), asymmetric snoot white (/ASW), asymmetric snoot black (/ASB) and honeycomb louvre (/HC) options support tighter glare control.
/R9
High CRI (/R9) is available where stronger colour rendering is required.
Specification reasons
Why specify Vantage?
Optics
Medium beam lens as standard
Supports controlled distribution and visual comfort in the finished ceiling.
Optics
Super-narrow, narrow and wide
HighRack lens options
Selection point
MacAdam colour tolerance 3 SDCM
Consistent colour appearance across repeated fittings.
Performance
L90 55,000 hours
L90 lumen maintenance at 55,000 hours.
Performance
Outputs up to 5225 lm
Output reference for specification and comparison.
Controls
DALI and wireless controls
DALI and wireless options can be aligned with the project control strategy.
Product FAQs
Vantage specification questions.
Specification notes for contractors, consultants and buyers checking track spotlight options before ordering.
What makes Vantage different from a standard track spotlight?
Vantage is a professional LED track spotlight designed for high-performance, flexible lighting in commercial, retail, and architectural spaces. Delivering up to 5,225 lm, it offers precise beam control with multiple lens options and a range of accessories for tailored illumination. Key specification details include life >55,000 hours (L90).
Which ceilings or mounting conditions should be checked for Vantage?
Check the mounting method, ceiling construction, access space and installation guide before the luminaire is added to the final schedule.
Which outputs, wattages and colour temperatures are available?
Outputs up to 5225 lm: Output reference for specification and comparison. Life >55,000 hours (L90): Long-life LED performance. Output, colour temperature, control gear and emergency options vary by configuration.
What controls and emergency options can be specified?
Controls: DALI control /DALI and Casambi wireless /BTC. Confirm compatibility with the project control strategy, emergency schedule and selected base model before quotation.
Can finishes, accessories or product variations be specified?
Finish: Black finish /BK. Include the required finish, accessory or special variation in the quote request so Lumenloop can price the correct version.
Are photometric, BIM or installation files available?
Available resources include datasheet for specification reference, product selection and lighting calculations.
What lead time should be allowed for Vantage?
Lead time depends on quantity, finish, control gear, emergency conversion and current production capacity. Confirm the current project lead time with Lumenloop before placing an order.
Related commercial paths
Where this track product sits in the commercial range.
Related pages cover track infrastructure, spotlights, beam selection, retail layouts and controls.
Track lighting
Parent category for track systems, feeds, connectors and spotlight packages.
Track spotlightsCommercial spotlight selection route for accent and display lighting.
Retail track layout guideLayout guide for track runs, display zones, beam angles and controls.
Lighting controlsDALI, Casambi and switching routes for retail and display projects.
Product Support
Check product options and datasheets.
Share the selected code, room type, control preference and any accessory requirements. Lumenloop can provide datasheets, option notes and supporting files for the selected fitting.
