Low glare 40 deg
Multi-faceted reflector as standard
Prisma adjustable track spotlight
The Prisma LED Track Spot is a fully adjustable lighting solution designed to deliver exceptional performance and visual appeal.
25 deg narrow and
60 deg wide beam options
Luminaire outputs up to 3725 lm
Output reference for specification and comparison.
Philips Premium White LED module
Gives the product range a recognised LED and driver platform.
Model references
PRISMA.001
Life >50,000 hours (L70 / B10)
Long-life LED performance.
High colour rendering Ra90
Consistent colour appearance across repeated fittings.
Specification resources
Download Datasheet
Luminaire type
Adjustable track spotlight
Life >50,000 hours (L70 / B10)
Long-life LED performance.
High colour rendering Ra90
Consistent colour appearance across repeated fittings.
Low glare 40 deg
Multi-faceted reflector as standard
Download Datasheet
Technical datasheet for specification review.
Project selection
Available luminaire options and accessories are shown below.
Configure For Enquiry
Configure Prisma for enquiry.
Select the output, optic, finish, control gear and accessories needed for the project, then send the configuration to Lumenloop for specification support.
Configured Specification
Selected Prisma specification.
Selection reference
PRISMA.001
Selection reference
PRISMA.001
Technical Description
Adjustable track spotlight specification for Prisma.
The Prisma LED Track Spot is a fully adjustable lighting solution designed to deliver exceptional performance and visual appeal. Powered by a high colour rendering Philips Premium White LED module, it offers luminaire outputs of up to 3,725 lumens, ensuring bright and accurate illumination for a variety of applications
Performance and installation details include life >50,000 hours (L70 / B10) and high colour rendering Ra90: Consistent colour appearance across repeated fittings. This section covers output, optics, mounting and control requirements.
Available options include high colour rendering Ra90: Consistent colour appearance across repeated fittings. Model codes, control compatibility and lead times vary by configuration. Supporting resources include datasheet, where published.
Specification-led adjustable track spotlight features.
- Low glare 40 deg: Multi-faceted reflector as standard
- 25 deg narrow and: 60 deg wide beam options
- Luminaire outputs up to 3725 lm: Output reference for specification and comparison.
- Philips Premium White LED module: Gives the product range a recognised LED and driver platform.
- Highly efficient heatsink: Supports the selected specification.
- DALI dimming option: Suitable for a range of control and emergency options.
- Life >50,000 hours (L70 / B10): Long-life LED performance.
- Adjustment: 355 deg swivel / 320 deg tilt
Optical And Mounting Detail
Prisma quick technical reference.
The Prisma LED Track Spot is a fully adjustable lighting solution designed to deliver exceptional performance and visual appeal.
Key specification points include life >50,000 hours (L70 / B10).
Project notes include Controls: DALI control /DALI and Barn doors for directional control /BD. Finish: White finish /WH, Black finish /BK and Black body with grey heatsink (RAL 9005/9007) /BKGY. Supporting files include datasheet.
Specification Choices
Prisma specification options.
Output and CCT
PRISMA.0011,150 lm | 11.5 W | 3000K
Output and CCT
PRISMA.0021,250 lm | 11.5 W | 4000K
Output and CCT
PRISMA.0031,800 lm | 19.5 W | 3000K
Output and CCT
PRISMA.0041,925 lm | 19.5 W | 4000K
Output and CCT
PRISMA.0052,425 lm | 27.0 W | 3000K
Output and CCT
PRISMA.0062,600 lm | 27.0 W | 4000K
Output and CCT
PRISMA.0073,450 lm | 43.5 W | 3000K
Output and CCT
PRISMA.0083,725 lm | 43.5 W | 4000K
Options And Accessories
Prisma options, finishes and controls.
/WH/BK/BKGY
White finish (/WH), black finish (/BK) and black body with grey heatsink (/BKGY) are available.
/DALI/BD
DALI control (/DALI) and barn doors for directional control (/BD) are available.
/NB/WB
Narrow beam (/NB) and wide beam (/WB) options are shown in the source pack.
/SN/HC

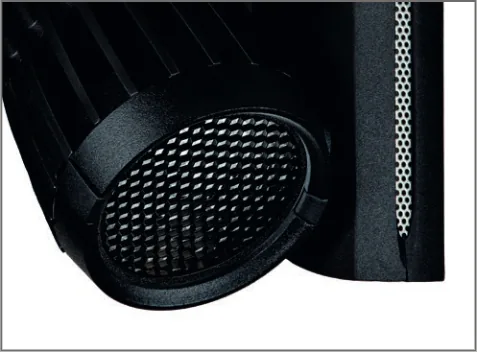

Snoot for spotlight focus (/SN) and honeycomb louvre (/HC) are available.
Needs confirmation
Black and white pattress accessories appear in the source tiles. Exact accessory code needs confirmation.
Specification reasons
Why specify Prisma?
Optics
Low glare 40 deg
Multi-faceted reflector as standard
Optics
25 deg narrow and
60 deg wide beam options
Performance
Luminaire outputs up to 3725 lm
Output reference for specification and comparison.
Selection point
Philips Premium White LED module
Gives the product range a recognised LED and driver platform.
Controls
Highly efficient heatsink
Supports the selected specification.
Controls
DALI dimming option
Suitable for a range of control and emergency options.
Product FAQs
Prisma specification questions.
Specification notes for contractors, consultants and buyers checking adjustable track spotlight options before ordering.
What makes Prisma different from a standard adjustable track spotlight?
The Prisma LED Track Spot is a fully adjustable lighting solution designed to deliver exceptional performance and visual appeal. Powered by a high colour rendering Philips Premium White LED module, it offers luminaire outputs of up to 3,725 lumens, ensuring bright and accurate illumination for a variety of applications
Which ceilings or mounting conditions should be checked for Prisma?
Check the mounting method, ceiling construction, access space and installation guide before the luminaire is added to the final schedule.
Which outputs, wattages and colour temperatures are available?
High colour rendering Ra90: Consistent colour appearance across repeated fittings. Life >50,000 hours (L70 / B10): Long-life LED performance. Output, colour temperature, control gear and emergency options vary by configuration.
What controls and emergency options can be specified?
Controls: DALI control /DALI and Barn doors for directional control /BD. Confirm compatibility with the project control strategy, emergency schedule and selected base model before quotation.
Can finishes, accessories or product variations be specified?
Finish: White finish /WH, Black finish /BK and Black body with grey heatsink (RAL 9005/9007) /BKGY. Include the required finish, accessory or special variation in the quote request so Lumenloop can price the correct version.
Are photometric, BIM or installation files available?
Available resources include datasheet for specification reference, product selection and lighting calculations and specification records.
What lead time should be allowed for Prisma?
Lead time depends on quantity, finish, control gear, emergency conversion and current production capacity. Confirm the current project lead time with Lumenloop before placing an order.
