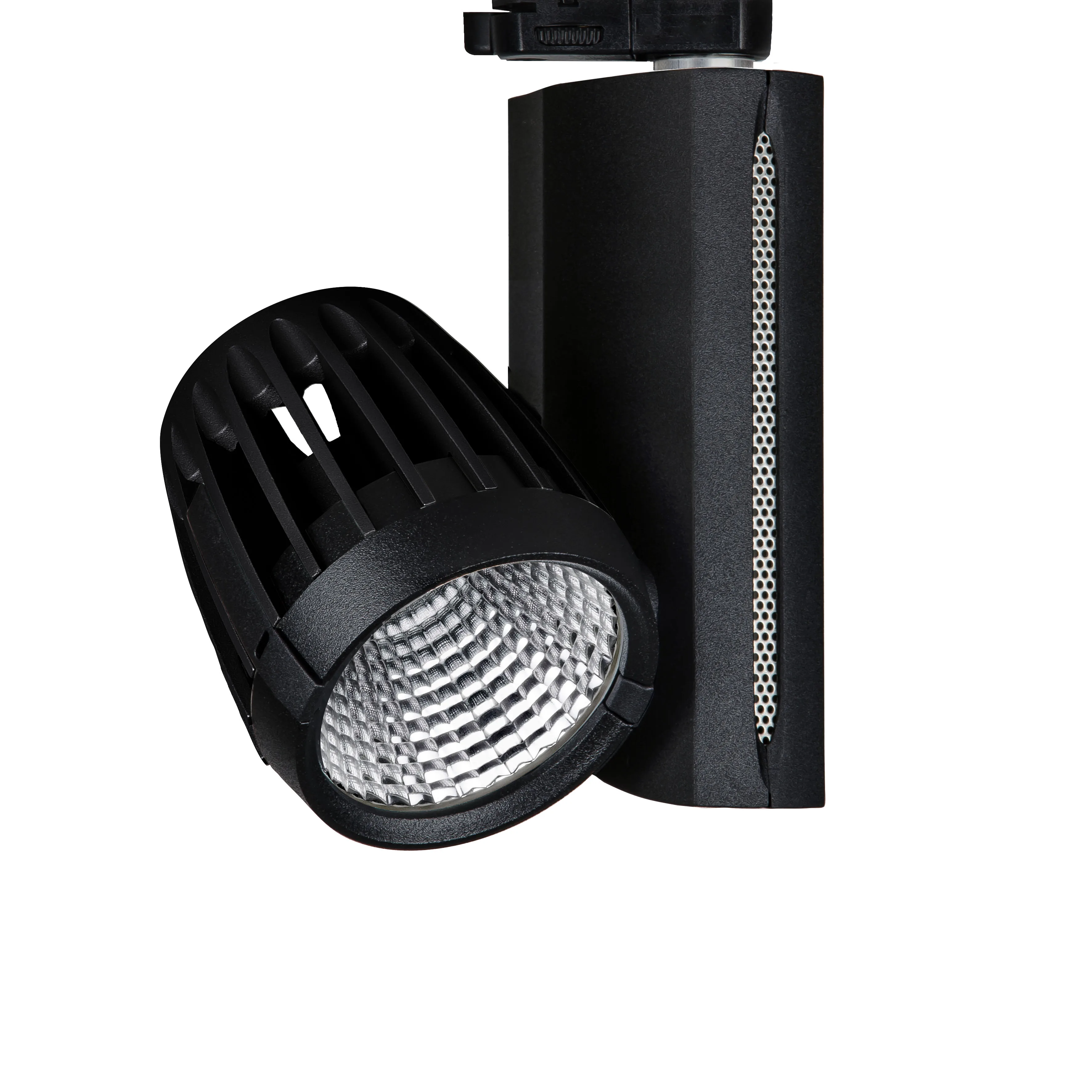

Capsule adjustable track spotlight
Fully adjustable LED track spotlight with high output, glare control and a distinct architectural body. Key specification details include delivered output: 3200 - 4675 lm and standard optic: 40 degree multi-faceted reflector.
3200 - 4675 lm
output range.
Control ready
Dimming or DALI options listed.
>55,000h L80/F10
Lifetime data available.
Model references
CAPSULE.001 to CAPSULE.006

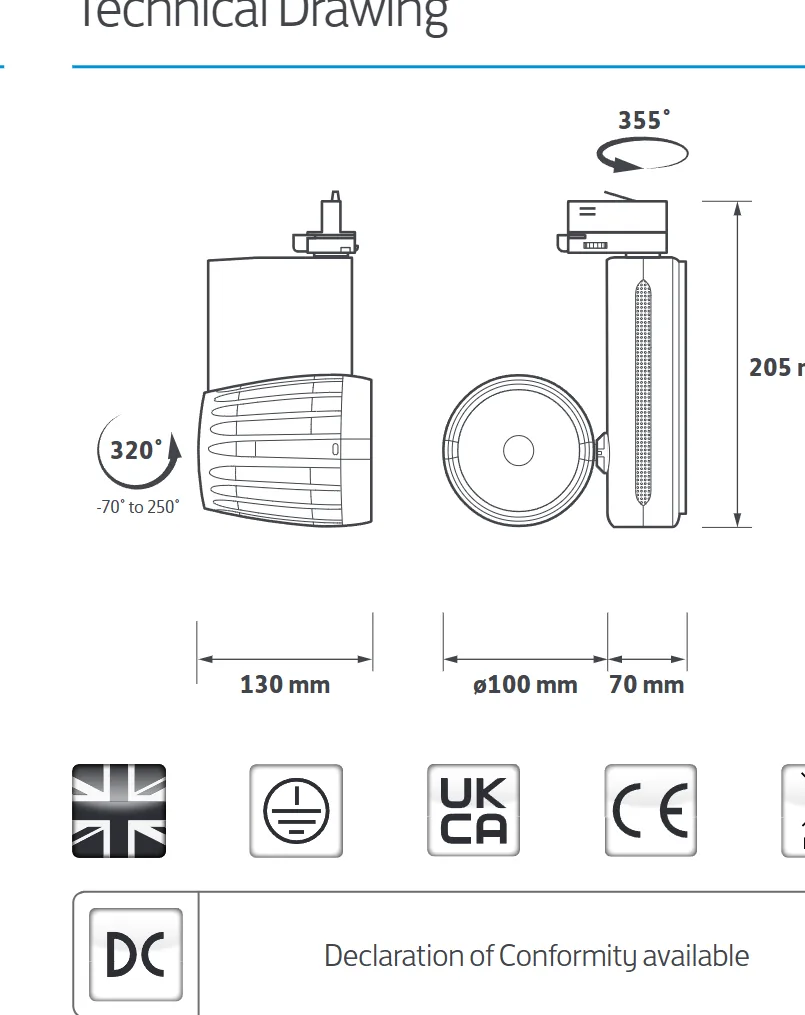

Dimensions
205 mm height / 100 mm diameter / 130 mm body
Height
205 mm
Body
130 mm
Luminaire type
Adjustable track spotlight
Standard optic
40 degree multi-faceted reflector
Delivered output
3200 - 4675 lm
Dimensions
205 mm height / 100 mm diameter / 130 mm body
Download Datasheet
Technical datasheet for product reference.
Project selection
Available luminaire options and accessories are shown below.
Configure For Enquiry
Configure Capsule for enquiry.
Select the output, optic, finish, control gear and accessories needed for the project, then send the configuration to Lumenloop for product information or a quotation.
Configured Specification
Selected Capsule specification.
Selection reference
CAPSULE.001
Selection reference
CAPSULE.001
Technical Description
Adjustable track spotlight specification for Capsule.
Fully adjustable LED track spotlight with high output, glare control and a distinct architectural body. Key specification details include delivered output: 3200 - 4675 lm and standard optic: 40 degree multi-faceted reflector.
Performance and installation details include standard optic: 40 degree multi-faceted reflector, delivered output: 3200 - 4675 lm, colour temperature: 3000K / 4000K and dimensions: 205 mm height / 100 mm diameter / 130 mm body. This section covers output, optics, mounting and control requirements.
Available options include controls: DALI option and dimensions: 205 mm height / 100 mm diameter / 130 mm body. Model codes, control compatibility and lead times vary by configuration. Supporting resources include datasheet, where published.
Specification-led adjustable track spotlight features.
- Controlled optic: Optical options available.
- 3200 - 4675 lm: output range.
- Control ready: Dimming or DALI options listed.
- >55,000h L80/F10: Lifetime data available.
- UK made: Manufactured in the UK.
- Options mapped: All visible options included.
- Low glare 40 degree: Multi-faceted reflector as standard
- 25 deg narrow and: 60 deg wide beam options
Optical And Mounting Detail
Capsule quick technical reference.
Fully adjustable LED track spotlight with high output, glare control and a distinct architectural body.
Key specification points include dimensions: 205 mm height / 100 mm diameter / 130 mm body, standard optic: 40 degree multi-faceted reflector and delivered output: 3200 - 4675 lm.
Project notes include Controls and dimming: SwitchDIM, DALI or DSI /ECO, 100,000 hour Tridonic Excite driver /TOP, Barn doors - Black /BD, Snoot - Black /SN, Honeycomb louvre /HC and Black body with grey heatsink - RAL9005 / RAL9007 /BKGY. Mounting and accessories: Surface mounting pattress - White 9000/BP/D/W and Surface mounting pattress - Black 9000/BP/D/B. Finish: White body and heatsink - RAL9016 /WH and Black body and heatsink - RAL9005 /BK. Supporting files include datasheet.
Specification Choices
Capsule specification options.
Output and CCT
CAPSULE.0013200 lm | 27.0 W | 3000K
Output and CCT
CAPSULE.0023300 lm | 27.0 W | 4000K
Output and CCT
CAPSULE.0034000 lm | 35.0 W | 3000K
Output and CCT
CAPSULE.0044150 lm | 35.0 W | 4000K
Output and CCT
CAPSULE.0054575 lm | 41.5 W | 3000K
Output and CCT
CAPSULE.0064675 lm | 41.5 W | 4000K
Options And Accessories
Capsule options, finishes and controls.
/ECO/TOP/BD/SN/HC/BKGY

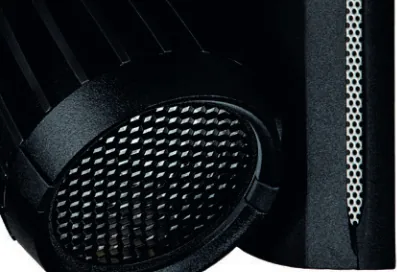

SwitchDIM, DALI or DSI /ECO; 100,000 hour Tridonic Excite driver /TOP; Barn doors - Black /BD; Snoot - Black /SN; Honeycomb louvre /HC; Black body with grey heatsink - RAL9005 / RAL9007 /BKGY
/NB/WB
25 degree narrow beam reflector /NB; 60 degree wide beam reflector /WB
9000/BP/D/W9000/BP/D/B
Surface mounting pattress - White 9000/BP/D/W; Surface mounting pattress - Black 9000/BP/D/B
/WH/BK
White body and heatsink - RAL9016 /WH; Black body and heatsink - RAL9005 /BK
Custom configurationXicato modules
Other colours and specifications are available on request as Custom configuration; Xicato modules are available by sales request.
Include the required variation in the quote request so Lumenloop can price the correct variant.
Prisma modulesTrack
See Prisma datasheet Prisma modules; See Stucchi ONETRACK datasheet Track
Specification reasons
Why specify Capsule?
Optics
Controlled optic
Optical options available.
Performance
3200 - 4675 lm
output range.
Controls
Control ready
Dimming or DALI options listed.
Warranty
>55,000h L80/F10
Lifetime data available.
Selection point
UK made
Manufactured in the UK.
Selection point
Options mapped
All visible options included.
Product FAQs
Capsule specification questions.
Specification notes for contractors, consultants and buyers checking adjustable track spotlight options before ordering.
What makes Capsule different from a standard adjustable track spotlight?
Fully adjustable LED track spotlight with high output, glare control and a distinct architectural body. Key specification details include delivered output: 3200 - 4675 lm and standard optic: 40 degree multi-faceted reflector.
Which ceilings or mounting conditions should be checked for Capsule?
Dimensions: 205 mm height / 100 mm diameter / 130 mm body. Height: 205 mm. Body: 130 mm. Check ceiling build-up, access space and fixing method before ordering.
Which outputs, wattages and colour temperatures are available?
Delivered output: 3200 - 4675 lm. Power: 27.0 - 41.5 tcW. Colour temperature: 3000K / 4000K. Life rating: >55,000h L80/F10. Output, colour temperature, control gear and emergency options vary by configuration.
What controls and emergency options can be specified?
Controls and dimming: SwitchDIM, DALI or DSI /ECO, 100,000 hour Tridonic Excite driver /TOP, Barn doors - Black /BD, Snoot - Black /SN, Honeycomb louvre /HC and Black body with grey heatsink - RAL9005 / RAL9007 /BKGY. Confirm compatibility with the project control strategy, emergency schedule and selected base model before quotation.
Can finishes, accessories or product variations be specified?
Mounting and accessories: Surface mounting pattress - White 9000/BP/D/W and Surface mounting pattress - Black 9000/BP/D/B. Finish: White body and heatsink - RAL9016 /WH and Black body and heatsink - RAL9005 /BK. Review-required variations: Other colours and specifications available on request as Custom configuration, plus Xicato modules by sales request. Include the required finish, accessory or special variation in the quote request so Lumenloop can price the correct version.
Are photometric, BIM or installation files available?
Available resources include the datasheet for specification reference and product selection.
What lead time should be allowed for Capsule?
Lead time depends on quantity, finish, control gear, emergency conversion and current production capacity. Confirm the current project lead time with Lumenloop before placing an order.
Product Support
Confirm the Capsule variant for your lighting schedule.
Send the selected code, room type, control requirement and accessory choices so the team can check the right Capsule output, beam and control package for the project.
