MountingTrack mounted

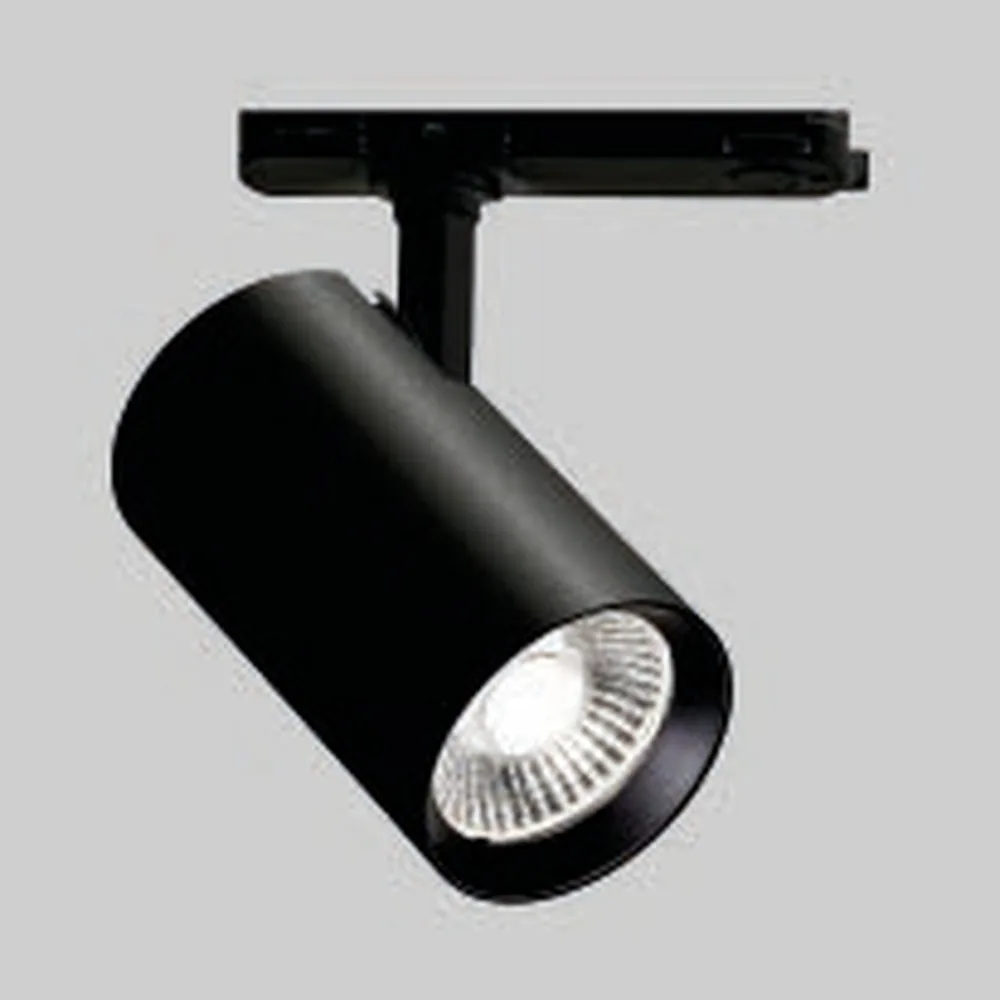

Track mounted high-output LED track spotlight
Vantagehigh-output LED track spotlight
High output.
Exact beam control.
Lumenloop Vantage is a high-output LED track spotlight for retail displays, hospitality interiors and architectural accent lighting. Output packages run from 1,875 lm to 5,225 lm, with 15°, 24°, 36° and 60° beam options for precise control.
Compare the output, beam, colour quality, control and accessory suffixes below.
- Output
- 1875–5225 lm 8 model codes
- Beam range
- 15°–60° 36° standard
- Rated life
- 55,000 h L90
01 / 08
OutputUp to 5225 lm
Optics4 beam angles
Colour qualityRa80 + Ra90
ControlsDALI, Casambi
Product configurator
Configure your Vantage
Choose output and CCT, then set body finish, beam angle, colour rendering, control gear and any glare-control accessory. The full product code updates beside the controls.
LuminaireProduct family
high-output LED track spotlightVossloh LED with in-track driver system
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Vantage high-output LED track spotlight quick specification.
Check the installation, output, colour temperature and control information for this high-output LED track spotlight before reviewing the full model schedule.
OutputUp to 5225 lm
ControlsDALI, Casambi
Product typehigh-output LED track spotlight
Diameter90 mm
DimensionsDRAWING: 158 mm BODY, 90 mm DIAMETER, 155 mm FITTING HEIGHT AND 185 mm OVERALL HEIGHT
Product files
Download Vantage technical files.
Available files for this exact product are listed below.
C0 plane distributionIntensity · cd/klm
Technical description
More output. More control over the beam.
Vantage is a high-output LED track spotlight for commercial, gallery, retail and architectural interiors requiring a tidy cylindrical form, strong lumen packages and interchangeable optical control.
Eight high-output models
Eight model codes span 1875 to 5225 lumens in 3000K and 4000K. System power ranges from 11.5 W to 39.5 W, with published efficacy reaching 167 lm/W.
The Vossloh LED and in-track driver system is specified with Ra80 as standard, a Ra90 option and 3-step MacAdam colour tolerance. Lumen maintenance is stated as L90 at 55,000 hours.
Interchangeable beam control
A 36° medium beam is standard. The /SNB lens provides a 15° super-narrow beam, /NB provides a 24° narrow beam and /WB provides a 60° wide beam.
A honeycomb louvre, long snoots and asymmetric adjustable snoots provide additional glare and spill-light control without changing the core spotlight body.
Track finish and control options
White is standard and /BK changes the spotlight to black. The cylindrical body is 90 mm in diameter and 158 mm long, with a 155 mm fitting height and 185 mm overall height.
DALI uses the /DALI suffix. Casambi wireless control including dimming uses /BTC and can be paired with the listed single or twin wireless wall switches.
1875–5225 lmEight 3000K and 4000K models
15°–60° beamsFour interchangeable distributions
Ra90 optionEnhanced colour rendering when required
55,000 hoursL90 lumen-maintenance reference
DALI and CasambiWired and wireless track control
Snoot accessoriesHoneycomb, long and adjustable options
See the Lumenloop commercial track spotlights range for related mounting, output and optic options.
Product typehigh-output LED track spotlight
Model codesVANTAGE.001 to VANTAGE.008
Output1875 to 5225 lumens
System power11.5, 19, 31.5 or 39.5 W
Efficacy128 to 167 lm/W
Colour temperature3000K / 4000K
Colour renderingRa80 standard / Ra90 option
Colour consistency3 SDCM
Standard beam36° medium
Alternative beams15° super narrow / 24° narrow / 60° wide
Body158 mm long / 90 mm diameter
Height155 mm fitting / 185 mm overall
FinishWhite standard / black option
ControlsDALI, Casambi
AccessoriesHoneycomb louvre, long snoot, asymmetric adjustable snoot
Life55,000 hours L90
Warranty5 years
ComplianceCE / UKCA; Declaration of Conformity available
Models, options and accessories
Vantage model codes and specification options.
Choose output and CCT first, then define beam, finish, colour rendering, track control and optical accessory requirements.
Model codes8 listed configurations
Four output levels are available in both 3000K and 4000K.
1875 lm11.5 W163 lm/W
1925 lm11.5 W167 lm/W
2925 lm19 W154 lm/W
3025 lm19 W159 lm/W
4225 lm31.5 W134 lm/W
4350 lm31.5 W138 lm/W
5075 lm39.5 W128 lm/W
5225 lm39.5 W132 lm/W
Finish
/BK
Black body finish
Optical accessory
/HC
Honeycomb louvre
Control gear
/DALI
DALI control gear
Wireless control
/BTC
Casambi wireless network including dimming
Colour rendering
/9
Ra90 high colour-rendering LED module
Beam
/SNB
15° super-narrow beam
Beam
/NB
24° narrow beam
Beam
/WB
60° wide beam
Snoot
/LSW
Long snoot — white
Snoot
/LSB
Long snoot — black
Snoot
/ASW
Asymmetric adjustable snoot — white
Snoot
/ASB
Asymmetric adjustable snoot — black
Additional options and accessoriesProduct images and descriptions for the remaining choices
Track accessoryVANTAGE.ACC.01
Track and accessories
Wireless accessoryVANTAGE.ACC.02
Casambi single wall switch
Wireless accessoryVANTAGE.ACC.03
Casambi twin wall switch
Beam, finish, Ra90 and control suffixes are independent selections. Match white or black snoot accessories to the required body and ceiling appearance.
Why Vantage
Why specify this high-output LED track spotlight?
Vantage provides up to 5225 lumens from a restrained 90 mm cylindrical body, giving commercial track systems a higher-output option without an oversized visual presence.
Interchangeable lenses and glare-control accessories allow the beam to move from tight accent lighting to broad coverage while retaining the same spotlight family.
High-output track lighting with precise optical choices
Four output levels in 3000K and 4000K can be matched to 15°, 24°, 36° or 60° beams.
White or black finishes, Ra90, DALI, Casambi, honeycomb and snoot options keep colour quality, control and spill light explicit in the product code.
High output
Eight models provide 1875 to 5225 lumens for varied mounting heights.
Four beam angles
Super-narrow, narrow, medium and wide distributions from 15° to 60°.
Colour and finish
3000K or 4000K, Ra80 or Ra90, and white or black bodies.
Control accessories
DALI, Casambi, honeycomb and multiple snoot choices.
Output1875–5225 lmEight listed models
Life55,000 hL90
Warranty5 yearsProduct warranty
Typical applicationsWhere Vantage is specified
Retail lighting
High-output accent and general track lighting with four beam angles.
Galleries
Ra90 and glare-control accessories for colour-sensitive displays.
Hospitality interiors
White or black track spots with controlled beam and spill-light choices.
Architectural spaces
DALI or Casambi control for flexible track-lighting arrangements.
Compare Vantage with the wider track spotlights when reviewing output, optics, mounting, controls and emergency requirements.

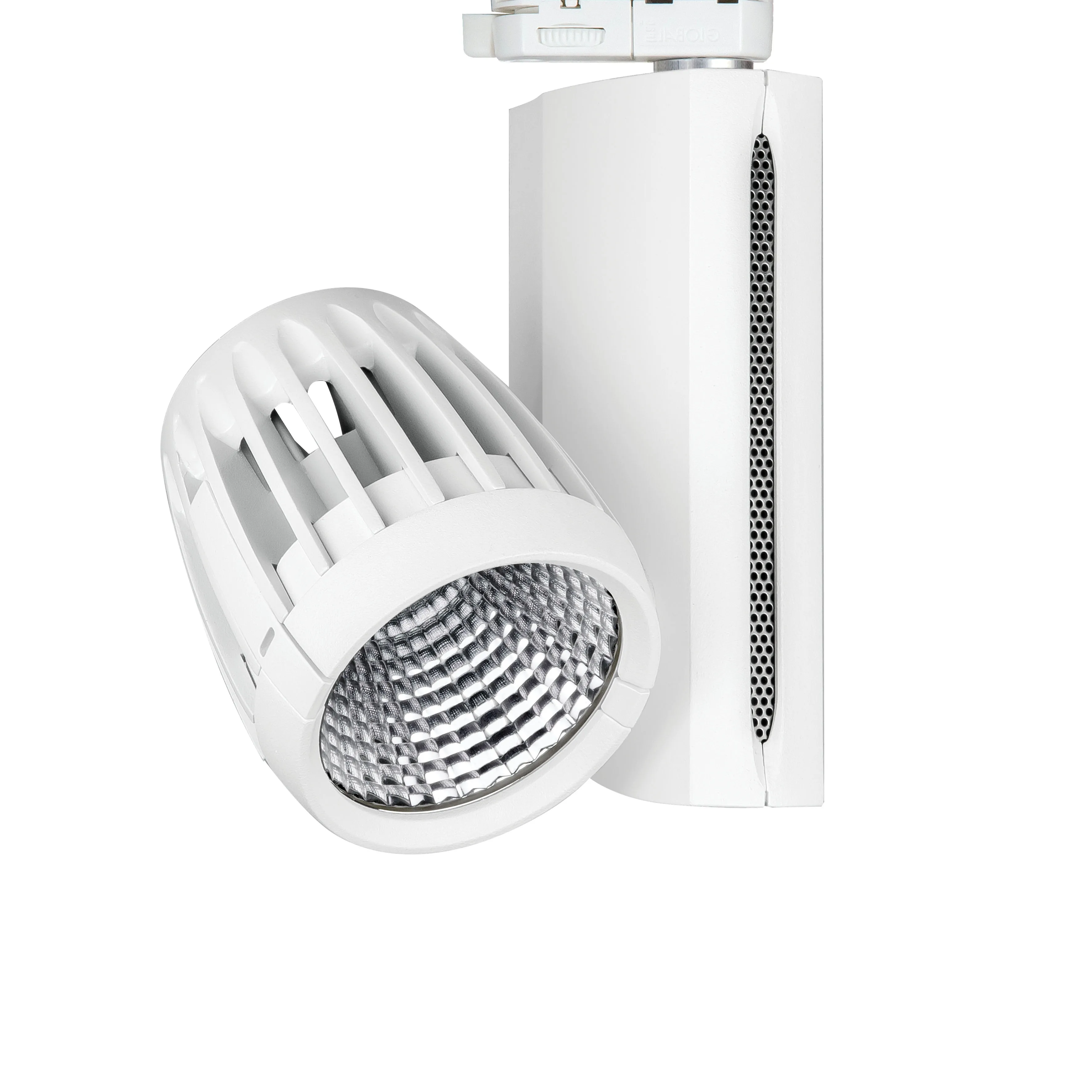

integrated-driver LED track spotlight
Capsule
Capsule is a fully adjustable LED track spotlight with the driver housed within the fitting, keeping the installation self-contained while delivering outputs of up to 4,675 lumens.
Compare product →

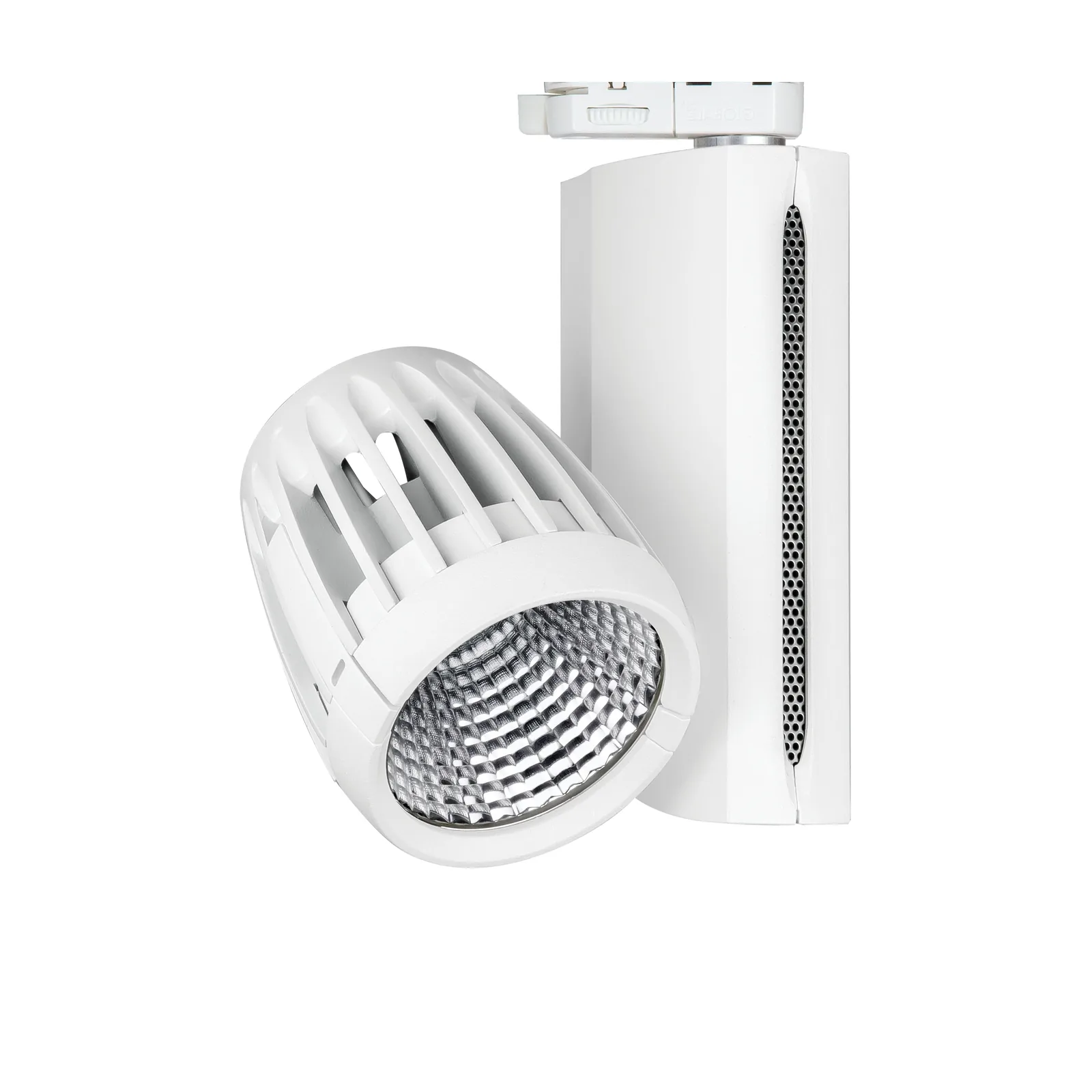

high-CRI LED track spotlight
Prisma
Prisma is a high-CRI LED track spotlight with high colour rendering and beam control.
Compare product →

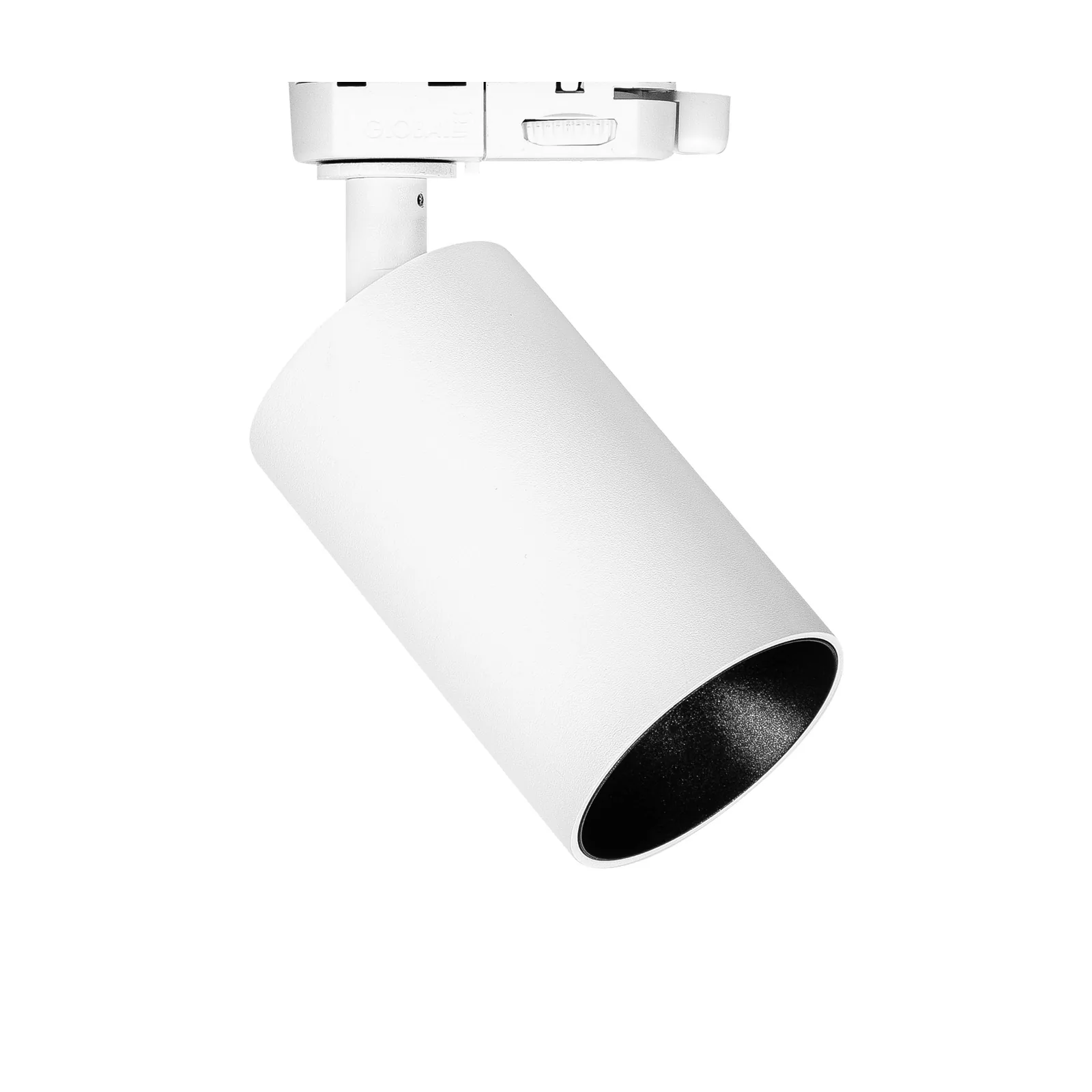

mini LED track spotlight
Versa Track
The Versa mini LED track spotlight is available in single, twin and track-mounted configurations, with Philips LED technology and colour rendering options up to Ra97 for office refurbishment, retail and workplace lighting projects.
Compare product →Specification questions
Vantage details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
The range provides eight models from 1875 to 5225 lumens, with four power levels in both 3000K and 4000K.
A 36° medium beam is standard. The datasheet also lists 15° super narrow, 24° narrow and 60° wide beam lenses.
The body is 158 mm long and 90 mm in diameter. Fitting height is 155 mm and overall height is 185 mm.
Yes. Ra80 is standard and the /9 suffix provides a Ra90 high colour-rendering LED module.
/DALI provides DALI control gear and /BTC provides Casambi wireless control including dimming.
Options include a honeycomb louvre, white or black long snoots, and white or black asymmetric adjustable snoots.
Yes. White is standard and /BK specifies the black body finish.
Vantage is listed at 55,000 hours L90 with a five-year warranty.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
Product quotation
Request a quotation for Vantage.
Send the selected code, quantity and any mounting, control, emergency or finish requirements. Your configurator choices are carried into the form automatically.
Configuration retainedThe product code and quantity update as you configure the fitting.
Useful project detailAdd the application, required date and any option requirements you already know.
Direct contactPrefer to speak? Call 02045 721 554 or email Lumenloop.
Average lead time10 working days for standard product configurations. Custom accessories, custom finishes and other custom variations are excluded; contact us to confirm timing.
