DOWNLIGHTS adjustable gimbal LED downlight
Adjustable gimbal LED downlight – Twist
Twist.
adjustable gimbal LED downlight.
Twist is an adjustable gimbal LED downlight with the Twist, a fully adjustable die-cast LED gimbal featuring Philips LED technology and ETL/Part L compliance. Choose outputs up to 2800 lm (Model TWIST.006) with Ra80 standard and optional Ra90 colour rendering.
- Output
- 1,150–2,800 lm 6 model codes
- Colour temperature
- 3000K / 4000K model dependent
- Options
- 4 listed controls and accessories
01 / 06
Output1,150–2,800 lm
Colour temperature3000K / 4000K
ControlsDALI, Casambi
Ceiling cut-out140 mm
At a glance
Twist adjustable gimbal LED downlight quick specification.
Check the installation, output, colour temperature and control information for this adjustable gimbal LED downlight before reviewing the full model schedule.
Technical referenceNot to scale
Key specificationSource-backed summary
- 01Ceiling cut-out
- 140 mm
- 02Bezel
- 150 mm
- 03Output
- 1,150–2,800 lm
- 04System power
- 8 W / 13.5 W / 19 W
- 05CCT
- 3000K / 4000K
- 06Controls
- Touch dimming / DALI · Casambi
Product files
Download Twist technical files.
Available files for this exact product are listed below.
C0 / C90 plane comparison from source LDT valuesIntensity · cd/klm
Product configurator
Configure your Twist
Choose the Twist model first, then add only the control, optic, emergency, finish or mounting options required for the project.
LuminaireProduct family
adjustable gimbal LED downlightFlex your lighting designs with the Twist, a fully adjustable die-cast LED gimbal featuring Philips LED technology and ETL/Part L compliance. Choose outputs up to 2800 lm (Model TWIST.006) with Ra80 standard and optional Ra90 colour rendering
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
Technical description
Adjustable gimbal LED downlight specification for Twist.
Flex your lighting designs with the Twist, a fully adjustable die-cast LED gimbal featuring Philips LED technology and ETL/Part L compliance. Choose outputs up to 2800 lm (Model TWIST.006) with Ra80 standard and optional Ra90 colour rendering. Key specification details include life >66,000 hours (L90 / B10).

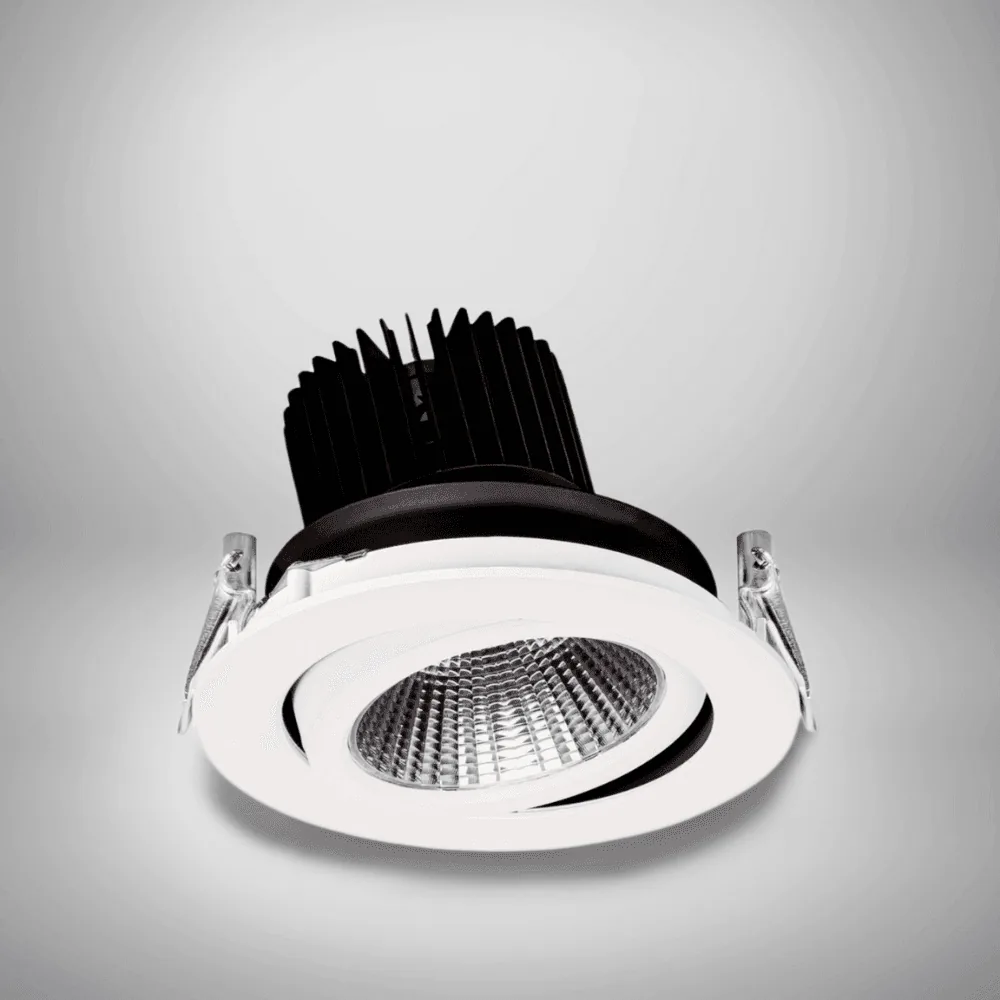

Twist construction and mounting
For gimbal downlight specifications, compare the model codes, outputs and available options below.
Performance and installation details include life >66,000 hours (L90 / B10). This section covers output, optics, mounting and controls.
Output, optics and colour temperature
Outputs up to 2800 lm with Ra80 standard and optional Ra90 colour rendering.
Twist output is 1,150–2,800 lm.
System power options are 8 W / 13.5 W / 19 W.
Controls, emergency and project options
Control options include Touch dimming or DALI, Casambi wireless.
Emergency options include 3-hour emergency, self-test emergency and DALI emergency.
System power8 W / 13.5 W / 19 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsDALI, Casambi
EmergencyThree-hour emergency, Self-test emergency, DALI emergency
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typeadjustable gimbal LED downlight
Model codesTWIST.001, TWIST.002, TWIST.003, TWIST.004, TWIST.005, TWIST.006
Output1,150–2,800 lm
System power8 W / 13.5 W / 19 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsDALI, Casambi
EmergencyThree-hour emergency, Self-test emergency, DALI emergency
Models, options and accessories
Twist model codes and specification options.
Choose the Twist base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes6 listed configurations
6 model configurations are shown with their output, CCT, power and finish information where available.
1,150 lm8 W
1,175 lm8 W
1,950 lm13.5 W
2,025 lm13.5 W
2,725 lm19 W
2,800 lm19 W
Additional Twist options and accessoriesProduct images and specification choices
Reflector/WB
40 degree multi-faceted reflector.
Controls/T+DALI
Touch dimming / DALI control.
Reflector/NB
12 degree multi-faceted reflector.
Emergency/EMD
3h DALI / ST emergency conversion with remote indicator.
Emergency/EM
3h emergency conversion with remote indicator.
Controls/BTC
Casambi Bluetooth wireless network (inc dim).
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Twist
Why specify this adjustable gimbal LED downlight?
Flex your lighting designs with the Twist, a fully adjustable die-cast LED gimbal featuring Philips LED technology and ETL/Part L compliance. Choose outputs up to 2800 lm (Model TWIST.006) with Ra80 standard and optional Ra90 colour rendering
The 6-model family combines 1,150–2,800 lm, 3000K / 4000K and 4 listed configuration choices without changing the core product identity.
Twist options kept clear for project specification
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
adjustable
Twist is available for projects requiring adjustable lighting.
architectural
Twist is available for projects requiring architectural lighting.
commercial
Twist is available for projects requiring commercial lighting.
high CRI
Twist is available for projects requiring high cri lighting.
Output1,150–2,800 lm6 listed models
CCT3000K / 4000KModel dependent
Options4Controls and accessories
Typical applicationsWhere Twist is specified
Downlights
Use Twist where downlights lighting is required.
Commercial interiors
Flex your lighting designs with the Twist, a fully adjustable die-cast LED gimbal featuring Philips LED technology and ETL/Part L compliance. Choose outputs up to 2800 lm (Model TWIST.006) with Ra80 standard and optional Ra90 colour rendering
Commercial interiors
Flex your lighting designs with the Twist, a fully adjustable die-cast LED gimbal featuring Philips LED technology and ETL/Part L compliance. Choose outputs up to 2800 lm (Model TWIST.006) with Ra80 standard and optional Ra90 colour rendering
Commercial interiors
Flex your lighting designs with the Twist, a fully adjustable die-cast LED gimbal featuring Philips LED technology and ETL/Part L compliance. Choose outputs up to 2800 lm (Model TWIST.006) with Ra80 standard and optional Ra90 colour rendering
Compare Twist with the wider downlights when reviewing output, optics, mounting, controls and emergency requirements.
adjustable LED downlight
AeroLux
AeroLux is an adjustable LED downlight with a 36 degree faceted reflector, low-profile die-cast bezel, 3000K or 4000K model codes, and DALI, Casambi and emergency options for architectural, retail and hospitality interiors.
Compare product →
adjustable high-CRI LED downlight
Flexi
Flexi is an adjustable high-CRI LED downlight with Philips technology, Ra90 colour accuracy, adjustable beam control, DALI, Casambi wireless and emergency options for office, retail and heritage interiors.
Compare product →
adjustable framelight downlight
Frame
Frame is an adjustable framelight downlight for architectural and commercial lighting applications where precise light control, low glare, and high performance are essential.
Compare product →Specification questions
Twist details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
6 configurations are listed: TWIST.001, TWIST.002, TWIST.003, TWIST.004, TWIST.005, TWIST.006.
The product family covers 1,150–2,800 lm. Colour-temperature choices are 3000K / 4000K.
Control options include DALI, Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options include Three-hour emergency, Self-test emergency, DALI emergency. Select the emergency requirement separately from the base model and normal control method.
The Twist requires a 140 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Twist datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
