ADJUSTABLE adjustable framelight downlight

Frameadjustable framelight downlight

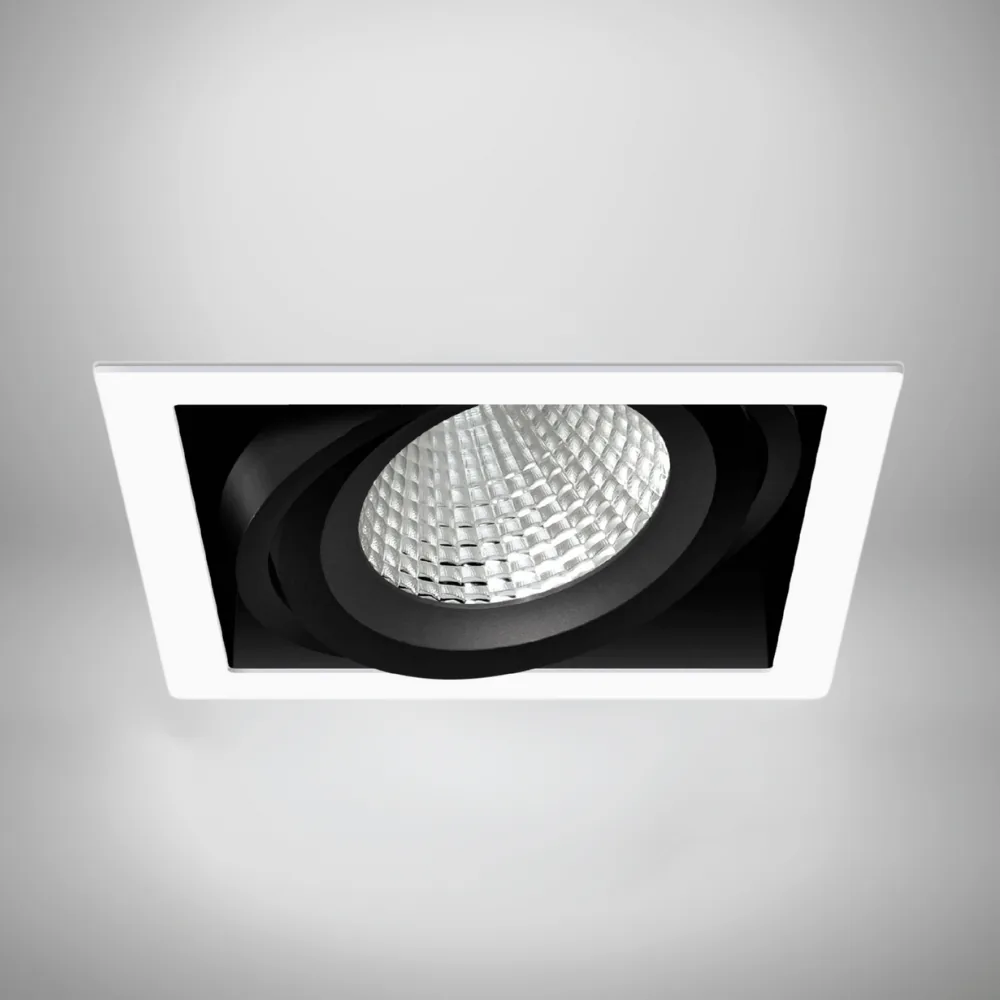

Name: Frame
Brand: Lumenloop

Full adjustment.
Precise beam control.

Published output and system power are listed by model in the specification schedule.

Single, twin and triple-head models use a Tridonic LED and driver platform with a 40-degree multi-faceted reflector as standard, plus verified reflector, control, emergency, finish and shielding options.

Output: 1,000–4,125 lm
Colour temperature: 3000K / 4000K model dependent
Options: 17 listed controls and accessories

Request a quote Download datasheet

Build your specification

01 / 07

Adjustable framelightFULL TILTTridonic module and driver

Output per head: 1,000–4,125 lm
CCT: 3000K / 4000K
Options: 17 listed

Model codesFRAME.0011,000 lm · 3000K FRAME.0021,050 lm · 4000K

OutputSee model schedule

Colour temperature3000K / 4000K

ControlsDALI, SwitchDIM, DSI, Casambi

Ceiling cut-out180 × 180 mm single / 339 × 180 mm twin / 495 × 180 mm triple

Product configurator

Configure your Frame

Choose the Frame model first, then add only the control, optic, emergency, finish or mounting options required for the project.

Frame single, twin and triple versions are listed. Twin and triple schedules show output and power per module; the module count is shown with each model. Highest-output models require availability confirmation.

Driver upgrades apply to each head. Emergency conversions use integral indicators.

LuminaireProduct family

adjustable framelight downlightThe Frame Series is a premium fully adjustable LED framelight, engineered for architectural and commercial lighting applications where precise light control, low glare, and high performance are essential. Equipped with a Tridonic LED module and driver system, the Frame ensures long-lasting efficiency and reliability

Head arrangement, output and CCT30 model choices; unpriced model availability needs confirmation

Bezel and gimbalChoose a supported option

ReflectorChoose a supported option

Control gearChoose a supported option

EmergencyChoose a supported option

Driver upgradeChoose a supported option

Colour renderingChoose a supported option

MountingChoose a supported option

Void guardChoose a supported option

QuantityNumber of fittings

fittingsAdded to the quotation email

Technical filesProduct and design information

Datasheet Installation guide Photometric data BIM file

At a glance

Frame adjustable framelight downlight quick specification.

Check the installation, output, colour temperature and control information for this adjustable framelight downlight before reviewing the full model schedule.

Configure Frame Request pricing

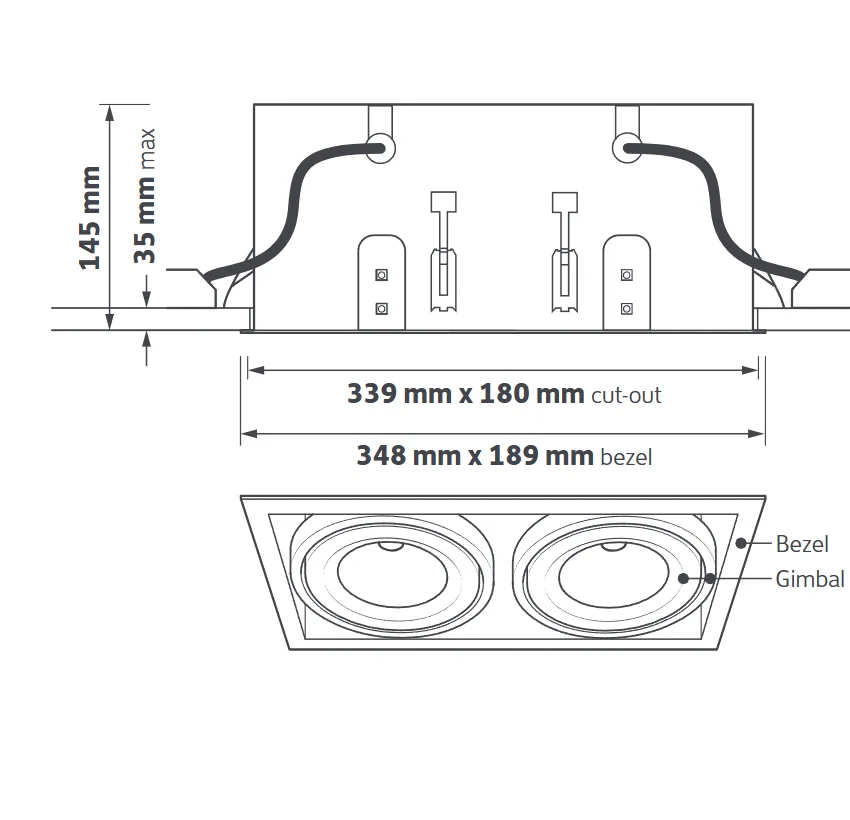

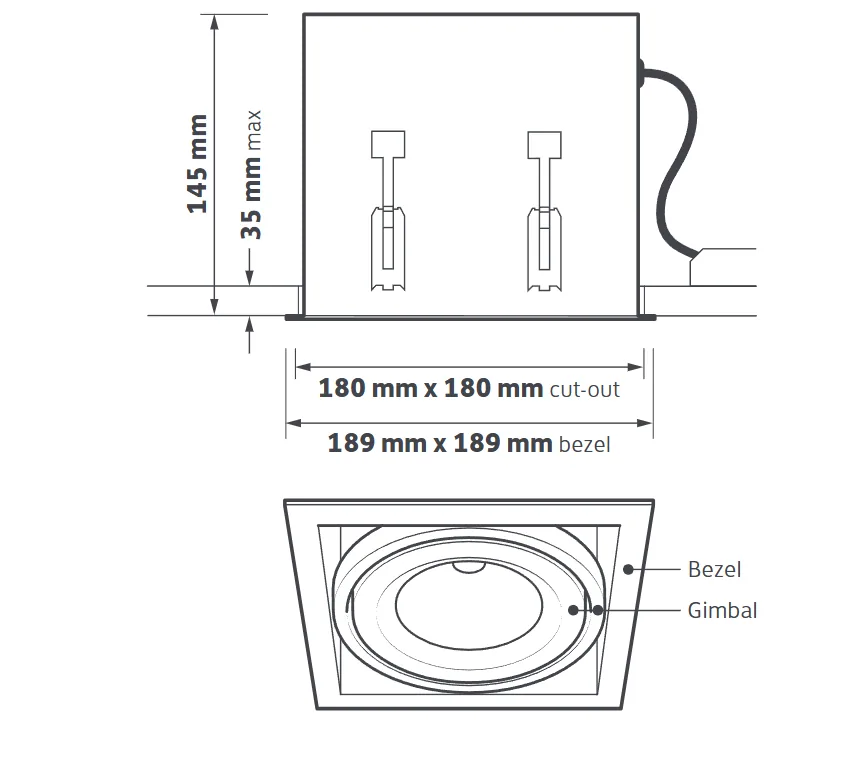

Frame technical line drawing on a white background — **Frame**Product geometry and mounting reference

Key specificationCatalogue page 26

01Ceiling cut-out: 180 × 180 mm single / 339 × 180 mm twin / 495 × 180 mm triple
02Depth: 145 mm / 35 mm max
03 Output per head: 1,000–4,125 lm
04 System power per head: 8–34 W
05CCT: 3000K / 4000K
06Controls: Standard white bezel / black gimbal, SwitchDIM, DSI, DALI, Casambi

Product files

Download Frame technical files.

Available files for this exact product are listed below.

DatasheetPDF download Installation guidePDF download Photometric dataZIP download BIM fileZIP download

Polar luminous intensityFRAME.001 · verified 121-Series LDT data

Standard multi-faceted reflectorIntensity · cd/klm

Technical description

Adjustable framelight downlight specification for Frame.

Frame adjustable framelight downlight. Output per head: 1,000–4,125 lm; system power per head: 8–34 W. Colour temperature: 3000K / 4000K.

Frame construction and mounting

Choose a single adjustable downlight for a 180 × 180 mm ceiling cut-out or a twin-head fitting for a 339 × 180 mm cut-out, or a triple-head fitting for a 495 × 180 mm cut-out. White and black gimbals, plaster-in bezels, wall-wash snoots and Ra90 options support different architectural finishes and lighting tasks.

Suitable for recessed commercial and architectural lighting applications.

Output, optics and colour temperature

Designed for precise light control and low glare.

Published output and system power are listed by model in the specification schedule.

Controls, emergency and project options

Reflector options include 25° and 60° multi-faceted, 40° specular and 50° satin distributions. Standard white bezel / black gimbal control gear is standard; SwitchDIM, DALI or DSI is available with /ECO, and Casambi wireless control with /BTC.

Emergency options include 3-hour emergency, Self-test / DALI emergency, Emergency with integral indicator, DALI emergency.

Output per head1,000–4,125 lm

System power per head8–34 W

Colour temperature3000K / 4000K

FinishWhite standard; /WW, /BB, /WB and /BW combinations

ControlsStandard white bezel / black gimbal, SwitchDIM, DALI, DSI, Casambi

EmergencyThree-hour emergency, Emergency with integral indicator, Self-test emergency, DALI emergency

Download Frame datasheet Configure Frame

See the Lumenloop commercial downlights range for related mounting, output and optic options.

Product typeadjustable framelight downlight

Model schedule

Model	Heads	Output	CCT	System power
FRAME.001	1	1,000 lm	3000K	8 W
FRAME.002	1	1,050 lm	4000K	8 W
FRAME.003	1	1,700 lm	3000K	13 W
FRAME.004	1	1,775 lm	4000K	13 W
FRAME.005	1	2,375 lm	3000K	19 W
FRAME.006	1	2,450 lm	4000K	19 W
FRAME.007	1	3,200 lm	3000K	26 W
FRAME.008	1	3,325 lm	4000K	26 W
FRAME.201	2	1,000 lm/head	3000K	8 W/head
FRAME.202	2	1,050 lm/head	4000K	8 W/head
FRAME.203	2	1,700 lm/head	3000K	13 W/head
FRAME.204	2	1,775 lm/head	4000K	13 W/head
FRAME.205	2	2,375 lm/head	3000K	19 W/head
FRAME.206	2	2,450 lm/head	4000K	19 W/head
FRAME.207	2	3,200 lm/head	3000K	26 W/head
FRAME.208	2	3,325 lm/head	4000K	26 W/head

Output1,000–4,125 lm

System power8–34 W

Colour temperature3000K / 4000K

FinishWhite bezel and gimbal standard; /WW, /BB, /WB and /BW combinations

ControlsStandard white bezel / black gimbal standard; SwitchDIM, DALI or DSI /ECO; Casambi /BTC

EmergencyThree-hour emergency, Emergency with integral indicator, Self-test emergency, DALI emergency

Models, options and accessories

Frame model codes and specification options.

Choose the Frame base model, then review the available controls, emergency arrangements, optics and accessories.

Model codes30 listed configurations

30 models are shown with output, CCT and power information where available.

1,000 lm · 3000KFRAME.001

1,000 lm / 3000K / 8 W

1,050 lm · 4000KFRAME.002

1,050 lm / 4000K / 8 W

1,700 lm · 3000KFRAME.003

1,700 lm / 3000K / 13 W

1,775 lm · 4000KFRAME.004

1,775 lm / 4000K / 13 W

2,375 lm · 3000KFRAME.005

2,375 lm / 3000K / 19 W

2,450 lm · 4000KFRAME.006

2,450 lm / 4000K / 19 W

3,200 lm · 3000KFRAME.007

3,200 lm / 3000K / 26 W

3,325 lm · 4000KFRAME.008

3,325 lm / 4000K / 26 W

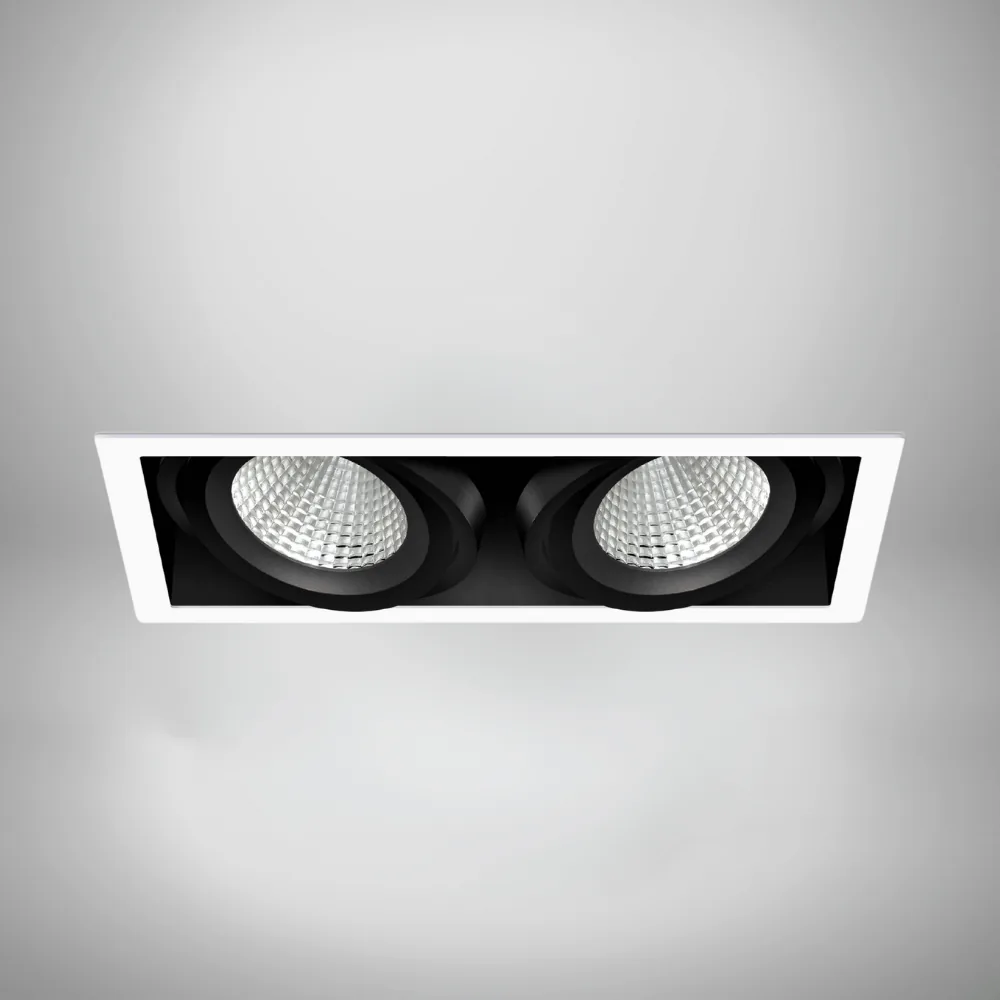

2 × 1,000 lm · 3000KFRAME.201

2 × 1,000 lm / 3000K / 2 × 8 W

2 × 1,050 lm · 4000KFRAME.202

2 × 1,050 lm / 4000K / 2 × 8 W

2 × 1,700 lm · 3000KFRAME.203

2 × 1,700 lm / 3000K / 2 × 13 W

2 × 1,775 lm · 4000KFRAME.204

2 × 1,775 lm / 4000K / 2 × 13 W

2 × 2,375 lm · 3000KFRAME.205

2 × 2,375 lm / 3000K / 2 × 19 W

2 × 2,450 lm · 4000KFRAME.206

2 × 2,450 lm / 4000K / 2 × 19 W

2 × 3,200 lm · 3000KFRAME.207

2 × 3,200 lm / 3000K / 2 × 26 W

2 × 3,325 lm · 4000KFRAME.208

2 × 3,325 lm / 4000K / 2 × 26 W

4,000 lm · 3000KFRAME.009

4,000 lm / 3000K / 34 W / Model availability needs confirmation

4,125 lm · 4000KFRAME.010

4,125 lm / 4000K / 34 W / Model availability needs confirmation

2 × 4,000 lm · 3000KFRAME.209

2 × 4,000 lm / 3000K / 2 × 34 W / Model availability needs confirmation

2 × 4,125 lm · 4000KFRAME.210

2 × 4,125 lm / 4000K / 2 × 34 W / Model availability needs confirmation

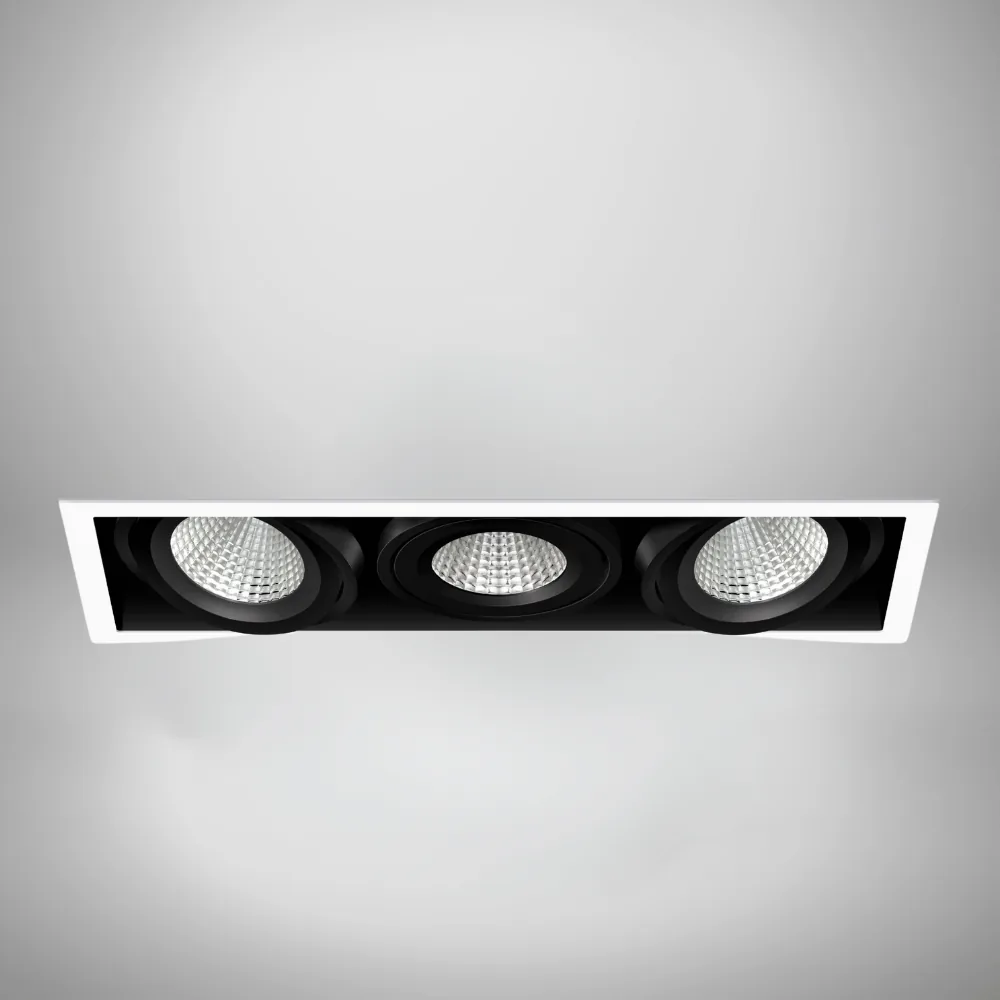

3 × 1,000 lm · 3000KFRAME.301

3 × 1,000 lm / 3000K / 3 × 8 W

3 × 1,050 lm · 4000KFRAME.302

3 × 1,050 lm / 4000K / 3 × 8 W

3 × 1,700 lm · 3000KFRAME.303

3 × 1,700 lm / 3000K / 3 × 13 W

3 × 1,775 lm · 4000KFRAME.304

3 × 1,775 lm / 4000K / 3 × 13 W

3 × 2,375 lm · 3000KFRAME.305

3 × 2,375 lm / 3000K / 3 × 19 W

3 × 2,450 lm · 4000KFRAME.306

3 × 2,450 lm / 4000K / 3 × 19 W

3 × 3,200 lm · 3000KFRAME.307

3 × 3,200 lm / 3000K / 3 × 26 W

3 × 3,325 lm · 4000KFRAME.308

3 × 3,325 lm / 4000K / 3 × 26 W

3 × 4,000 lm · 3000KFRAME.309

3 × 4,000 lm / 3000K / 3 × 34 W / Model availability needs confirmation

3 × 4,125 lm · 4000KFRAME.310

3 × 4,125 lm / 4000K / 3 × 34 W / Model availability needs confirmation

Options and accessories

Configure the available Frame options.

Review the available controls, emergency arrangements, sensors, mounting accessories and custom configurations for the selected luminaire.

Additional Frame options and accessoriesProduct images and specification choices

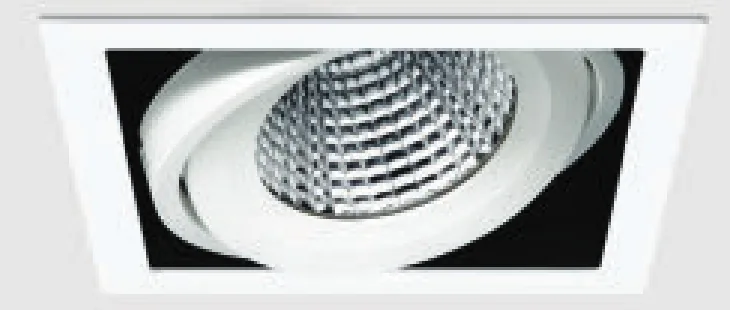

Finish/WW

White bezel / white gimbal

Finish/WB

White bezel / black gimbal

Finish/BB

Black bezel / black gimbal

Finish/BW

Black bezel / white gimbal

Finish/PIW

White plaster-in bezel

Finish/PIB

Black plaster-in bezel

Reflector/MF25

Medium flood 25° reflector

Reflector/MF60

Medium flood 60° reflector

Reflector/SP40

Spot 40° reflector

Reflector/SA50

Super spot 50° reflector

Controls/ECO

SwitchDIM, DALI2 and DSI control gear

Body & mounting/TOP

Tridonic EXCITE driver upgrade; nominal driver life 100,000 hours

Controls/BTC

Casambi Bluetooth wireless control

Performance/R9

High colour rendering

Emergency/EMI

Emergency with integral indicator conversion

Emergency/EMSI

Emergency with integral indicator with self-test

Emergency/EMDI

Emergency with integral indicator with DALI self-test

Ingress protection/VG

Vandal-resistant glass option

AccessoriesBTWS001

Twin wall-wash snoot accessory

AccessoriesBTWS002

Double wall-wash snoot accessory

Product variationRAL

Any RAL colour bezel

Product variationHALOKIT

Halokit bezel extender

Product variationCONNECTORS

Choice of plug-and-play connectors

Product variationCABLE

LSOH or LSF cable

Product variationMODULES

Choice of Xicato or Bridgelux modules

Product variationRGBW

RGBW module

Product variationHUBSENSE

HubSense wireless control

Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.

Configure these options Request a quote

Why Frame

Why specify this adjustable framelight downlight?

Frame combines adjustable positioning with interchangeable optical and control choices. A 40° multi-faceted reflector is standard, with 25° and 60° multi-faceted, 40° specular and 50° satin alternatives. Non-dim, SwitchDIM, DALI, DSI and Casambi control configurations can be specified alongside three-hour emergency options.

Frame adjustable framelight downlight. Output per head: 1,000–4,125 lm; system power per head: 8–34 W. Colour temperature: 3000K / 4000K.

Precise aiming within a clean architectural frame

Base model, control, emergency and accessory decisions remain visibly separate in the configurator.

This keeps the fitting code readable while retaining the breadth of the current product range.

Fully adjustable

Aim the optical assembly to suit displays and features.

Low-glare control

Restrained optical treatment for comfortable accent lighting.

Tridonic platform

LED module and driver system for professional applications.

Extensive options

Beam, control, emergency and finish choices remain separate.

Output per head1,000–4,125 lm30 listed models

CCT3000K / 4000KModel dependent

Options17Controls and accessories

Typical applicationsWhere Frame is specified

Retail displays

Directional lighting for merchandise and feature areas.

Hospitality

Adjustable accent lighting for reception and lounge spaces.

Commercial interiors

Precise lighting within a clean ceiling frame.

Gallery-style spaces

Controlled beams for artwork and architectural surfaces.

Compare Frame with the wider commercial downlights when reviewing output, optics, mounting, controls and emergency requirements.

Build your Frame Specification support

Specification questions

Frame details worth checking.

Direct answers for consultants, contractors and commercial lighting buyers.

Configure Frame Ask about Frame

Which Frame model codes are available?

30 configurations are listed: FRAME.001, FRAME.002, FRAME.003, FRAME.004, FRAME.005, FRAME.006, FRAME.007, FRAME.008, FRAME.201, FRAME.202, FRAME.203, FRAME.204, FRAME.205, FRAME.206, FRAME.207, FRAME.208, FRAME.009, FRAME.010, FRAME.209, FRAME.210, FRAME.301, FRAME.302, FRAME.303, FRAME.304, FRAME.305, FRAME.306, FRAME.307, FRAME.308, FRAME.309, FRAME.310.

Which outputs and colour temperatures are available?

Models cover 1,000–4,125 lm and 8–34 W. See the model schedule for individual output, power and CCT.

Which control options can be specified?

Control options include DALI, SwitchDIM, DSI, Casambi. Each option requires the matching control gear and wiring arrangement.

Which emergency options are available?

Emergency options include Three-hour emergency, Emergency with integral indicator, Self-test emergency, DALI emergency. Select the emergency requirement separately from the base model and normal control method.

What ceiling cut-out does Frame require?

The Frame requires a 180 × 180 mm single / 339 × 180 mm twin / 495 × 180 mm triple ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.

How do I request a quotation?

Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.

Is the Frame datasheet available?

Yes. The Frame datasheet is linked in the hero, configurator and technical section.

What is the standard lead time for Frame?

Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.

Product quotation

Request a quotation for Frame.

Send the selected code, quantity and any mounting, control, emergency or finish requirements. Your configurator choices are carried into the form automatically.

Configuration retainedThe product code and quantity update as you configure the fitting.

Useful project detailAdd the application, required date and any option requirements you already know.

Direct contactPrefer to speak? Call 02045 721 554 or email Lumenloop.

Average lead time10 working days for standard product configurations. Custom accessories, custom finishes and other custom variations are excluded; contact us to confirm timing.
