Engine outputs up to 1325 lm
Output reference for specification and comparison.

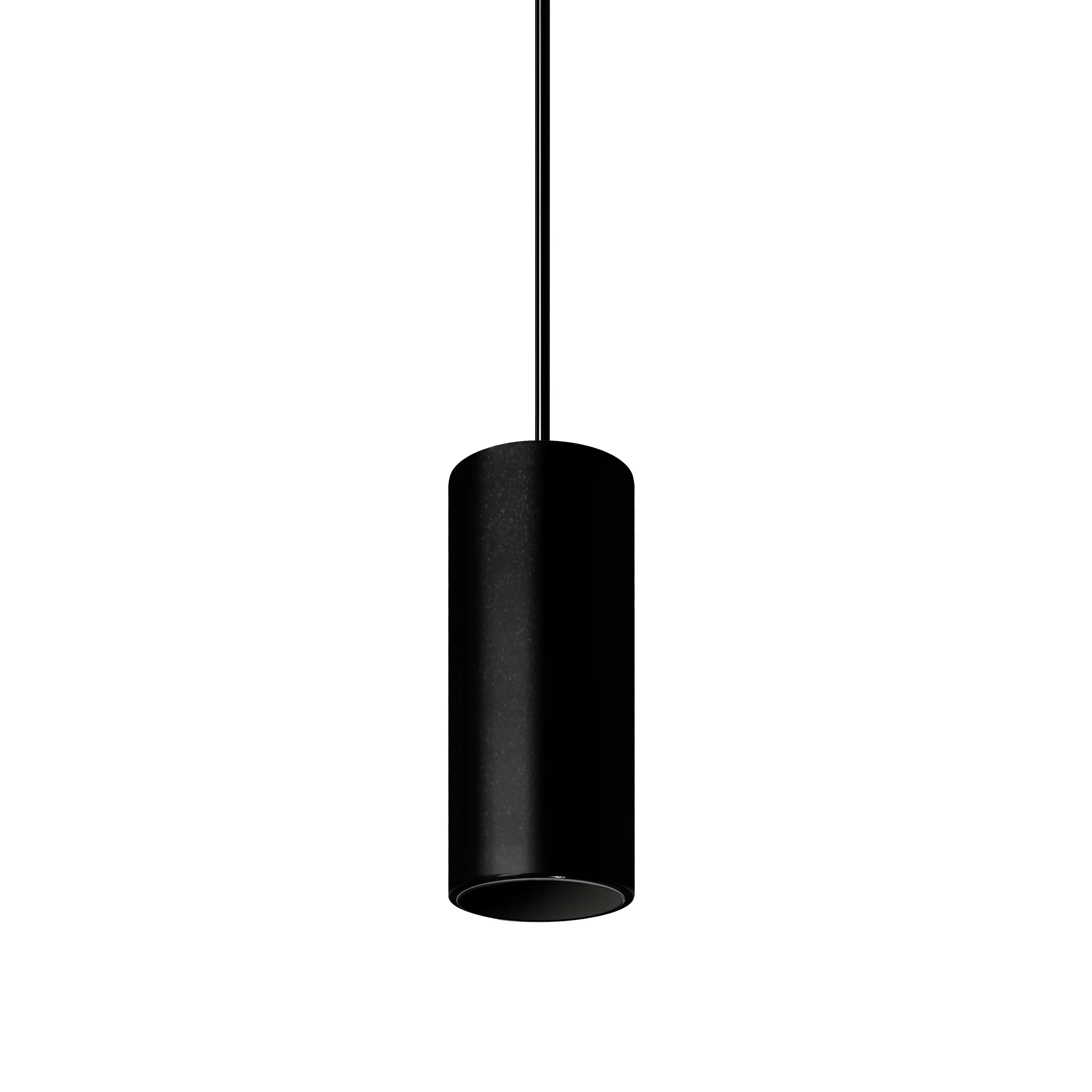

Totem tubular LED pendant spotlight
Totem pendant spotlight is a tubular LED pendant spotlight for commercial and hospitality interiors, with outputs from 625 lm to 1325 lm, Tridonic LED engine and driver components, and suspended or track-mounted configurations.
Track mounting options
Helps confirm ceiling compatibility and installation conditions.
Configurable finishes and options
Match the pendant length, finish, baffle, control gear and mounting option to the project requirement.
Mounting
Suspended pendant; track mounting options listed
Model references
9 model codes
Application
Decorative and practical tubular pendant lighting for commercial and hospitality interiors.
Mounting
Suspended pendant; track mounting options listed
Controls
DALI and Bluetooth options
Download Datasheet
Technical datasheet for specification reference.
Installation Guide
Installation guidance for suspended or track-mounted installations.
Photometric Data
Photometric data pack for lighting calculations and schedule checks.
Project selection
Choose the output, optic and control suffixes for the selected model code.
Configure For Enquiry
Configure Totem pendant spotlight for enquiry.
Select the output, optic, finish, control gear and accessories needed for the project, then send the configuration to Lumenloop for product information or a quotation.
Configured Specification
Selected Totem pendant spotlight specification.
Selection reference
TOTEMPENDANTSPOTLIGHT.001
Selection reference
TOTEMPENDANTSPOTLIGHT.001
Technical Description
Pendant spotlight specification for Totem.
Totem pendant spotlight is a tubular LED pendant spotlight for commercial and hospitality interiors, with model codes from TOTEMPENDANTSPOTLIGHT.001 to TOTEMPENDANTSPOTLIGHT.009. The range uses Tridonic LED engine and driver components and covers 2700K, 3000K and 4000K versions across the listed outputs.
Published control and mounting suffixes cover suspended mains dimming, DALI, Bluetooth Casambi and track-mounted variants. The captured product data also lists semi-gloss black as the standard finish, with narrow-beam, white softlight baffle and Ra90 suffixes available on selected configurations.
Supporting resources include the 19 Series datasheet, installation guide and photometric data pack. Use the selected model code to align output, mounting method and control suffixes with the schedule before requesting specification support.
Specification-led track spotlight features.
- Engine outputs up to 1325 lm: Output reference for specification and comparison.
- Track mounting options: Helps confirm ceiling compatibility and installation conditions.
- Configurable finishes and options: Match the pendant length, finish, baffle, control gear and mounting option to the project requirement.
- Mounting: Suspended pendant; track mounting options listed
- DALI and Bluetooth options: Suitable for a range of control and emergency options.
- Controls: DALI and Bluetooth options
- Tridonic LED engine and driver system: Gives the product range a recognised LED and driver platform.
- Finish: Ed in semi-gloss black as standard
Optical And Mounting Detail
Totem pendant spotlight quick technical reference.
Totem pendant spotlight uses a tubular body format with suspended and track-mounted configurations listed in the captured source data.
Key checks here are the selected output band, the mounting suffix and the control suffix, alongside the published life rating of 55,000 hours (L90 / F10).
Published suffixes include mains dimming, DALI, Bluetooth Casambi and track-mounted variants, supported by the 19 Series datasheet, installation guide and photometric data pack.
Specification Choices
Totem specification options.
Output and CCT
TOTEMPENDANTSPOTLIGHT.001625 lm | 8 W | 2700K
Output and CCT
TOTEMPENDANTSPOTLIGHT.002650 lm | 6.5 W | 3000K
Output and CCT
TOTEMPENDANTSPOTLIGHT.003700 lm | 6 W | 4000K
Output and CCT
TOTEMPENDANTSPOTLIGHT.004850 lm | 10 W | 2700K
Output and CCT
TOTEMPENDANTSPOTLIGHT.005850 lm | 7.5 W | 3000K
Output and CCT
TOTEMPENDANTSPOTLIGHT.006900 lm | 7.5 W | 4000K
Output and CCT
TOTEMPENDANTSPOTLIGHT.0071150 lm | 13.5 W | 2700K
Output and CCT
TOTEMPENDANTSPOTLIGHT.0081250 lm | 11.5 W | 3000K
Output and CCT
TOTEMPENDANTSPOTLIGHT.0091325 lm | 11.5 W | 4000K
Options And Accessories
Totem options, mounting references and custom variations.
/NB/WSB/9
Published suffixes include narrow beam reflector /NB, white softlight baffle /WSB and Ra90 /9 on the 2700K versions. The verified family images are shown here because separate optic and baffle tiles are not present in the local Totem pack.
/MDIM/ECO/BTC/TK/TKDALI/TKBTC
Pendant mains dimming /MDIM; pendant DALI / SwitchDIM / DSI /ECO; pendant Bluetooth Casambi /BTC; track mounted fixed output /TK; track mounted DALI /TKDALI; track mounted Bluetooth Casambi /TKBTC.
Custom configuration

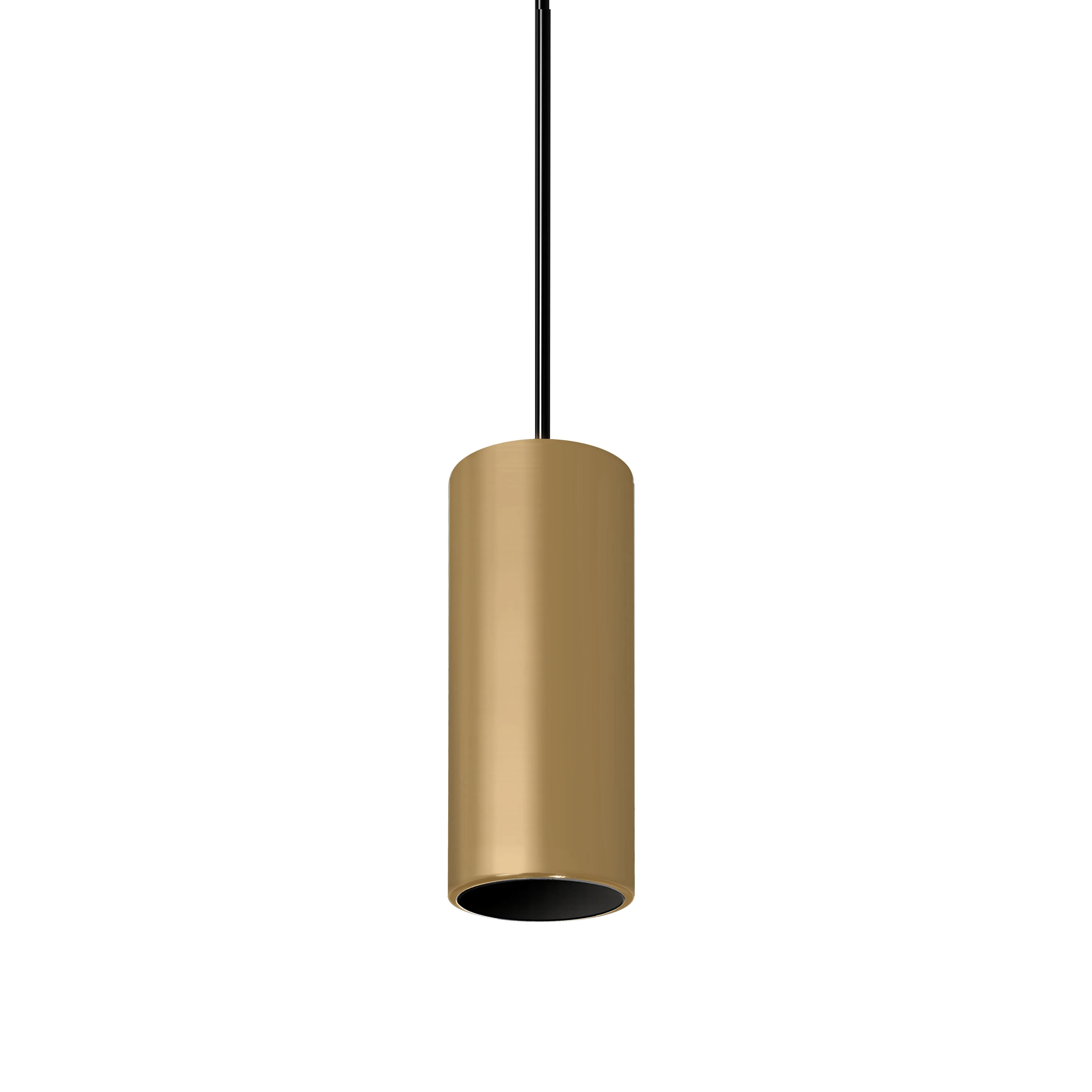

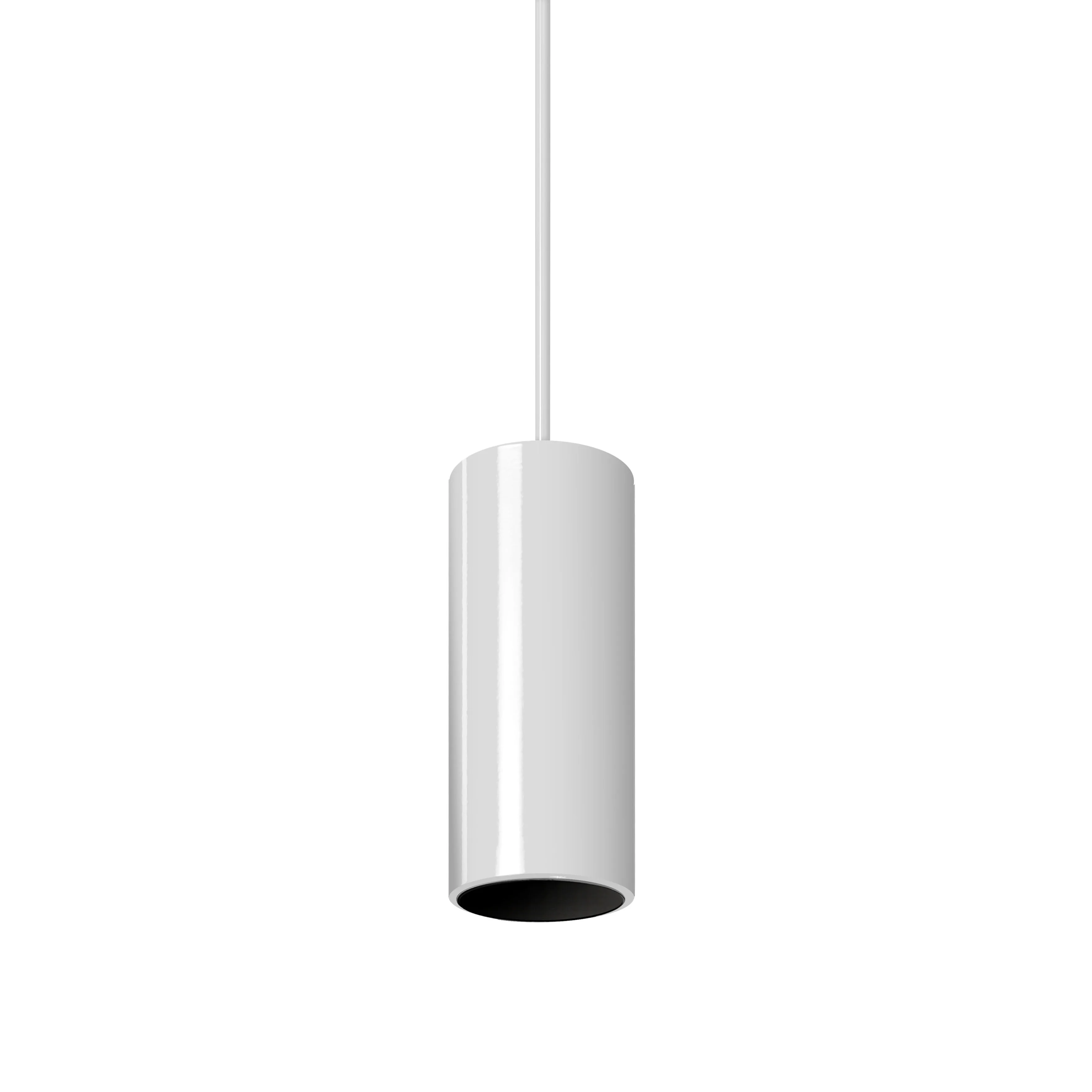

The verified Totem source pack includes gloss white and gold finish reference images. Use Custom configuration for non-standard finish requests until separate suffixes are confirmed.
Needs confirmation

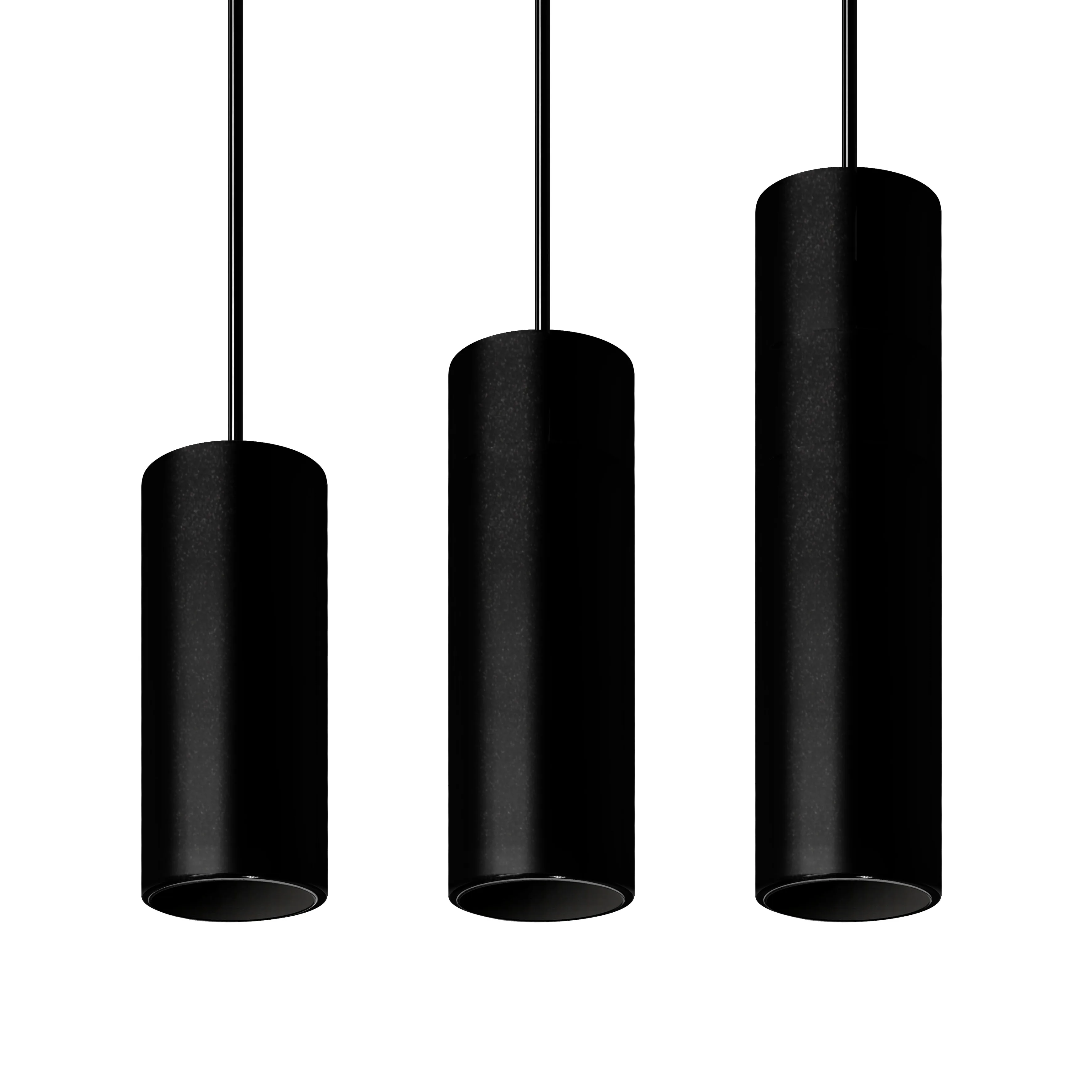

Length, accessory and decorative variation references are shown here from the local source pack so the accessory section stays complete. Separate accessory or variation codes still need confirmation where they are not listed in the published source options.
This page now keeps the accepted options-and-accessories layout even when extracted datasheet tiles are unavailable.
Specification reasons
Why specify Totem pendant spotlight?
Performance
Engine outputs up to 1325 lm
Output reference for specification and comparison.
Mounting
Track mounting options
Helps confirm ceiling compatibility and installation conditions.
Selection point
Configurable finishes and optionsMatch the pendant length, finish, baffle, control gear and mounting option to the project requirement.
Mounting
Mounting
Suspended pendant; track mounting options listed
Controls
DALI and Bluetooth options
Suitable for a range of control and emergency options.
Controls
Controls
DALI and Bluetooth options
Product FAQs
Totem pendant spotlight specification questions.
Specification notes for contractors, consultants and buyers checking track spotlight options before ordering.
What makes Totem pendant spotlight different from a standard track spotlight?
Totem pendant spotlight is a tubular LED pendant spotlight with outputs from 625 lm to 1325 lm, suspended or track-mounted configurations, and Tridonic LED engine and driver components.
Which ceilings or mounting conditions should be checked for Totem pendant spotlight?
Mounting: Suspended pendant; track mounting options listed. Check ceiling build-up, access space and fixing method before ordering.
Which outputs, wattages and colour temperatures are available?
Engine outputs up to 1325 lm: Output reference for specification and comparison. Life 55,000 hours (L90 / F10): Long-life LED performance. Output, colour temperature, control gear and emergency options vary by configuration.
What controls and emergency options can be specified?
Controls: DALI and Bluetooth options. Confirm compatibility before quotation.
Can finishes, accessories or product variations be specified?
Mounting and control: Pendant mains dimming /MDIM, Pendant DALI / SwitchDIM / DSI /ECO, Pendant Bluetooth Casambi /BTC, Track mounted fixed output /TK, Track mounted DALI /TKDALI and Track mounted Bluetooth Casambi /TKBTC. Include the required finish, accessory or special variation in the quote request so Lumenloop can price the correct version.
Are photometric, BIM or installation files available?
Available resources include the 19 Series datasheet, installation guide and photometric data pack for product selection, lighting calculations and specification records.
What lead time should be allowed for Totem pendant spotlight?
Lead time depends on quantity, finish, control gear, emergency conversion and current production capacity. Confirm the current project lead time with Lumenloop before placing an order.
Product Support
Move from Totem reference to project specification.
Share the selected 19 Series reference, mounting method, control requirement, finish preference and project notes. Lumenloop can confirm the current Totem pendant spotlight variant for the schedule.
