Output1,725–5,425 lm
LINEAR architectural suspended linear lighting
Brilliancearchitectural suspended linear LED luminaire
Set the line.
Choose the suspension.
Brilliance is a commercial suspended linear light for architectural linear lighting schemes. Specify this linear LED luminaire with surface or suspended installation, four standard lengths, Tridonic LED and driver components, and lower or higher lumen output variants.
- Output
- 1,725–5,425 lm
- Colour temperature
- 3000K / 4000K model dependent
- Options
- 16 listed controls and accessories
01 / 08
OutputSee model schedule
Colour temperature3000K / 4000K
ControlsDALI, SwitchDIM, DSI
Configuration7 listed options
Product configurator
Configure your Brilliance
Choose the Brilliance model first, then add only the control, optic, emergency, finish or mounting options required for the project.
Track mounting cannot be combined with /EMI. The 2 m suspension kit is unavailable for 2.5 m fittings. With DALI emergency, /ECO supplies DALI control only.
LuminaireProduct family
suspended linear LED luminaireBrilliance is a suspended linear LED luminaire for surface mount or suspension fixing, with four standard lengths, Tridonic LED and driver components, and lower or higher output variants.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Brilliance suspended linear LED luminaire quick specification.
Check the installation, output, colour temperature and control information for this suspended linear LED luminaire before reviewing the full model schedule.
Technical referenceNot to scale
Key specificationCatalogue page 58
- 01Mounting
- Suspended
- 02Fixing
- Surface or suspended
- 03Output
- 1,725–5,425 lm
- 04CCT
- 3000K / 4000K
- 05Controls
- DALI, SwitchDIM, DSI
- 06Emergency
- Emergency conversion
Product files
Download Brilliance technical files.
Available files for this exact product are listed below.
C0 plane distributionIntensity · cd/klm
Technical description
Architectural suspended linear lighting specification for Brilliance.
Brilliance is a commercial suspended linear light for architectural suspended linear lighting schemes, with four standard lengths, Tridonic LED and driver components, and lower or higher output variants. The same linear LED luminaire can also be specified as a surface-mounted fitting. For an office scheme, compare mounting and glare requirements across our office lighting range.
Brilliance construction and mounting
Use the 2 m two-point suspension kit SUS.163/2/2M for standard lengths, or the 2 m three-point suspension kit SUS.163/3/2M for the 2.5 m model. Brilliance can also be joined with the 180-degree BU.163/180 or 90-degree BU.163/90 butt-joint brackets; PT001 is the diffuser-removal tool.
These mounting choices let the specification team suspend one consistent linear light family or integrate a surface-mounted version into the ceiling layout. Custom configuration is available for other colour finishes and product requirements.
Output, optics and colour temperature
Published output and system power are listed by model in the specification schedule.
Published output and system power are listed by model in the specification schedule.
Controls, emergency and project options
SwitchDIM, DALI or DSI are available with the /ECO suffix. Emergency conversion is available with /EMI on BRILLIANCE.003 to BRILLIANCE.008.
Control options include Fixed output.
Emergency options include Emergency conversion. Select the emergency requirement separately from the base model and normal control method.
Datasheets and technical files
Brilliance downloads include the datasheet, installation guide, photometric data and BIM package.
System power16.5–47 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsDALI, SwitchDIM, DSI
EmergencyEmergency conversion
See the Lumenloop suspended lighting range for related mounting, output and optic options.
Product typesuspended linear LED luminaire
Model codesBRILLIANCE.001, BRILLIANCE.002, BRILLIANCE.003, BRILLIANCE.004, BRILLIANCE.005, BRILLIANCE.006, BRILLIANCE.007, BRILLIANCE.008
Output1,725–5,425 lm
System power16.5–47 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsDALI, SwitchDIM, DSI
EmergencyEmergency conversion
Models, options and accessories
Brilliance model codes and specification options.
Choose the Brilliance base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes8 listed configurations
8 models are shown with output, CCT and power information where available.
1,725 lm / 3000K / 16.5 W
1,800 lm / 4000K / 16.5 W
2,550 lm / 3000K / 23.5 W
2,700 lm / 4000K / 23.5 W
3,125 lm / 3000K / 27.5 W
3,300 lm / 4000K / 27.5 W
5,100 lm / 3000K / 47 W
5,425 lm / 4000K / 47 W
Additional Brilliance options and accessoriesProduct images and specification choices

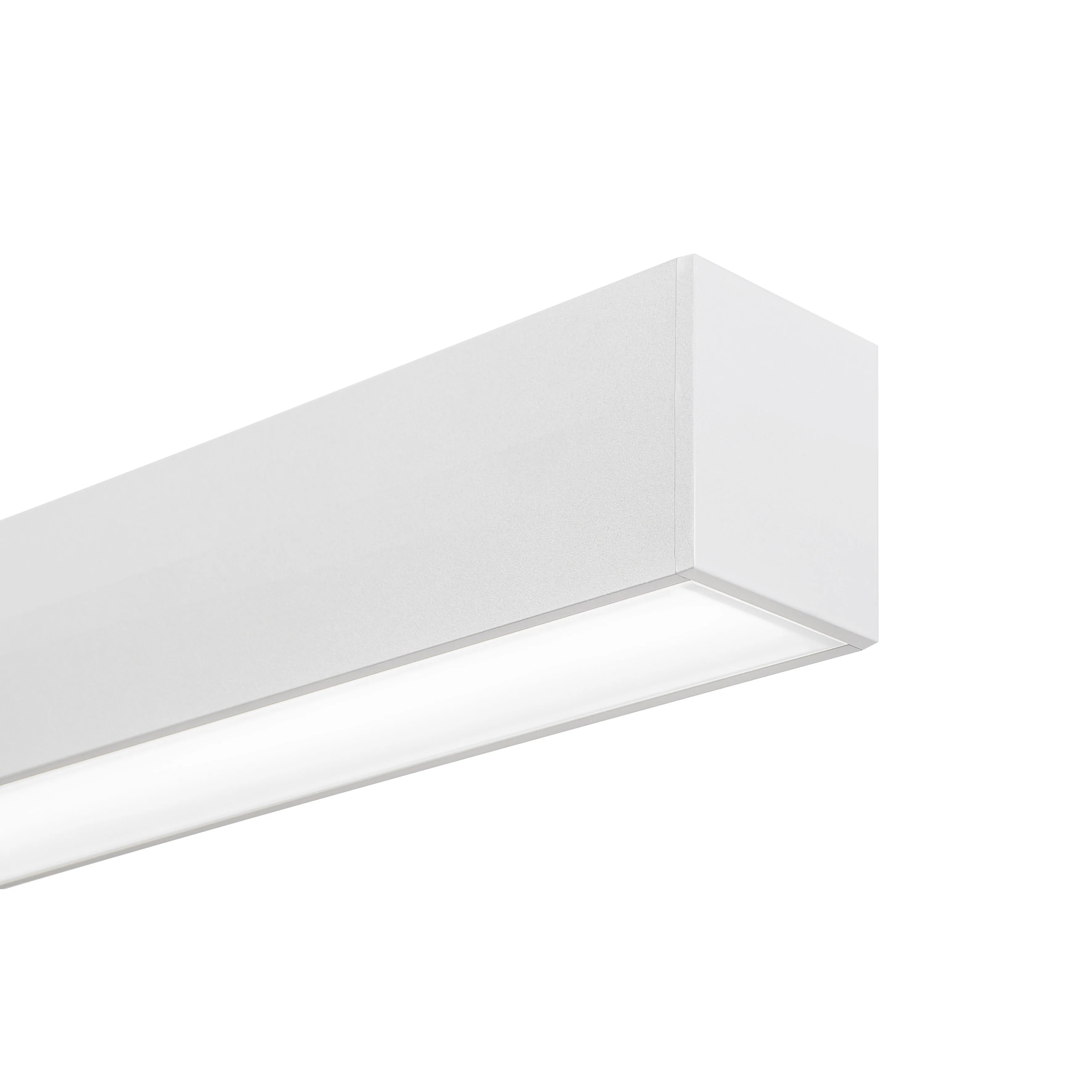

Finish/WH
White body finish

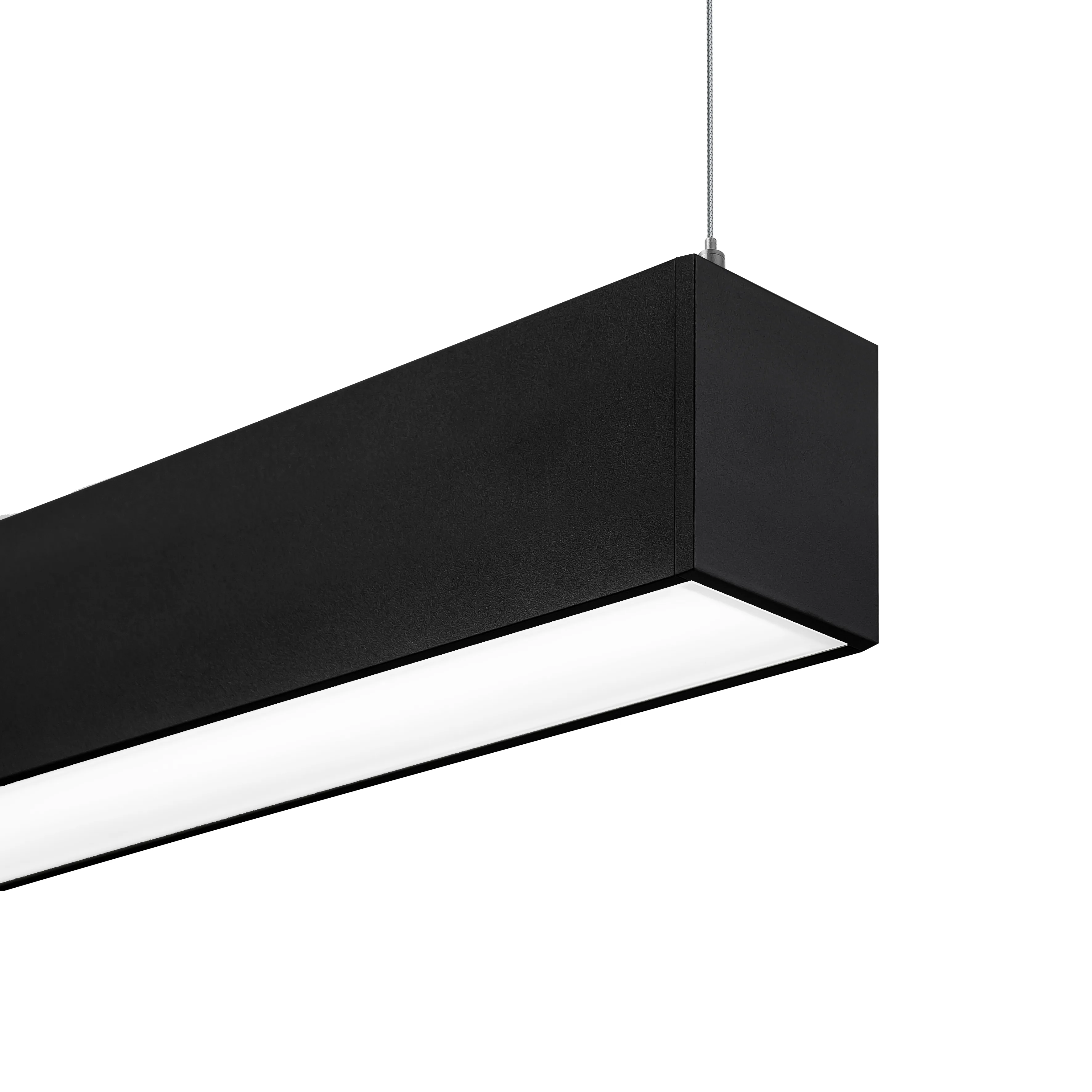

Finish/BK
Black body finish
OutputModel-dependent; see schedule
Lower output option
OutputModel-dependent; see schedule
Higher output option
Controls/ECO
SwitchDIM, DALI or DSI controls
Emergency/EMI
Emergency conversion on BRILLIANCE.003 to BRILLIANCE.008
Optics/LG
Low-glare prismatic lens
SuspensionSUS.163/2/2M
2 m, 2-piece suspension kit
SuspensionSUS.163/3/2M
2 m, 3-piece suspension kit for 2.5 m
AccessoryBU.163/180
180 degree butt-joint bracket
AccessoryBU.163/90
90 degree butt-joint bracket
Custom configurationContact sales
Other colours and specifications
Custom configurationContact sales
Custom colours
Custom configurationContact sales
Custom colours
AccessoryPT001
Diffuser removal tool
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Brilliance
Why specify this suspended linear LED luminaire?
Brilliance is a suspended linear LED luminaire for surface mount or suspension fixing, with four standard lengths, Tridonic LED and driver components, and lower or higher output variants.
Brilliance suspended linear LED luminaire. Output: 1,725–5,425 lm; system power: 16.5–47 W. Colour temperature: 3000K / 4000K.
A consistent linear form across different lengths and outputs
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
Four standard lengths
Coordinate the fitting length with the room and ceiling layout.
Two output levels
Lower and higher output model variants are available.
Surface or suspended
Use one luminaire family for two mounting conditions.
Tridonic components
LED and driver technology within the published product platform.
Output1,725–5,425 lm8 listed models
CCT3000K / 4000KModel dependent
Options16Controls and accessories
Typical applicationsWhere Brilliance is specified
Open-plan offices
Continuous visual rhythm above desks and collaboration areas.
Education
Linear general lighting for teaching and circulation spaces.
Commercial reception
Suspended architectural lighting over arrival areas.
Retail interiors
Surface or suspended linear lighting for customer areas.
Compare Brilliance with the wider suspended lighting when reviewing output, optics, mounting, controls and emergency requirements.
dark-light suspended linear luminaire
Luma
Dark-light suspended linear luminaire. Review the model schedule and compatible options.
Compare product →
suspended architectural LED downlight
Optima Suspended
Suspended architectural LED downlight. Review the model schedule and compatible options.
Compare product →
suspended mini LED downlight
Lumen Suspended
Suspended mini LED downlight. Review the model schedule and compatible options.
Compare product →Specification questions
Brilliance details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
8 configurations are listed: BRILLIANCE.001, BRILLIANCE.002, BRILLIANCE.003, BRILLIANCE.004, BRILLIANCE.005, BRILLIANCE.006, BRILLIANCE.007, BRILLIANCE.008.
Brilliance suspended linear LED luminaire. Output: 1,725–5,425 lm; system power: 16.5–47 W. Colour temperature: 3000K / 4000K.
Control options include DALI, SwitchDIM, DSI. Each option requires the matching control gear and wiring arrangement.
Emergency options include Emergency conversion. Select the emergency requirement separately from the base model and normal control method.
The configurator shows the product dimensional drawing. The product datasheet contains further construction and installation information.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Brilliance datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
Product quotation
Request a quotation for Brilliance.
Send the selected code, quantity and any mounting, control, emergency or finish requirements. Your configurator choices are carried into the form automatically.
Configuration retainedThe product code and quantity update as you configure the fitting.
Useful project detailAdd the application, required date and any option requirements you already know.
Direct contactPrefer to speak? Call 02045 721 554 or email Lumenloop.
Average lead time10 working days for standard product configurations. Custom accessories, custom finishes and other custom variations are excluded; contact us to confirm timing.
