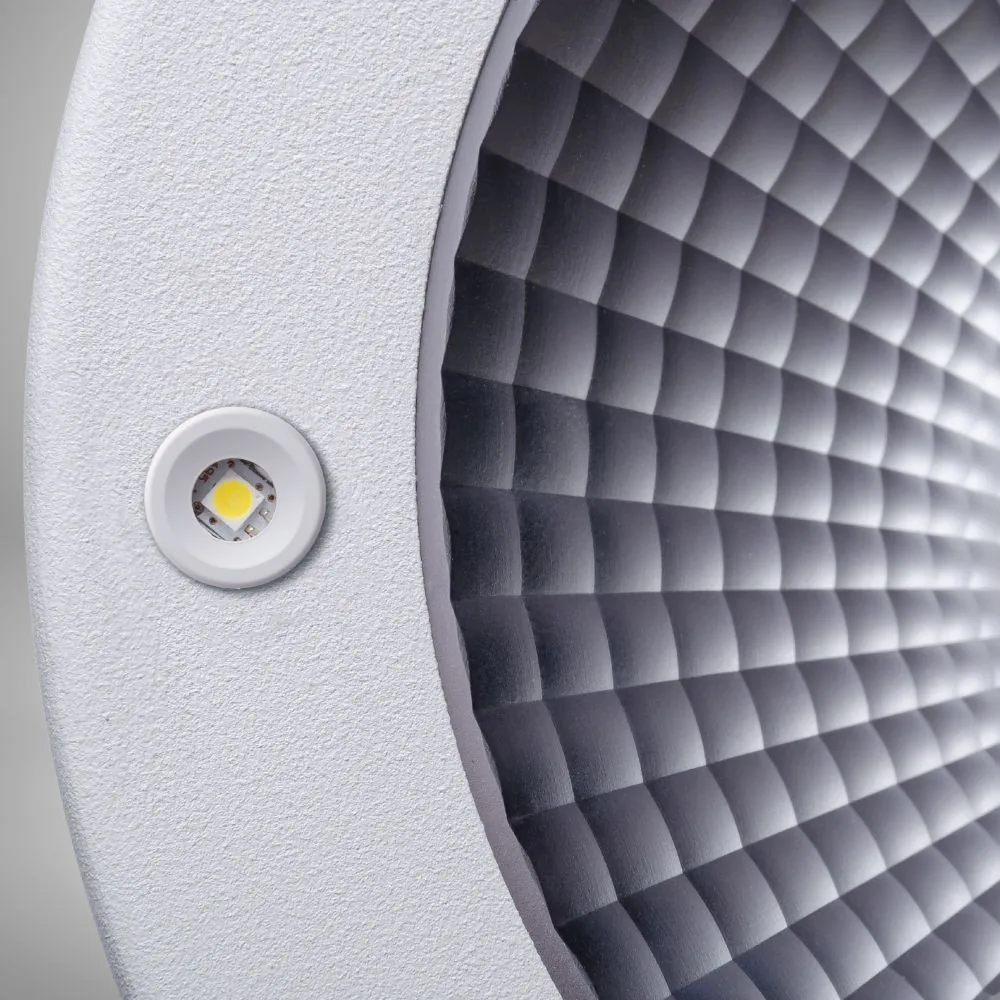

Low glare multi-faceted reflector as standard
Supports controlled distribution and visual comfort in the finished ceiling.
Suspend-Pro low-glare suspended LED luminaire
Crown Suspended is a lightweight spun aluminium professional LED suspended downlight with integral Philips LED and driver system, low-glare multi-faceted reflector and outputs up to 3125 lm. Specification data includes DALI, wireless and emergency options with RAL9016 brilliant white as standard.
Optics
Low-glare multi-faceted reflector as standard
MacAdam colour tolerance <3SDCM
Consistent colour appearance across repeated fittings.
Outputs up to 3125 lm
Output reference for specification and comparison.
Model references
CROWNSUSPENDED.001
Application
Commercial downlighting where a suspended architectural LED downlight is required.
Mounting
Suspended
Optics
Low-glare multi-faceted reflector as standard
Application
Commercial downlighting where a suspended architectural LED downlight is required.
Optics
Low-glare multi-faceted reflector as standard
Finish
Brilliant white RAL9016 as standard
Mounting
Suspended
Download Datasheet
Technical datasheet for specification review.
Installation Guide
Installation guide for site coordination.
Photometric Data
Photometric data pack for lighting calculations.
BIM File
BIM coordination file for project drawings.
Project selection
Available luminaire options and accessories are shown below.
Configure For Enquiry
Configure Suspend-Pro for enquiry.
Select the output, optic, finish, control gear and accessories needed for the project, then send the configuration to Lumenloop for specification support.
Configured Specification
Selected Suspend-Pro specification.
Selection reference
CROWNSUSPENDED.001
Selection reference
CROWNSUSPENDED.001
Technical Description
Low-glare suspended LED luminaire specification for Suspend-Pro.
Crown Suspended is a lightweight spun aluminium professional LED suspended downlight with integral Philips LED and driver system, low-glare multi-faceted reflector and outputs up to 3125 lm. Specification data includes DALI, wireless and emergency options with RAL9016 brilliant white as standard. Applications include commercial downlighting where a suspended architectural LED downlight is required, finish: Brilliant white RAL9016 as standard and optics: Low-glare multi-faceted reflector as standard.
Performance and installation details include optics: Low-glare multi-faceted reflector as standard, finish: Brilliant white RAL9016 as standard. This section covers output, optics, mounting and control requirements.
Available options include controls: Integral DALI and wireless control options available where specified and LED and driver platform: Integral Philips LED and driver system. Model codes, control compatibility and lead times vary by configuration. Supporting resources include datasheet, Installation guide, Photometric data and BIM file, where published.
Specification-led low-glare suspended LED luminaire features.
- Low glare multi-faceted reflector as standard: Supports controlled distribution and visual comfort in the finished ceiling.
- Optics: Low-glare multi-faceted reflector as standard
- MacAdam colour tolerance <3SDCM: Consistent colour appearance across repeated fittings.
- Outputs up to 3125 lm: Output reference for specification and comparison.
- Integral Philips LED and driver system: Gives the product range a recognised LED and driver platform.
- Application: Commercial downlighting where a suspended architectural LED downlight is required.
- Mounting: Suspended
- LED and driver platform: Integral Philips LED and driver system
Product Construction Reference
Suspend-Pro quick technical reference.
Crown Suspended is a lightweight spun aluminium professional LED suspended downlight with integral Philips LED and driver system, low-glare multi-faceted reflector and outputs up to 3125 lm.
Model code: CROWNSUSPENDED.001, optics: Low-glare multi-faceted reflector as standard and finish: Brilliant white RAL9016 as standard.
Project notes include Controls: Tunable white + DALI /T+DALI and Casambi wireless /BTC. Emergency: Maintained emergency /EMI and DALI emergency /EMDI. Body & Mounting: 65 mm adaptor /SA65. Supporting files include datasheet, Installation guide and Photometric data.
Specification Choices
Suspend-Pro specification options.
Output and CCT
CROWNSUSPENDED.0011,200 lm | 9.5 W | 3000K
Output and CCT
CROWNSUSPENDED.0021,250 lm | 9.5 W | 4000K
Output and CCT
CROWNSUSPENDED.0031,900 lm | 15.0 W | 3000K
Output and CCT
CROWNSUSPENDED.0042,000 lm | 15.0 W | 4000K
Output and CCT
CROWNSUSPENDED.0052,950 lm | 24.0 W | 3000K
Output and CCT
CROWNSUSPENDED.0063,125 lm | 24.0 W | 4000K
Options And Accessories
Suspend-Pro options and accessories.
/T+DALI/BTC
Tunable white plus DALI (/T+DALI) and Casambi wireless (/BTC) control options.
/EMI/EMDI
Maintained emergency (/EMI) and DALI emergency (/EMDI) options.

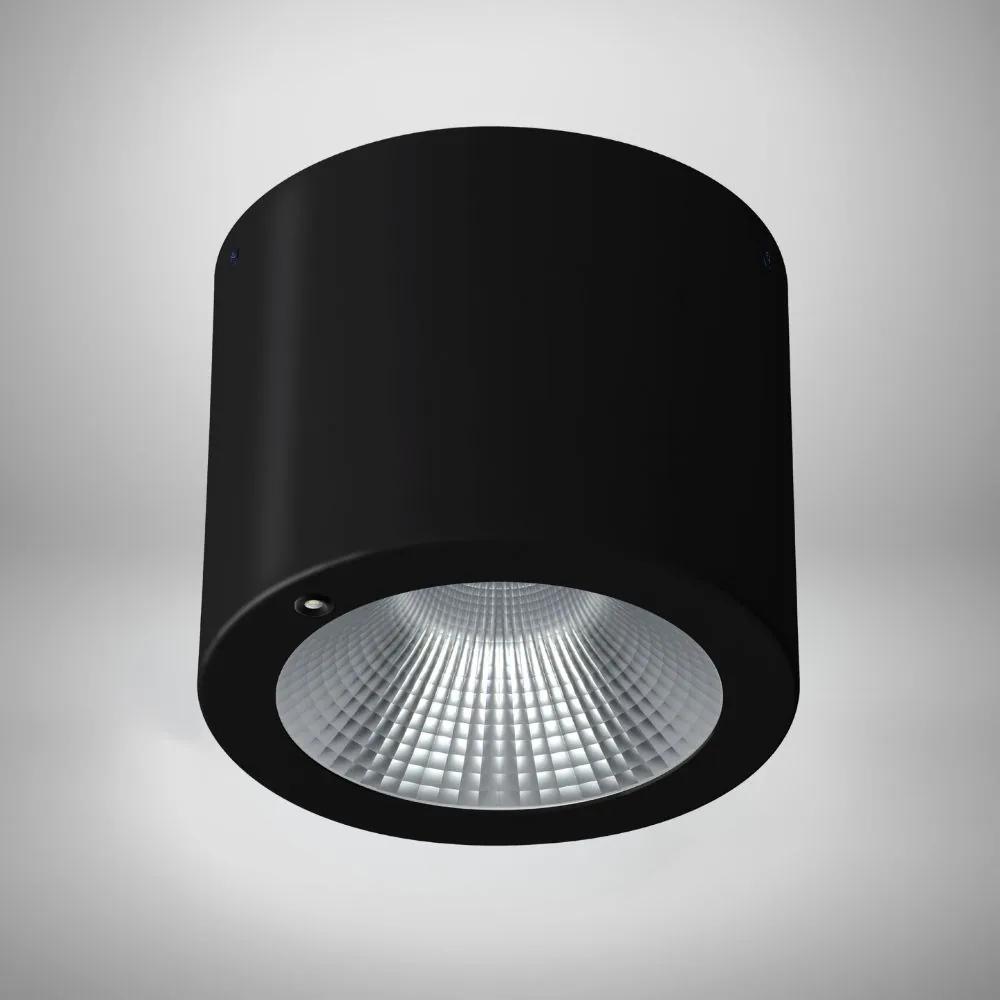

/R9
High CRI option (/R9).
/SA65
65 mm adaptor option (/SA65).
Specification reasons
Why specify Suspend-Pro?
Optics
Low glare multi-faceted reflector as standard
Supports controlled distribution and visual comfort in the finished ceiling.
Optics
Optics
Low-glare multi-faceted reflector as standard
Selection point
MacAdam colour tolerance <3SDCM
Consistent colour appearance across repeated fittings.
Performance
Outputs up to 3125 lm
Output reference for specification and comparison.
Options
Integral Philips LED and driver system
Gives the product range a recognised LED and driver platform.
Mounting
Application
Commercial downlighting where a suspended architectural LED downlight is required.
Product FAQs
Suspend-Pro specification questions.
Specification notes for contractors, consultants and buyers checking low-glare suspended LED luminaire options before ordering.
What makes Suspend-Pro different from a standard low-glare suspended LED luminaire?
Crown Suspended is a lightweight spun aluminium professional LED suspended downlight with integral Philips LED and driver system, low-glare multi-faceted reflector and outputs up to 3125 lm. Specification data includes DALI, wireless and emergency options with RAL9016 brilliant white as standard. Applications include commercial downlighting where a suspended architectural LED downlight is required, finish: Brilliant white RAL9016 as standard and optics: Low-glare multi-faceted reflector as standard.
Which ceilings or mounting conditions should be checked for Suspend-Pro?
Mounting: Suspended. Check ceiling build-up, access space and fixing method before ordering.
Which outputs, wattages and colour temperatures are available?
Outputs up to 3125 lm: Output reference for specification and comparison. Finish: Brilliant white RAL9016 as standard. Output, colour temperature, control gear and emergency options vary by configuration.
What controls and emergency options can be specified?
Controls: Tunable white + DALI /T+DALI and Casambi wireless /BTC. Emergency: Maintained emergency /EMI and DALI emergency /EMDI. Confirm compatibility with the project control strategy, emergency schedule and selected base model before quotation.
Can finishes, accessories or product variations be specified?
Body & Mounting: 65 mm adaptor /SA65. Include the required finish, accessory or special variation in the quote request so Lumenloop can price the correct version.
Are photometric, BIM or installation files available?
Available resources include the datasheet, Installation Guide, Photometric data and BIM file for specification reference and product selection.
What lead time should be allowed for Suspend-Pro?
Lead time depends on quantity, finish, control gear, emergency conversion and current production capacity. Confirm the current project lead time with Lumenloop before placing an order.
Product Support
Check product options and datasheets.
Share the selected code, room type, control preference and any accessory requirements. Lumenloop can provide datasheets, option notes and supporting files for the selected fitting.
