Ultra-low glare, high performance LED linear
Helps keep the fitting suitable for screen-based commercial interiors.
Luma dark-light suspended linear luminaire
Luma is a dark-light suspended linear luminaire with a low-profile body and matt black baffles for glare-controlled office, retail and hospitality interiors.
Lumen maintenance
L80/F10 @ >75,000 hours
Efficacy over 130 llm/tcW
Supports output selection across the available lengths and drive-current options.
Surface-mounted as standard with
Suspended and track-mounted options
Model codes
LUMA.001
Life >75,000 hours (L80 / F10)
Long-life LED performance. in long-life commercial interiors.
Efficacy over 130 llm/tcW
Supports output selection across the available lengths and drive-current options.
Specification resources
Download Datasheet, Installation Guide
Luminaire type
Low-glare suspended LED luminaire
Life >75,000 hours (L80 / F10)
Long-life LED performance. in long-life commercial interiors.
Ultra-low glare, high performance LED linear
Helps keep the fitting suitable for screen-based commercial interiors.
Download Datasheet
Technical datasheet for specification review.
Installation Guide
Installation guide for site coordination.
Project selection
Available luminaire options and accessories are shown below.
Configure For Enquiry
Configure Luma for enquiry.
Configuration options cover output, optic, finish, control gear and accessories for specification support.
Configured Specification
Selected Luma specification.
Model code
LUMA.001
Model code
LUMA.001
Technical Description
Dark-light suspended linear luminaire specification for Luma.
Luma is a dark-light suspended linear luminaire for commercial offices, meeting spaces, retail and hospitality interiors. Its low-profile linear body and matt black baffles provide controlled, low-glare LED illumination above desks and tables.
The 1.2 m and 1.5 m suspended linear range covers 3000K and 4000K outputs, UGR<14 variants and lumen packages from 1,850 lm to 4,675 lm. DALI, Casambi and emergency options are listed for the LED linear luminaire.
Published files include the Luma datasheet and installation guide.
Dark-light suspended linear LED luminaire features.
- Ultra-low glare, high performance LED linear: Helps keep the fitting suitable for screen-based commercial interiors.
- Lumen maintenance: L80/F10 @ >75,000 hours
- Efficacy over 130 llm/tcW: Supports output selection across the available lengths and drive-current options.
- Surface-mounted as standard with: Suspended and track-mounted options
- Available in 1.2m and 1.5m lengths: Supports the selected specification.
- Tridonic LED and driver system inside: Gives the product range a recognised LED and driver platform.
- RAL 9006 grey as: Standard with black and white options
- Life >75,000 hours (L80 / F10): Long-life LED performance. in long-life commercial interiors.
Product Construction Reference
Luma technical reference.
The Luma Linear LED Luminaire is a low-glare linear luminaire for architectural and commercial interiors.
Key specification points include length, output package, glare control and life over 75,000 hours (L80 / F10).
Option notes include Controls: DALI / SwitchDIM / DSI /ECO and Casambi wireless /BTC. Emergency: Maintained emergency /EMI, Self-test emergency /EMSI and DALI emergency /EMDI. Finish: White finish /WH and Black finish /BK. Available technical files are shown with this product.
Choose The Right Output
Low-glare Luma variants for desks, meeting tables and focused work.
1.2m / 3000K
LUMA.001/LO1850 lm / 14 tcW / UGR <14 / 132 llm/tcW
1.2m / 3000K
LUMA.0012725 lm / 20 tcW / UGR <14 / 136 llm/tcW
1.2m / 3000K
LUMA.001/HO3575 lm / 27 tcW / UGR <14 / 132 llm/tcW
1.2m / 4000K
LUMA.002/LO1925 lm / 14 tcW / UGR <14 / 138 llm/tcW
1.2m / 4000K
LUMA.0022850 lm / 20 tcW / UGR <14 / 143 llm/tcW
1.2m / 4000K
LUMA.002/HO3750 lm / 27 tcW / UGR <14 / 139 llm/tcW
1.5m / 3000K
LUMA.003/LO2300 lm / 17 tcW / UGR <14 / 135 llm/tcW
1.5m / 3000K
LUMA.0033425 lm / 25 tcW / UGR <14 / 137 llm/tcW
1.5m / 3000K
LUMA.003/HO4475 lm / 33 tcW / UGR <14 / 136 llm/tcW
1.5m / 4000K
LUMA.004/LO2400 lm / 17 tcW / UGR <14 / 141 llm/tcW
1.5m / 4000K
LUMA.0043575 lm / 25 tcW / UGR <14 / 143 llm/tcW
1.5m / 4000K
LUMA.004/HO4675 lm / 33 tcW / UGR <14 / 142 llm/tcW
Options And Accessories
Luma options, finishes and controls.
/WH/BK

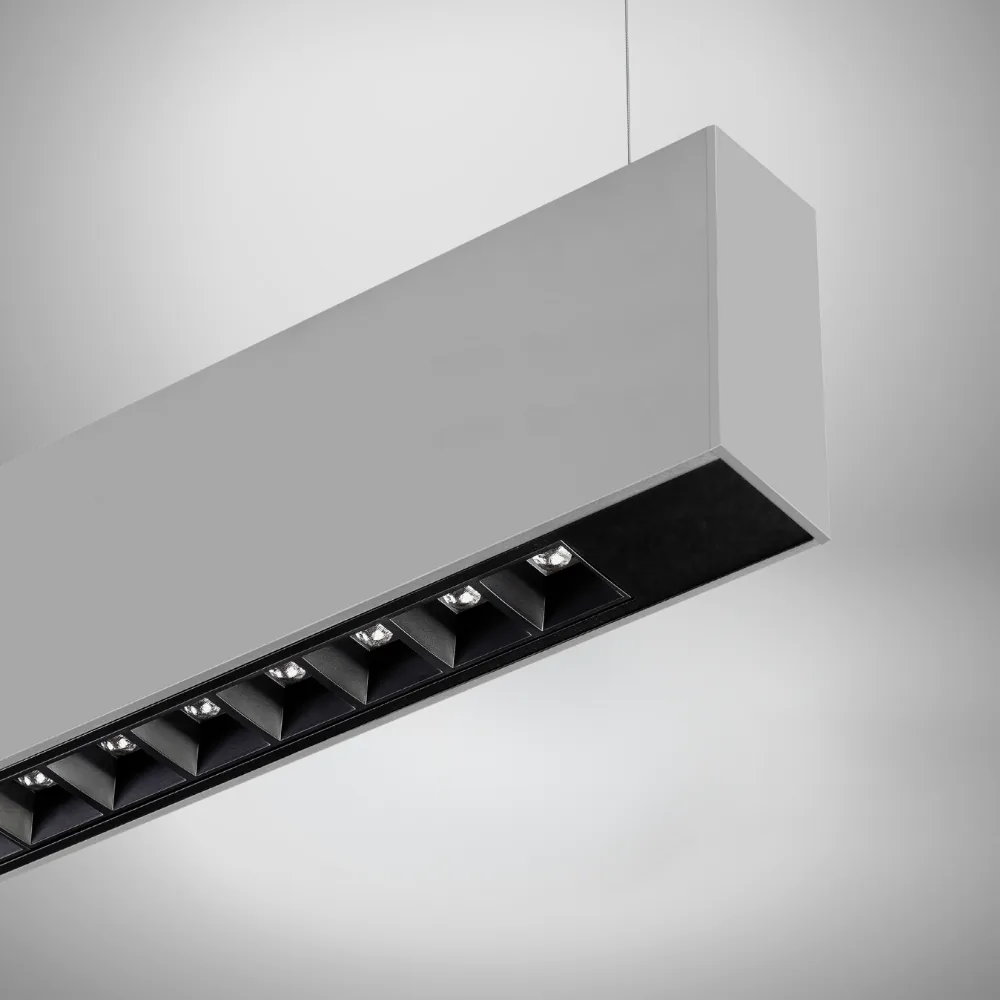

White body finish /WH and black body finish /BK. RAL 9006 grey is listed as standard.
/WSB/WB

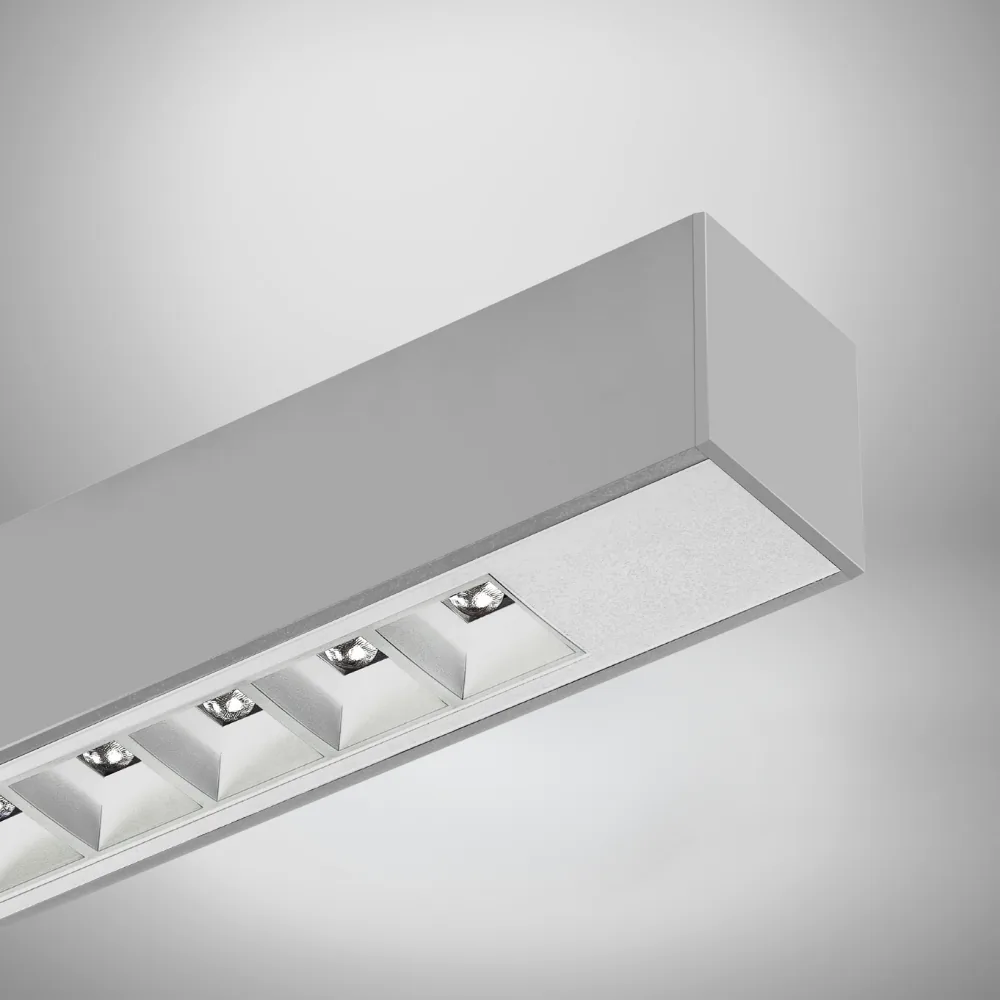

White soft-light baffle /WSB and wide beam 80 degree lens /WB.
/ECO/BTC/EMI/EMSI/EMDI
DALI / SwitchDIM / DSI /ECO, Casambi wireless /BTC, integral emergency /EMI, self-test emergency /EMSI and DALI emergency /EMDI.
SUS.163/2/2MPT001BU.163/90BU.163/180

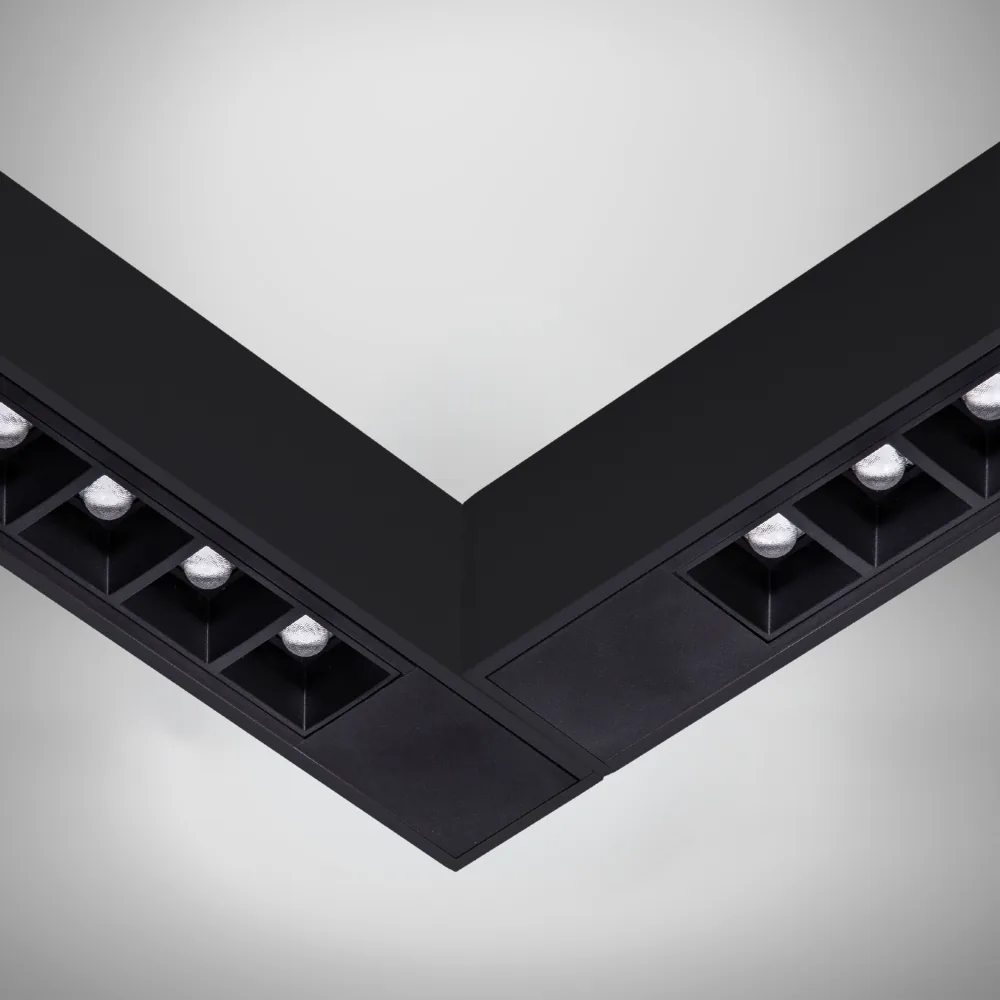

2 metre suspension kit SUS.163/2/2M, baffle removal tool PT001, direct butt-up kit 90 degree BU.163/90 and direct butt-up kit 180 degree BU.163/180.
Why It Works Over Desks
Low-glare task lighting built around desk comfort and long-life performance.
Optics
50 degree office lens standard
The standard office lens helps keep light controlled over desks, with /WB available where a wider spread is needed.
Glare control
UGR <14 for visual comfort
The range is centred on low-glare performance for suspended desk lighting, task areas and screen-based work.
Lifespan
L80/F10 greater than 75,000 hours
Long-life performance supports office, education and commercial interiors where replacement access matters.
Construction
Tridonic LED and driver systems
Tridonic components support stable output and long service life.
Product FAQs
Luma specification questions.
Product information for contractors, consultants and buyers comparing Luma lengths, UGR<14 output variants, baffles, controls and emergency options.
What makes Luma different from a standard low-glare suspended LED luminaire?
Luma is a low-glare suspended LED luminaire for architectural and commercial interiors. Its low-profile body and matt black dark-light baffles support precise, glare-controlled illumination for task-led spaces.
Which ceilings or mounting conditions should be checked for Luma?
Check the mounting method, ceiling construction, access space and installation guide before the luminaire is added to the final schedule.
Which outputs, wattages and colour temperatures are available?
Life exceeds 75,000 hours (L80 / F10). Confirm the selected output, colour temperature, control gear and emergency requirement before ordering.
What controls and emergency options can be specified?
Controls: DALI / SwitchDIM / DSI /ECO and Casambi wireless /BTC. Emergency: Maintained emergency /EMI, Self-test emergency /EMSI and DALI emergency /EMDI. Check the control strategy, emergency requirement and selected base model before quotation.
Can finishes, accessories or product variations be specified?
Finish: White finish /WH and Black finish /BK. Accessories: 2 metre suspension kit SUS.163/2/2M, baffle removal tool PT001, direct butt-up kit 90 degree BU.163/90 and direct butt-up kit 180 degree BU.163/180. Finish, accessory and custom configuration details help identify the correct version for quotation.
Are photometric, BIM or installation files available?
Available files include the datasheet and installation guide for specification work and installation planning.
What lead time should be allowed for Luma?
Request current availability for the selected length, output, baffle, finish, control gear and emergency option before ordering.
Specification Support
Request Luma pricing and specification support.
Include the model code, room type, controls requirement and mounting requirement so the team can confirm the suitable Luma variant for the project.
