Output1,175–3,125 lm
DOWNLIGHTS high-output suspended LED downlight
Summit Suspendedhigh-output suspended LED downlight
Summit Suspended.
high-output suspended LED downlight.

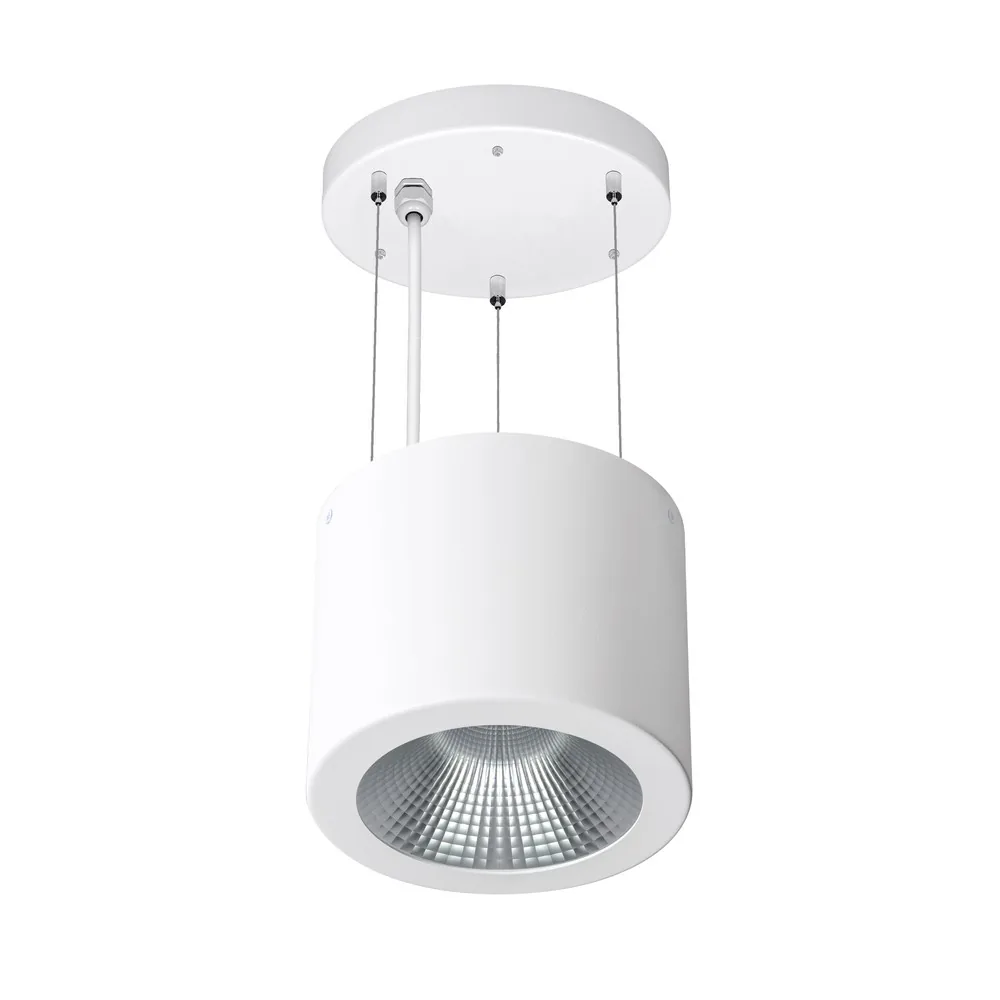

Summit Suspended is a high-output suspended LED downlight for considered commercial lighting schemes. Its range includes Summit Suspended is a lightweight spun aluminium professional LED suspended downlight with integral Tridonic LED and driver system, low-glare multi-faceted reflector and outputs up to 3125 llm. RAL9016 brilliant white is standard, with integral DALI, wireless and emergency options available and mountingType: Suspended.
- Output
- 1,175–3,125 lm
- Colour temperature
- 3000K / 4000K model dependent
- Options
- DALI, wireless and emergency available configurations
01 / 04
Output1,175–3,125 lm
Colour temperature3000K / 4000K
ControlsDALI and wireless options
Configurationavailable configurations
Product configurator
Configure your Summit Suspended
Choose the Summit Suspended model first, then add only the control, optic, emergency, finish or mounting options required for the project.
LuminaireProduct family
high-output suspended LED downlightSummit Suspended is a lightweight spun aluminium professional LED suspended downlight with integral Tridonic LED and driver system, low-glare multi-faceted reflector and outputs up to 3125 lm. RAL9016 brilliant white is standard, with integral DALI, wireless and emergency options available.
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Summit Suspended high-output suspended LED downlight quick specification.
Check the installation, output, colour temperature and control information for this high-output suspended LED downlight before reviewing the full model schedule.
Technical referenceNot to scale
Key specificationProduct summary
- 01Mounting
- Suspended
- 02Mounting
- mountingType: Suspended
- 03Controls
- DALI and wireless options
- 04Product type
- high-output suspended LED downlight
- 05Diameter
- 203 mm
- 06Height
- 165 mm
Product files
Download Summit Suspended technical files.
Available files for this exact product are listed below.
C0 plane distributionIntensity · cd/klm
Technical description
High-output suspended LED downlight specification for Summit Suspended.
Summit Suspended's technical information also covers application: Professional architectural LED suspended downlight for commercial interiors; lumenOutput: Outputs up to 3125 llm. This allows the product to be matched to the intended mounting, output and control requirements without extending the published specification.
Summit Suspended construction and mounting
For high-output suspended cylinder downlight specifications, compare the model codes, outputs and available options below.
application: Professional architectural LED suspended downlight for commercial interiors.
Output, optics and colour temperature
lumenOutput: Outputs up to 3125 lm.
Controls, emergency and project options
Summit Suspended suspended downlight. Output: 1,175–3,125 lm; system power: 9.5–23 W. Colour temperature: 3000K / 4000K.
Summit Suspended is a lightweight spun aluminium professional LED suspended downlight with integral Tridonic LED and driver system, low-glare multi-faceted reflector and outputs up to 3125 lm. RAL9016 brilliant white is standard, with integral DALI, wireless and emergency options available.
Control options include DALI and wireless options.
Datasheets and technical files
The technical summary also lists ETL compliant efficacies up to 136 lm/W, life greater than 60,000 hours at L80 / B10 and MacAdam colour tolerance below 3 SDCM. Listed mounting type, optics, finish and technical files are shown for enquiry.
System power9.5–23 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsDALI and wireless options
Emergency/EMI and /EMDI options
See the Lumenloop suspended lighting range for related mounting, output and optic options.
Product typehigh-output suspended LED downlight
Model codesSUMMIT.001, SUMMIT.002, SUMMIT.003, SUMMIT.004, SUMMIT.005, SUMMIT.006
Output1,175–3,125 lm
System power9.5–23 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsDALI and wireless options
Emergency/EMI and /EMDI options
Why Summit Suspended
Why specify this high-output suspended LED downlight?
Listed choices: Control gear option, Casambi wireless network, Integral emergency, Integral emergency option /EMDI.
The six models cover 1,175–3,125 lm in 3000K and 4000K, with published finish, reflector, control, emergency and suspension options.
Summit Suspended options kept clear for project specification
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
architectural
Summit Suspended is available for projects requiring architectural lighting.
commercial
Summit Suspended is available for projects requiring commercial lighting.
suspended
Summit Suspended is available for projects requiring suspended lighting.
downlight
Summit Suspended is available for projects requiring downlight lighting.
Output1,175–3,125 lm6 models
CCT3000K / 4000KModel dependent
OptionsPublishedControls and accessories
Typical applicationsWhere Summit Suspended is specified
Downlights
Use Summit Suspended where downlights lighting is required.
Suspended
Use Summit Suspended where suspended lighting is required.
Commercial interiors
Listed choices: Control gear option, Casambi wireless network, Integral emergency, Integral emergency option /EMDI.
Commercial interiors
Listed choices: Control gear option, Casambi wireless network, Integral emergency, Integral emergency option /EMDI.
Compare Summit Suspended with the wider downlights when reviewing output, optics, mounting, controls and emergency requirements.
suspended mini LED downlight
Lumen Suspended
Suspended mini LED downlight. Review the model schedule and compatible options.
Compare product →
low-glare surface mounted downlight
Summit
Surface-mounted downlight. Review the model schedule and compatible options.
Compare product →
suspended architectural LED downlight
Optima Suspended
Suspended architectural LED downlight. Review the model schedule and compatible options.
Compare product →Specification questions
Summit Suspended details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
6 configurations are listed: SUMMIT.001, SUMMIT.002, SUMMIT.003, SUMMIT.004, SUMMIT.005, SUMMIT.006.
Published models cover 1,175–3,125 lm. Colour-temperature choices are 3000K / 4000K.
The datasheet lists /ECO control gear and /BTC Casambi options. Confirm the driver and control arrangement for the selected specification.
The datasheet lists /EMI and /EMDI integral emergency options. Confirm the required operating and testing arrangement for the project.
The configurator shows the product dimensional drawing. The product datasheet contains further construction and installation information.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Summit Suspended datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
