Ceiling cut-out70 mm

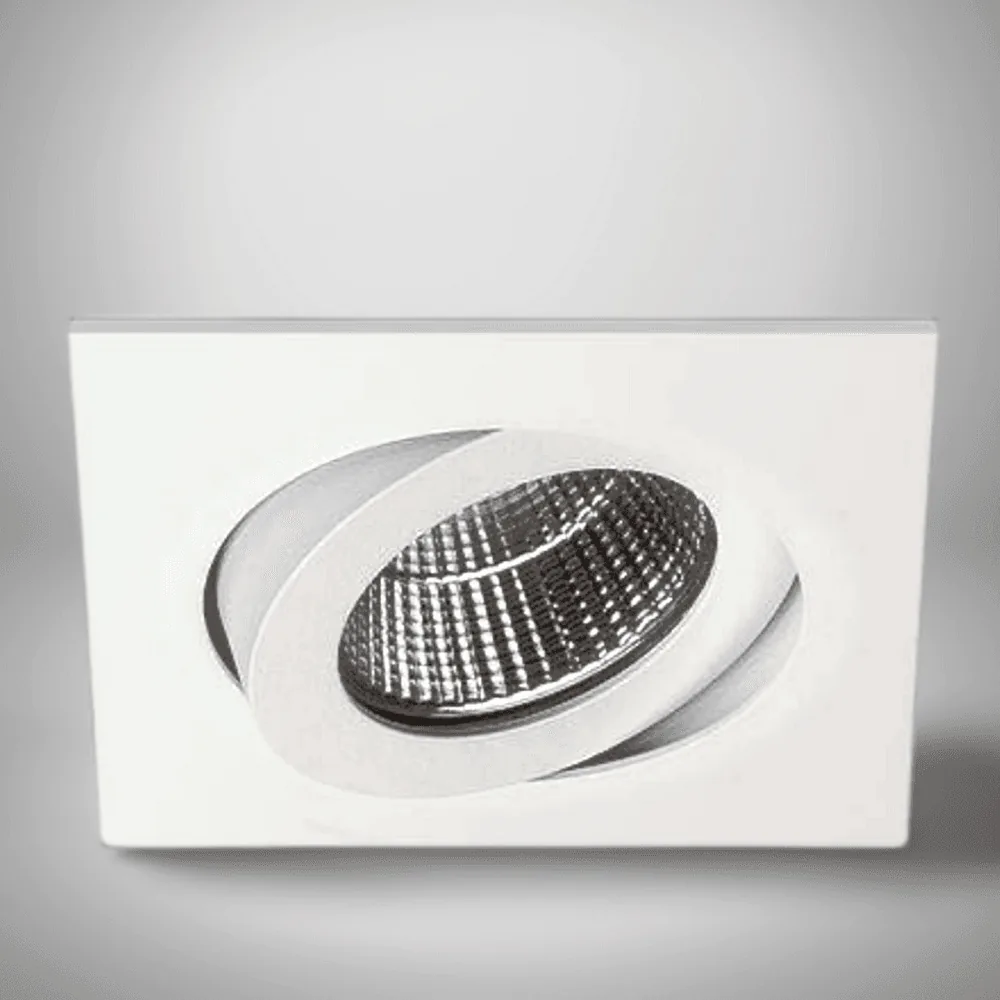

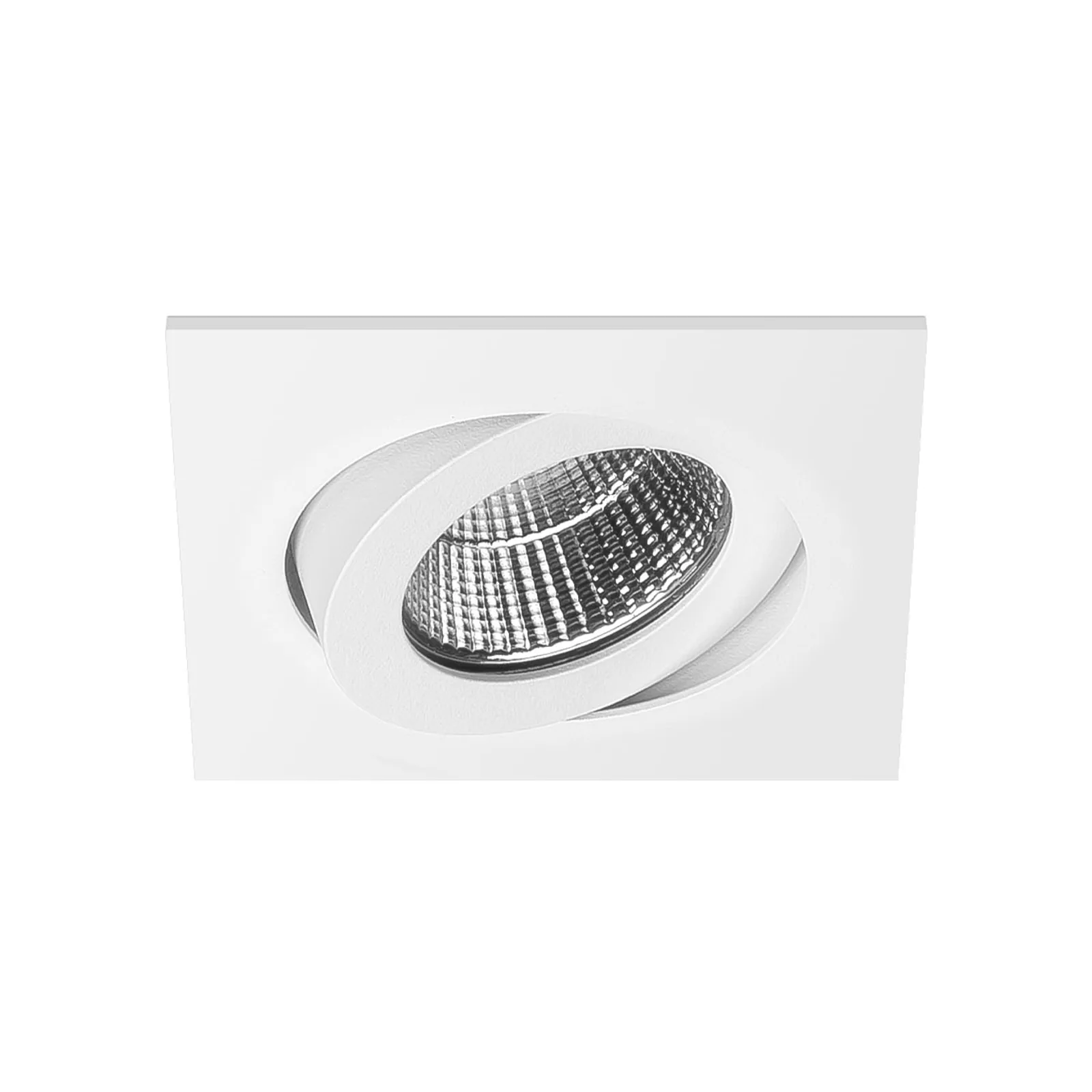

DOWNLIGHTS square adjustable LED downlight
Quadrasquare adjustable LED downlight
Quadra.
square adjustable LED downlight.
Quadra is a square adjustable LED downlight for commercial architectural applications. Featuring a discreet low-profile square bezel and LED technology, the Quadra delivers precise, low-glare illumination, making it a suitable option for commercial downlight requirements.
- Output
- 750–775 lm 2 model codes
- Colour temperature
- 3000K / 4000K model dependent
- Options
- 5 listed controls and accessories
01 / 07
Output750–775 lm
Colour temperature3000K / 4000K
ControlsMains dimming, DALI, SwitchDIM, DSI, Casambi
Ceiling cut-out70 mm
Product configurator
Configure your Quadra
Choose the Quadra model first, then add only the control, optic, emergency, finish or mounting options required for the project.
LuminaireProduct family
square adjustable LED downlightThe Quadra Adjustable LED Downlight is a compact adjustable LED downlight for commercial architectural applications. Featuring a discreet low-profile square bezel and LED technology, the Quadra delivers precise, low-glare illumination, making it a suitable option for commercial downlight requirements
QuantityNumber of fittings
Added to the quotation email
Technical filesProduct and design information
At a glance
Quadra square adjustable LED downlight quick specification.
Check the installation, output, colour temperature and control information for this square adjustable LED downlight before reviewing the full model schedule.
Bezel80 × 80 mm
Output750–775 lm
System power8 W
CCT3000K / 4000K
ControlsMains dimming, SwitchDIM, DSI, DALI, Casambi
Product files
Download Quadra technical files.
Available files for this exact product are listed below.
C0/C180 distribution from source LDT valuesIntensity · cd/klm
Technical description
Compact adjustable low-glare LED downlight specification for Quadra.
Quadra is a compact square adjustable LED downlight for commercial architectural applications. Its low-profile bezel keeps the ceiling line neat while the adjustable optic lets you aim light precisely. Its discreet low-profile bezel and LED technology deliver precise, low-glare illumination, making it a suitable option for commercial ceilings.mercial downlight requirements. Key specification details include life >50,000 hours (L70 / F50) and 36 deg faceted reflector: The adjustable head helps direct light where it is needed while keeping the ceiling detail discreet.

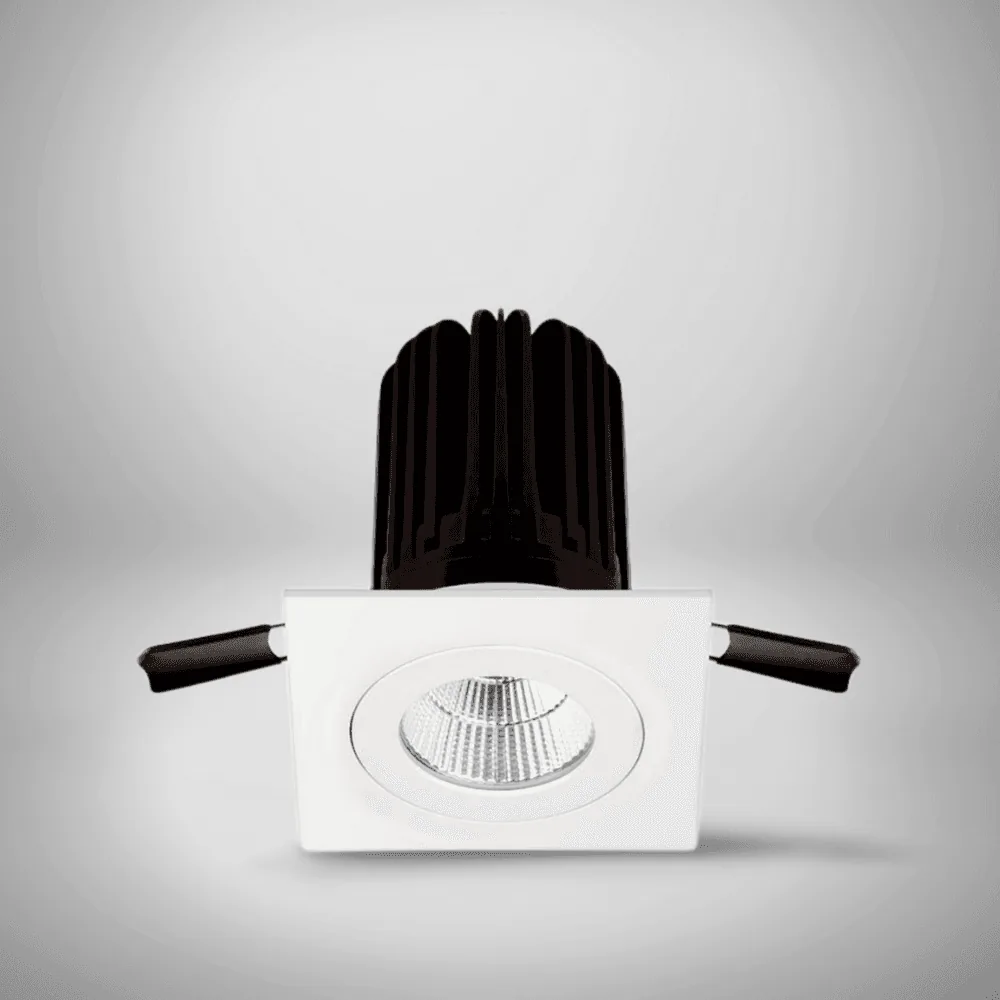

Quadra construction and mounting
For square adjustable downlight specifications, compare the model codes, outputs and available options below.
Performance and installation details include 36 deg faceted reflector: Supports controlled distribution and visual comfort in the finished ceiling and life >50,000 hours (L70 / F50). This section covers output, optics, mounting and controls.
Output, optics and colour temperature
Designed for precise, low-glare illumination.
Quadra output is 750–775 lm.
System power options are 8 W.
Controls, emergency and project options
Control options include Mains dimming, DALI / SwitchDIM / DSI, Casambi wireless.
Emergency options include 3-hour emergency, Self-test / DALI emergency.
Output750–775 lm
System power8 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsMains dimming, DALI, SwitchDIM, DSI, Casambi
EmergencyThree-hour emergency, Self-test emergency, DALI emergency
See the Lumenloop commercial downlights range for related mounting, output and optic options.
Product typesquare adjustable LED downlight
Model codesQUADRA.001, QUADRA.002
Output750–775 lm
System power8 W
Colour temperature3000K / 4000K
FinishSee datasheet
ControlsMains dimming, DALI, SwitchDIM, DSI, Casambi
EmergencyThree-hour emergency, Self-test emergency, DALI emergency
Models, options and accessories
Quadra model codes and specification options.
Choose the Quadra base model, then review the available controls, emergency arrangements, optics and accessories.
Model codes2 listed configurations
2 model configurations are shown with their output, CCT, power and finish information where available.
750 lm8 W
775 lm8 W
Additional Quadra options and accessoriesProduct images and specification choices
Controls/MDIM
Phase-cut mains dimming
Controls/ECO
Specification dimming and control gear
Controls/BTC
Casambi Bluetooth wireless control
Emergency/EM
3-hour emergency conversion
Emergency/EMD
Self-test or DALI emergency conversion
Choose the base model first, then add the required option and accessory suffixes shown in the product datasheet.
Why Quadra
Why specify this square adjustable LED downlight?
The Quadra Adjustable LED Downlight is a compact adjustable LED downlight for commercial architectural applications. Featuring a discreet low-profile square bezel and LED technology, the Quadra delivers precise, low-glare illumination, making it a suitable option for commercial downlight requirements
The 2-model family combines 750–775 lm, 3000K / 4000K and 5 listed configuration choices without changing the core product identity.
Quadra options kept clear for project specification
Base model, control, emergency and accessory decisions remain visibly separate in the configurator.
This keeps the fitting code readable while retaining the breadth of the current product range.
architectural
Quadra is available for projects requiring architectural lighting.
commercial
Quadra is available for projects requiring commercial lighting.
compliant with IEE PAR1789
Quadra is available for projects requiring compliant with iee par1789 lighting.
hospitality
Quadra is available for projects requiring hospitality lighting.
Output750–775 lm2 listed models
CCT3000K / 4000KModel dependent
Options5Controls and accessories
Typical applicationsWhere Quadra is specified
Downlights
Use Quadra where downlights lighting is required.
Commercial interiors
The Quadra Adjustable LED Downlight is a compact adjustable LED downlight for commercial architectural applications. Featuring a discreet low-profile square bezel and LED technology, the Quadra delivers precise, low-glare illumination, making it a suitable option for commercial downlight requirements
Commercial interiors
The Quadra Adjustable LED Downlight is a compact adjustable LED downlight for commercial architectural applications. Featuring a discreet low-profile square bezel and LED technology, the Quadra delivers precise, low-glare illumination, making it a suitable option for commercial downlight requirements
Commercial interiors
The Quadra Adjustable LED Downlight is a compact adjustable LED downlight for commercial architectural applications. Featuring a discreet low-profile square bezel and LED technology, the Quadra delivers precise, low-glare illumination, making it a suitable option for commercial downlight requirements
Compare Quadra with the wider downlights when reviewing output, optics, mounting, controls and emergency requirements.
adjustable LED downlight
AeroLux
AeroLux is an adjustable LED downlight with a 36 degree faceted reflector, low-profile die-cast bezel, 3000K or 4000K model codes, and DALI, Casambi and emergency options for architectural, retail and hospitality interiors.
Compare product →
adjustable high-CRI LED downlight
Flexi
Flexi is an adjustable high-CRI LED downlight with Philips technology, Ra90 colour accuracy, adjustable beam control, DALI, Casambi wireless and emergency options for office, retail and heritage interiors.
Compare product →
adjustable framelight downlight
Frame
Frame is an adjustable framelight downlight for architectural and commercial lighting applications where precise light control, low glare, and high performance are essential.
Compare product →Specification questions
Quadra details worth checking.
Direct answers for consultants, contractors and commercial lighting buyers.
2 configurations are listed: QUADRA.001, QUADRA.002.
The product family covers 750–775 lm. Colour-temperature choices are 3000K / 4000K.
Control options include Mains dimming, DALI, SwitchDIM, DSI, Casambi. Each option requires the matching control gear and wiring arrangement.
Emergency options include Three-hour emergency, Self-test emergency, DALI emergency. Select the emergency requirement separately from the base model and normal control method.
The Quadra requires a 70 mm ceiling cut-out. Check the dimensional drawing and installation guide before cutting the ceiling.
Configure the fitting, enter the quantity and use Request a quote. The enquiry form opens with the selected product code and quantity already included. You can also email info@lumenloop.co.uk or call 02045 721 554.
Yes. The Quadra datasheet is linked in the hero, configurator and technical section.
Our average lead time is 10 working days for standard product configurations. This excludes custom accessories, custom finishes and other custom variations; contact us to confirm timing for non-standard requirements.
